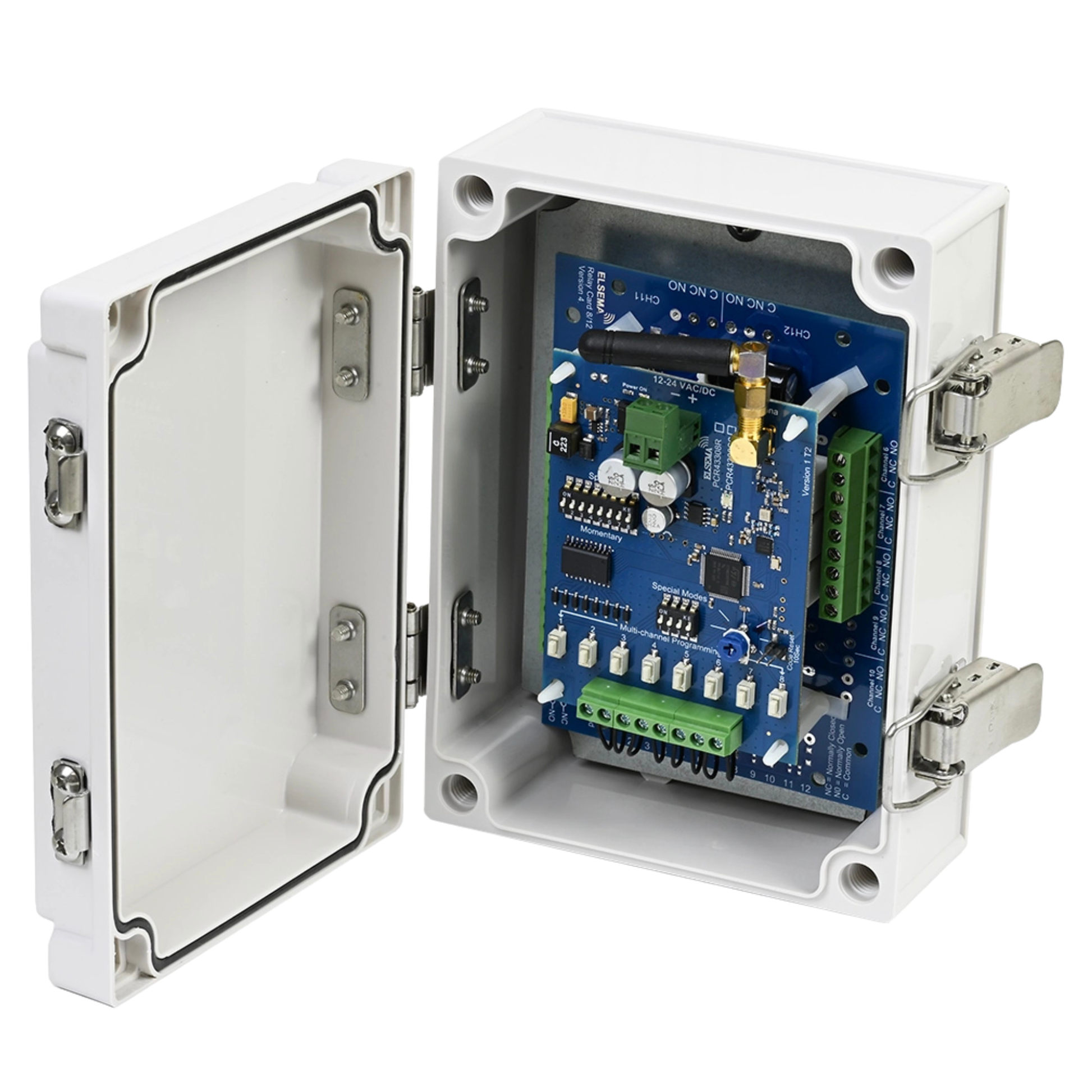

PCR43308RE - Elsema Penta 8 Channel Receiver with IP66 Enclosure
The Elsema PCR43308RE is a genuine Elsema 8 channel Penta receiver supplied in a durable weatherproof enclosure, making it ideal for standalone installations where multiple devices need to be controlled from a single receiver. Featuring secure 433MHz Frequency Hopping Spread Spectrum (FHSS) technology, eight independent changeover relay outputs and unlimited remote memory, it is suited to commercial, industrial, agricultural and advanced residential automation systems.
Compatible with Elsema PentaFOB and PentaCODE remotes, the PCR43308RE offers flexible programming with mulitple operating modes, including momentary, latching, delayed on, delayed off and security latching. Each output can be configured individually, allowing one receiver to control gates, roller doors, lighting, pumps, machinery, boom gates, access control equipment and other automated devices.
Includes:
- Genuine Elsema 8 Channel Wire-In Receiver in IP66 Enclosure
- 1 x Micro Antenna
- Programming Instructions
Key Features:
- Eight Independent Channels
- 433MHz Frequency Hopping
- Dual Coding Options
- Unlimited Remote Pairing
- IP66-Rated Weatherproof Enclosure – Designed for outdoor and industrial environments.
- Configure for momentary or latching operation.
- Antenna Diversity – Ensures extended range and robust signal reliability.
- Diagnostic LEDs
Compatible with:
This receiver is compatible with either the PentFOB or PentaCODE series
- Elsema PentaFOB Keyring
- Elsema PentaFOB Waterproof
- Elsema PentaFOB Handheld
- Elsema Hardwired PentaFOB
- Elsema PentaCODE
- Elsema Hardwired PentaCODE
Not compatible with:
- Elsema KEY/FMT 27Mhz Series
- Elsema Multicode 915MHZ Series
- Elsema Gigalink 433MHz Series
- Elsema FMT 151MHz Series
Ideal Applications:
- Automatic Gates
- Sliding Gates
- Swing Gates
- Boom Gates
- Commercial Gates
- Apartment Complexes
- Industrial Sites
- Warehouses
- Mining Equipment
- Concrete Pump Trucks
- Tilt Tray Trucks
- Water Trucks
- Agricultural Equipment
- Irrigation Control
- Pump Systems
- Lighting Control
- Roller Doors
- Roller Shutters
- Access Control
- Security Systems
- Fire Systems
- Machinery Control
Connection Diagram:
Technical Specifications:
| Supply Voltage | 12 – 24 Volts AC or DC |
| Standby Current | 15 mA stand by at 24VDC |
| Current Consumption | 91 mA with all relays “On” |
| Frequency Band | 433.100 to 434.700MHz |
| Operating Temperature Range | -5 to 50°C |
| Receiver Memory Storage | Unlimited Remotes |
| Decoding Systems | Encrypted 17 billion codes combinations or On board 12-way code switch |
| Connections | Supply is a screw type terminal block Relay outputs are plug-in type terminal block |
| Outputs | 8 change over relay outputs, rated at 10 Amps 240VAC each. |
| Relay Contacts | Common (C), Normally Closed (NC) & Normally Open (NO) |
| IP Rating | IP66 |
| Dimensions | |
| Warranty | 12 Months Manufacturers Warranty |
Downloads:
Frequently Asked Questions:
Can I control 8 separate devices?
Yes. Each relay operates independently and can control a separate output.
Does the PCR43308R work with PentaFOB remotes?
Yes.
Does it work with PentaCODE remotes?
Yes.
Can multiple buttons control one relay?
Yes.
Can one button control multiple relays?
Yes.
Can I use this for truck equipment?
Yes. It's commonly used on:
- tilt trays
- water carts
- concrete pumps
- mining vehicles
Is it suitable for apartment complexes?
Yes.
Does it replace the Gigalink receiver?
No.
Is this supplied in an enclosure?
Yes, This receiver is supplied within a IP66 Enclosure.
