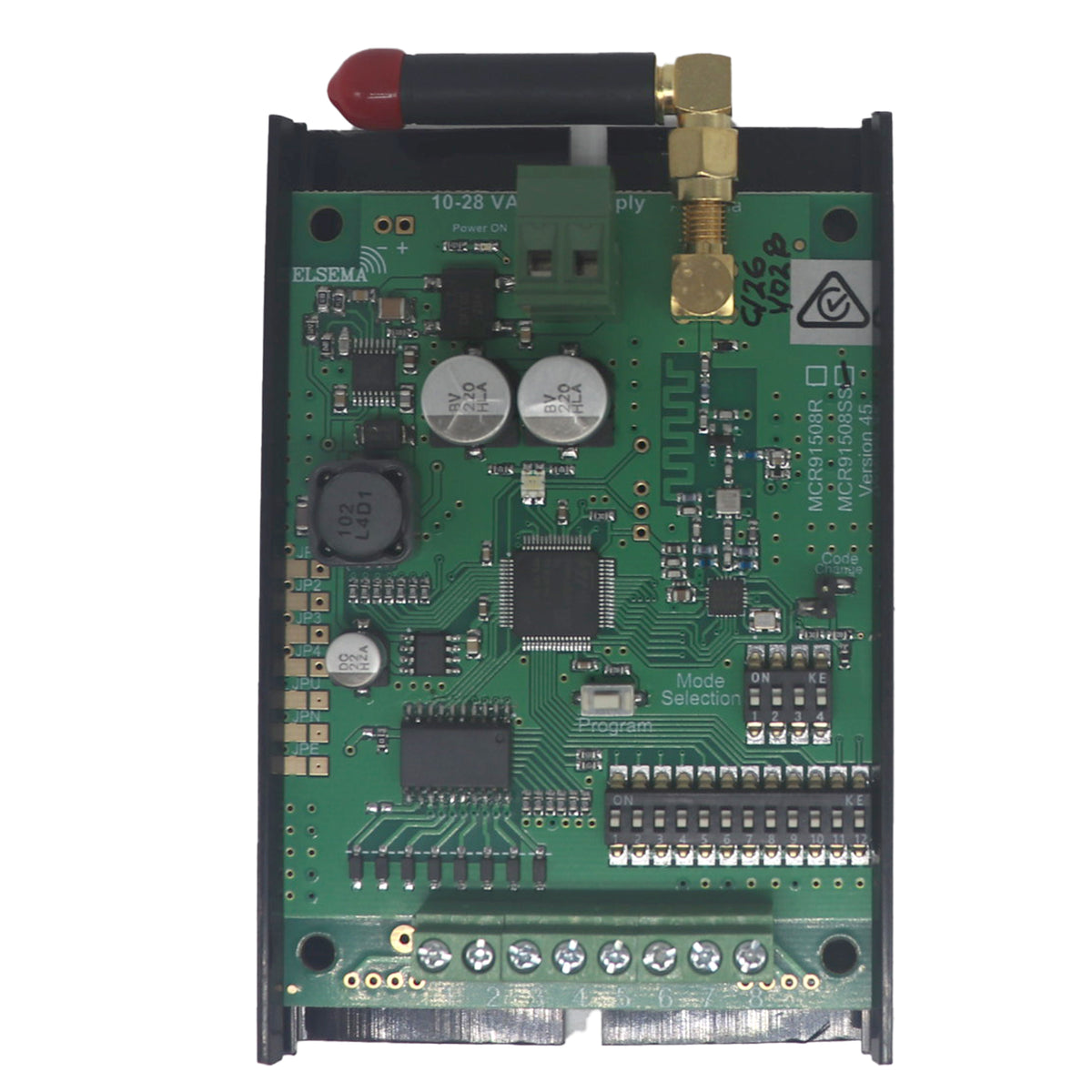

• Elsema MCR91508SS 8 channel 915MHz Multicode receiver with open collector outputs

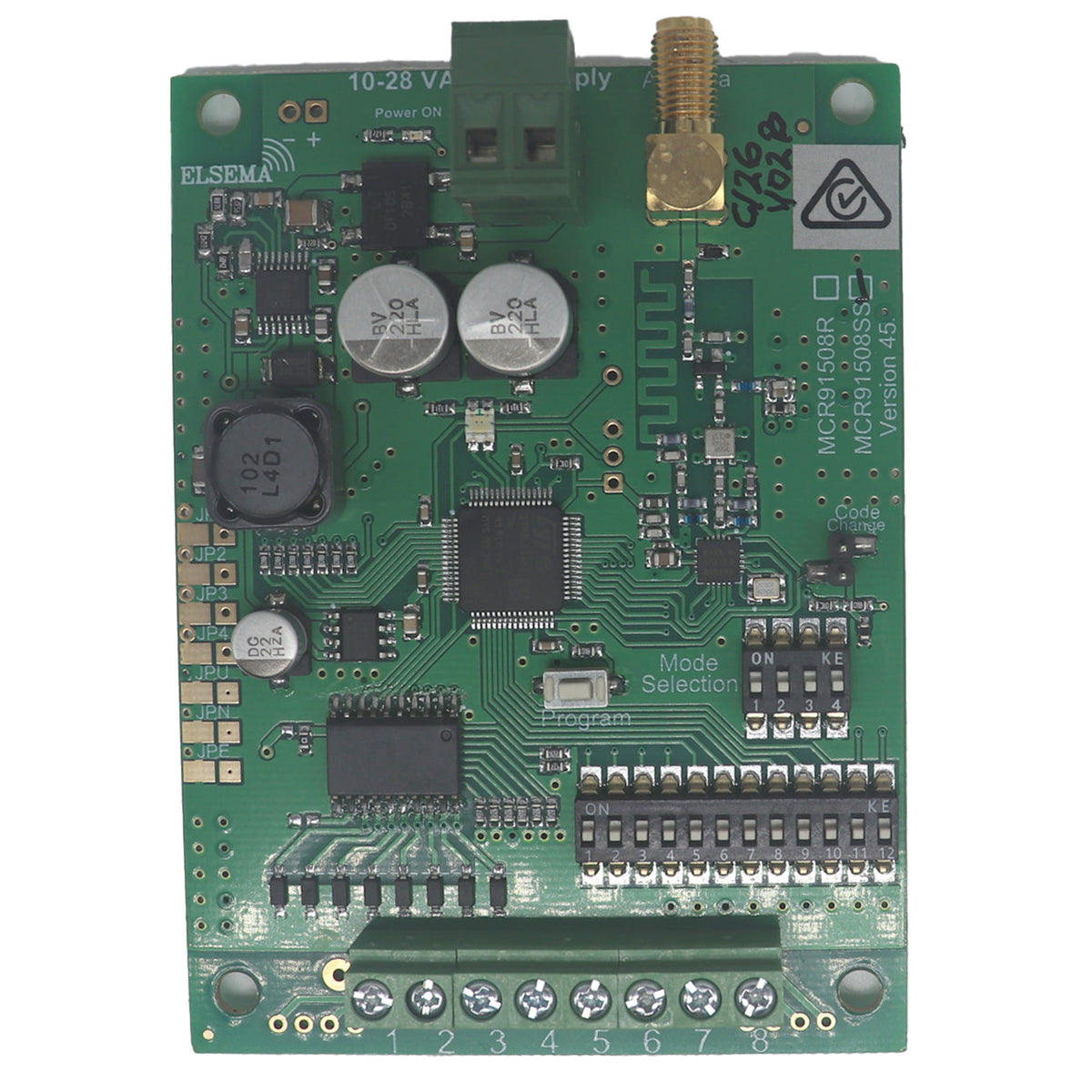

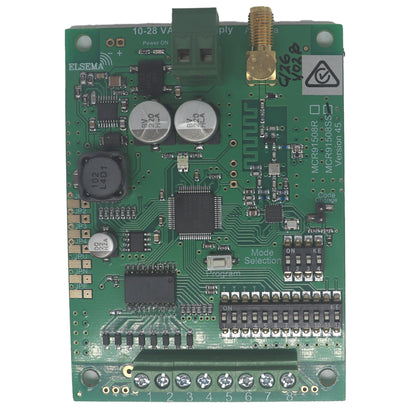

  • Elsema MCR91508SS receiver circuit board showing terminal connections and coding switches
1 2

Elsema Multicode MCR91508SS - 8 Channel Open Collector Receiver

Elsema Multicode MCR91508SS - 8 Channel Open Collector Receiver

$122.95
$122.95
Sale Read More
Duties and taxes included. Shipping calculated at checkout.

This is a low demand item - Stock will need to be sourced from Australian suppliers to fulfil your order. Please allow additional time for dispatch. Contact us for ETA Prior to ordering if required urgently.


Elsema MCR91508SS – 8 Channel 915MHz Multicode Receiver

The Elsema MCR91508SS is an 8 channel wireless receiver featuring open collector outputs for low-voltage switching, industrial automation and electronic control systems.

Operating on Elsema's 915MHz Multicode frequency-hopping system, the receiver supports both 12-way DIP switch coding and encrypted wireless coding. Its eight independent outputs allow multiple functions to be controlled using compatible Elsema MCT915 series transmitters.

What’s Included:

  • 1 × Brand New Genuine MCR91508SS – 8 channels with open collector outputs
  • 1 x Quickmount
  • Step-by-step Wiring Programming Instructions

What's included with the Multicode MCR91508SS

Key Features:

  • 8 open collector outputs: up to 125mA per channel, with all eight outputs cabable of operating simultaneously.
  • 915MHZ Multicode frequency hopping across the Australian 915-928MHz band
  • Dual Coding: 12 Way Dipswitch or Encrypted Coding
  • Selectable Operating Modes: Momentary and Latching
  • Long Range Operation: up to 400m in clear line of sight conditions with suitable antenna.
  • Flexible Power Supply: 12–24V AC/DC.
  • Signal Indication: on board red LED confirms reception of a valid signal.

Compatible with:

Ideal Applications:

  • Automatic gates and garage doors
  • Access control and security systems
  • Pumps, irrigation and motor control
  • Lighting and remote switching
  • Industrial machinery and automation
  • Agricultural and commercial equipment
  • Long-range remote control applications

Connection Diagram:

Elsema MCR91508SS 8 channel open collector receiver wiring and terminal connection diagram

Technical Specifications:

Frequency 915 to 928 MHz
Code Type 12-way code switch (4096 Codes) or Encrypted Coding (Over 16 Million Codes)
Body Type Receiver
Number of Channels 8
Enclosure Not Included
Size 95 x 70 x 27mm
Power Supply 12 – 24 Volts AC or DC
Current Consumption  30 mA stand by at 12 VDC
Connection Pluggable Terminal Block
Output Eight outputs can be ON simultaneously with each output being 125mA.  Outputs can hold 40 Volts in OFF state.
Range Up to 400m in clear line of sight
Warranty 12 months Manufacturers Warranty
