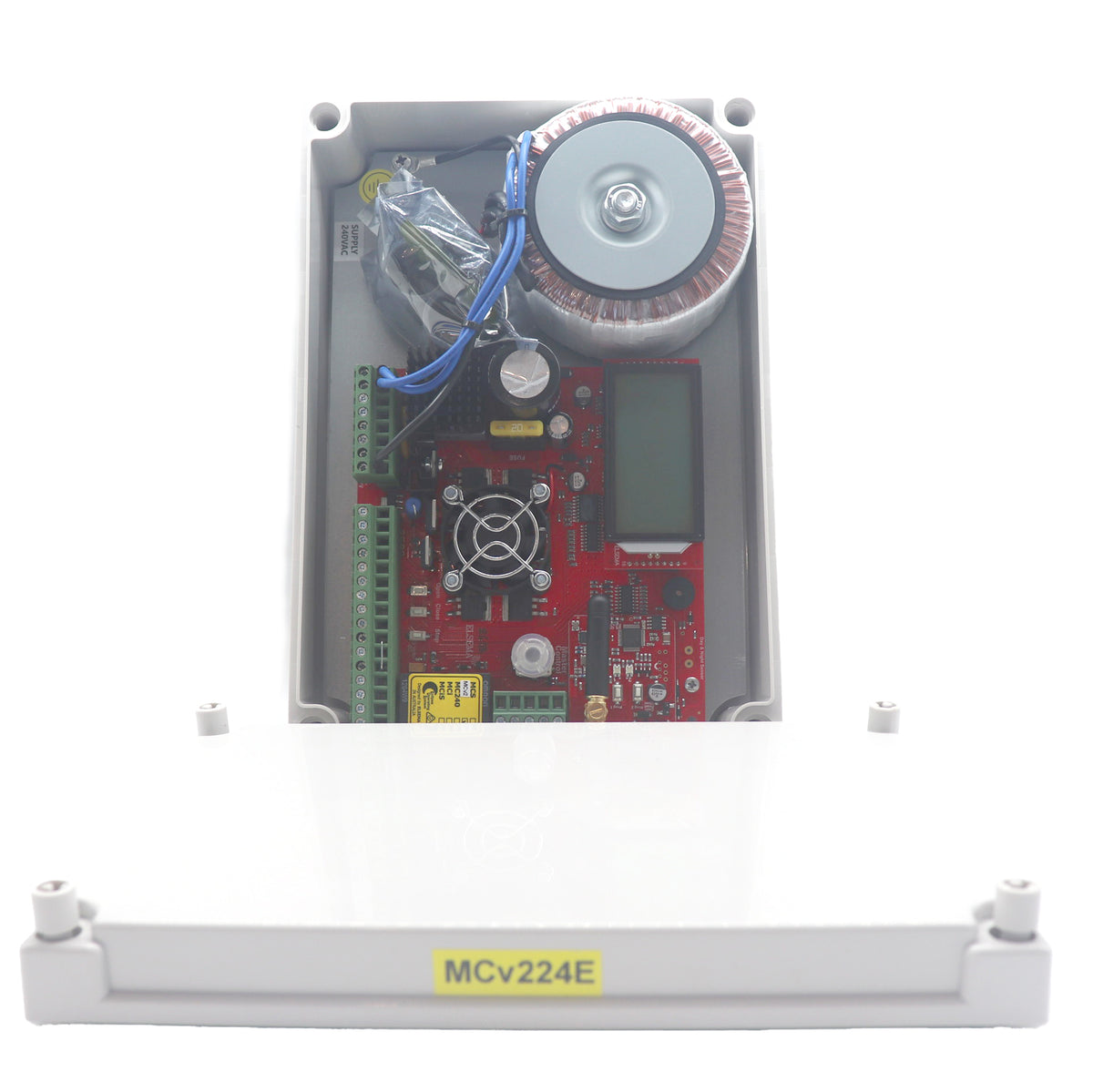

• Elsema MCv224E 24V gate control board with transformer and IP66 enclosure

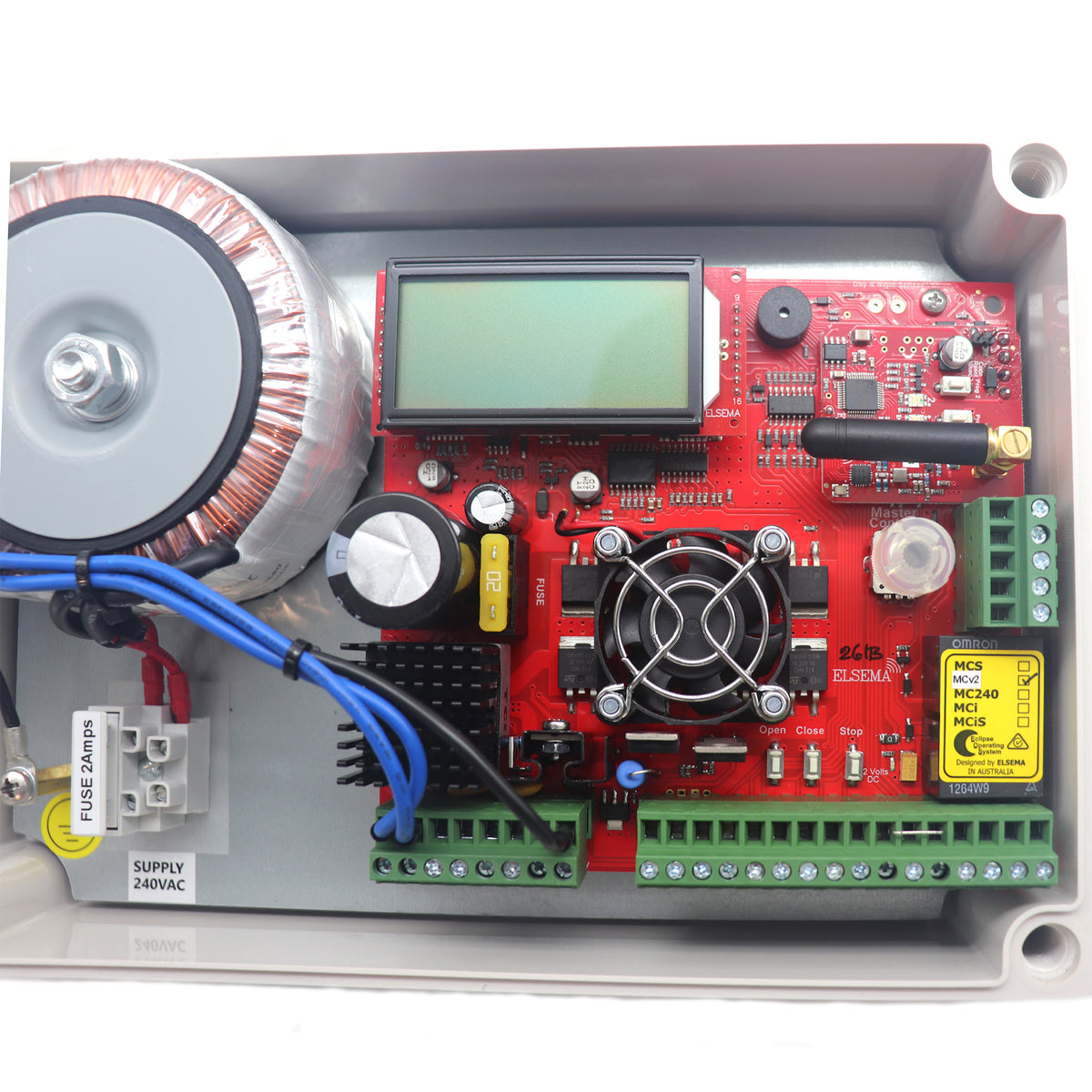

  • Inside Elsema MCv224E enclosure showing MCv2 control board and 24V transformer

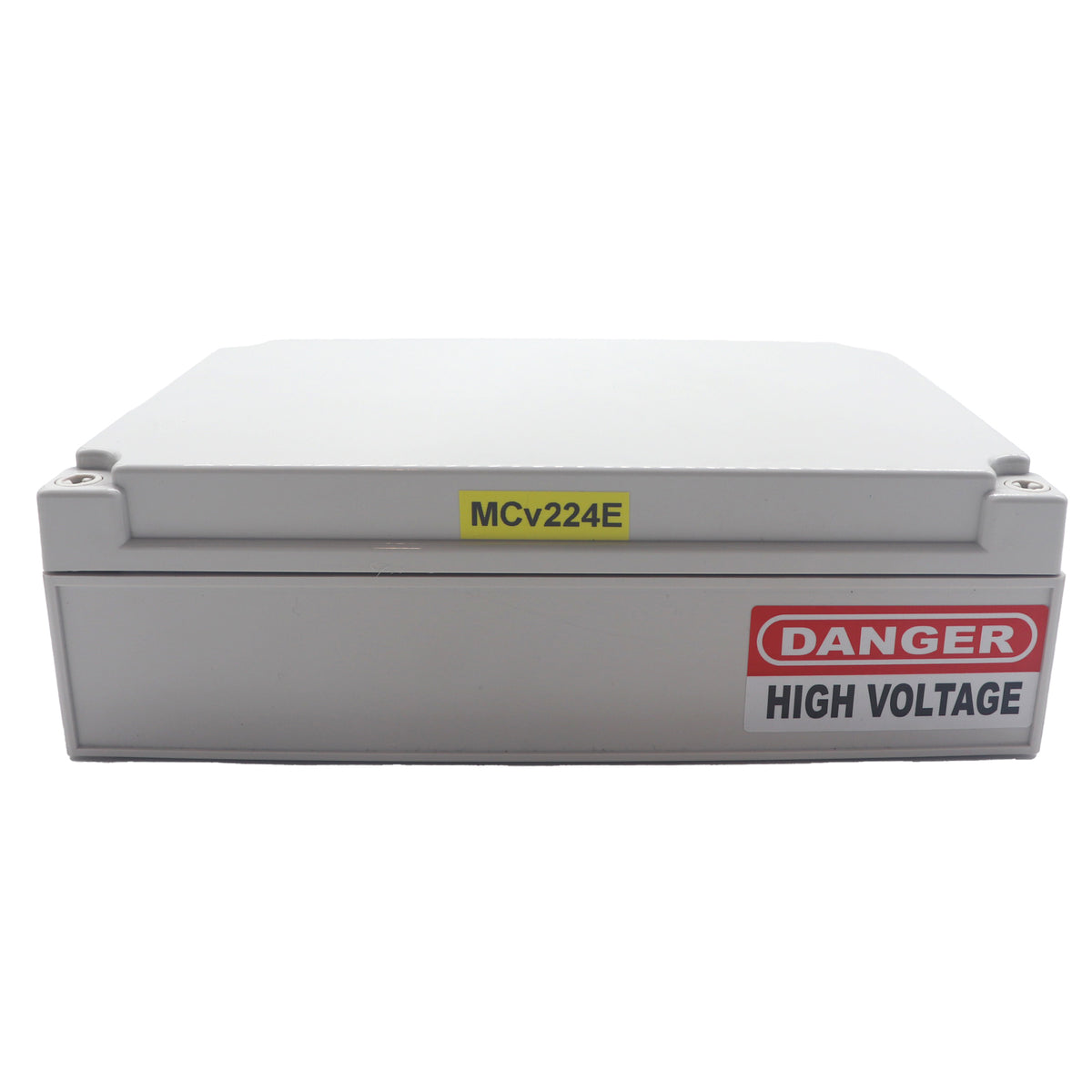

  • Elsema MCv2 24V control board for high-powered swing and sliding gate motors

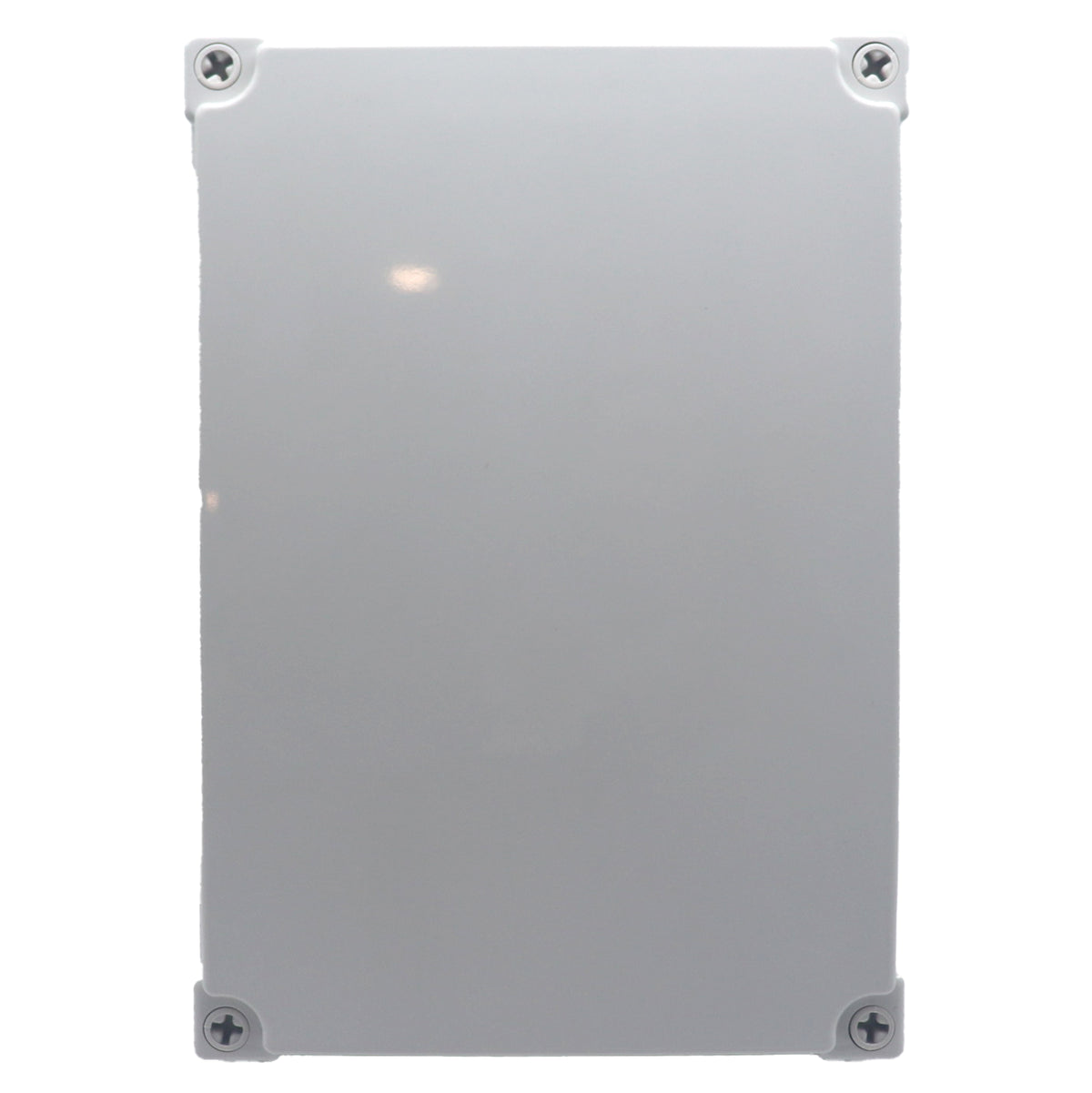

  • Elsema MCv224E gate controller with transformer and weather-resistant enclosure

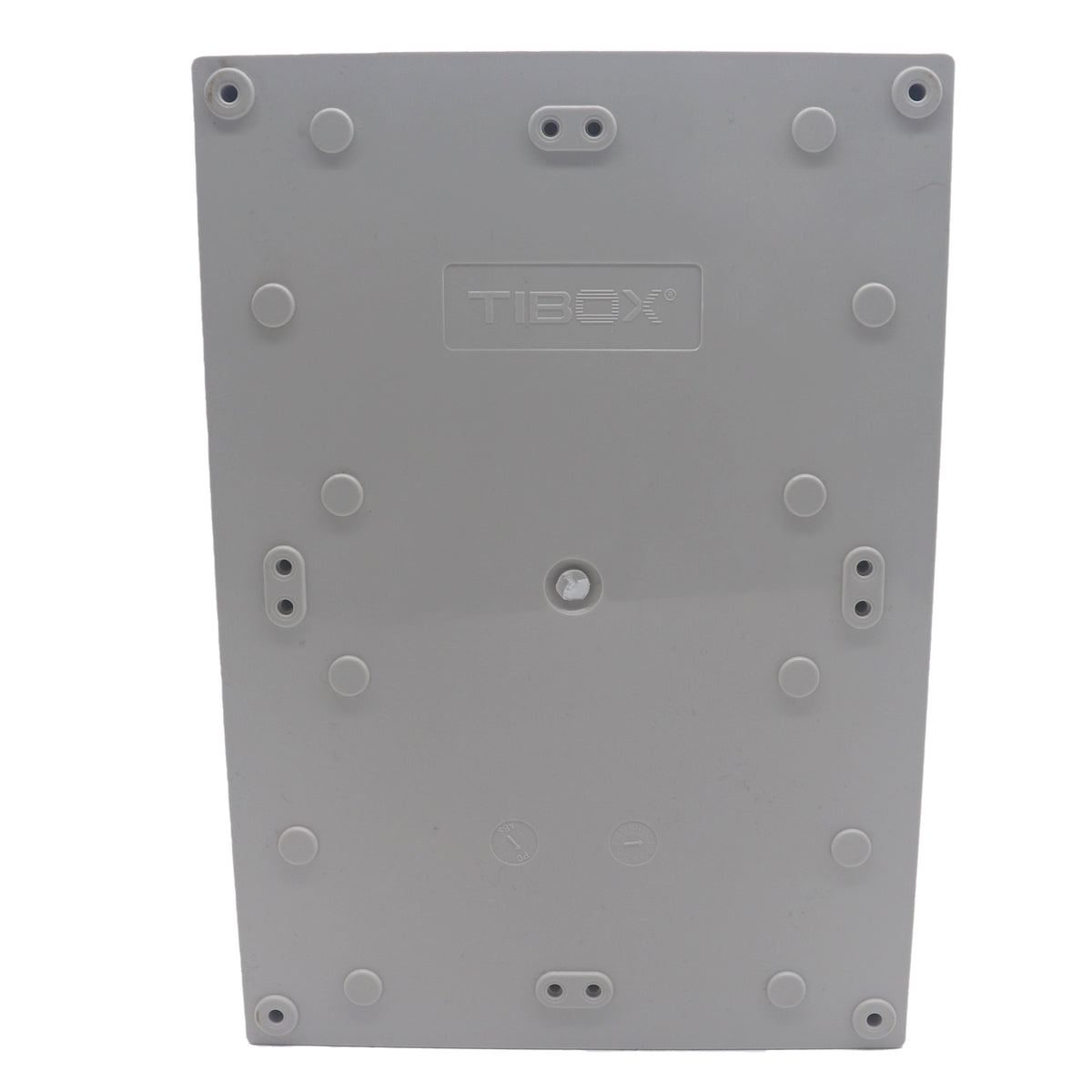

  • Elsema MCv224E Control Board in Box (Back View)
1 5

Elsema MCv224E Control Board with Transformer and Enclosure

Elsema MCv224E Control Board with Transformer and Enclosure

$389.95
$389.95
Sale Read More
Duties and taxes included. Shipping calculated at checkout.

This is a popular item that is regularly replenished from our Australian supplier. It is always available to purchase, even if our on-hand warehouse stock is low. If you need this item urgently, please contact us for current stock levels.

Elsema MCv224E 24V Gate Control Board with Transformer & Enclosure

The Elsema MCv224E is a complete 24V gate control system for larger single or double automatic gates over 120W, supplied with the Elsema Eclipse MCv2 Control Board, 24V transformer and weather resistant IP66 enclosure.

Designed for 24V DC swing and sliding gate motors, the MC24E provides advanced motor control including soft start and soft stop, adjustable speed and force, pedestrian access, auto-close, obstruction sensing and support for photoelectric safety beams.

The Eclipse Operating System uses a large LCD display and menu driven programming to make setup and adjustments easier for installers.

The MCv224E is suitable for new gate automation installations, replacement control system and upgrades where a versatile 24V controller is required.

Includes:

  • 1 x Elsema Eclipse MCv2 control board
  • 1 x 24V transformer
  • 1 x IP66 rated weather resistance enclosure
  • Setup and Programming Instructions

Note:  Remotes are not included

Key Features:

  • Genuine Elsema gate controller
  • Designed for 24V DC gate motors
  • Controls single or double gates
  • Suitable for swing and sliding gate automation
  • Eclipse Operating System (EOS)
  • Large 4-line LCD display
  • One-touch setup and intelligent gate profiling
  • Soft start and soft stop
  • Adjustable motor speed and force
  • Adjustable auto-close settings
  • Pedestrian opening function
  • Adjustable obstruction sensing
  • Supports limit switches or mechanical stops
  • Push button, open, close and stop inputs
  • Photoelectric safety beam inputs
  • Adjustable electric lock output
  • Courtesy light output
  • 12V and 24V DC accessory outputs
  • Low standby current
  • Built-in battery charging capability
  • Password protection and holiday mode
  • Service counters for maintenance monitoring
  • IP66 enclosure for protected installations

Ideal Applications:

The Elsema MCv224E can be used with a wide range of 24V automatic gate systems, including:

  • Single swing gates
  • Double swing gates
  • Sliding gates
  • Residential driveway gates
  • Commercial gate automation
  • Replacement or upgrade control systems
  • Custom 24V automation applications

Compatible with:

Dimensions of MC Control Board:

MC Dimensions

Technical Specifications:

Input Voltage 12 or 24 Volts AC/DC
Motor Voltage 12 or 24 Volts DC
Gate Type Single or Double
Display & Control Large LCD with One touch control
Gate Limit Options Limit Switch or Current Sensing
Compatible Remotes PentaFOB or PentaCODE
Control Card Dimensions 140 x 130 x 45mm
Operating System Eclipse Operating System
Warranty 12 Months Manufacturers Warranty
