Elsema MCSv2 Control Card

Elsema MCSv2 Control Card

$349.95
$349.95
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

This is a popular item that is regularly replenished from our Australian supplier. It is always available to purchase, even if our on-hand warehouse stock is low. If you need this item urgently, please contact us for current stock levels.

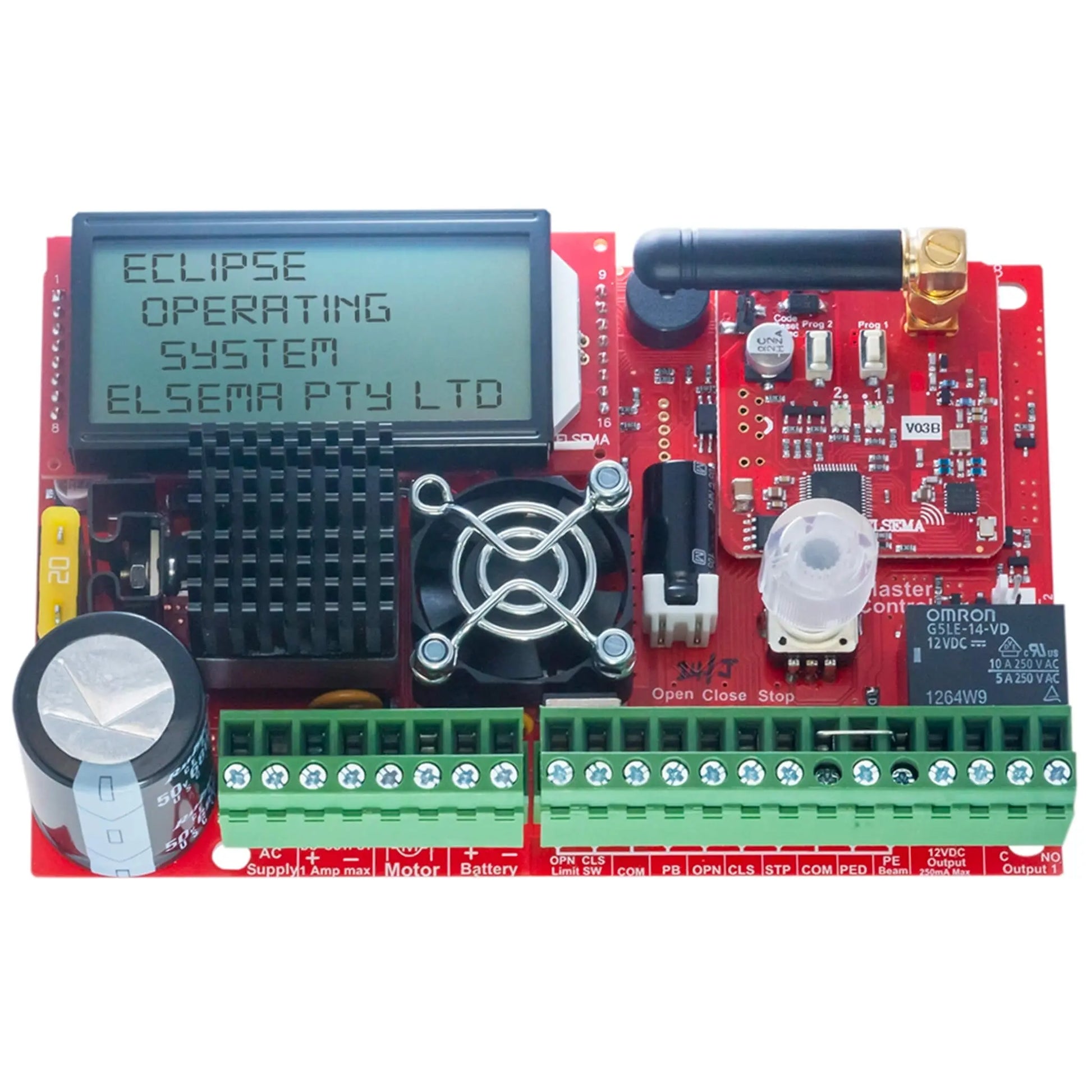

Elsema MCSv2 Control Board for single gates up to 120 W - Card Only

The Elsema MCSv2 Control Board is a powerful single gate controller designed for motors up to 120W–180W. Featuring the Eclipse® Operating System, built-in Penta receiver, soft start/stop, and advanced auto-profiling intelligence, this board delivers smooth, efficient gate automation with simple setup and flexible configuration. Ideal for residential, commercial, and solar systems using PentaFOB remotes, the MCSv2 is the perfect replacement control card for modernising or upgrading single gate installations.

What’s Included

  • 1 x Genuine Elsema MCSv2 Control Board
  • 1 x Installation Instructions

Key Features:

  • Designed for Larger Motors (120W–180W)
  • Single Gate Control
  • Eclipse® Operating System:
  • Day & Night Sensor
  • Soft Start & Stop
  • Speed & Force Adjustment
  • Large 4-Line LCD Display for setup guidance, real time status updates and diagnostic tool
  • Auto-Profiling Technology
  • Multiple Inputs
    • Push button
    • Open only,
    • Close only
    • Stop
    • Pedestrian
    • Photoelectric beam inputs.
  • Limit Switch or Mechanical Stop Support
  • Adjustable Features:
    • Auto-close timing
    • Obstruction load
    • Pedestrian access
    • Photo-beam sensitivity.
  • Programmable Outputs:
    • Control locks
    • Lights and
    • Other Accessories using adjustable outputs.
  • Additional Smart Functions:
    • Service counter
    • Password protection
    • Holiday mode, and more.

Compatible with:

The Elsema MCSv2 Control Board is compatible with all Elsema PentaFOB® remotes, including:

  • PentaFOB 1 Button Large (FOB43301L)
  • PentaFOB 1 Button Small (FOB43301)
  • PentaFOB 2 Button (FOB43302)
  • PentaFOB 4 Button (FOB43304)
  • PentaFOB 5 Button (FOB43305)
  • PentaFOB Waterproof Range

Ideal Applications:

  • Large residential or commercial single swing gates
  • Solar-powered or low-energy gate systems
  • Retrofit upgrades to replace outdated or imported control boards
  • Custom installations requiring adjustable automation logic, safety sensors, or lighting control

Dimensions:

MCSv2 Dimensions

Technical Specifications:

Input Voltage 12 or 24 Volts AC/DC
Display and Control Large LCD with One Touch Control
Control Card Dimensions 140 x 90 x 45mm
Motor Voltage 12 or 24 Volts DC
Gate Limit Options Limit Switch or Current Sensing
Operating System Eclipse Operating System (EOS)
Gate Type Single
Usable Keyring Remotes PentaFOB Series

PentaCODE Series (only as encrypted code)
Warranty 12 months Manufacturers Warranty


Downloads:
