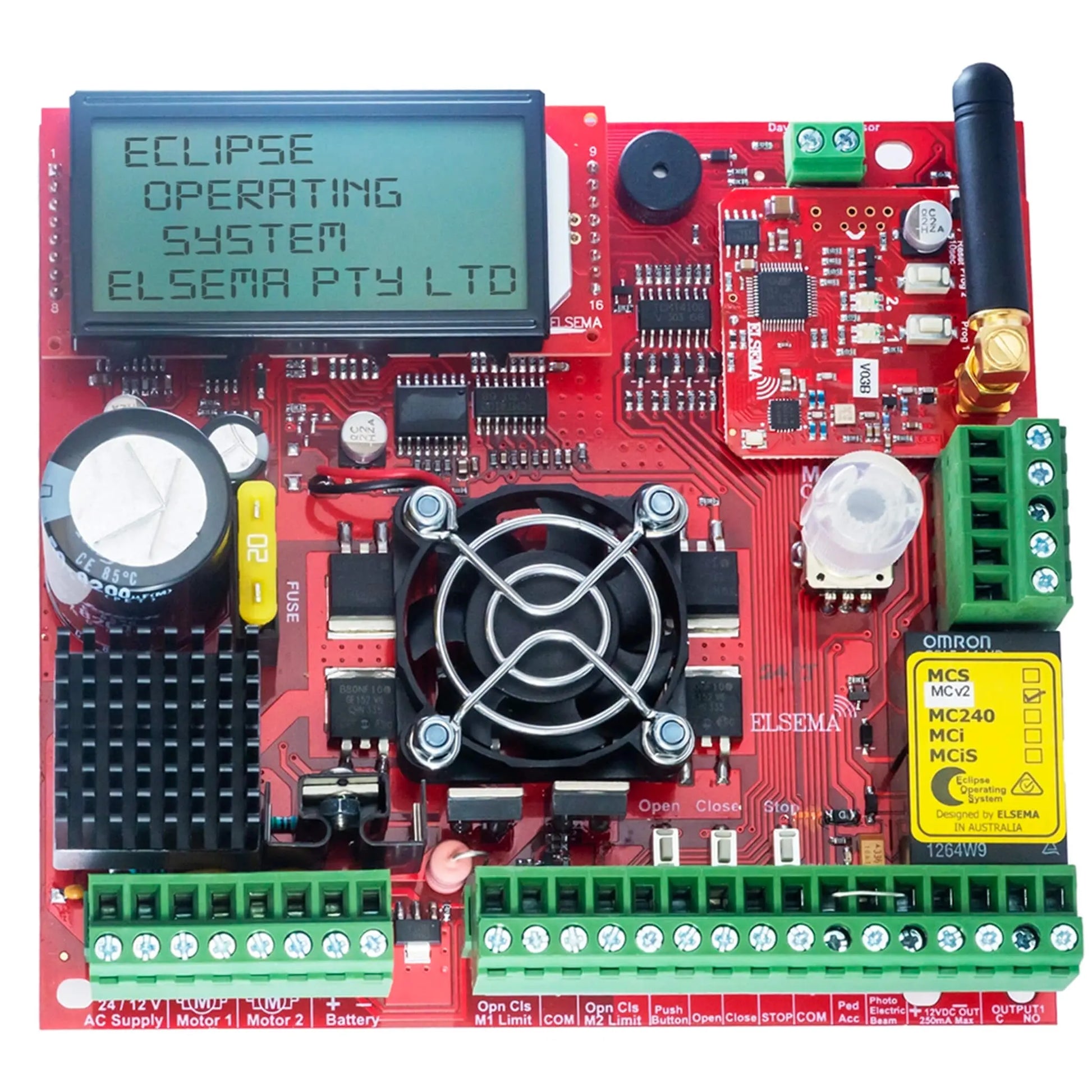

Elsema MCv2 Control Board for gates up to 180 W - Card Only
The Elsema MCv2 Control Board is a powerful Eclipse® series controller designed for single and double gate automation up to 180W. With auto-profiling intelligence, soft start/stop motion, built-in Penta receiver, LCD setup display, and low standby power ideal for solar systems, the MCv2 is a premium upgrade or replacement board for swing and sliding gates. Engineered for smooth performance, flexible programming, and reliable everyday operation.
What’s Included:
- 1 × Genuine Elsema MCv2 Control Board
- Installation Instructions
Key Features:
- Versatile Compatibility – Suitable for single or double gate systems, including larger sliding and swing motors up to 180 W.
- Eclipse Operating System – Delivers smooth performance, high reliability, and intelligent automation.
- Day & Night Sensor – Automatically adjusts operation based on ambient light.
- 12/24 V DC Motor Operation – Built-in 12 V and 24 V battery charger for backup batteries and solar systems (12 mA standby current).
- Soft Start & Stop – Extends motor life and ensures smooth gate movement.
- Speed & Force Adjustment – Tailor operation to your specific installation.
- Intuitive 4-Line LCD Display – Shows controller status, setup instructions, and service counters.
- 1-Touch Setup with Auto Profiling – Quick configuration using the latest intelligent technology.
- Comprehensive Inputs – Push button, open only, close only, stop, pedestrian, and photoelectric beam.
- Supports Limit Switches or Mechanical Stops – Flexible installation options.
- Adjustable Functions – Auto-close, obstruction load, pedestrian access, lock and courtesy light outputs, and variable photoelectric safety beam modes.
- Built-in Penta Receiver – Seamless pairing with Elsema PentaFOB® remotes (1-, 2-, 4-, and 5-button, including waterproof versions).
- Energy-Saving Mode – Reduces running costs, ideal for solar gates.
- Extra Features – Service counters, password protection, holiday mode, plus many more professional-grade functions.
Compatible with:
The Elsema Eclipse MCv2 Board with LCD screen is compatible with larger sliding and swing gate motors and works seamlessly with the following Elsema Pentafob remotes:
- Elsema Pentafob 1-Button Large
- Elsema Pentafob 1-Button Small
- Elsema Pentafob 2-Button
- Elsema Pentafob 4-Button
- Elsema Pentafob 5-Button
- Elsema Pentafob Waterproof Remotes
Ideal Application:
- Residential & Commercial Driveways – Reliable control of single or double swing or sliding gates for homes, apartment complexes, or offices.
- Industrial & Agricultural Properties – Heavy-duty performance for farm gates, warehouse entrances, and large perimeter access points.
- Solar-Powered Gate Systems – Ultra-low standby current (12 mA) makes it ideal for off-grid or solar installations.
- High-Security or Multi-User Sites – Built-in Penta receiver with support for multiple remotes ensures flexible access management.
- Automation Upgrades & Retrofits – A modern replacement board for older Elsema or third-party systems, providing advanced features like auto-profiling, obstruction sensing, and password-protected settings.
Dimensions:
Technical Specifications:
| Input Voltage | 12 or 24 Volts AC/DC |
| Motor Voltage | 12 or 24 Volts DC |
| Gate Type | Single or Double |
| Display & Control | Large LCD with One Touch Control |
| Gate Limit Options | Limit Switch or Current Sensing |
| Usable Keyring Remotes | PentaFOB and PentaCODE |
| Control Card Dimensions | 140 x 130 x 45mm |
| Operating System | Eclipse Operating System (EOS) |
| Warranty | 12 months Manufacturers Warranty |
