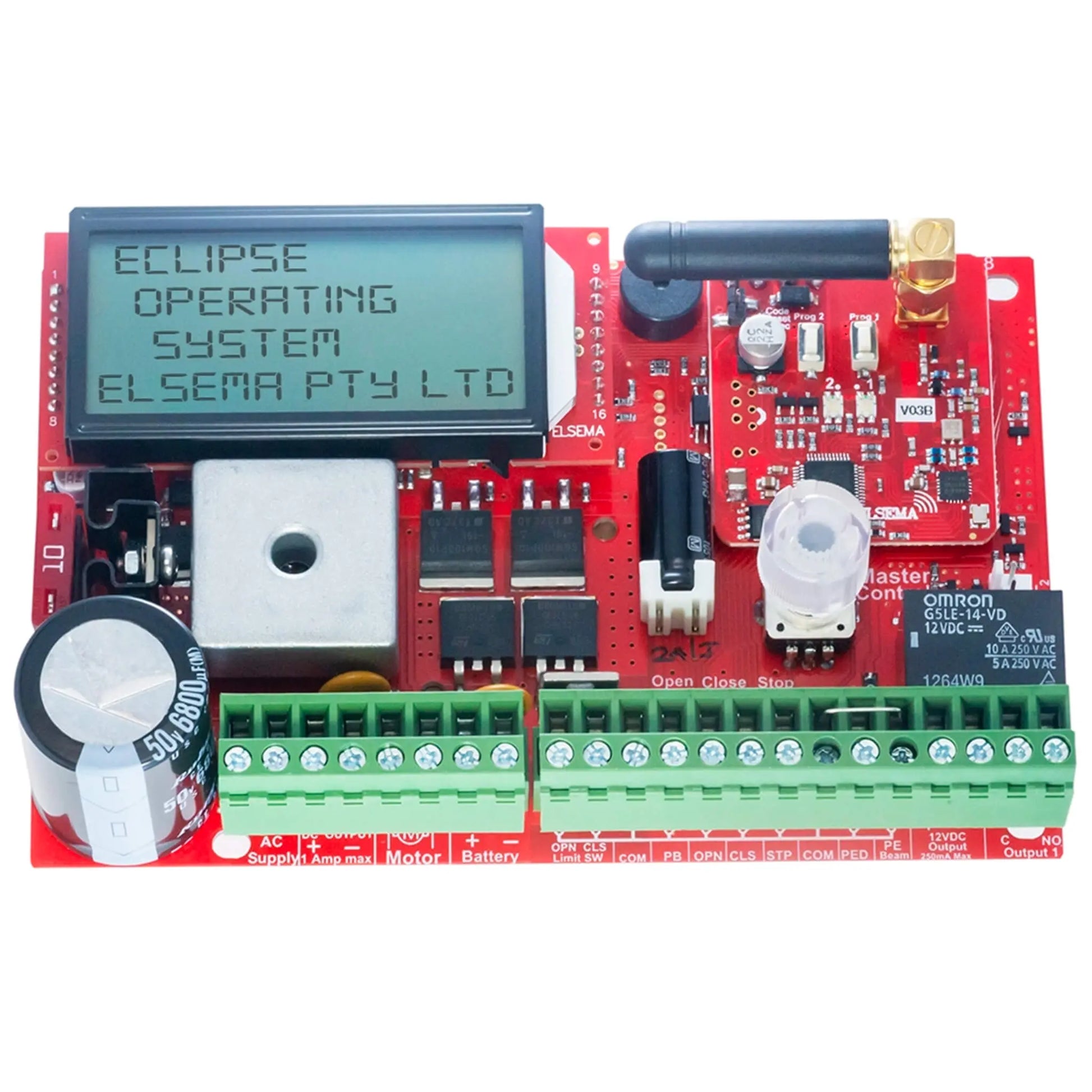

Elsema MCS Control Board

Elsema MCS Control Board

$239.95
$239.95
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

This is a popular item that is regularly replenished from our Australian supplier. It is always available to purchase, even if our on-hand warehouse stock is low. If you need this item urgently, please contact us for current stock levels.

MCS - Elsema 12//24V Control Board (Card Only)

The Elsema MCS 12/24V Control Board is a genuine Eclipse® controller designed for single motor gate automation. With soft start/stop, LCD-based setup, adjustable speed/force control, and support for safety beams and access inputs, it provides smooth and reliable performance for swing gates, sliding gates, garage doors, and barrier systems. Supplied as the control card only, ideal for repairs, upgrades, or custom automation builds.

Includes:

  • 1 x Elsema Eclipse MC Board (MCS) card only.
  • Installation Instructions

Key Features:

  • Genuine Elsema Original Equipment
  • Single motor operation – ideal for gates, doors, and barriers
  • Eclipse Operating System (EOS) with menu-driven interface
  • Soft start & stop for smooth operation
  • Adjustable speed & force settings
  • Large 4-line LCD display for live system status & setup
  • 1-touch setup control for quick installation
  • Multiple inputs: push button, open only, close only, stop, pedestrian & photoelectric beam
  • Supports limit switch inputs or mechanical stops
  • Programmable auto-close & pedestrian access modes
  • Adjustable lock & courtesy light outputs
  • Variable photoelectric safety beam functions
  • 12V DC output for powering accessories
  • Service counters, password protection & holiday mode

Ideal Applications:

The Elsema Eclipse MCS is perfect for a wide range of automatic access control systems, including:

  • Sliding Gates – Residential, commercial, or industrial gates requiring smooth and reliable single motor control.
  • Swing Gates – Provides soft start/stop, pedestrian access, and safety beam integration for secure operation.
  • Overhead & Garage Doors – Precise motor control with adjustable force and auto-close functions.
  • Industrial Barriers & Boom Gates – Robust controller suitable for high-traffic security and access points.
  • Custom Automation Systems – Conveyor belts, warehouse doors, or other applications requiring intelligent single motor operation.

Dimensions:

MCS Dimensions

Technical Specifications:

Input Voltage 12 or 24 Volts AC/DC
Motor Voltage 12 or 24 Volts DC
Gate Type Single
Display and Control  Large LCD with one touch control
Gate Limit Options Limit Switch or Current Sensing
Control Card Dimensions 140 x 90 x 45mm
Operating System Eclipse Operating System
Remote Compatibility Penta FOB and Penta CODE
Warranty 12 Months Manufacturers Warranty
