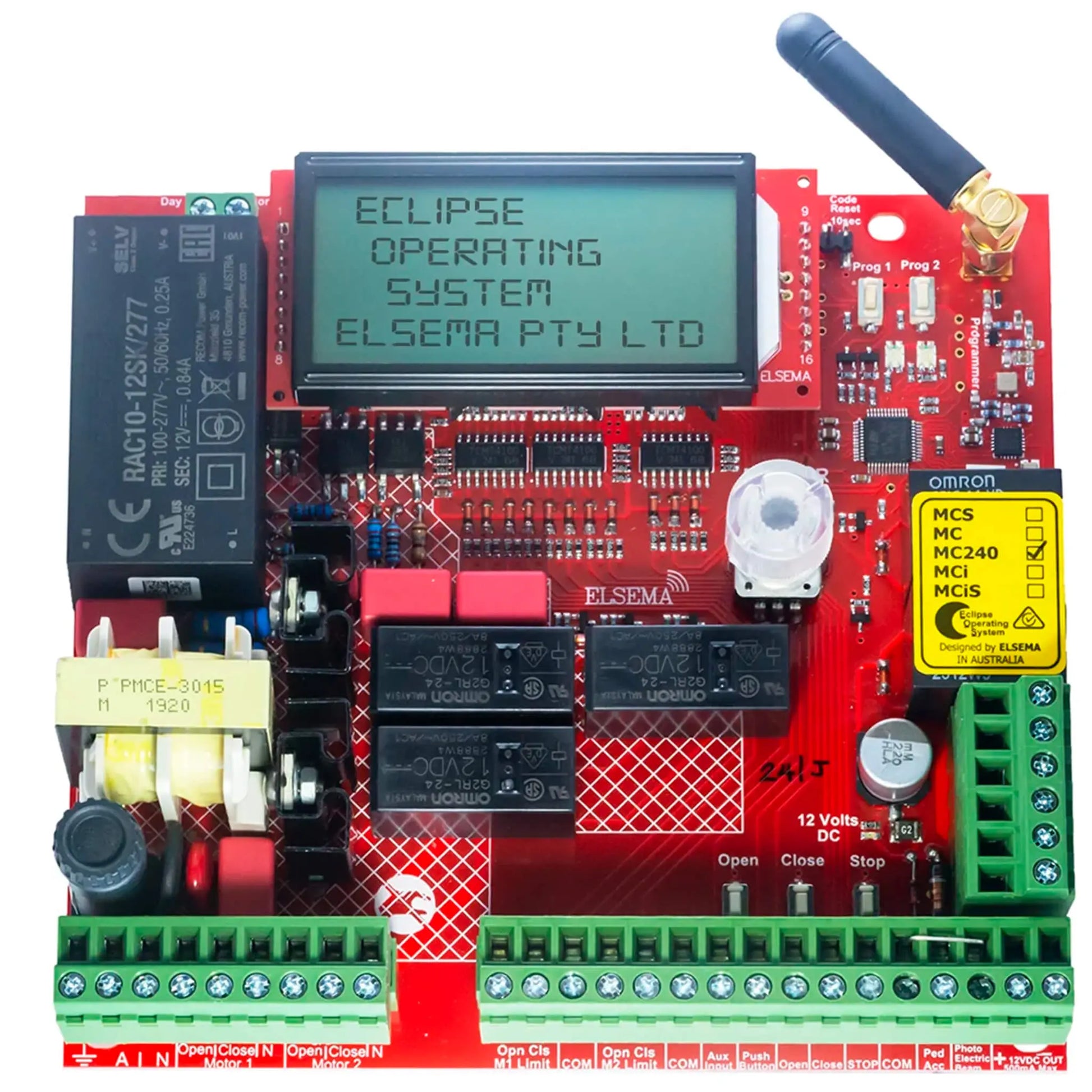

Elsema MC240 Control Board

MC240 - Elsema 240V Control Board (Card Only)

The Elsema MC240 Control Board is a genuine 240V Eclipse® system controller designed for swing and sliding gate automation. Featuring soft start/stop performance, adjustable speed and force, multi-input control options, and user-friendly LCD programming, this board delivers smooth, reliable operation for residential, commercial, and industrial gate systems. Supplied as the control card only, ideal for replacement or upgrade installations.

Includes:

• 1 x Elsema Eclipse MC Board 240 (MC240) card only.
• Installation Instructions

Key Features:

• Genuine Elsema Original Equipment
• Suitable for swing and sliding gates
• Eclipse® Operating System (EOS) with user-friendly menu
• Day & Night Sensor (DNS) for adaptive performance
• Motor soft start & stop for smooth operation
• Adjustable speed & force settings
• 4-line LCD display with live status and setup instructions
• 1-touch setup control for quick installation
• Intelligent profiling technology for optimised performance
• Multiple inputs: push button, open only, close only, stop, pedestrian & photoelectric beam
• Supports limit switch inputs or mechanical stops
• Configurable auto-close, obstruction load & pedestrian modes
• Adjustable lock & courtesy light outputs
• Variable photoelectric safety beam functions
• Energy saving mode to lower running costs
• 12V DC output to power accessories

Ideal Applications:

• Swing & Sliding Gates – residential, commercial, or industrial use
• Overhead & Garage Doors – precise control with auto-close & safety features
• Boom Gates & Barriers – reliable high-traffic access control
• Custom Automation Systems – conveyors, warehouse access, or entry systems requiring advanced motor control

Dimensions:

Technical Specifications:

Downloads:
