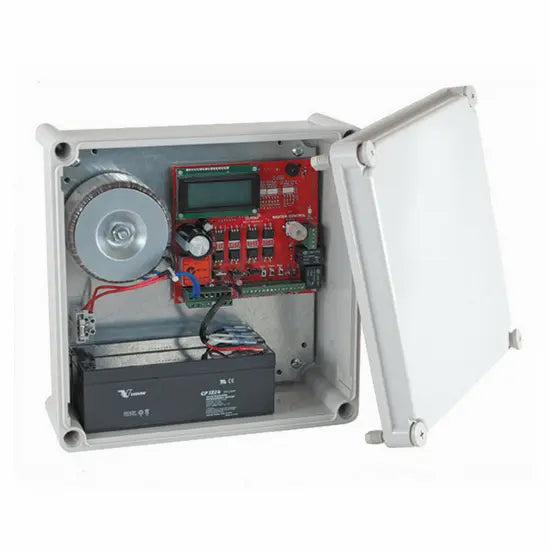

MC24E7: Elsema 24V Control Board with Transformer, 7Ah Battery and Enclosure

The Elsema MC24E7 Control Board Kit is a complete 24V automation solution featuring the Eclipse® control board, IP66 weatherproof enclosure, 24V transformer, and 7Ah backup battery for uninterrupted operation. Designed for single or double swing and sliding gates, it offers smart soft start/stop control, day/night sensing, low energy standby for solar use, and flexible input/output options for beams, locks, and accessories. Ideal for upgrades, new installs, and high-security automation sites.

Includes:

  • 1 × Elsema Eclipse Double MC Board (MC) card
  • IP66-rated weatherproof plastic enclosure
  • Transformer for 24V motors
  • 24V 7.0Ah backup battery with built-in charger
  • Installation instructions

Key Features:

  • Eclipse® Operating System (EOS): User-friendly, menu-driven system with live performance feedback.
  • 24V DC Motor Compatibility: Designed for both double swing and sliding gate systems.
  • Soft Start & Stop: Reduces wear on motors and improves smooth operation.
  • Day/Night Sensor (DNS): Adapts gate operation to lighting conditions.
  • Versatile Inputs: Supports push button, open-only, close-only, stop, pedestrian, and photoelectric beam inputs.
  • Safety & Security: Adjustable obstruction sensing, lock control, pedestrian access, service counters, password protection, and holiday mode.
  • Flexible Outputs: Adjustable lock and courtesy light outputs; variable photoelectric safety beam functions.
  • Accessory Support: Provides 24V DC output to power additional accessories.
  • Energy Efficient: 12mA standby current—perfect for solar gate systems.
  • Weather Resistant: IP66 enclosure for long-lasting outdoor protection.
  • Battery Backup: Built-in 24V charger with included 7Ah backup battery for reliable operation during blackouts.

Ideal Applications:

The Elsema MC24E7 is designed for a wide range of installations, including:

  • Residential driveways – automatic swing or sliding gates
  • Commercial access points – secure entry and exit for businesses
  • Industrial facilities – reliable control of heavy-duty gate systems
  • Solar-powered gates – energy-efficient operation with low standby current
  • High-security sites – enhanced control with encrypted safety features

Dimensions of MC Control Board:

MC Dimensions

Technical Specifications:

Input Voltage 24 Volts AC/DC
Motor Voltage 24 Volts DC
Gate Type Single or Double
Display & Control Large LCD with One touch control
Gate Limit Options Limit Switch or Current Sensing
Compatible Remotes PentaFOB or PentaCODE
Control Card Dimensions 140 x 130 x 45mm
Operating System Eclipse Operating System
Warranty 12 Months Manufacturers Warranty
