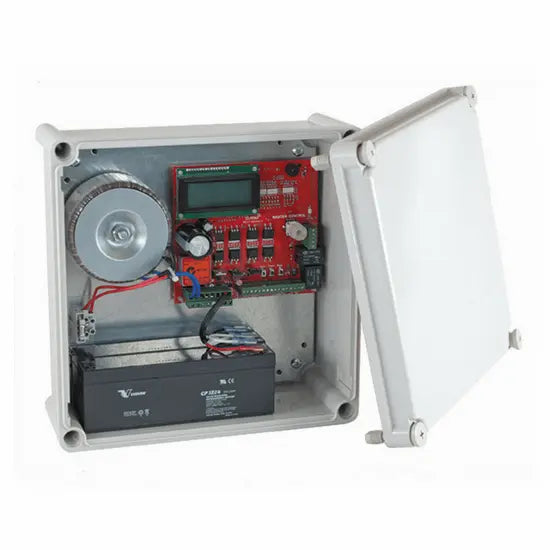

Elsema MC12E7 Control Board with Transformer and Battery
Elsema MC12E7 Control Board with Transformer and Battery
This is a popular item that is regularly replenished from our Australian supplier. It is always available to purchase, even if our on-hand warehouse stock is low. If you need this item urgently, please contact us for current stock levels.
Couldn't load pickup availability
MC12E7 – Elsema 12V Gate Control Board with Transformer & 7Ah Backup Battery
The Elsema MC12E7 is a complete 12V gate control system for single or double automatic gates, supplied with the Elsema Eclipse MC Control Board, transformer, IP66 rated enclosure and 12V 7Ah battery backup.
Designed for 12V DC gate motors up to 120W, the MC12E7 provides intelligent control for both swing and sliding gate automation. The included backup battery helps keep your gate operational during mains power interruptions, making it a practical choice for residential, commercial and access control installations where reliable gate operation is important.
Powered by Elsema's Eclipse operating system (EOS), the MC controller features a large LCD display with easy menu driven programming, one touch setup and a wide range of adjustable gate functions.
Includes:
- 1 × Elsema Eclipse Double MC Board (MC) card
- 1 x IP66-rated plastic enclosure (weatherproof)
- 1 x Transformer for 12V motor operation
- 1 x 12V 7.4Ah backup battery with built-in charger
- Installation instructions
Note: Remotes not included
Key Features:
- Smart Control: 1-touch setup with auto profiling technology for seamless installation and tuning.
- Versatile Operation: Supports inputs for push button, open-only, close-only, stop, pedestrian, and photoelectric beams.
- Safety & Security: Adjustable lock output, courtesy light control, multiple photoelectric beam functions, obstruction detection, and password protection.
- Energy Efficient: Ultra-low 12mA standby current makes it ideal for solar-powered installations, reducing ongoing running costs.
- Built-in Backup: Supplied with a 12V 7.0Ah rechargeable battery and charger, ensuring reliable operation during power outages.
- Adaptable Design: IP66-rated enclosure for outdoor use and compatibility with Elsema’s wide range of remotes and accessories.
Ideal Applications:
The Elsema MC12E7 is suitable for a wide range of 12V gate automation applications, including:
- Single swing gates
- Double swing gates
- Sliding gates
- Residential driveway gates
- Commercial access gates
- Solar-powered gate systems
- Replacement or upgrade control systems
- Custom 12V gate automation applications
Compatible with:
- Elsema PentaFOB
- Elsema PentaFOB Waterproof
- Elsema PentaFOB Hardwired
- Elsema Penta FOBSwitch
- Elsema PentaFOB Handheld
Dimensions of MC Control Board:

Technical Specifications:
| Input Voltage | 12 AC/DC |
| Motor Voltage | 12 Volts DC |
| Gate Type | Single or Double |
| Display & Control | Large LCD with One touch control |
| Gate Limit Options | Limit Switch or Current Sensing |
| Compatible Remotes | PentaFOB or PentaCODE |
| Control Card Dimensions | 140 x 130 x 45mm |
| Operating System | Eclipse Operating System |
| Warranty | 12 Months Manufacturers Warranty |
