Elsema MC24E Control Board with Transformer

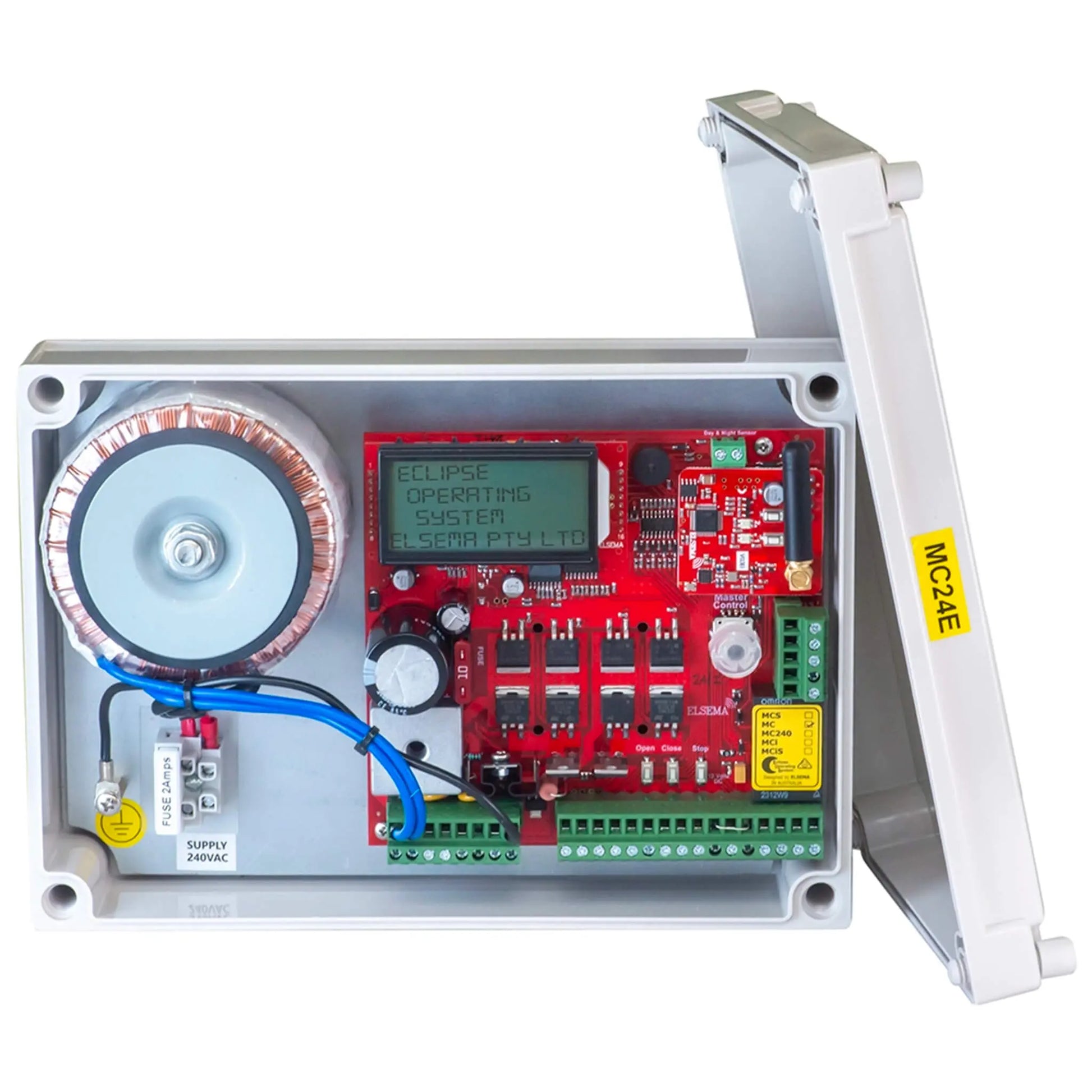

MC24E Elsema Control Board with Transformer and Enclosure

The Elsema MC24E Control Board Kit includes the Eclipse® controller, IP66-rated enclosure, and transformer — ideal for single or double swing and sliding gate systems. Featuring soft start/stop, one-touch setup, LCD programming, low standby power, and flexible input/output support, the MC24E delivers smooth, reliable gate automation with added safety and control options. Perfect for residential, commercial, industrial, and solar-powered installations.

Includes:

• MC Control Board
• IP66 Rated Enclosure
• Transformer
• Setup and Programming Instructions

Key Features:

• Genuine Elsema Control Board – Complete with transformer, suitable for swing and sliding gates.
• Automatic Gate Control – Simple and reliable gate operation with advanced motor management.
• Large 4-Line LCD Display – Real-time status updates and guided setup instructions for quick navigation.
• 1-Touch Setup – Automatic profiling and intelligent configuration for easy installation.
• Adjustable Settings – Fine-tune speed, force, auto-close, obstruction load, pedestrian access, and more.
• Versatile Inputs – Supports push button, open only, close only, stop, pedestrian, and photoelectric beam connections.
• Energy Efficient – Low standby current (12mA), making it ideal for solar-powered gates.
• Flexible Operation – Works with limit switch inputs or mechanical stops.
• Added Control Options – Adjustable lock and courtesy light outputs plus configurable safety beam functions.
• Enhanced Security – Service counters, password protection, and holiday mode.
• Accessory Power Supply – 12V and 24V DC outputs for powering external devices.

Ideal Applications:

• Sliding Gates – Residential, commercial, or industrial gates requiring smooth and reliable single motor control.
• Swing Gates – Provides soft start/stop, pedestrian access, and safety beam integration for secure operation.
• Industrial Barriers & Boom Gates – Robust controller suitable for high-traffic security and access points.
• Custom Automation Systems – Conveyor belts, warehouse doors, or other applications requiring intelligent single motor operation.

Dimensions of MC Control Board:

Technical Specifications:

Downloads:
