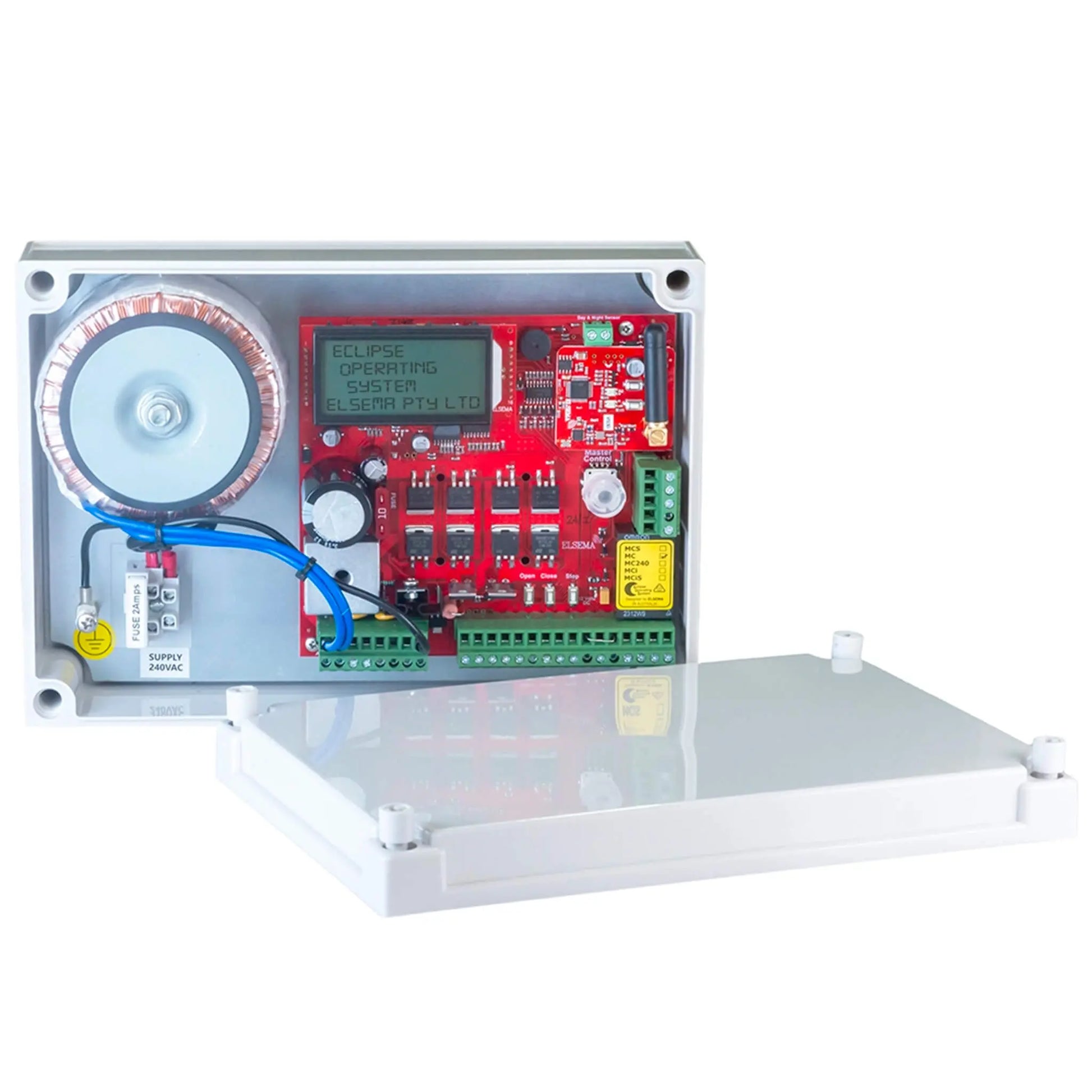

• Elsema MC12E 12V gate control board with transformer and IP66 enclosure
1 1

Elsema MC12E Control Card with Transformer

Elsema MC12E Control Card with Transformer

$317.95
$317.95
Sale Read More
Duties and taxes included. Shipping calculated at checkout.

This is a popular item that is regularly replenished from our Australian supplier. It is always available to purchase, even if our on-hand warehouse stock is low. If you need this item urgently, please contact us for current stock levels.

MC12E – Elsema 12V Gate Control Board with Transformer & Enclosure

The Elsema MC12E is a complete 12V gate control system for single or double automatic gates, supplied with the Elsema Eclipse MC control board, transformer and IP66 rated weather resistant enclosure.

Designed for 12V DC gate motors, the MC12E provides advanced control for swing and sliding gate automation with soft start and soft stop, adjustable motor speed and force, pedestrian access, auto close functions, obstruction sensing and support for photoelectric safety beams.

The controller uses Elsema's Eclipse Operating System (EOS) with a large LCD display and menu driven programming, making setup, adjustments and system diagnostics easier for installers.

Includes:

  • 1 × Elsema Eclipse MC control board
  • 1 × Transformer for 12V motor operation
  • 1 × IP66-rated weather-resistant enclosure
  • Installation instructions

Note: Remotes not included

Key Features:

  • Genuine Elsema gate automation controller
  • Designed for 12V DC gate motors
  • Controls single or double gates
  • Suitable for swing and sliding gate automation
  • Eclipse Operating System (EOS)
  • Large LCD display with menu-driven programming
  • One-touch setup and intelligent gate profiling
  • Soft start and soft stop
  • Adjustable motor speed and force
  • Adjustable auto-close settings
  • Pedestrian opening function
  • Adjustable obstruction sensing
  • Supports limit switches or mechanical stops
  • Push button, open, close, stop and pedestrian inputs
  • Photoelectric safety beam inputs
  • Adjustable electric lock output
  • Courtesy light output
  • Accessory power output
  • Built-in battery charging capability
  • Password protection and holiday mode
  • Service counters for maintenance monitoring
  • Ultra-low standby current

  • IP66-rated enclosure

Ideal Applications:

The Elsema MC12E is suitable for a wide range of 12V gate automation applications, including:

  • Single swing gates
  • Double swing gates
  • Sliding gates
  • Residential driveway gates
  • Commercial access gates
  • Solar-powered gate systems
  • Replacement or upgrade control systems
  • Custom 12V gate automation applications

Compatible with:

Dimensions of MC Control Board:

MC Dimensions

Technical Specifications:

Input Voltage 12 Volts AC/DC
Motor Voltage 12 Volts DC
Gate Type Single or Double
Display & Control Large LCD with One touch control
Gate Limit Options Limit Switch or Current Sensing
Compatible Remotes PentaFOB or PentaCODE
Control Card Dimensions 140 x 130 x 45mm
Operating System Eclipse Operating System
Warranty 12 Months Manufacturers Warranty


Downloads:
