Elsema FMR15108R 151MHz 8-Channel Long Range Receiver – Relay Outputs

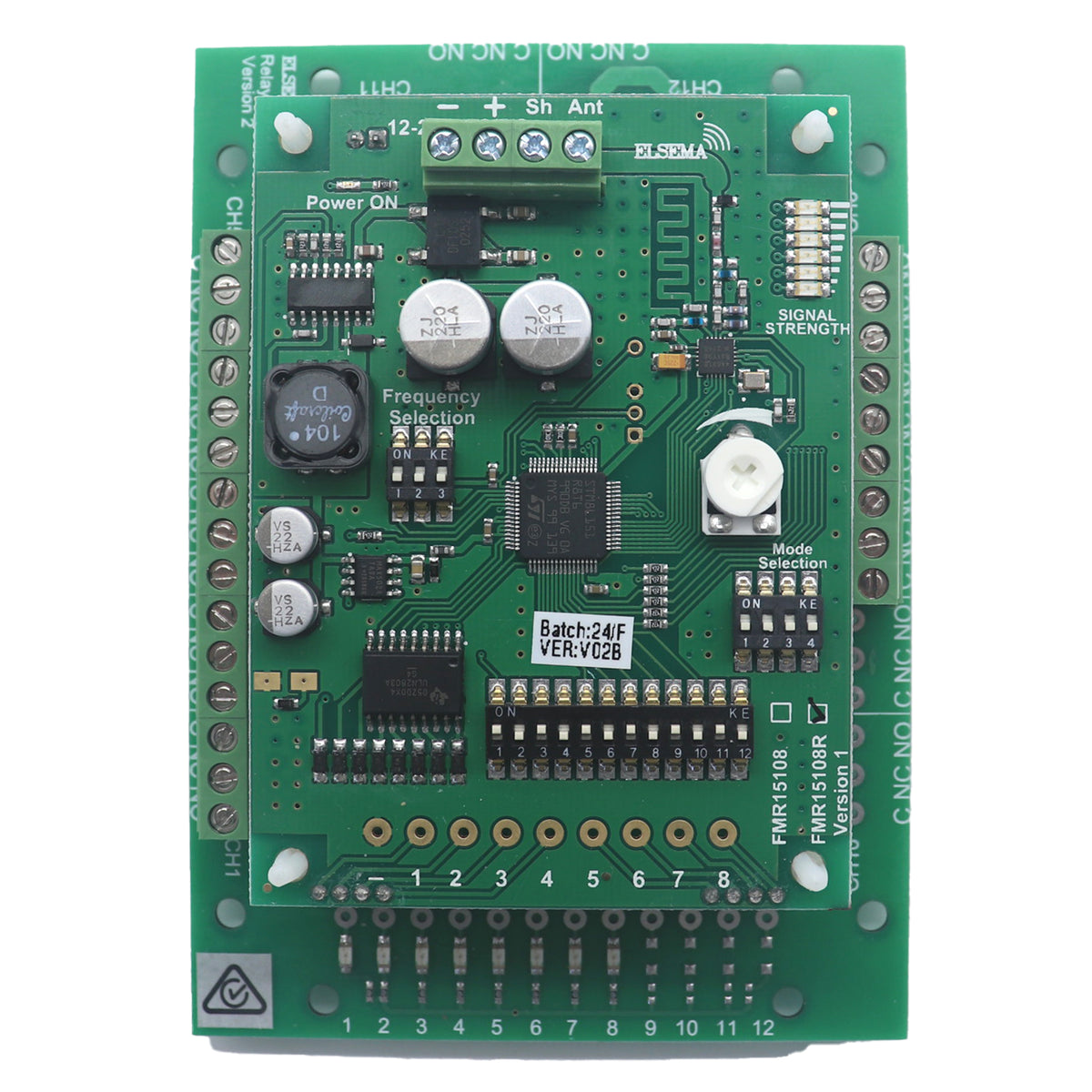

The Elsema FMR15108R is an 8 channel long range 151MHz receiver featuring eight independent voltage free relay outputs for industrial, agricultural and commercial remote control applications.

Designed for applications where reliable wireless control is required over substantial distances, the FMR15108R works with Elsema FMT151 series transmitters and can achieve an operating range of up to 5,000 metres line of sight when used with a correctly matched antenna and suitable installation conditions.

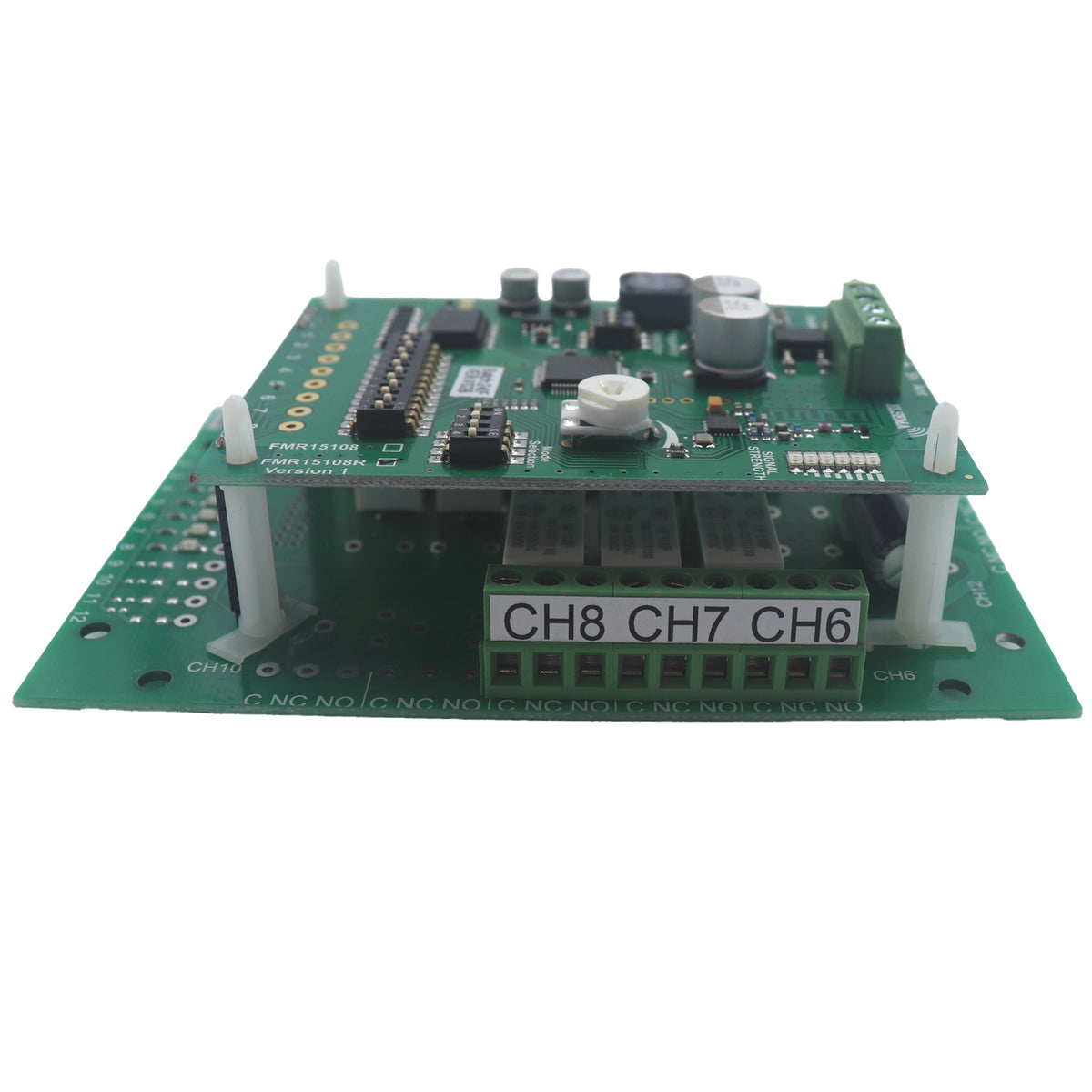

Unlike the FMR15108, which uses open collector outputs, the FMR15108R features eight relay outputs making it ideal where dry contact switching is required for external equipment, control systems and automation applications.

What's Included:

• 1 x Elsema FMR15108R Receiver
• Programming Instructions

Key Features:

• 8-channel 151MHz receiver

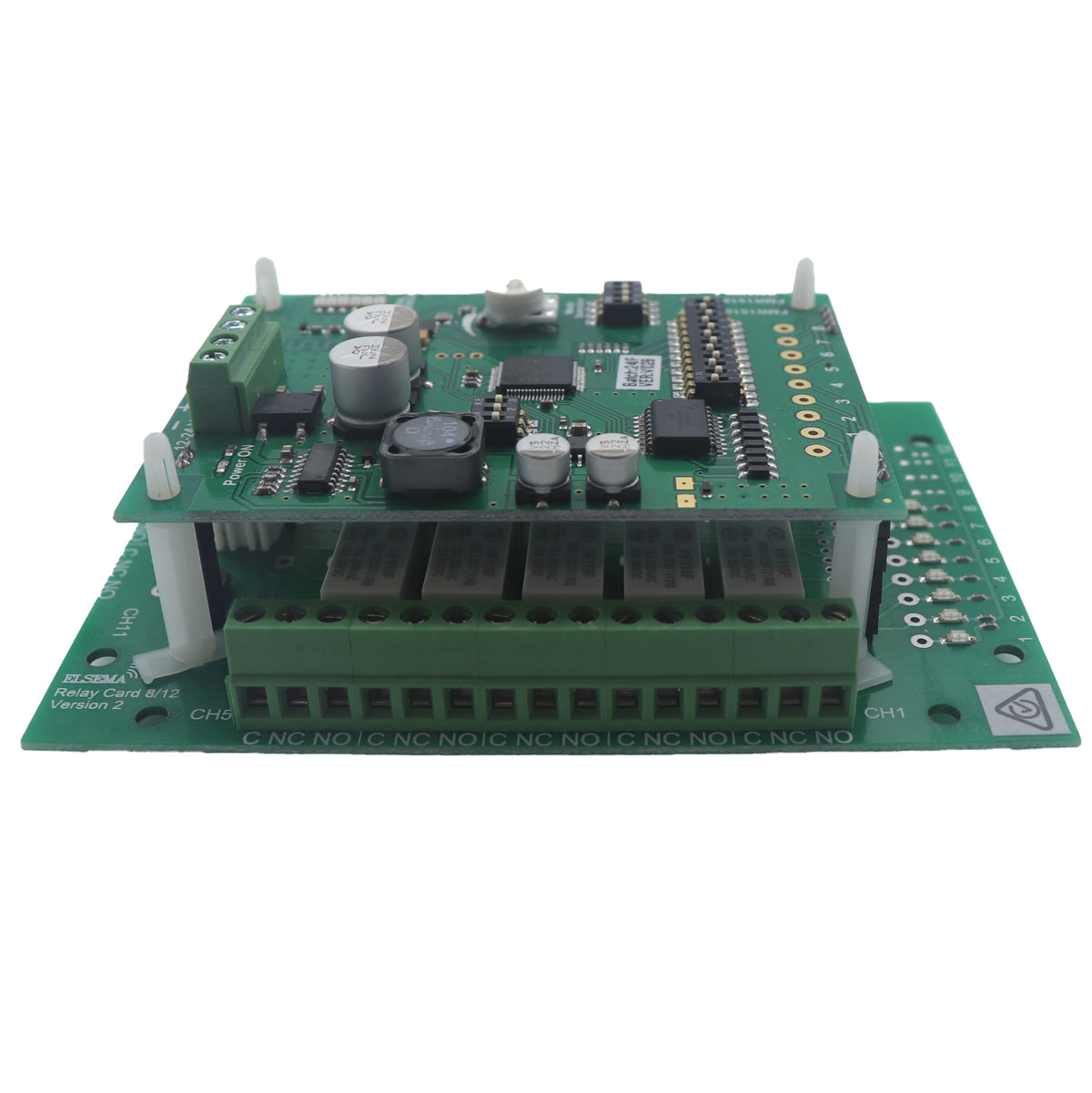

• 8 voltage-free relay outputs
• Long-range operation – up to 5,000 metres line-of-sight
• Compatible with Elsema FMT151 Series transmitters

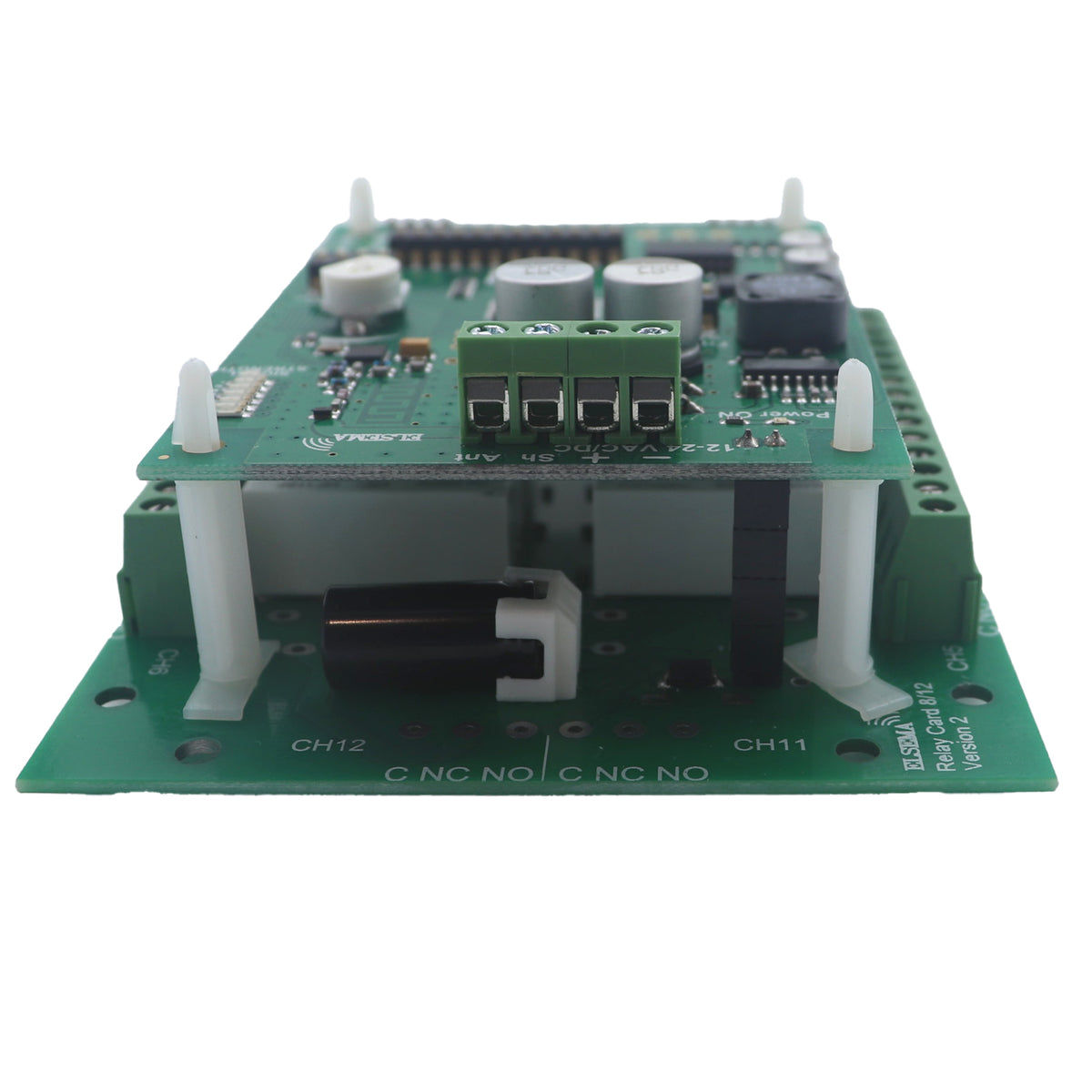

• 12–24V AC/DC supply
• Selectable Momentary, Latching and Delayed Off output modes

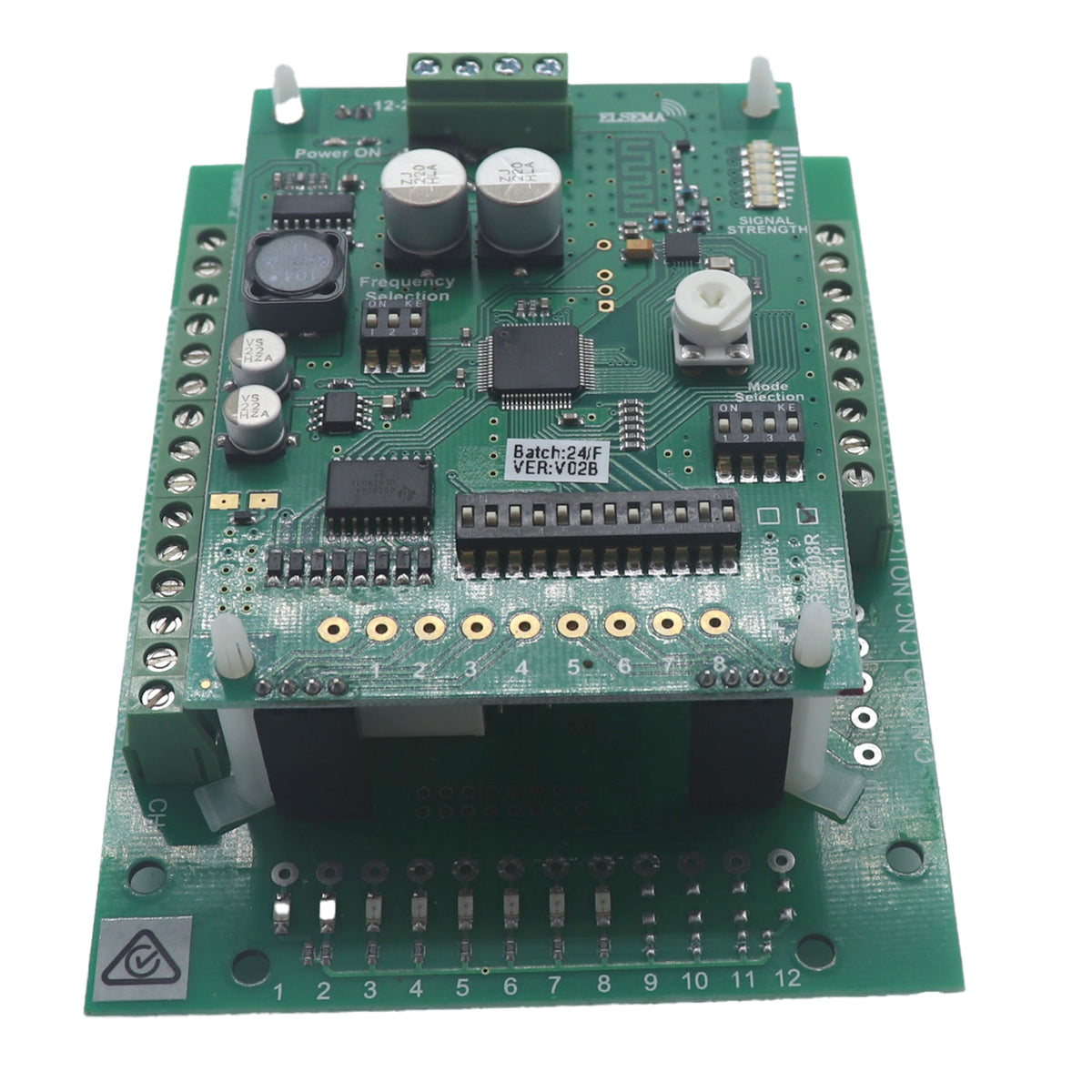

• 8 selectable narrowband frequencies
• Simple 12-way DIP switch coding
• Supports an unlimited number of matching transmitters
• Built-in signal/noise strength indicator
• Low current consumption


Ideal Applications:

The FMR15108R is suitable for long-range wireless control applications including:

• Pump control
• Irrigation and agricultural equipment
• Machinery and industrial controls
• Remote ON/OFF switching
• Long-distance panic or alert systems
• Water level and basic telemetry applications
• Lighting and floodlight control
• Remote equipment activation

Compatible with:

• FMT15101E
• FMT15108E
• FMT15104H (Max 800m Range)
• FMT15108H (Max 800m Range)

Block Diagram:

Technical Specifications:

Downloads:
