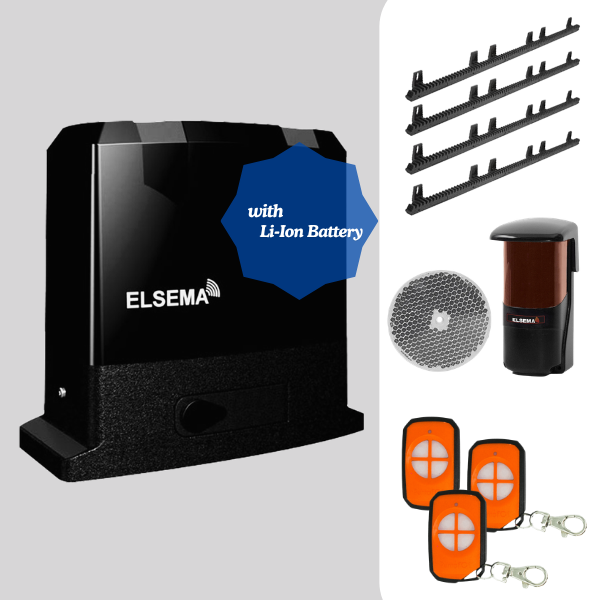

• Elsema iS900B gate opener kit with 3 PentaFOB remotes and gear rack
  • iS600/900/900B Sliding Gate Kit
  • Elsema iS900 sliding gate opener kit back cog
  • Elsema iS900 sliding gate opener kit manual release key
  • Elsema iS900 sliding gate opener kit control board and motor
1 5

Elsema iS900B Sliding Gate Kit with Battery Backup

Elsema iS900B Sliding Gate Kit with Battery Backup

$1,011.95
$1,011.95
Sale Read More
Duties and taxes included. Shipping calculated at checkout.

Stock may need to be sourced from Australian suppliers to fulfil your order. Please allow additional time for dispatch. Contact us for ETA

Elsema iS900B Sliding Gate Opener – 900kg with Lithium Battery Backup

The Elsema iS900B sliding gate opener kit combines the power and features of the iS900 with a built in Lithium-Ion battery backup, helping keep your automatic gate operational during a mains power outage.

Designed for residential sliding gates weighing up to 900kg on level ground, the iS900B features a powerful 120W 24V DC motor, all-metal gearbox, contactless limit switch and Elsema's advanced Eclipse Operating System (EOS).

Unlike the standard iS900, the iS900B includes an Elsema lihtium-ion backup battery housed within the gate motor, keeping the installation neat while providing backup power when mains electricity is unavailable.

With soft start and soft stop, adjustable anti-crush settings, intelligent positioning and pedestrian access, the iS900B is a complete gate automation solution for residential sliding gates.

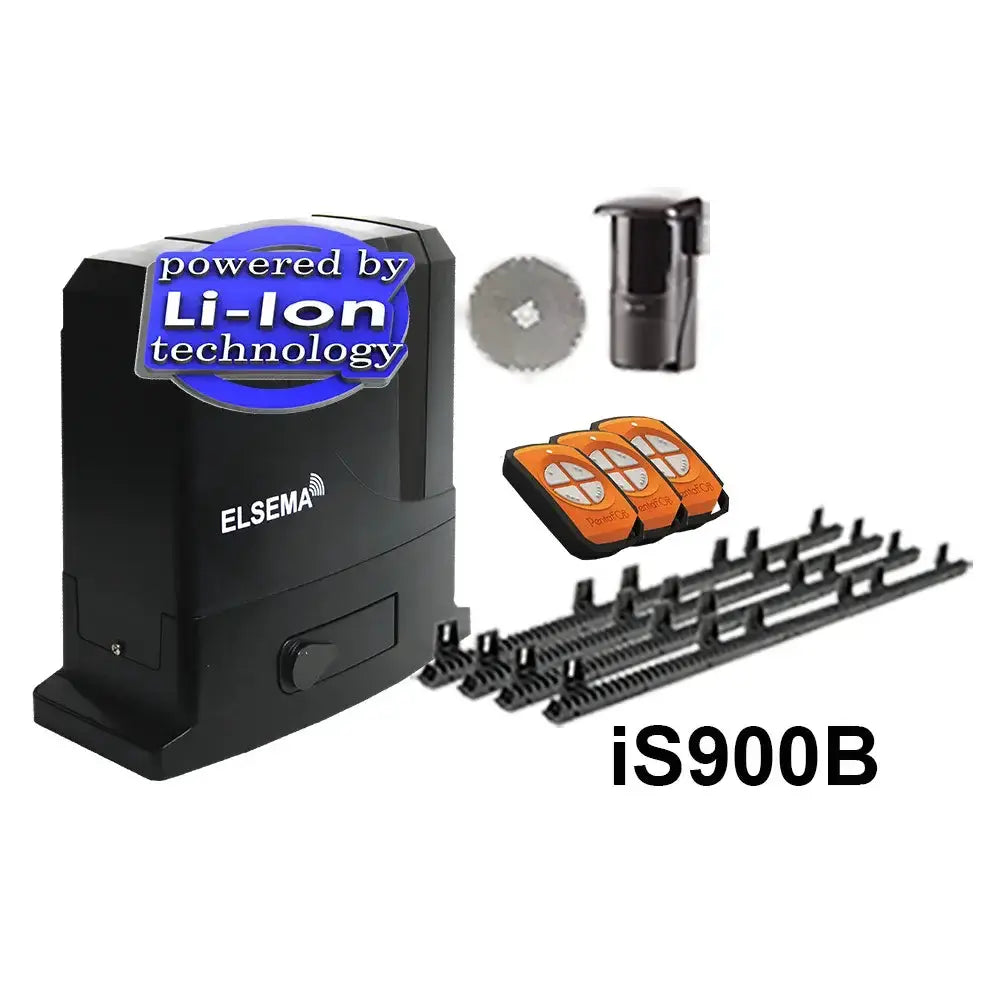

What’s Included:

  • 1 × Elsema iS900 Sliding Gate Motor
  • 1 × Control Card with Eclipse® Operating System
  • 3 × Elsema PentaFOB Remotes
  • 1 × Long-Range Reflector Type Photoelectric Beam
  • 1 × Lithium-Ion Battery Backup (installed in motor)
  • 4 × Steel Reinforced Nylon Gear Racks
  • Installation Accessory Pack
  • Installation Instructions

Key Features:

  • Powerful 120 W Motor: Delivers high torque and fast, smooth operation for gates up to 900 kg.
  • Intelligent Positioning System: Self-learning technology ensures precise travel limits and reliable performance.
  • Lithium-Ion Battery Backup: Provides automatic backup power for continued use during power failures.
  • Eclipse® Operating System: Simplifies setup and fine-tuning with user-friendly configuration and diagnostic feedback.
  • All-Metal Gearbox: Heavy-duty design for long life and dependable mechanical strength.
  • Contactless Limit Switch: Increases reliability by removing wear-prone mechanical switches.
  • Soft Start & Stop: Protects the motor and gearbox while ensuring smooth motion.
  • Long-Range Photoelectric Beam: Enhances safety with infrared detection to prevent accidental closure.

Ideal Applications:

  • Residential Driveways: Smooth and quiet automation for standard or large sliding gates.
  • Rural & Acreage Properties: Ideal for locations with limited access to mains power.
  • Light Commercial Entrances: Dependable and intelligent automation for small business or industrial gates.
  • Backup Power Scenarios: Perfect where consistent operation during outages is essential.

Technical Specifications:

Motor Voltage 24 Volts DC Motor
Max Absorbed Power 120W
Nominal Thrust 330N
Power Supply 240 Volts AC
Nominal Input Current 3 Amps
Motor Speed 250mm/sec
Maximum Gate Weight 900kg
Duty Cycle 60% over 12 mins
Operating Temperature -20°c - +50°c
Gate Weight Up to 900kg on level ground
Warranty 12 Months Manufacturers Warranty
Button/coin batteries can cause severe injuries or even death when swallowed. Keep batteries out of reach of children. If you suspect a child has swallowed or inserted a button/coin battery, seek medical attention immediately.

Downloads:
Gate Motor
 Control Board



Frequently Asked Questions:

What size gate can the Elsema iS900 operate?

The iS900 is designed for residential sliding gates weighing up to 900kg on level ground. The gate should be correctly installed and move freely along its track.

What is the difference between the Elsema iS600 and iS900?

The main difference is motor power and maximum gate capacity. The iS600 uses an 80W motor and is rated for gates up to 600kg, while the iS900 uses a more powerful 120W motor and is rated for gates up to 900kg on level ground.

How fast does the iS900 open a gate?

The iS900 has a travel speed of approximately 15 metres per minute (250mm per second).

Does the iS900 have soft start and soft stop?

Yes. Soft start and soft stop gradually accelerate and decelerate the gate, helping provide smoother operation and reducing mechanical shock.

What remotes come with the iS900 kit?

The standard kit includes 3 x Elsema PentaFOB keyring remotes.

Can I add more remotes?

Yes. The Eclipse® control platform provides effectively unlimited remote storage, making it suitable for households requiring multiple remotes.

Can the iS900 be controlled from a smartphone?

Yes. Compatible access-control accessories can be added, including Elsema's G4000 4G gate opener for phone-based gate access and user management.

Does the kit include gear rack?

Yes. The standard kit includes 4 x 1 metre steel-reinforced nylon gear racks.

Is the iS900 suitable for sloping gates?

The 900kg rating applies to gates operating freely on level ground. Sloping gates, gates with high rolling resistance or gates exposed to significant wind loading require additional consideration when selecting and installing an automation system.
