Elsema GSM G4000 – 4G Receiver with Relay Output
Elsema GSM G4000 – 4G Receiver with Relay Output
This is a popular item that is regularly replenished from our Australian supplier. It is always available to purchase, even if our on-hand warehouse stock is low. If you need this item urgently, please contact us for current stock levels.
Couldn't load pickup availability

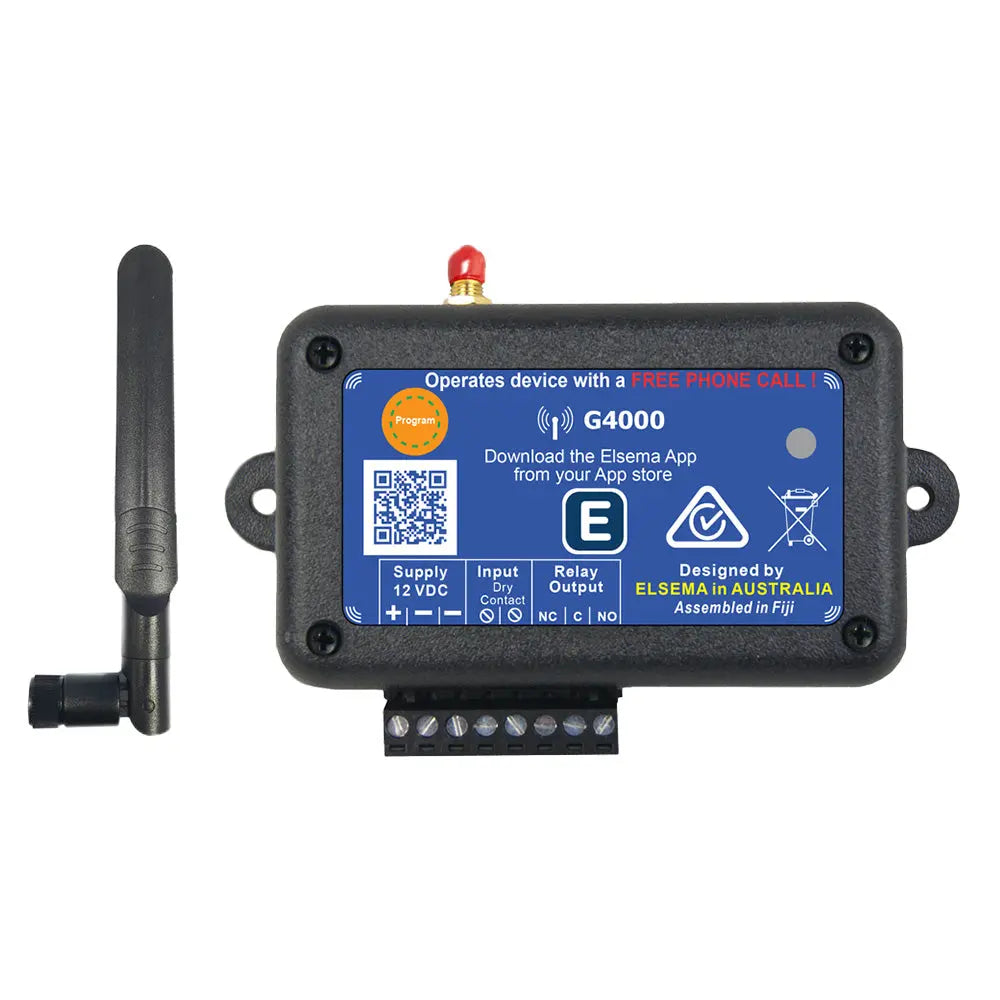

Elsema G4000 4G GSM Gate Opener & Access Controller
The Elsema G4000 is a 4G GSM gate opener and access controller designed to operate automatic gates, doors and other access systems using a mobile phone.
Instead of issuing every user with a physical gate remote, up to 2,000 authorised phone numbers can be stored in the G4000. An authorised user simply calls the G4000's mobile number. The unit verifies the caller ID, rejects the call so there is no call charge, and activates its voltage-free relay output to trigger the connected gate or door controller.
Operating over the Australian 4G/VoLTE mobile network, the G4000 can be accessed from anywhere mobile coverage is available. Users can also be added or removed remotely, making it particularly useful for apartment complexes, gated communities, commercial properties, Airbnb accommodation and other sites where access permissions regularly change.
What’s Included:
- 1 x Genuine Elsema G4000
- Antenna
- 12V DC Power Pack
- Installation Instructions
Key Features:
- 4G/VoLTE Connectivity: Compatible with Telstra, Optus and Vodafone 4G/VoLTE networks using a Nano SIM.
- Up to 2000 Authorised Users: ideal for sites requiring access for large number of residents, employees, contractors or visitors.
- Free-Call Gate Activation: Authorised users call the G4000. Caller ID is verified and the call is rejected before the relay activates - avoiding a call charge.
- 1 x Voltage-Free Relay Output: Connects to compatible gate, garage door and access control equipment through a dry-contact realy.
- 1 x Digital Input: Allows connect of a sensor or switch and can be configured for additional monitoring functions.
- Remote User Management: add or remove authorised users without needing to physically attend the gate controller
Ideal Applications:
- Apartment & Strata Gates – Provide phone-based gate access for large numbers of residents without issuing additional physical remotes.
- Gated Communities – Manage up to 2,000 authorised users from a central access controller.
- Commercial Gates – Give staff, contractors and authorised visitors access using their existing mobile phone.
- Airbnb & Holiday Accommodation – Add and remove guest phone numbers remotely without handing over gate remotes.
- Storage Facilities & Shared Premises – Manage changing user access without repeatedly programming physical transmitters.
- Automatic Gates & Doors – Add mobile-phone access to compatible sliding gates, swing gates, boom gates, garage doors and access-controlled doors.
- Remote Properties – Allow authorised users to operate an entrance from anywhere with suitable mobile network coverage.
Connection Diagram:
Technical Specifications:
| Power Source | 12 Volts DC |
| Network | Telstra, Vodafone, Optus (Nano SIM) |
| Output | Common (C) and Normally Open (NO) relay outputs rated at 2A, 30 VDC. |
| Input | Normally open. User can change to Normally Closed via SMS. |
| Dimensions | 136 x 85 x 35 mm |
| Warranty | 12 months Manufacturers Warranty |
Elsema GSM Comparison:
| Feature | G4000 | G5000 | G5000+ |
|---|---|---|---|
| Best suited to | Gate & access control | Automation & monitoring | Advanced automation & monitoring |
| Users | Up to 2,000 | Up to 250 | Up to 2,000 |
| Relay outputs | 1 | 4 | 4 |
| Digital inputs | 1 | 2 | 2 |
| Analogue inputs | No | 2 | 2 |
| Phone-call activation | Yes | Yes | Yes |
| SMS relay control | No | Yes | Yes |
| M2M automation | No | No | Yes |
| Typical application | Opening gates/doors for authorised users | Pumps, lighting, irrigation, equipment & monitoring | Complex remote automation/M2M |
Downloads:
 |
 |
Frequently Asked Questions:
What is the Elsema G4000 and how does it work?
The G4000 is a 4G GSM Gate Opener designed to operate automatic gates or any other electrical devices via a mobile phone. It uses Caller ID recognition to identify authorised number calls the device, the G4000 automatically rejects the call (so there is no call charge) and triggers the gate to open.
How many users can the G4000 store?
It supports up to 2000 authorised users for large residential, commercial and community sites.
Do I need the Elsema App to use it?
The app is needed only for the initial setup. After setup, operation is simply calling the G4000 number or using SMS for management.
Which mobile networks are supported?
Compatible with Telstra, Optus, and Vodafone on 4G VoLTE coverage using a nano SIM card.
What are the output and input specs?
It has a voltage free relay output rated at 2 Amps at 30 Volts DC and one digital input for a sensor or switch.
Is it universally compatible with gate controllers?
Yes, the dry contact relay works with most sliding, swing and boom gate controllers and other devices.
What power supply is included?
A 12 Volt DC power pack is supplied and the enclosure measures about 136 x 85 x 35mm
Can users be added and removed remotely?
Yes, Add or delete users via SMS or the App, allowing easy management from any location with 4G service.
How does it compare to the G5000 controller?
G4000 focuses on free call entry with one relay, while G5000 has four relays, two digital and two analog inputs with SMS control and PC app setup.
Is it a replacement for older models?
Yes, it replaces the G2000 and G2025 and offers modern 4G connectivity and expanded features.
