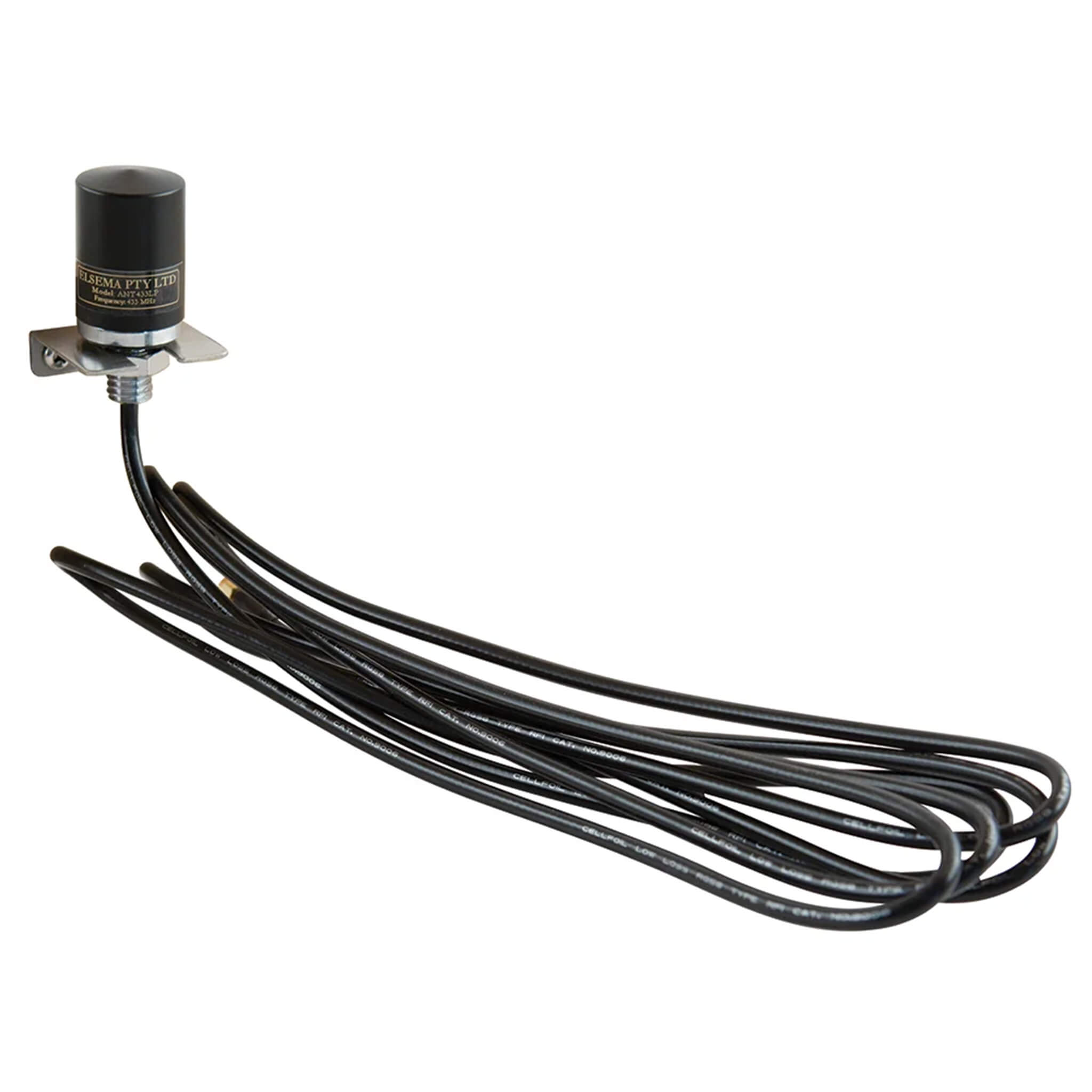

Elsema 433 Antenna 40mm – ANT433LP
$71.95
9 in stock
Compact & Durable Low-Profile Antenna for Reliable 433MHz Communication
The Elsema ANT433LP is a low-profile, tamper-proof antenna engineered for reliable performance in 433MHz frequency applications. Measuring just 40mm in length, this compact antenna is ideal for discreet or space-limited installations while still ensuring strong and stable wireless connectivity.
Includes:
- Low Profile Antenna – 4cm Long
- 3.6 metres of low loss coaxial cable terminated with an SMA connector
- Mounting Bracket
Key Features:
- Low-Profile Design (40mm) – Compact and discreet without sacrificing performance.
- Optimised for 433MHz Frequency – Perfect for Elsema Gigalink® & Penta receivers, as well as other 433MHz devices.
- Durable Tamper-Proof Casing – Made from impact-resistant Delrin plastic, UV-stabilised for outdoor use.
- Secure SMA Connector – Stable and professional-grade connection.
- 3.6m Low-Loss Coaxial Cable – Reduces interference for clean signal transmission.
- Universal Mounting Bracket – Simple wall or roof installation.
- Reliable Wireless Performance – Designed to overcome interference and signal degradation.
Ideal Applications:
- Gate & Garage Automation – Improves remote control range and reliability.
- Industrial Automation & Monitoring – Ensures stable connectivity for machinery and control systems.
- IoT & Smart Devices – Supports wireless monitoring, sensors, and automation systems.
Technical Specifications:
| Frequency | 430 to 440MHz |
| Tuned Bandwidth | 10MHz |
| Gain | 2 dBi |

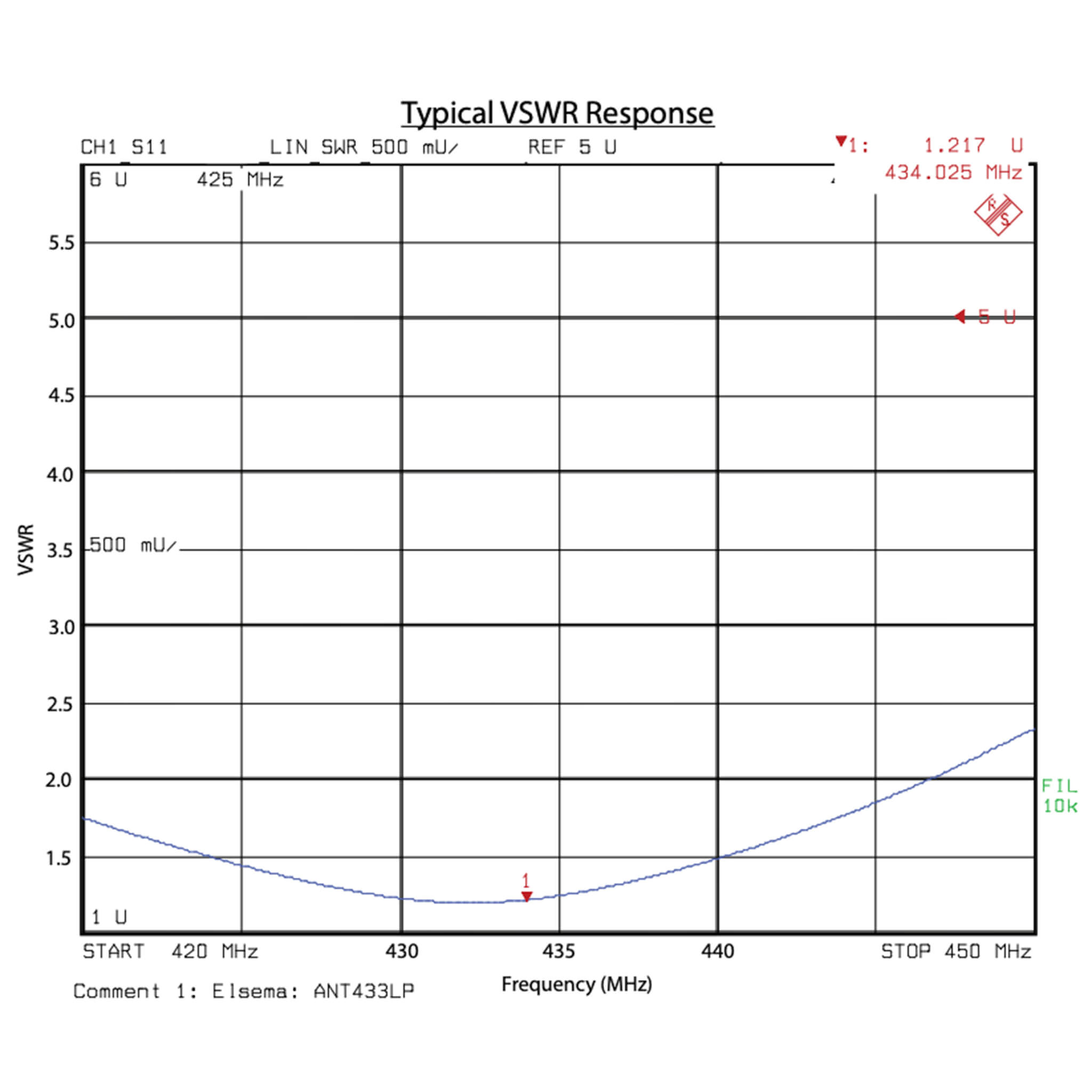

| VSWR (Return Loss) | < 1.5 : 1 over 10 MHz |
| Impedance | 50 Ohms |
| Maximum Power | 10 Watt |
| Radiated Pattern | Omni Directional |
| Construction | High Impact Delrin plastic UV stabilised |
| Length | 40 mm |
| Weight | 270 grams |
| Coaxial Length | 3.6 metres |
| Termination | SMA, Standard |
| Warranty | 12 Months Manufacturers Warranty |
