Elsema 433 Antenna 940mm – ANT433M

Elsema 433 Antenna 940mm – ANT433M

$101.95
$101.95
Sale Sold out
Shipping calculated at checkout.

This is a popular item that is regularly replenished from our Australian supplier. It is always available to purchase, even if our on-hand warehouse stock is low. If you need this item urgently, please contact us for current stock levels.

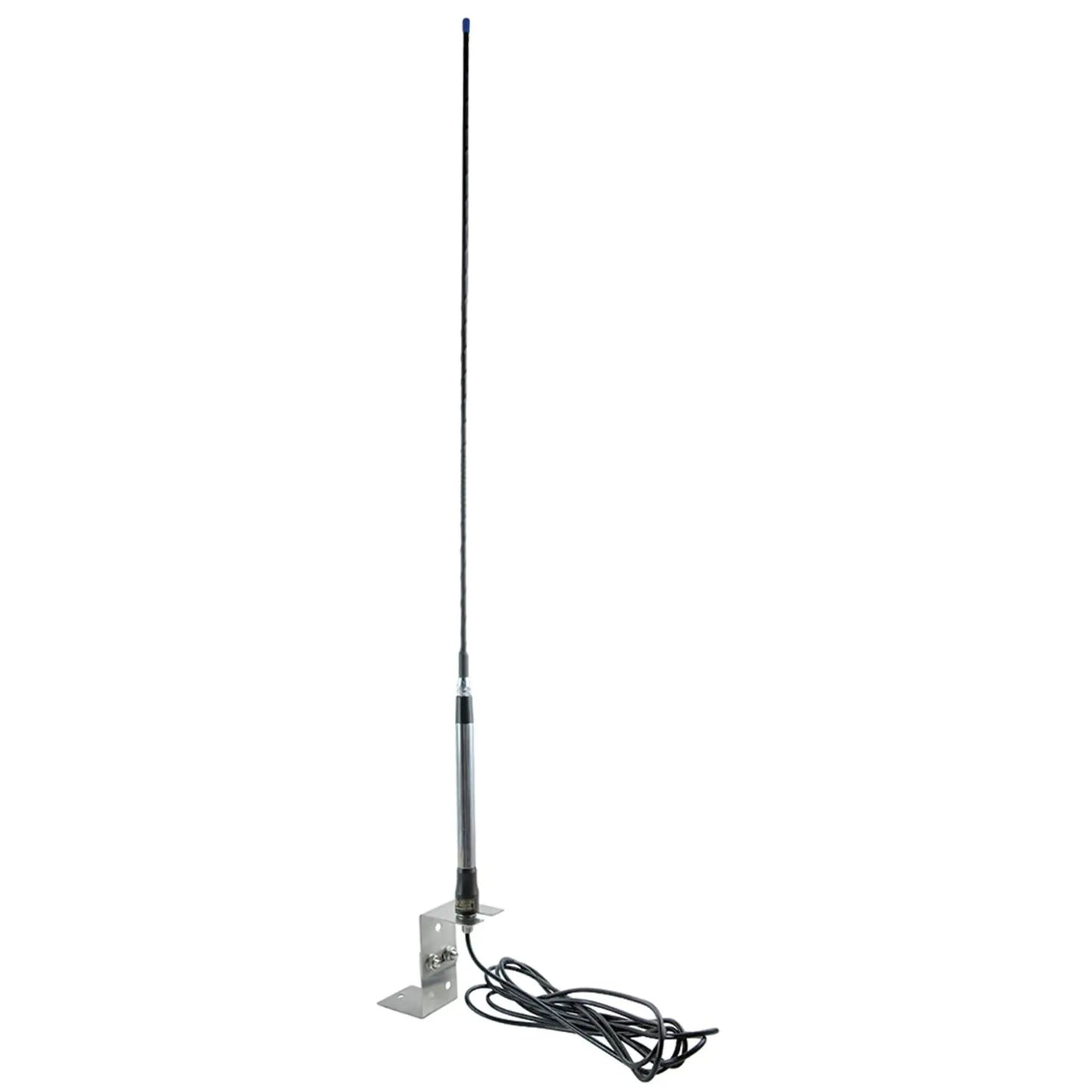

ANT433M - High-Gain 433MHz Antenna for Extended Wireless Performance

The ANT433M is a high-gain 1-metre stainless steel antenna designed for superior wireless coverage on 433MHz systems. Featuring a 6.0dBi gain, low-loss coaxial cable and SMA termination, this antenna dramatically improves range and signal strength for Elsema Gigalink® and Penta receivers, making it ideal for gate automation, industrial remote control and IoT applications that demand reliable long-distance communication.

Includes:

  • Low Profile Antenna – 1m Long
  • 3.6 metres of low loss coaxial cable terminated with an SMA connector
  • Mounting Bracket

Key Features:

  • High-Gain 6.0 dBi Performance – Extends range and improves signal strength.
  • Ground-Independent Colinear Design – Efficient operation without the need for Earth grounding.
  • Optimized for 433MHz Band – Ideal for Elsema Gigalink® & Penta receivers, plus other 433MHz devices.
  • Stainless Steel Construction – Rugged and corrosion-resistant for long-term outdoor use.
  • Low VSWR – Minimises signal loss and ensures maximum power transfer.
  • 3.6m Premium Low-Loss Cellfoil Coaxial Cable – Reduces interference for cleaner transmission.
  • SMA Connector – Stable, secure connection to your receiver.
  • Universal Mounting Bracket – Allows easy wall or roof installation.

Ideal Application:

  • Gate & Garage Automation – Boosts remote control range for sliding and swing gates.
  • Industrial Automation & Monitoring – Ensures strong connectivity for smart control systems.
  • IoT & Smart Systems – Supports wireless telemetry, networking, and monitoring applications.

Technical Specifications:

Frequency 428 to 437MHz
Tuned Bandwidth 9MHz
Gain 6.0 dBi
VSWR (Return Loss) < 1.5 : 1 over 9MHz
Impedance 50 Ohms
Maximum Power 50 Watt
Radiated Pattern Low Angle Omni Directional
Construction Stainless Steel
Length 1 metre
Weight 420 grams
Coaxial Length 3.6 metres, standard
Termination SMA, Standard
Warranty 12 Months Manufacturers Warranty
