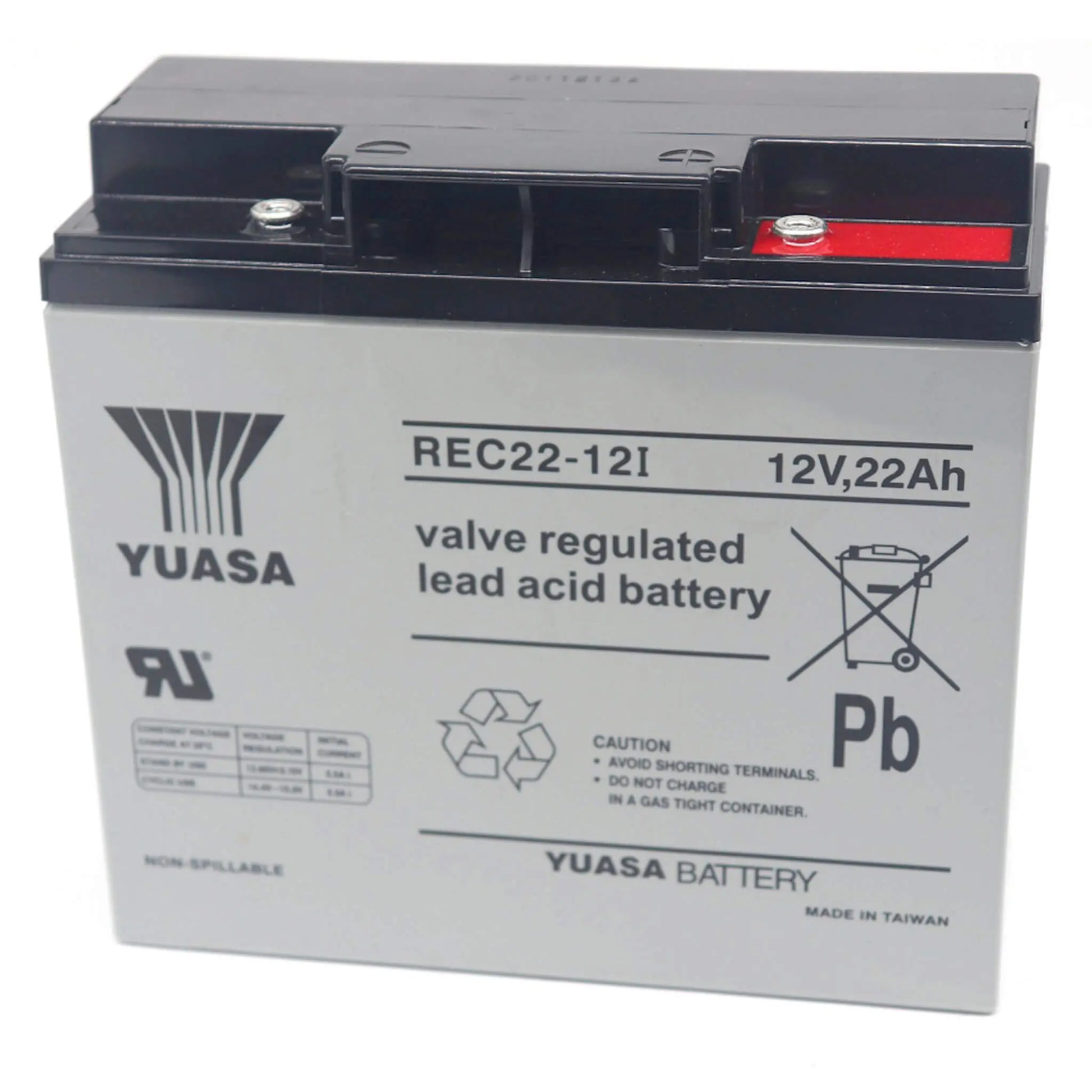

Yuasa REC22-12 12V 22Ah VRLA Battery
The Yuasa REC22-12 12V 22Ah VRLA Battery is a high capacity, deep cycle AGM battery designed for reliable power in gate motors, UPS systems, solar setups and automation equipment. With its sealed Maintenance free construction and low self-discharge rate, it provides a durable and long lasting performance in both residential and commercial applications.
What’s Includes:
- 1 x 12V 22aH VRLA Battery
Please note: This item is not able to be shipped via Australia Post.
Key Features:
- Nominal Voltage: 12V
- Capacity: 22 Ah (Ampere-hours)
- Deep-cycle AGM technology — designed for repeated discharge and recharge cycles
- Fully sealed, maintenance-free, and spill-proof
- Low self-discharge rate — holds charge for longer
- Durable design tolerant to vibration and temperature variation
- Ready-to-use — no need for initial charging
Ideal Applications:
This battery is especially suited for:
- Gate motors and garage door openers as primary or backup power
- Off-grid solar and small renewable energy systems
- UPS (Uninterruptible Power Supplies) and backup power systems
- Security and alarm systems requiring extended runtime
- Control panels and automation systems needing stable DC power
- Lighting and emergency systems in remote locations
Technical Specifications:
| Dimension | Length:181
Width: 76 Height: 167 Terminal Height: 167 |
| Terminal Type: | M5 Insert Tightening torque 2.0~3.0Nm (20~30kgf · cm) |
| Weight: | Approx 6.2kg |
| Container Material | A.B.S (UL94HB) |
| Nominal Voltage | 12V |
| Rated Capacity at 250C | 22Ah @ 20hr-rate |
| Internal Resistance at 250C | Approx. 8.2mΩ |
| Maximum Discharge Current | 330A^ (5 sec) |
| Charge Voltage | Float Charge – 13.5V ~ 13.8V at 5.5A
As the average ambient temperature rises, charging voltage should be reduced to prevent overcharge. Accordingly, the recommended compensation factor is -3mV/˚C/cell at 25˚C of standard centre point. |
| Cyclic Charging – 14.4V ~ 15.0V @ 5.5A
As the average ambient temperature rises, charging voltage should be reduced to prevent overcharge. Accordingly, the recommended compensation factor is -4mV/˚C/cell at 25˚C of standard centre point. Caution – this needs to be terminated with appropriate charging period in order to avoid excess over charging that can result in the damage of the batteries. |
|
| Operating Temperature Range | Discharge: -15˚C~50˚C
Charge: -15˚C~45˚C Storage: -15˚C~45˚C |
| Storage (without charge) | Temp. < =25˚C. (6 months)
25< Temp. < =30˚C (4 months) 30< Temp. < =35˚C (3 months) 35< Temp. < =40˚C (2 months) |
| Warranty | 12 Month Manufacturers Warranty |
