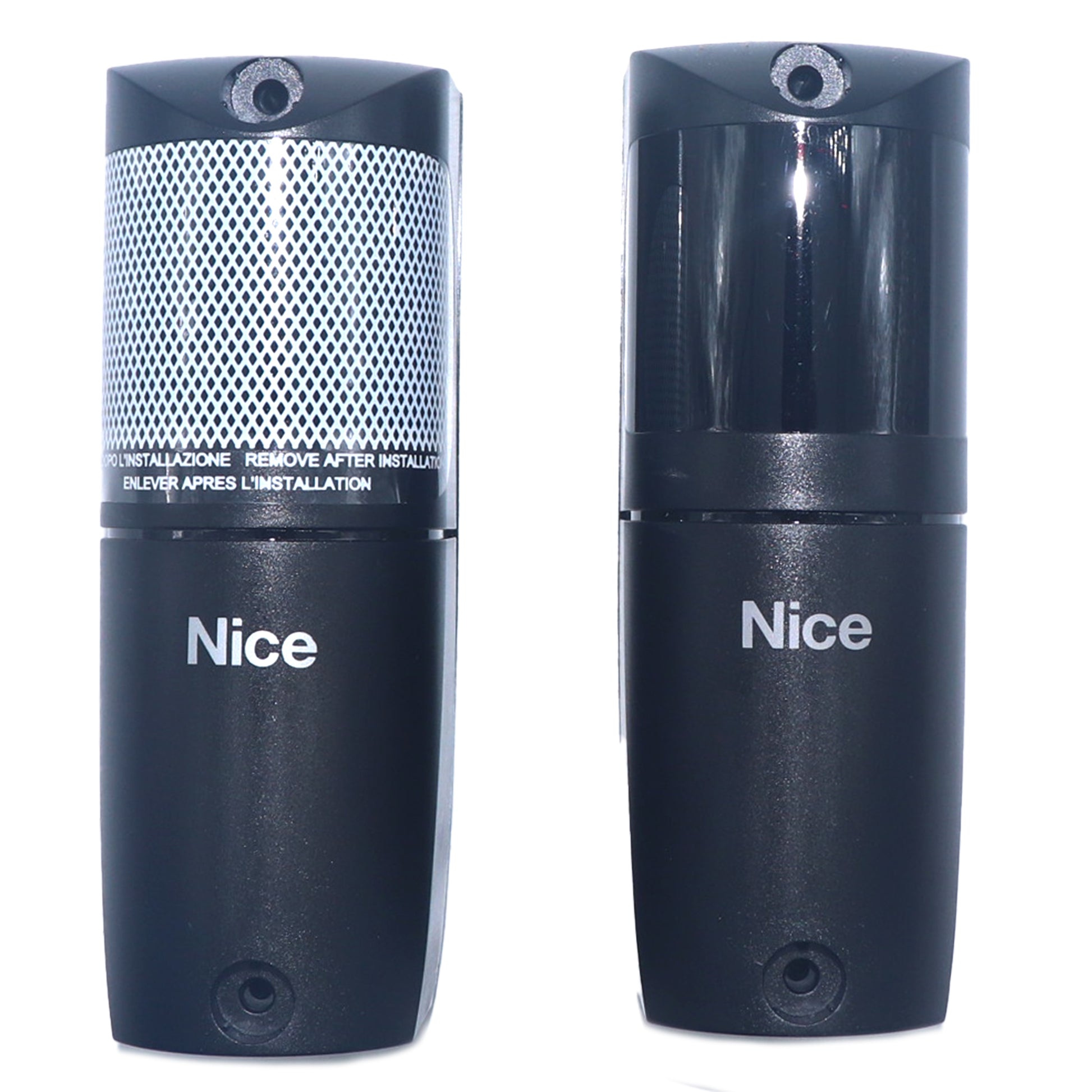

• NICE FT210 wireless gate safety beam transmitter and receiver

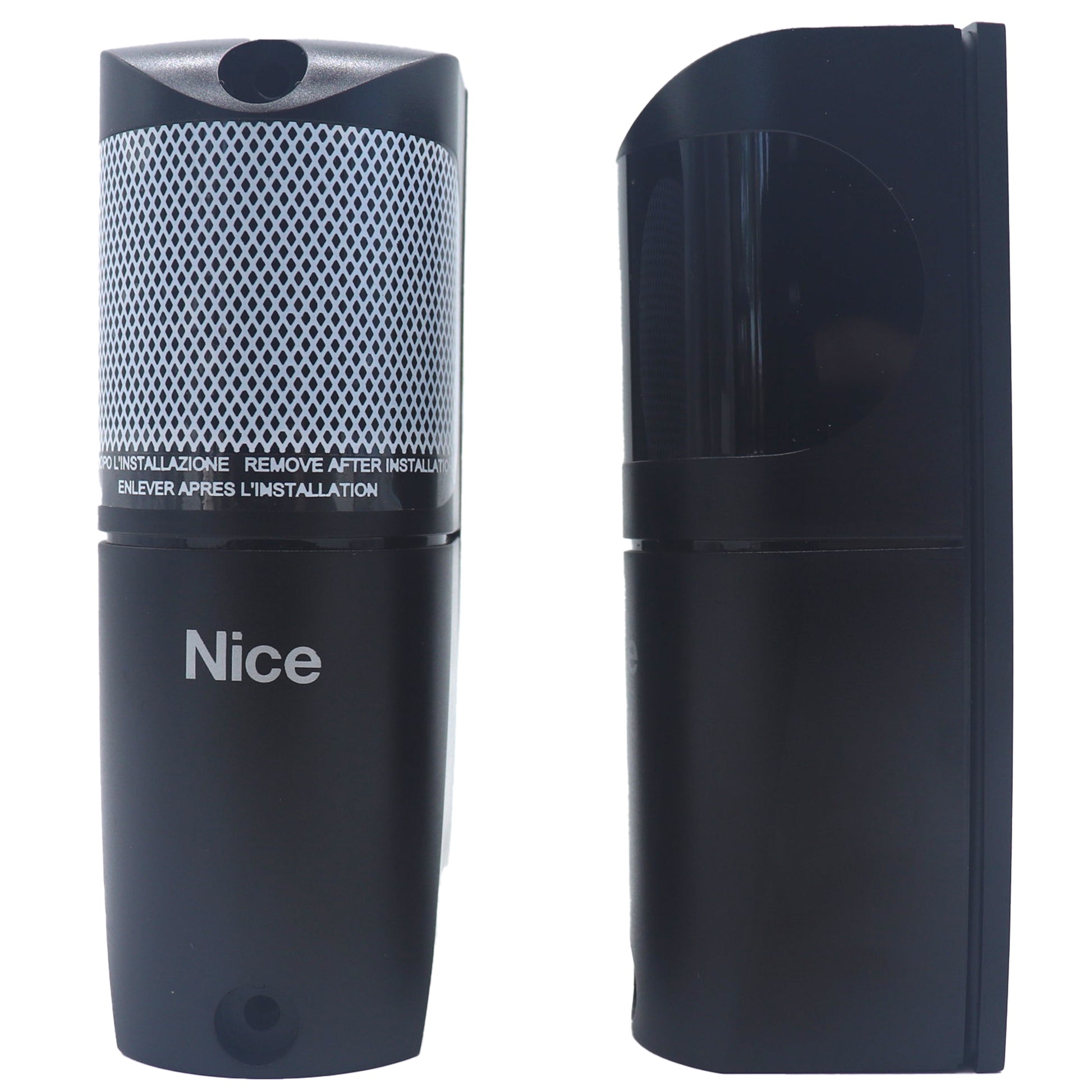

  • NICE FT210 wireless safety photocell beam set

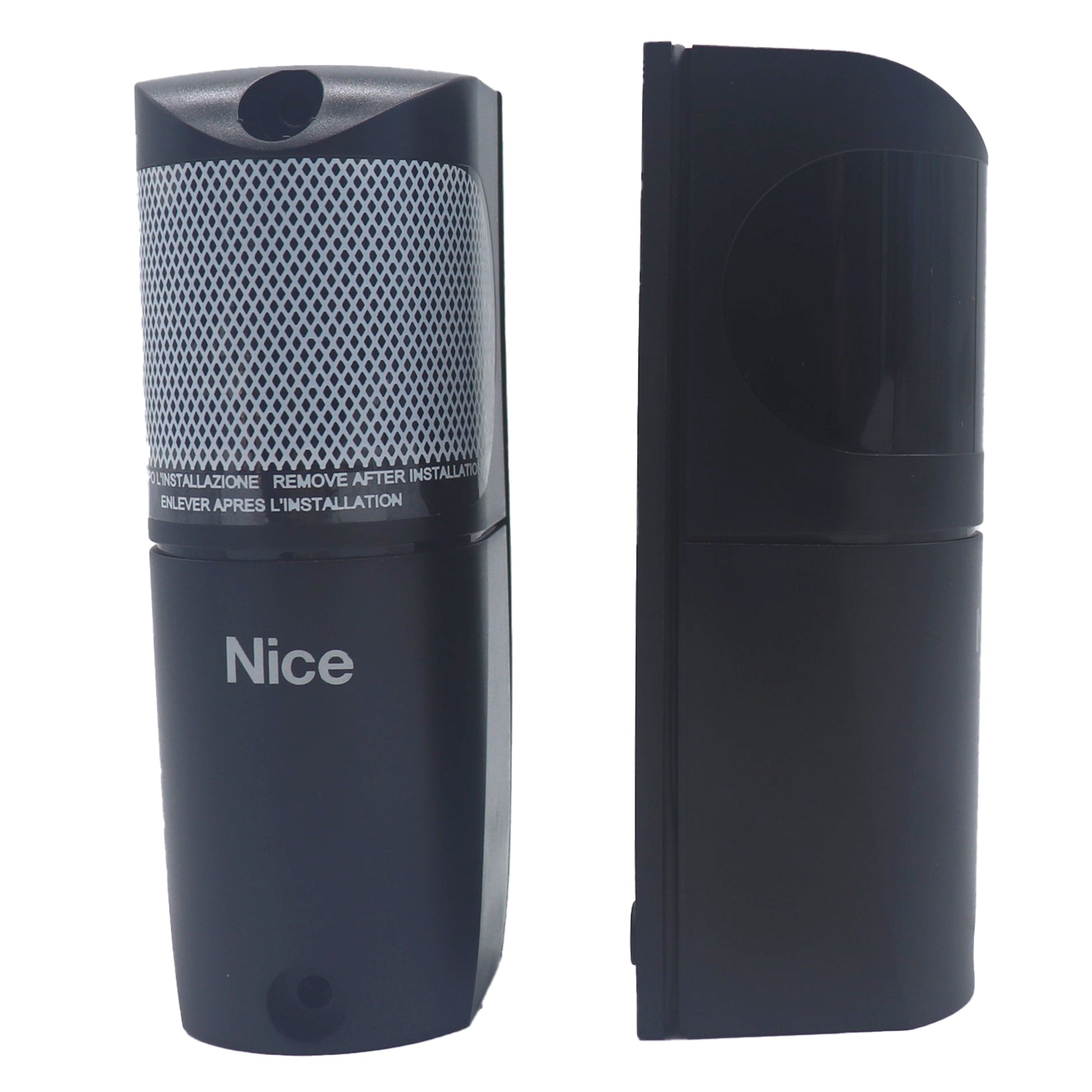

  • NICE FT210 gate safety beam transmitter TX

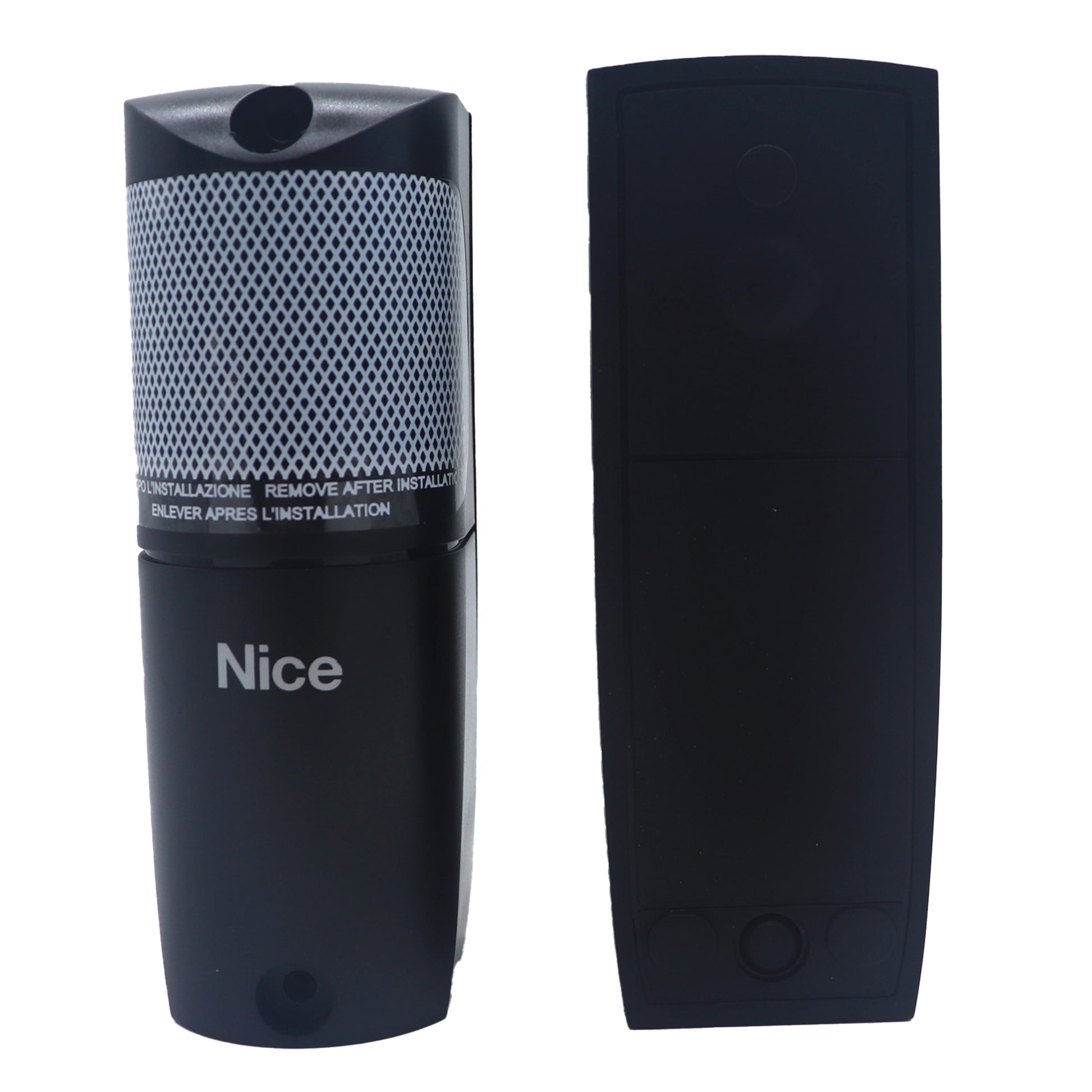

  • NICE FT210 gate safety beam receiver RX

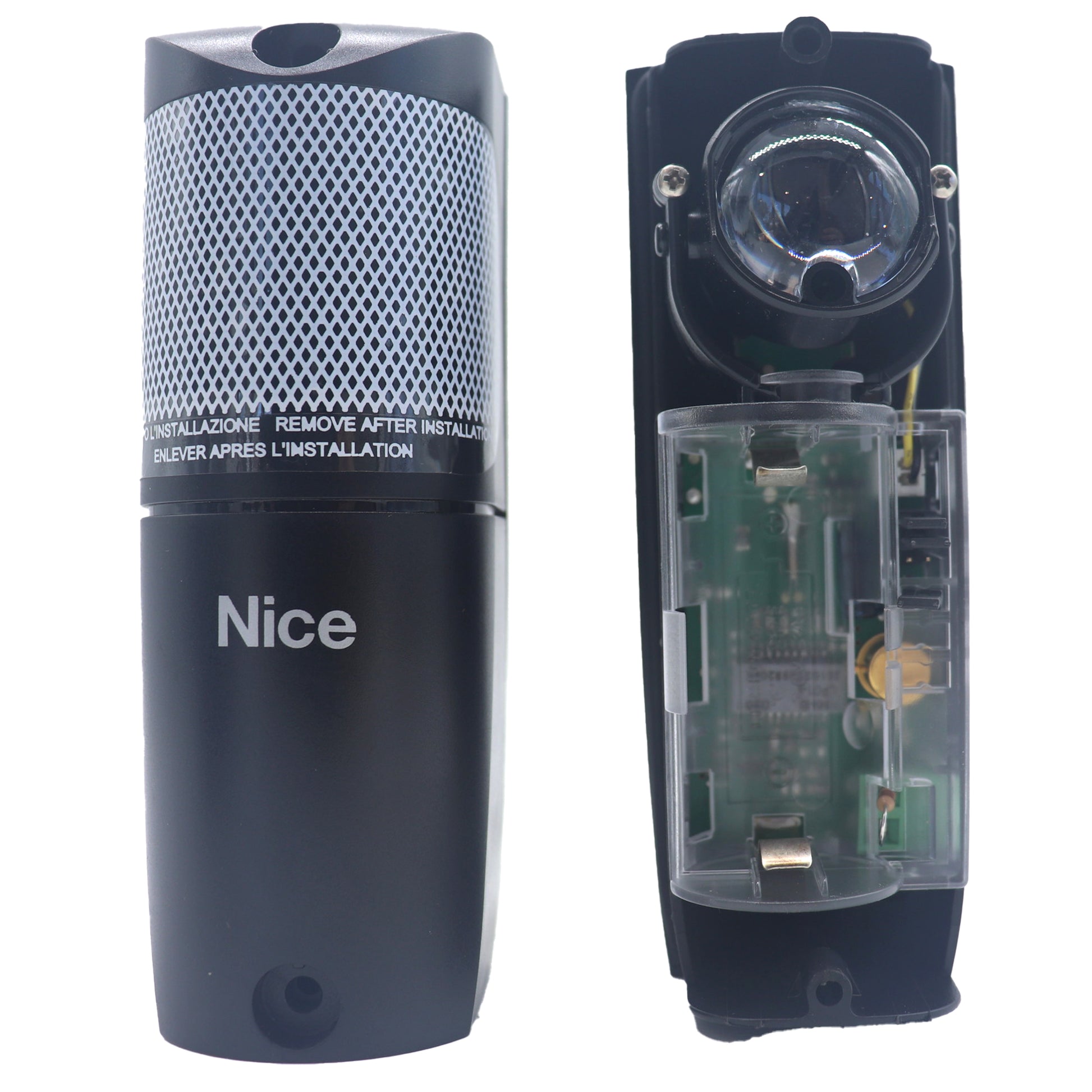

  • NICE FT210 battery powered safety beam transmitter

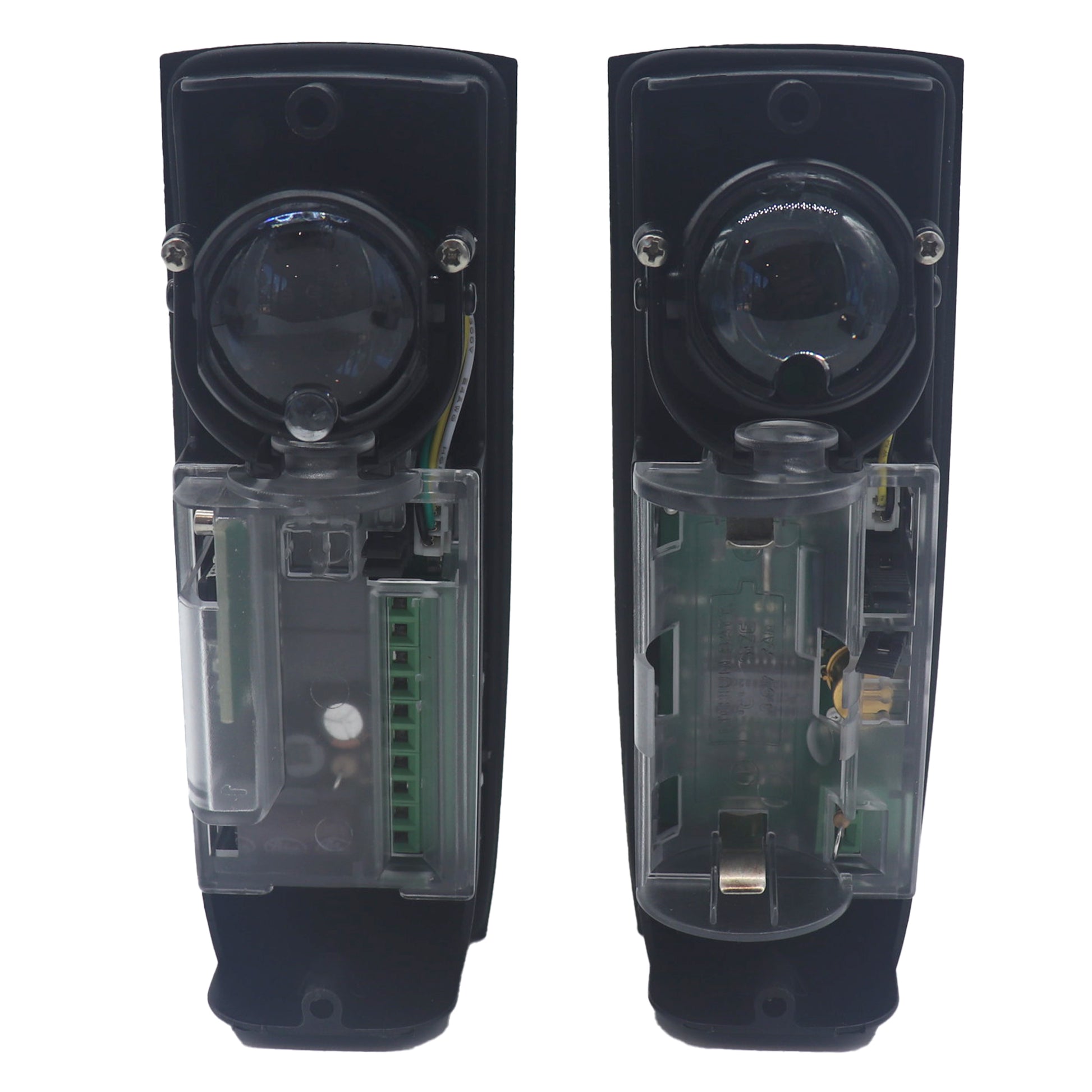

  • NICE FT210 wireless photocell for automatic gates

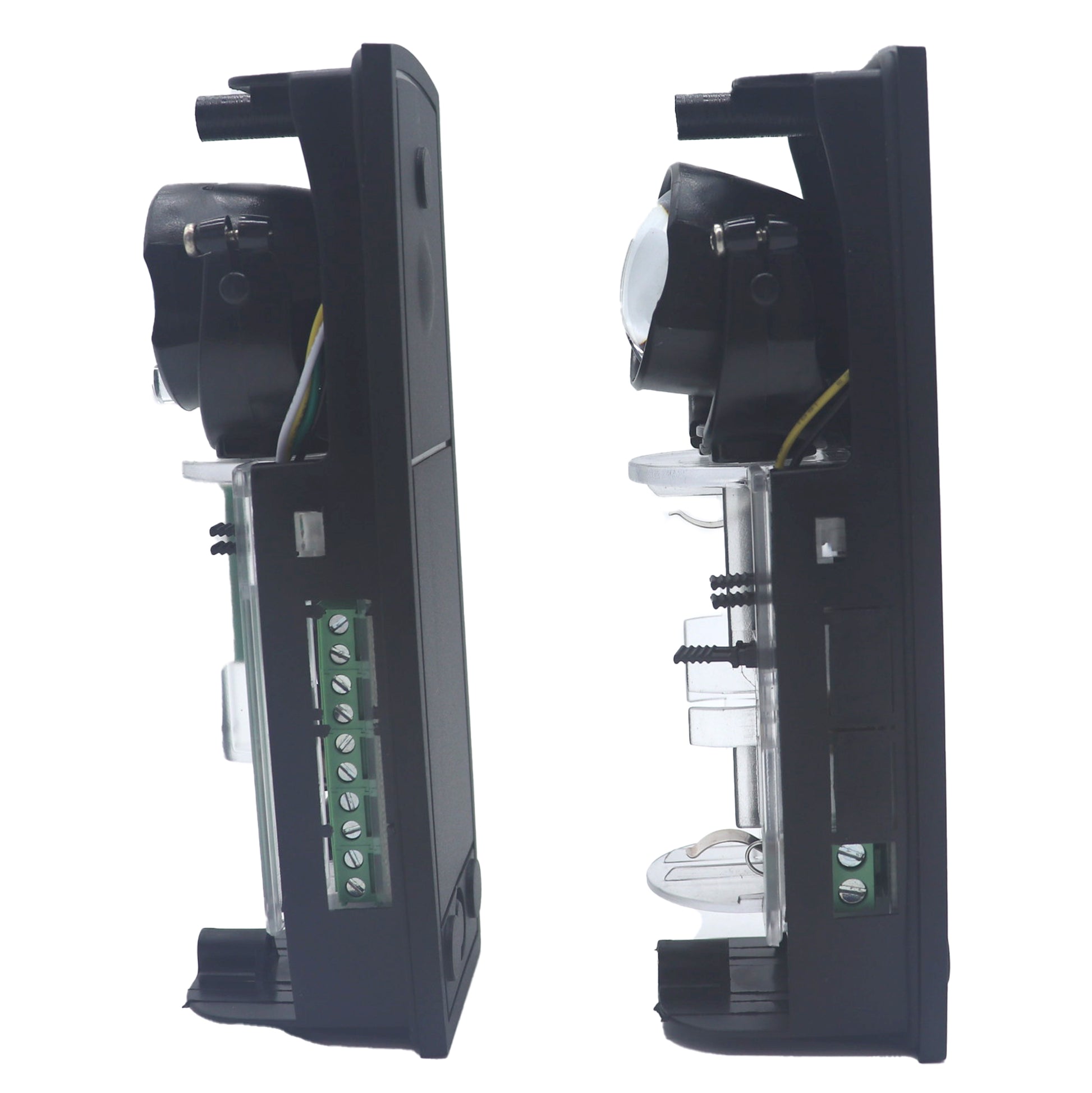

  • NICE FT210 safety beam transmitter internal view

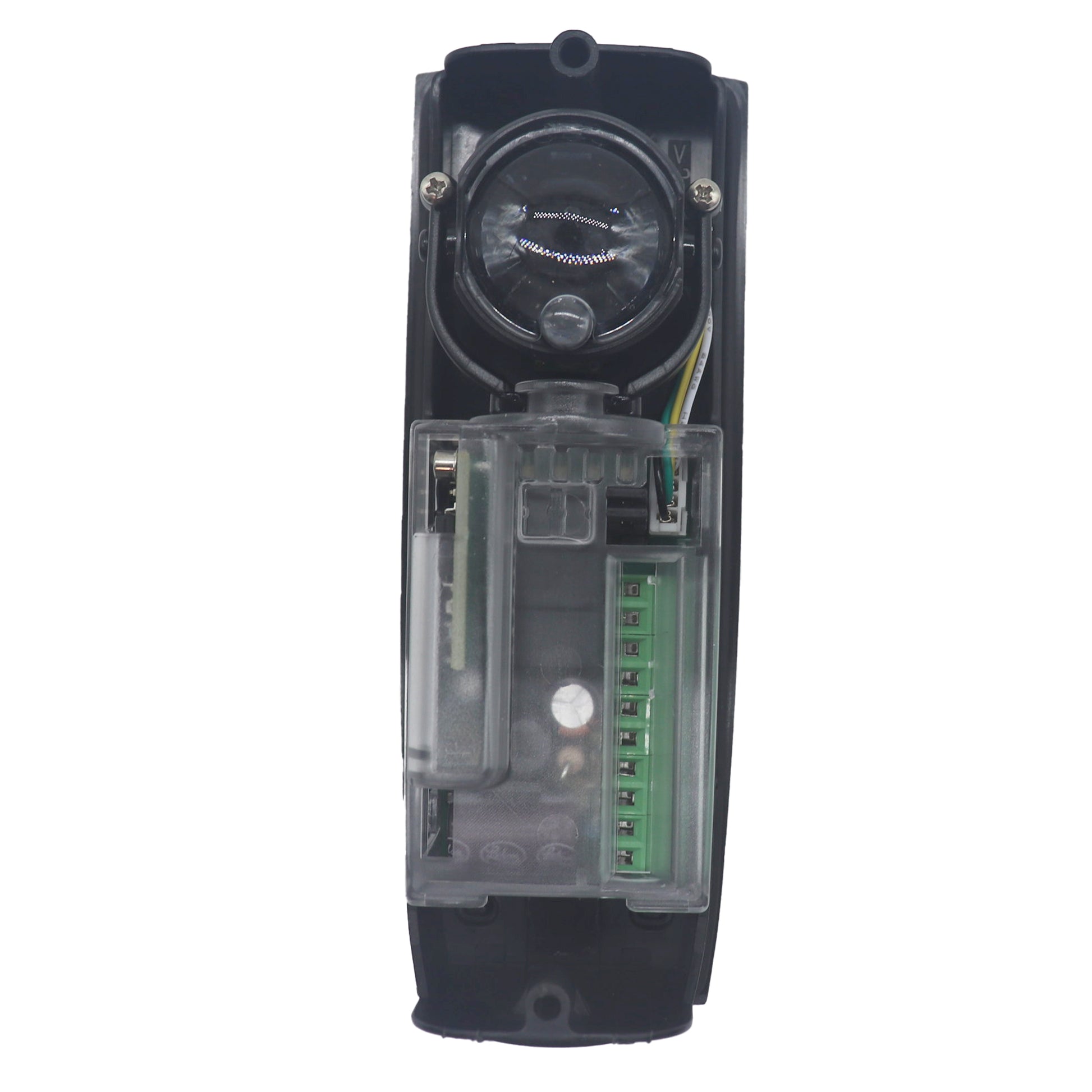

  • NICE FT210 safety beam receiver internal view
  • NICE FT210 wireless gate photocell dimensions
  • NICE FT210 safety beam in box
1 10

NICE FT210 Wireless Safety Beams

NICE FT210 Wireless Safety Beams

87009

$379.95
$379.95
Sale Read More
Duties and taxes included. Shipping calculated at checkout.

The NICE FT210 is a wireless safety beam designed to help detect people, vehicles and other objects within the gate's opening or closing path. When the safety beam is interrupted, it sends a signal to the gate motor, allowing the gate to stop and, depending on the motor setup, reverse away from the obstruction.

The FT210 consists of two parts:

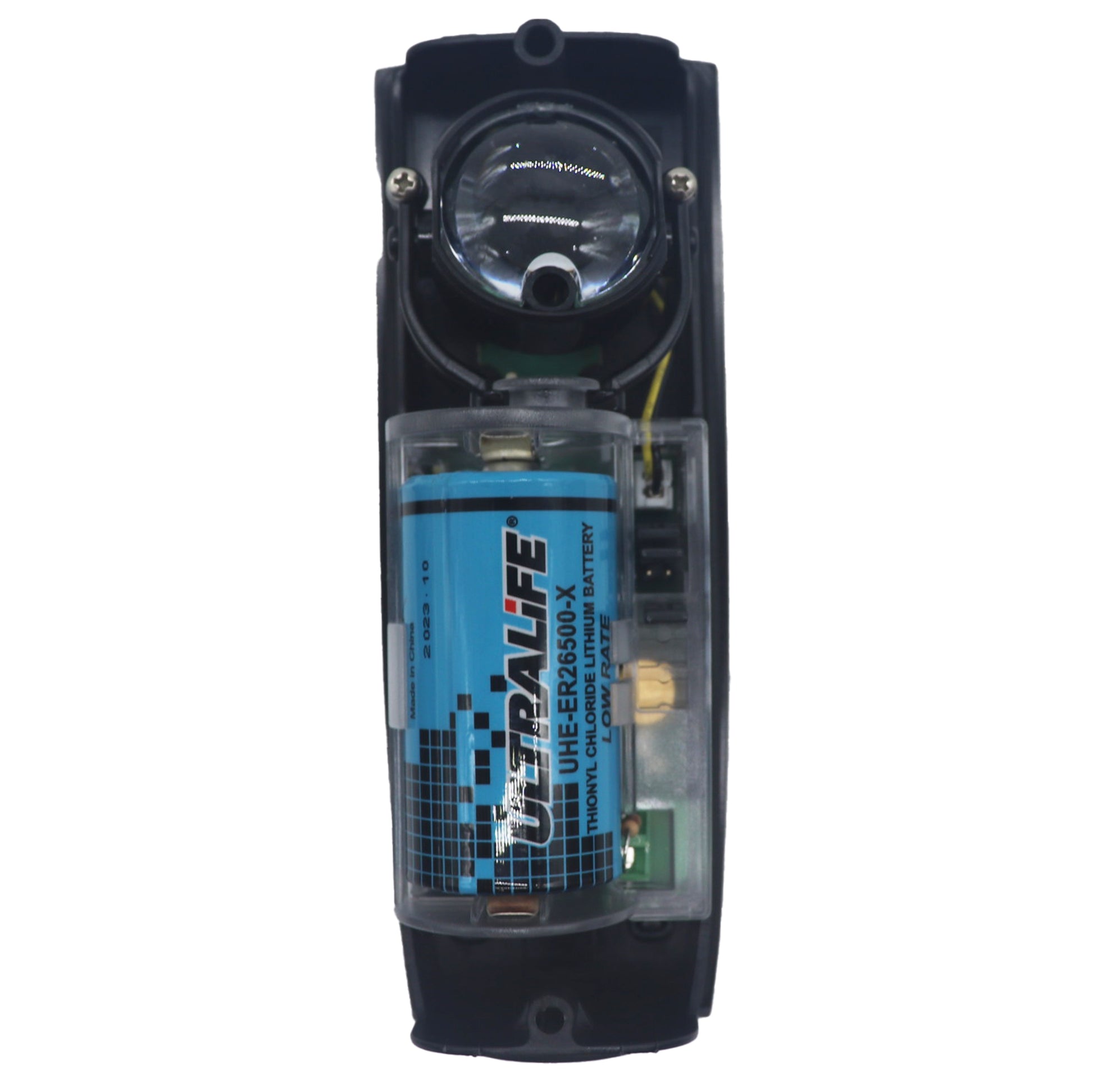

  • Transmitter (TX) – A battery-powered infrared safety beam that is positioned on the gate or near the entry/exit, opposite the gate motor.
  • Receiver (RX) – Wired into the gate motor/control board and mounted on a fixed wall or post opposite the transmitter.

The transmitter sends an infrared beam to the receiver. If a person, vehicle or object passes through and interrupts the beam while the gate is operating, the FT210 signals the gate motor to respond.

When correctly connected and configured for the closing cycle, interruption of the safety beam will typically cause the gate to stop and reverse, helping reduce the risk of the gate closing onto a person, vehicle or other obstruction.

What's Included:

  • Genuine Nice FT210 Safety Beams
    • Transmitter (TX)
    • Receiver (RX)
  • 1 x Battery
  • Installation screws/wall plugs
  • Installation Manual

Key Features:

  • Genuine Nice Product
  • Wide Adjustment: 210° horizontal and 30° vertical scope
  • Wireless transmission: no wires across driveway
  • Two wire connection

Ideal Applications:

  • Automatic sliding gates
  • Automatic swing gates
  • Gates with a safety edge fitted to the moving section
  • Installations where running a cable from the moving gate is difficult
  • Residential, commercial and industrial gate automation

Technical Specifications:

Power Supply

TX:  3.6 V with type C battery

RX:  12-24Vac/dc
Receiver absorbed current

Approx. 120mA at 12Vdc; 70mA at 24Vac
Phototest input voltage

The same limits as “Receiver power supply”
Device input range Sensitive (Rs)

Typical 8,2KΩ +22%/-65% for the on status (ON) ON limits: with Rs > 2.870Ω and Rs < 10.010Ω OFF limits: with Rs < 2.590Ω or Rs > 11.060Ω
Type D presence sensor detection capacity

Opaque objects located on the optical axis between TX and RX, larger than 50 mm and moving slower than 1.6m/s.
TX transmission angle

+/- 4° (value taken at 50% of the capacity).
RX reception angle

+/- 3° (value taken at 50% of the capacity)
Directional capacity

approx. 210° on the horizontal axis and 30° on the vertical axis
Maximum range (under optimum conditions)

15m or 30m (with JP1 inserted on TX) for maximum TX-RX misalignment ± 2°
PHOTO output response time

<45ms (typical 31ms).
ALT output response time

<30ms (typical 28ms).
ALT1 output response time

1.5s ± 3%.
Output relay contacts capacity

Maximum 0.5A and maximum 48Vac (resistive load: cos=1).
Output relay contacts duration

Mechanical life > 1.000.000 cycles; electrical > 200.000 cycles (resistive load: 0.25A; 24Vdc).
Protection class casing

IP44.
Operating temperature

-20 - 55°C
Dimensions

46 x 128 h 45mm.
Weight

Receiver 135g. Transmitter 165 g with FTA1 or 140 g with FTA2
