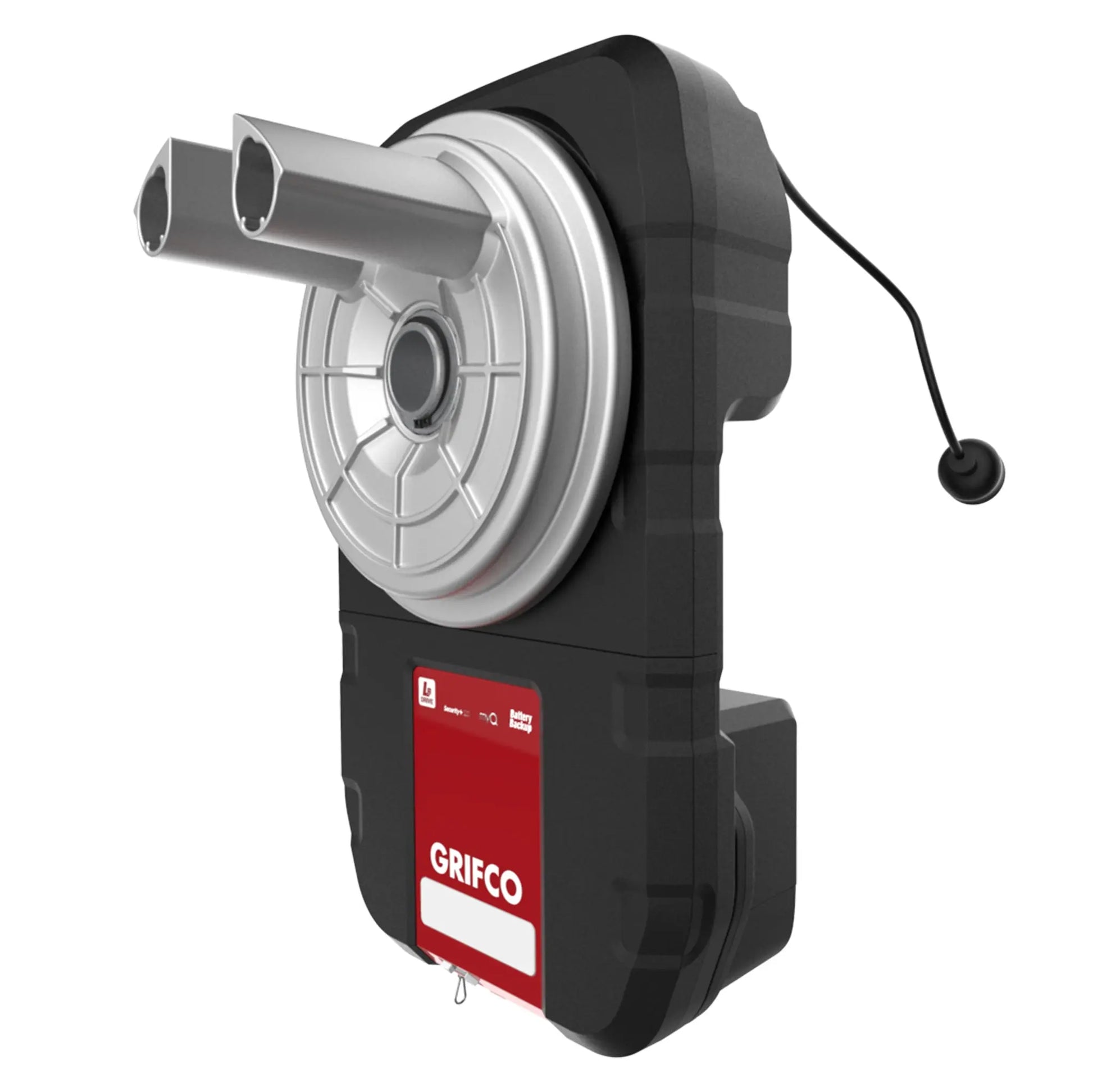

Grifco LR Drive Roller Shutter Opener
Grifco LR Drive Roller Shutter Opener
Regular price
$850.00
Regular price
Sale price
$850.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

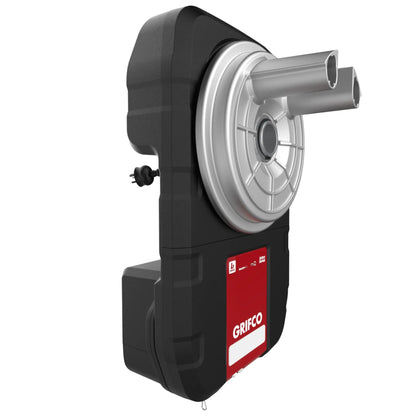

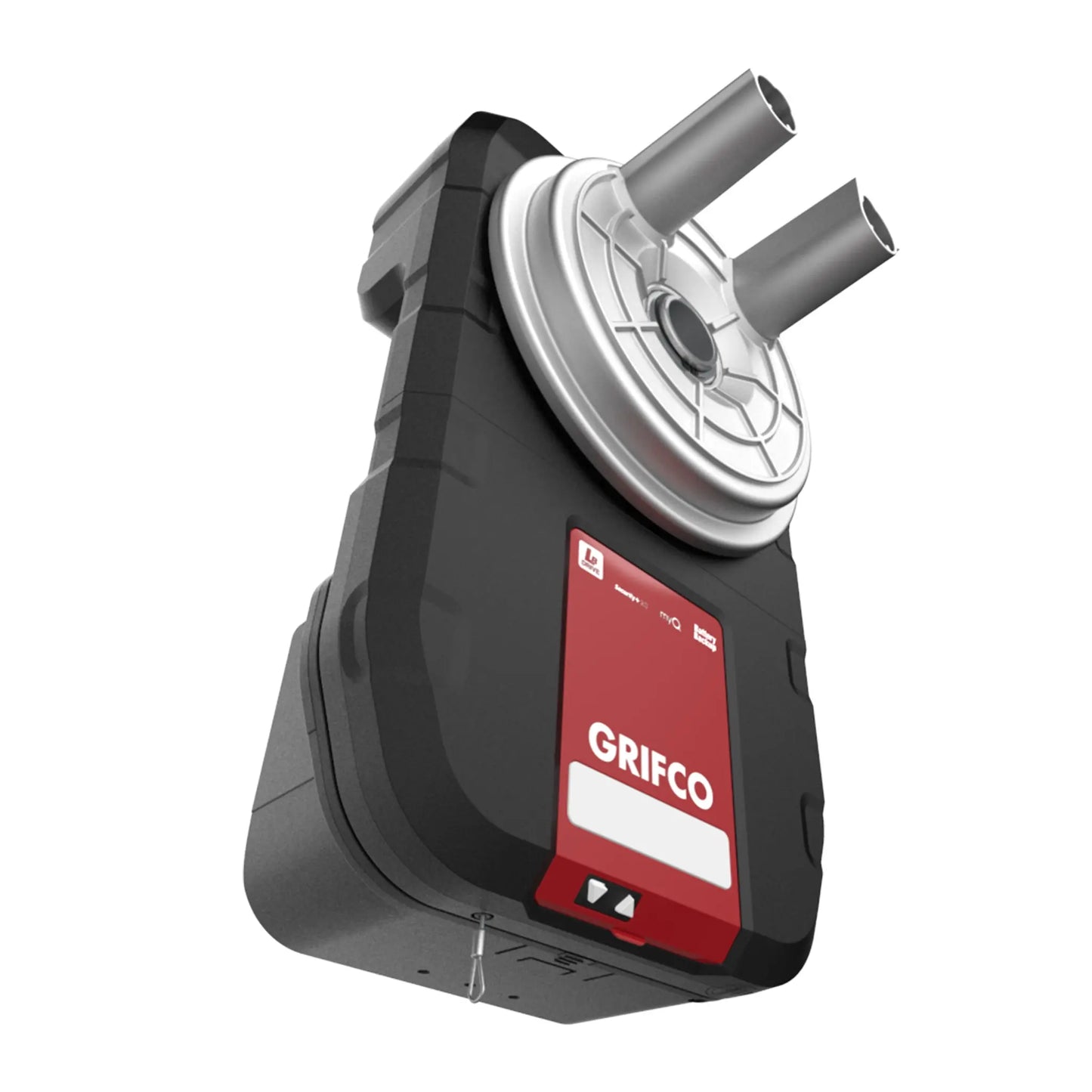

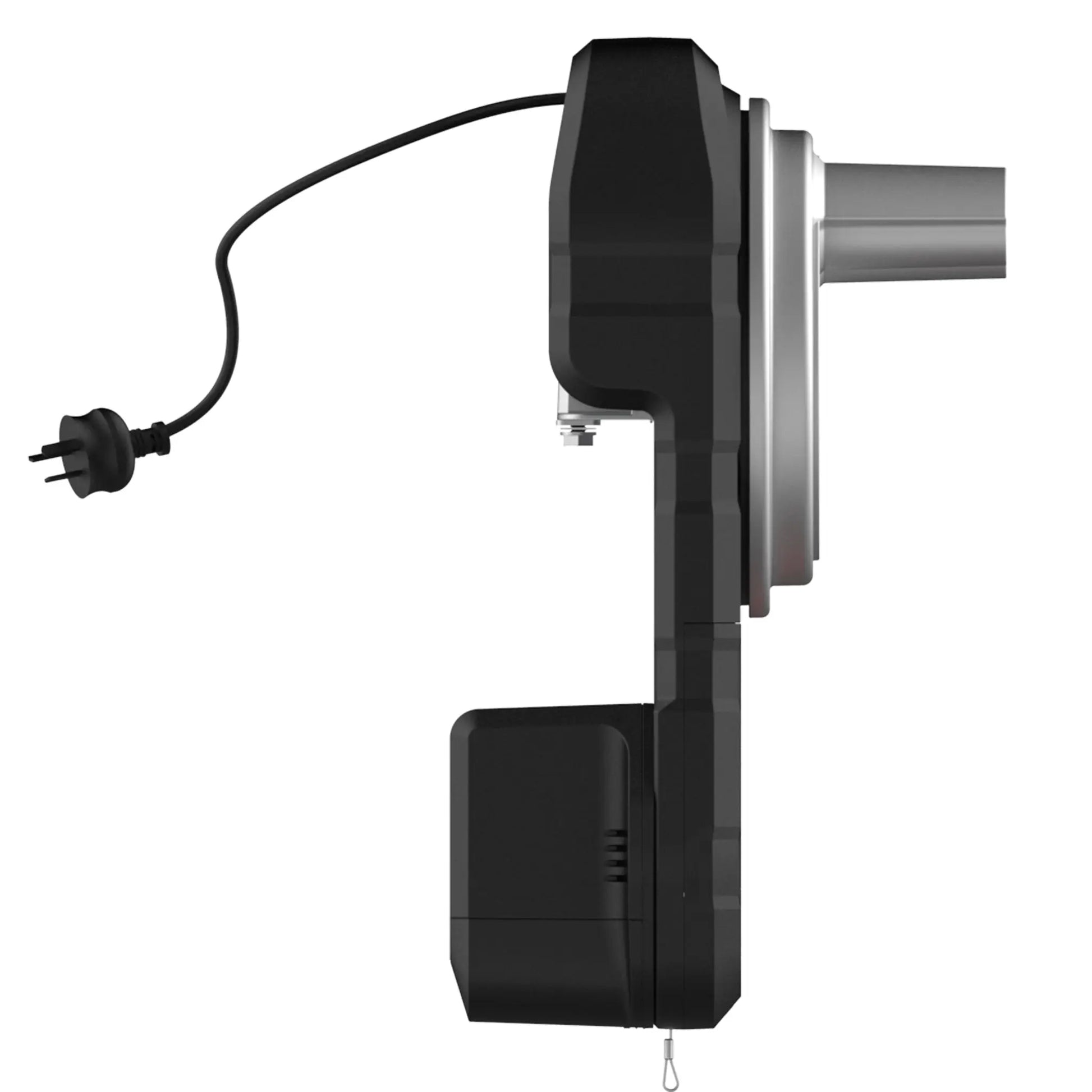

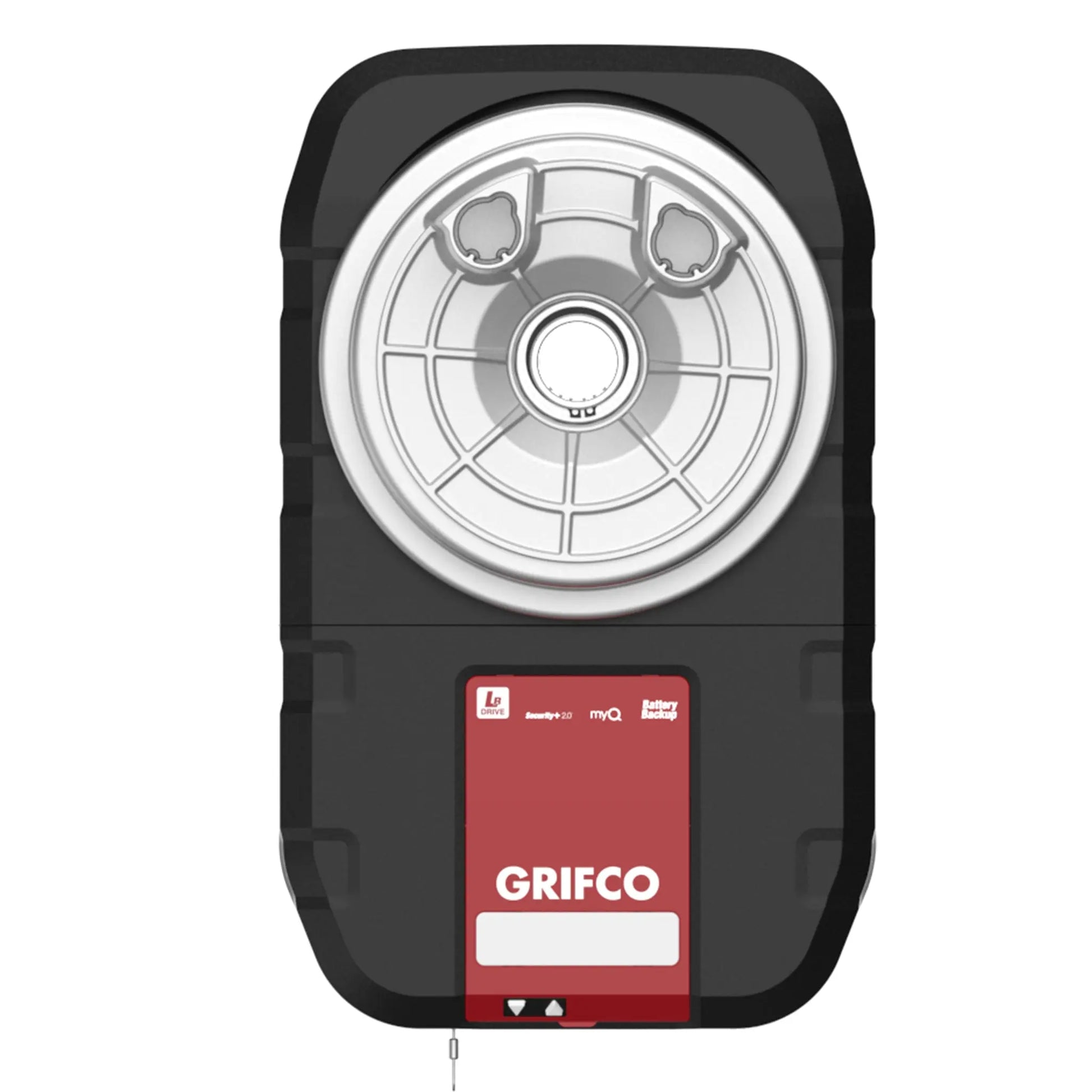

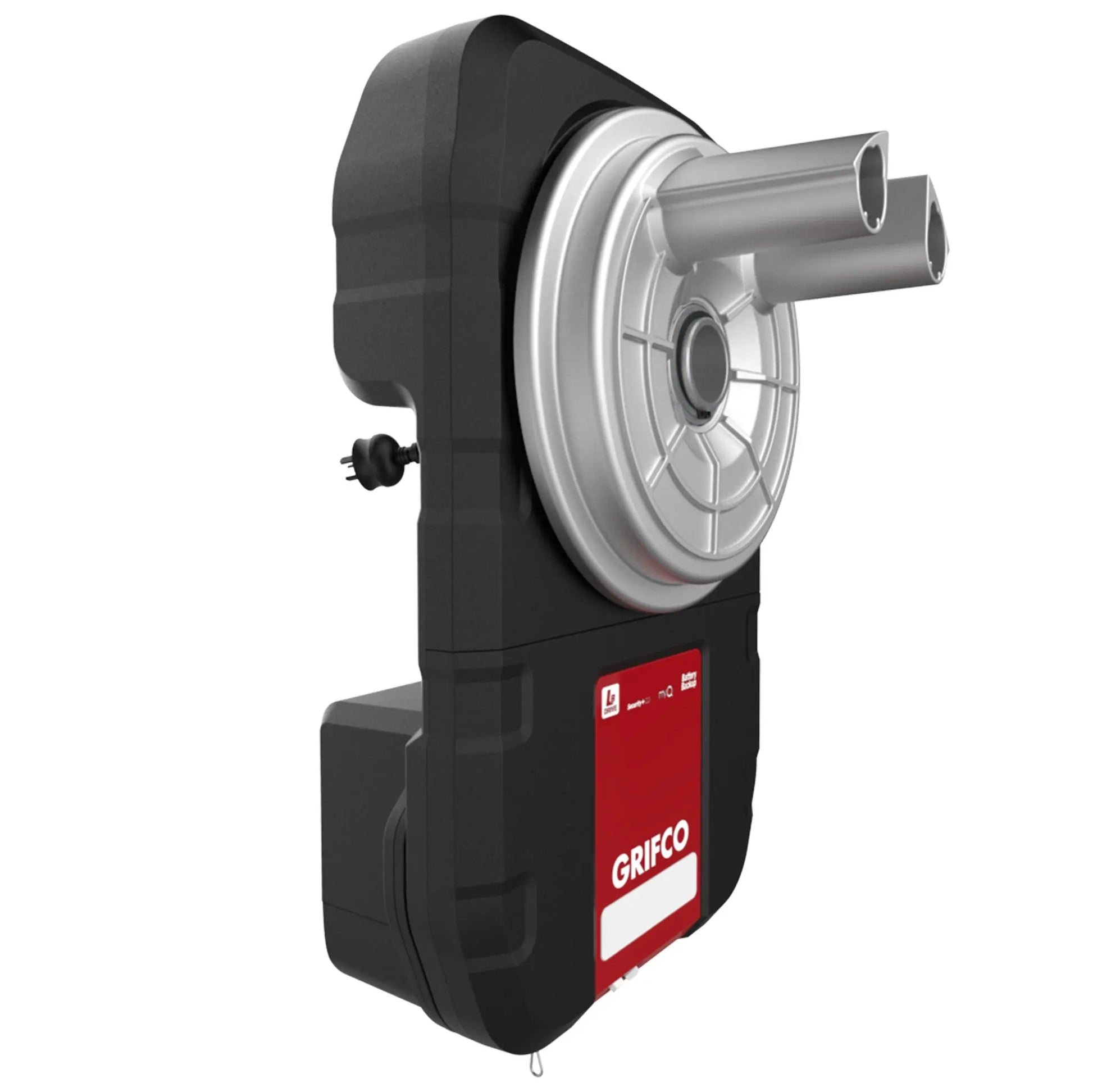

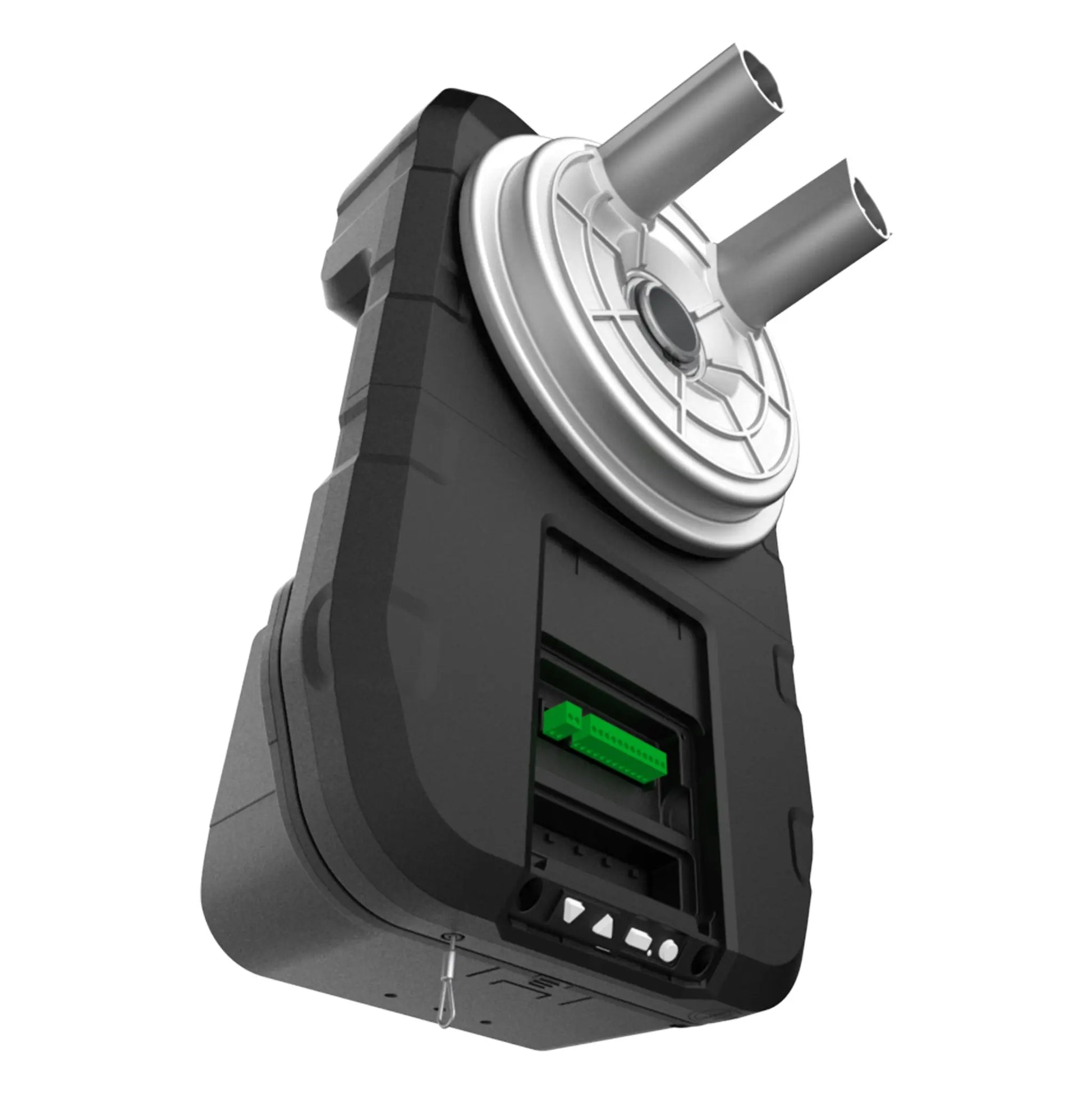

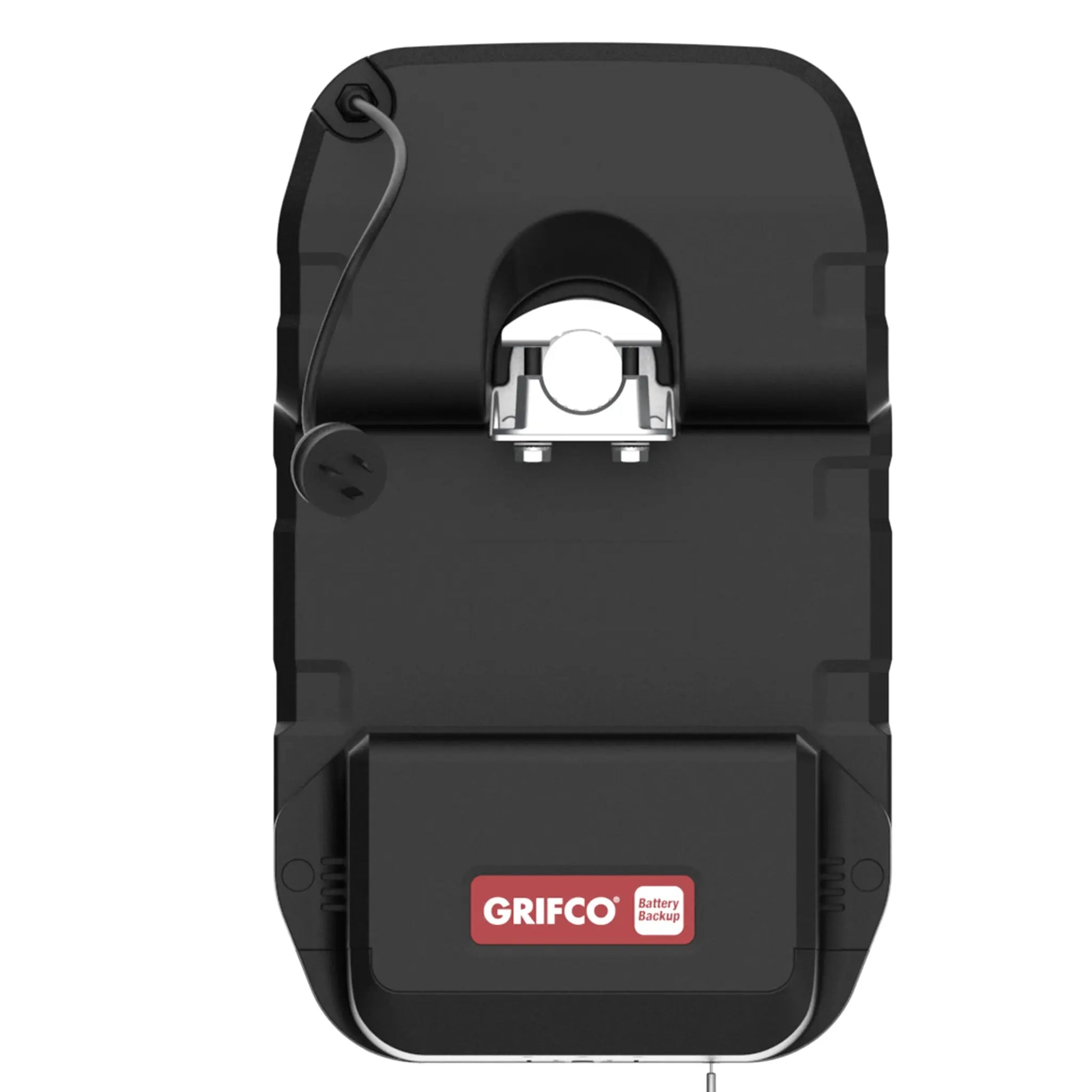

High Performance Light Commercial Roller Door Opener - Grifco LR Drive (Model: GLD-RDO)
The Grifco LR Drive is the ultimate solution for large and wind-locked roller doors, combining power, speed, and smart technology in a compact, slimline design. Ideal for warehouses, sheds, shopfront roller grilles, and light industrial applications, this operator is engineered to deliver reliability, strength, and seamless connectivity for modern commercial needs
What’s Included:
- 1 × Grifco LR Drive

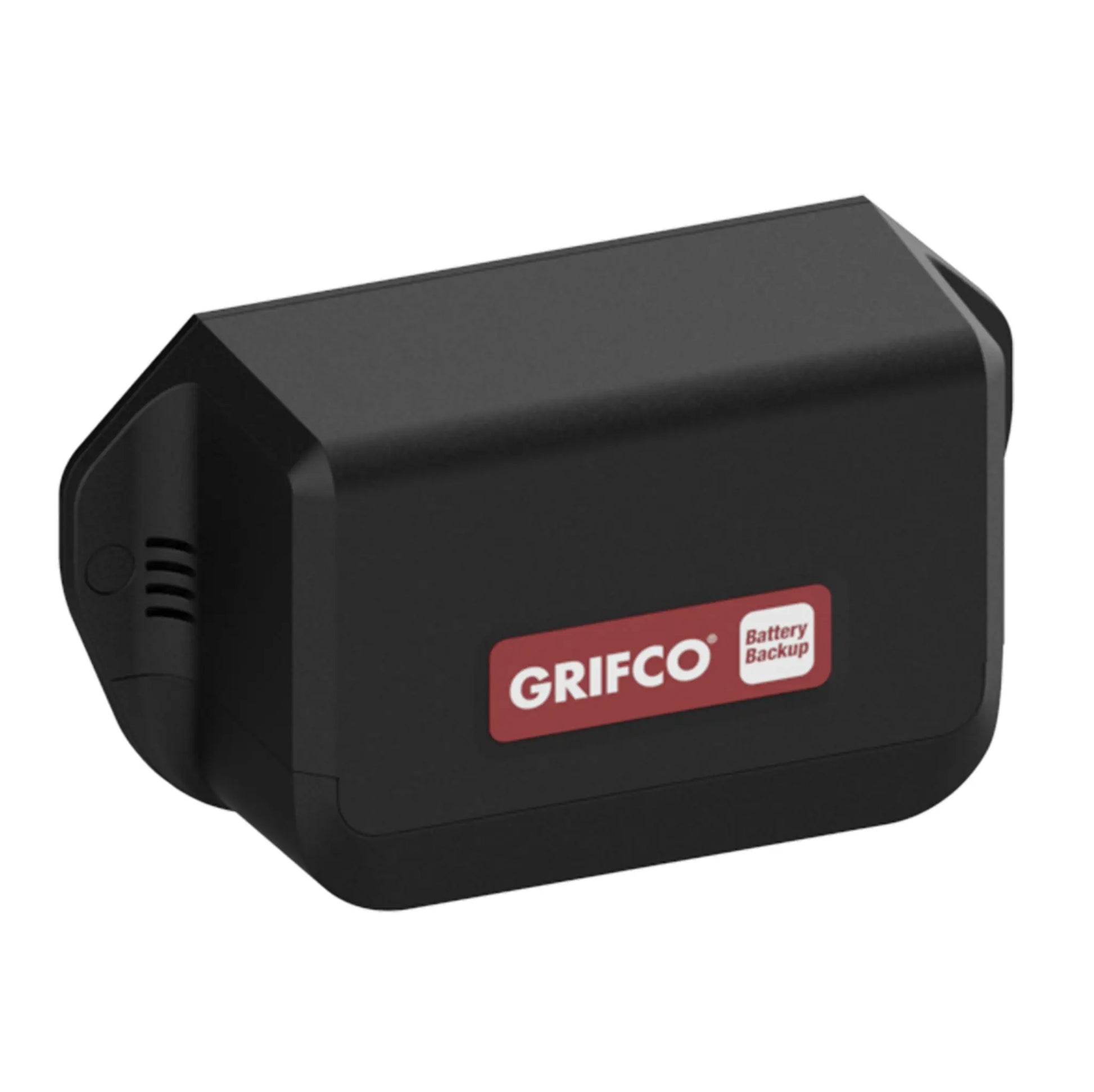

- 1 x 24VDC Battery backup unit (BBU)
- 1 x Grifco E138G Wall Button Transmitter
- 2 x Grifco E960G Transmitters
- Installation Accessory Pack
- 1 Step-by-step Installation Instructions
Key Features:
- Faster: Opens a standard 2.4m high door in just 21 seconds, making it the fastest in its class.
- Stronger: Heavy-duty motor and gearbox lift roller doors up to 28m² and wind-locked doors up to 22m² with ease.
- Thinner: Requires only 45mm of side room clearance, perfect for installations with tight space.
- Battery Backup Included: Supplied with a 24VDC Battery Backup Unit that can be mounted to the operator or wall for uninterrupted operation during power outages.
- Durable Build: Cast aluminium sun gear with bearings, powerful motor, and robust gearbox designed for long-lasting performance.
- Connectivity: With myQ technology, monitor and control your door from anywhere in the world, schedule operations, and receive status notifications* (*requires myQ Gateway & monitored safety beams, sold separately).
- Fully Compliant with Australian Safety Standards.
Ideal Applications:
- Large Residential Roller Doors
- Wind-Locked Garage Doors (up to 22m2)
- Sheds and agricultural buildings
- Light industrial units and warehouses
- Retail Shopfront roller doors & grilles
Technical Specifications:
| Main AC Power | 230-240 VAC 50Hz |
| Max. Pull Force | 1300N |
| Power | 150W |
| Operating Temp | -20°C to +50°C |
| Max Door Height | 5.5m |
| Max Door Weight | 270kg |
| Normal Torque | 45Nm |
| Door Type | Commercial Steel Spring-Balanced Roller Door or Grille |
| Max Door Size | 28m² 22m² wind-locked |
| Max. Door Cycles | 50 cycles/day |
| Operator Dims | 470 (H) x 280 (W) x 95mm (D)
470 (H) x 280 (W) x 150mm (D) with BBU |
| Side Room Clearance | 45mm between door drum and mounting bracket |
| Operator Depth | 95mm, 150mm with BBU (Door Curtain to Wall) |
| Tines | 2 x 90mm diecast aluminium tines |
| Compliance | AS/NZS 60335-1 AS/NZS 60335-2-103 |
| Warranty | 2 Years, 10,000 cycles (whichever occurs first) |
Downloads:
 |
 |
This product contains a button or coin cell battery. To prevent possible SERIOUS INJURY or DEATH:
- Keep new and used batteries out of reach of children at all times.
- Do not use this product if the battery compartment is damaged or does not close securely.
- Dispose of used batteries immediately and safely — even flat batteries can cause serious harm.
- Do not ingest the battery. Chemical burn hazard.
- If you suspect a battery has been swallowed or inserted, act immediately — severe or fatal injuries can occur within 2 hours.
