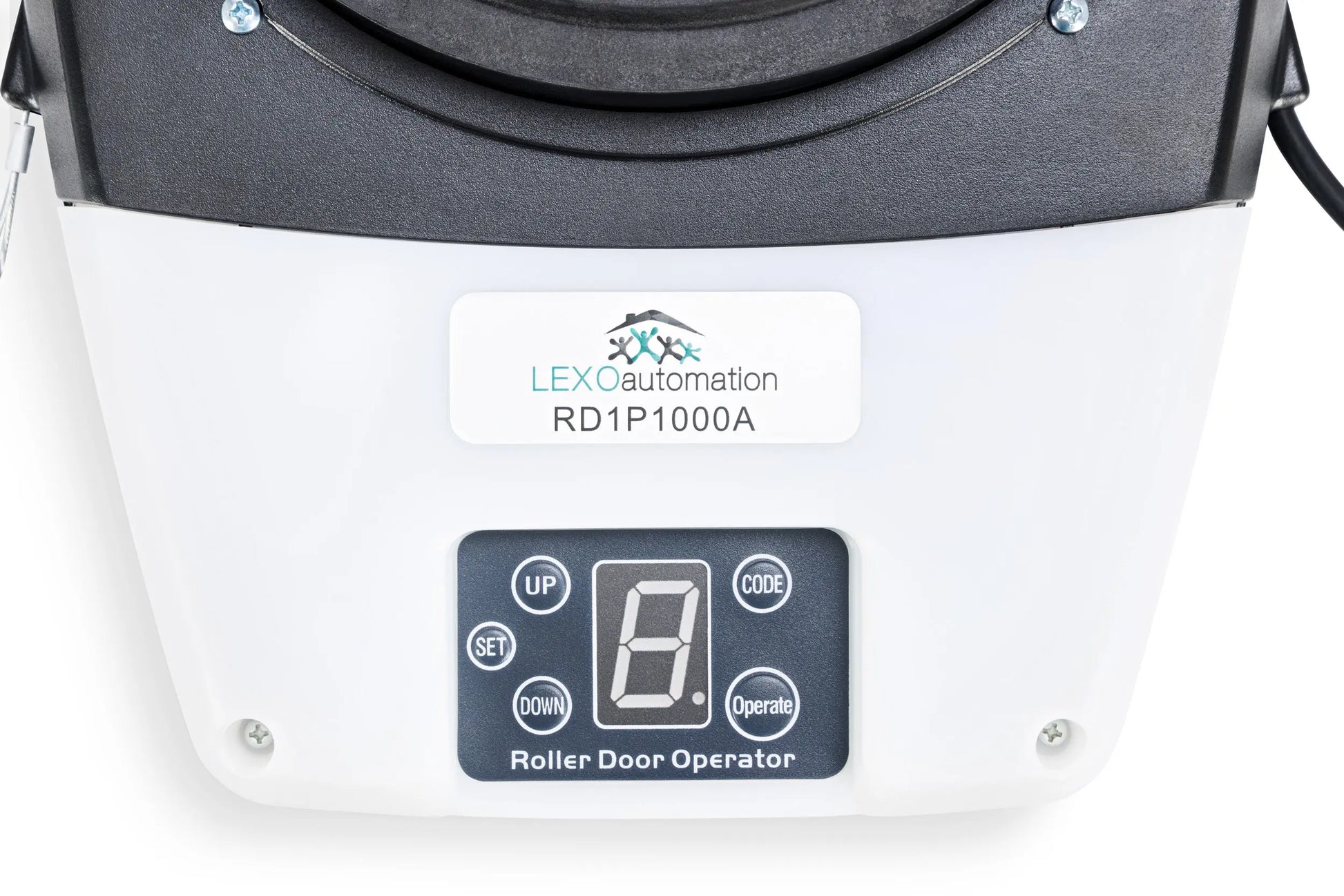

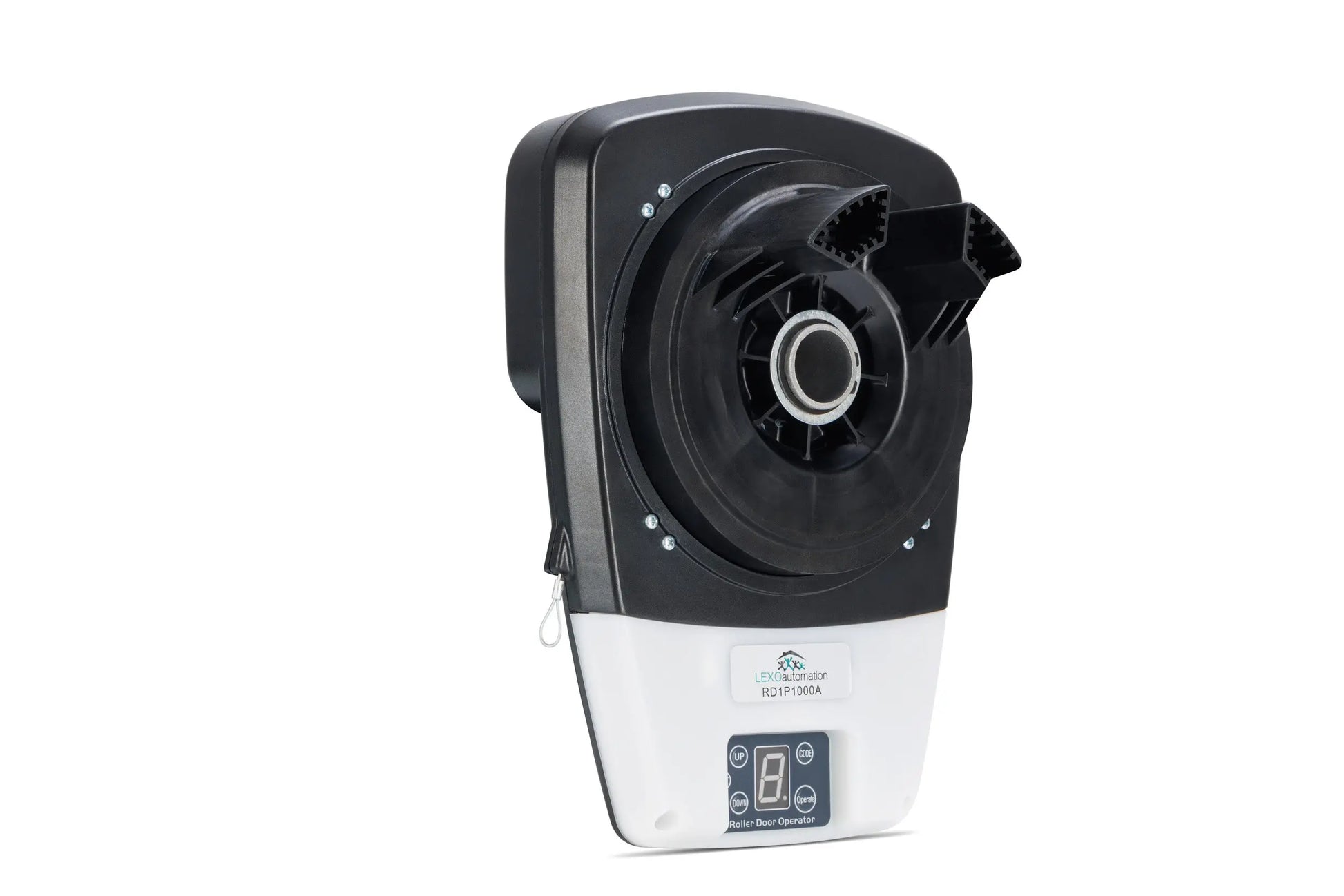

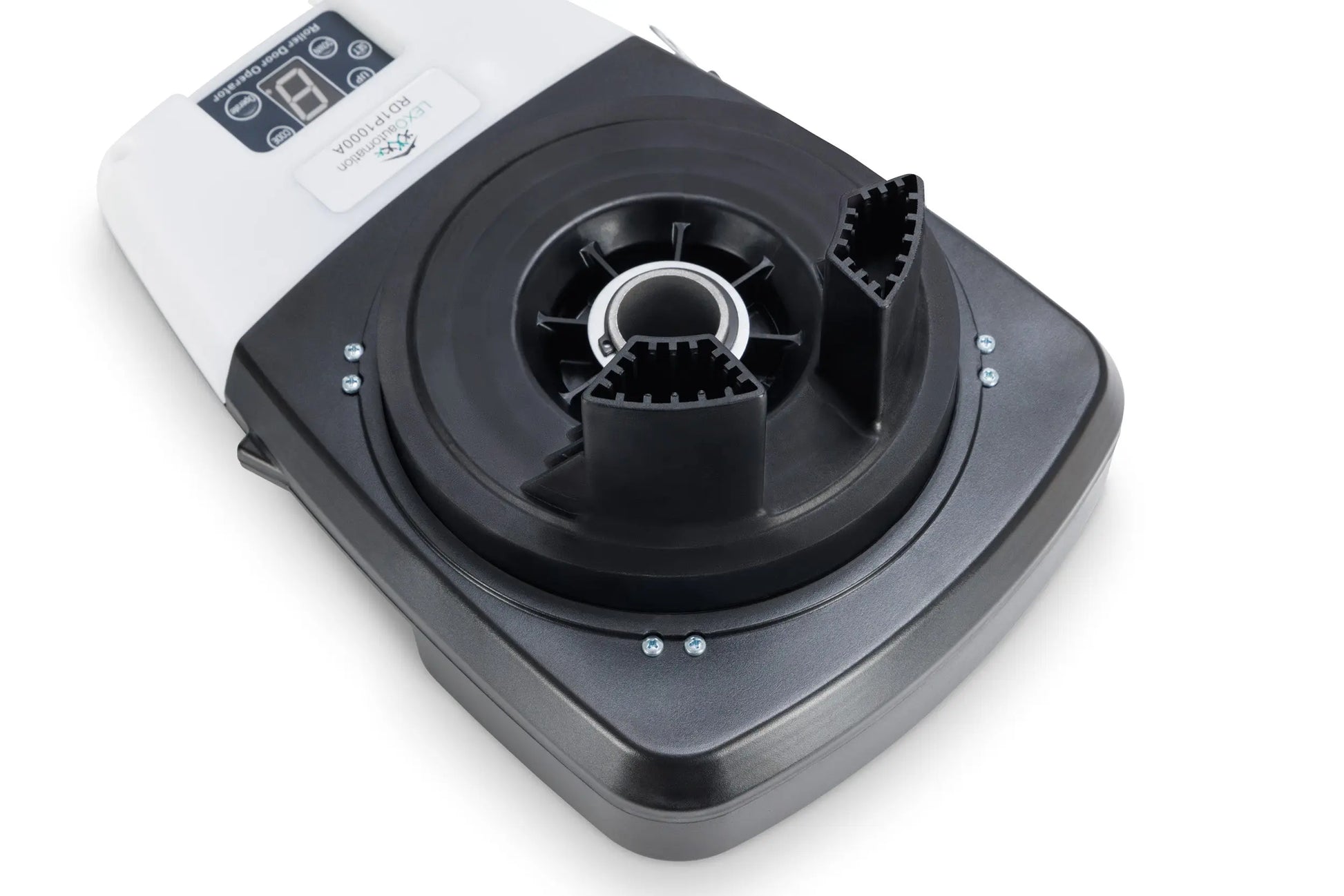

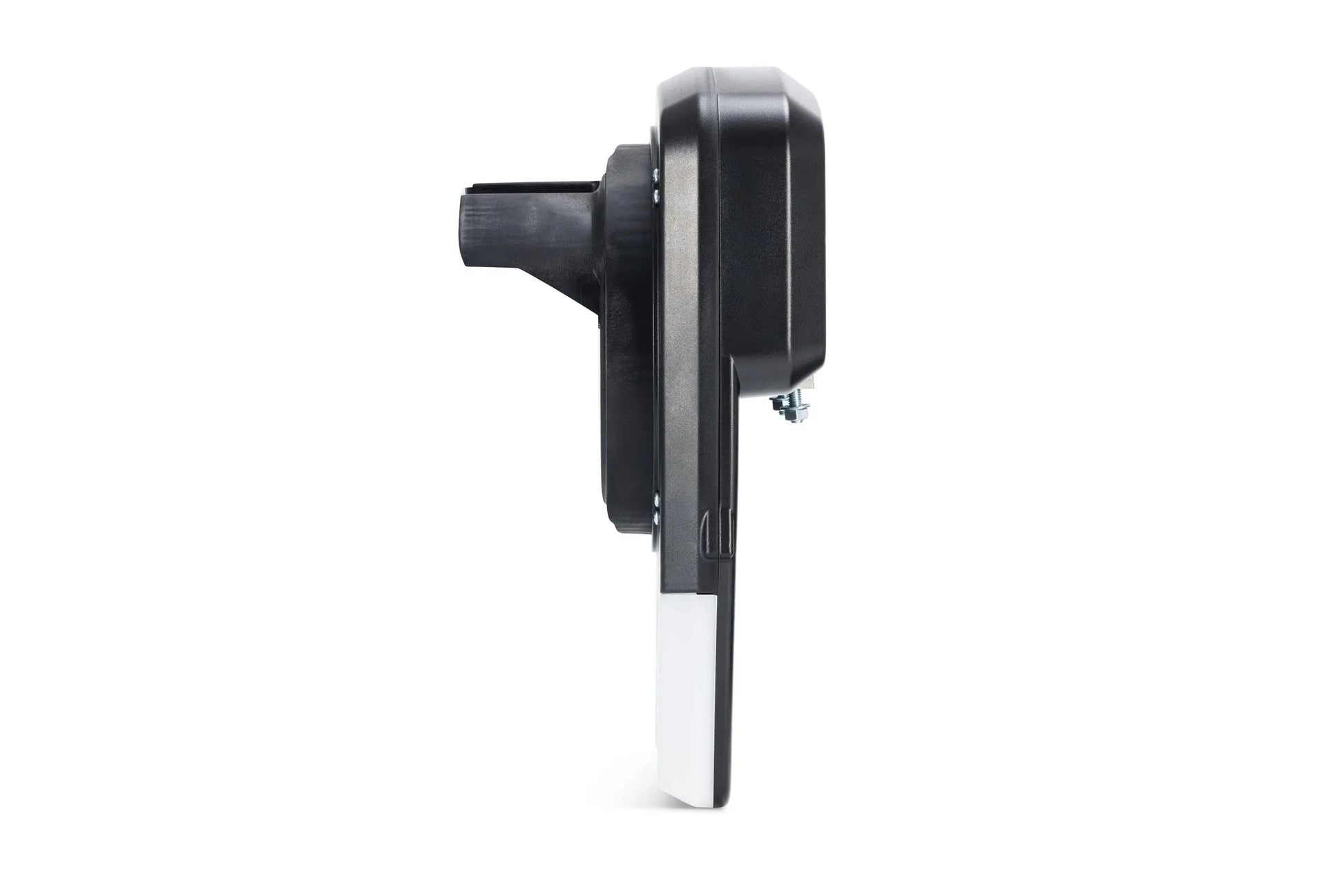

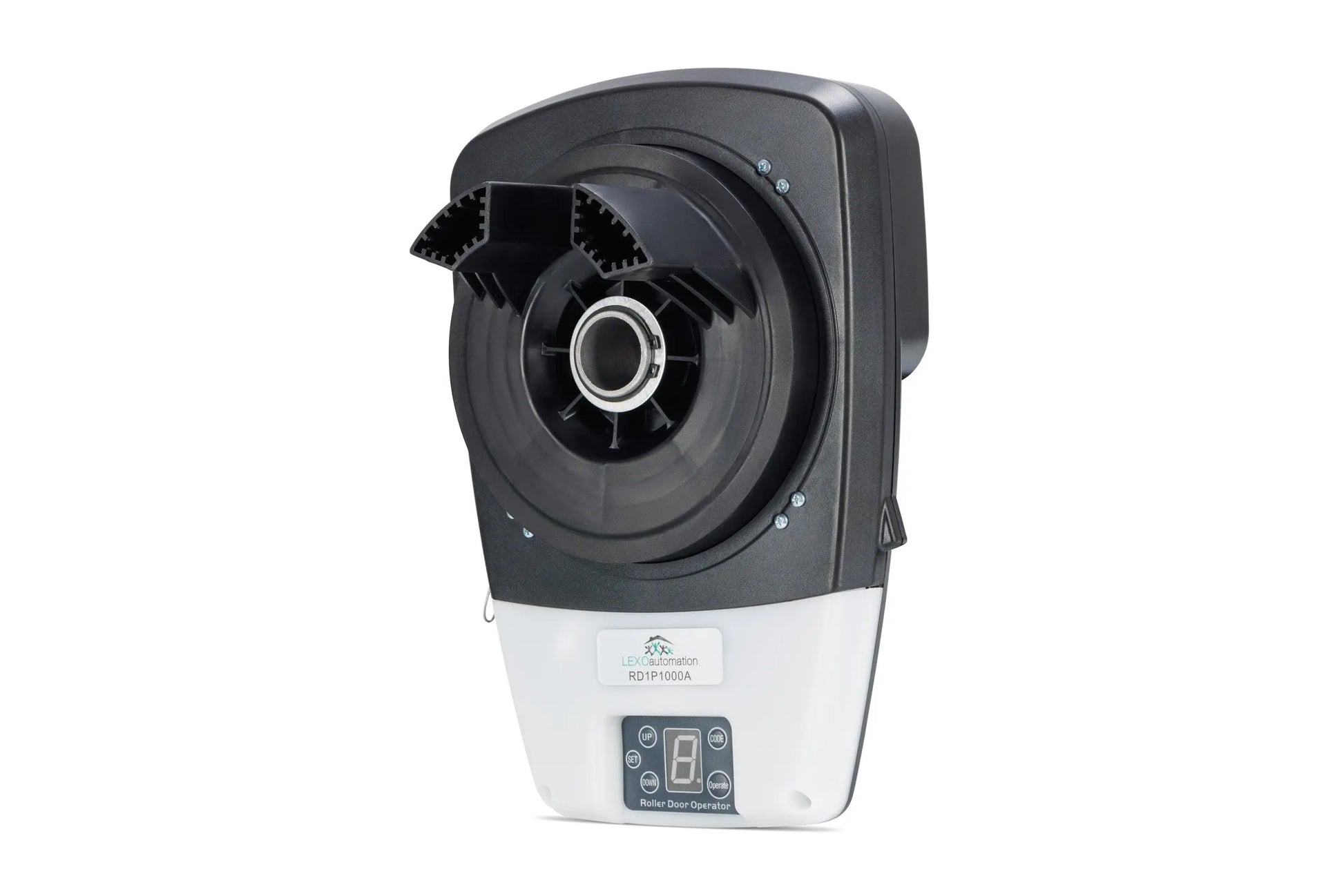

LEXO Automation RD1P1000A Roller Door Opener
LEXO Automation RD1P1000A Roller Door Opener
Regular price
$499.95
Regular price
Sale price
$499.95
Duties and taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
RD1P1000A Roller Door Opener
The LEXO Automation RD1P1000A is a quiet, reliable roller door opener ideal for standard residential garage doors. Featuring soft start/stop technology, safety reverse, rolling code security, and a bright LED courtesy light, it delivers smooth everyday use with minimal noise — perfect for garages connected to the home. Designed for simple installation and long-term performance, it's an excellent upgrade from older or noisy motors.
What’s Included:
- 1 × LEXO Roller Door Motor Kit

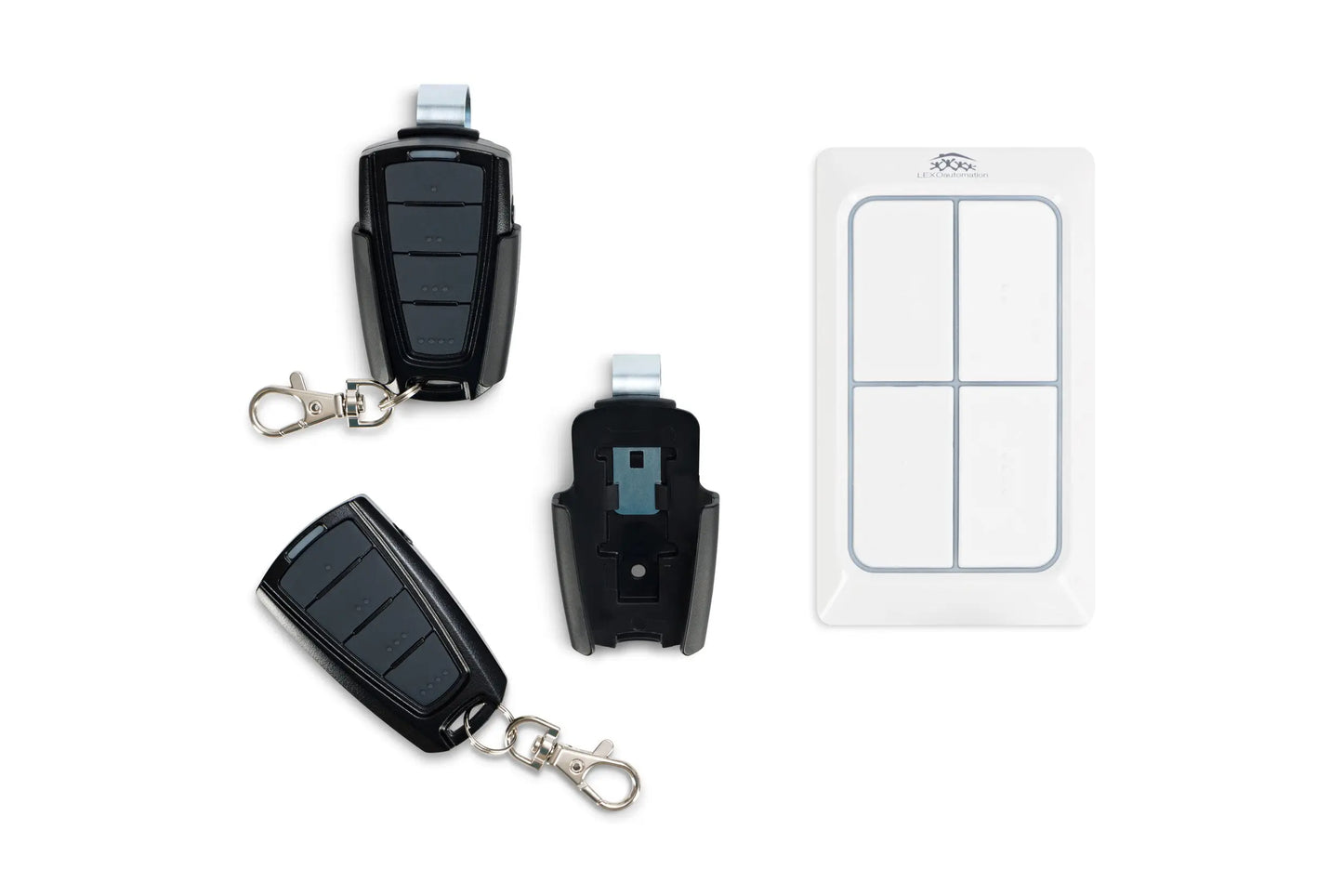

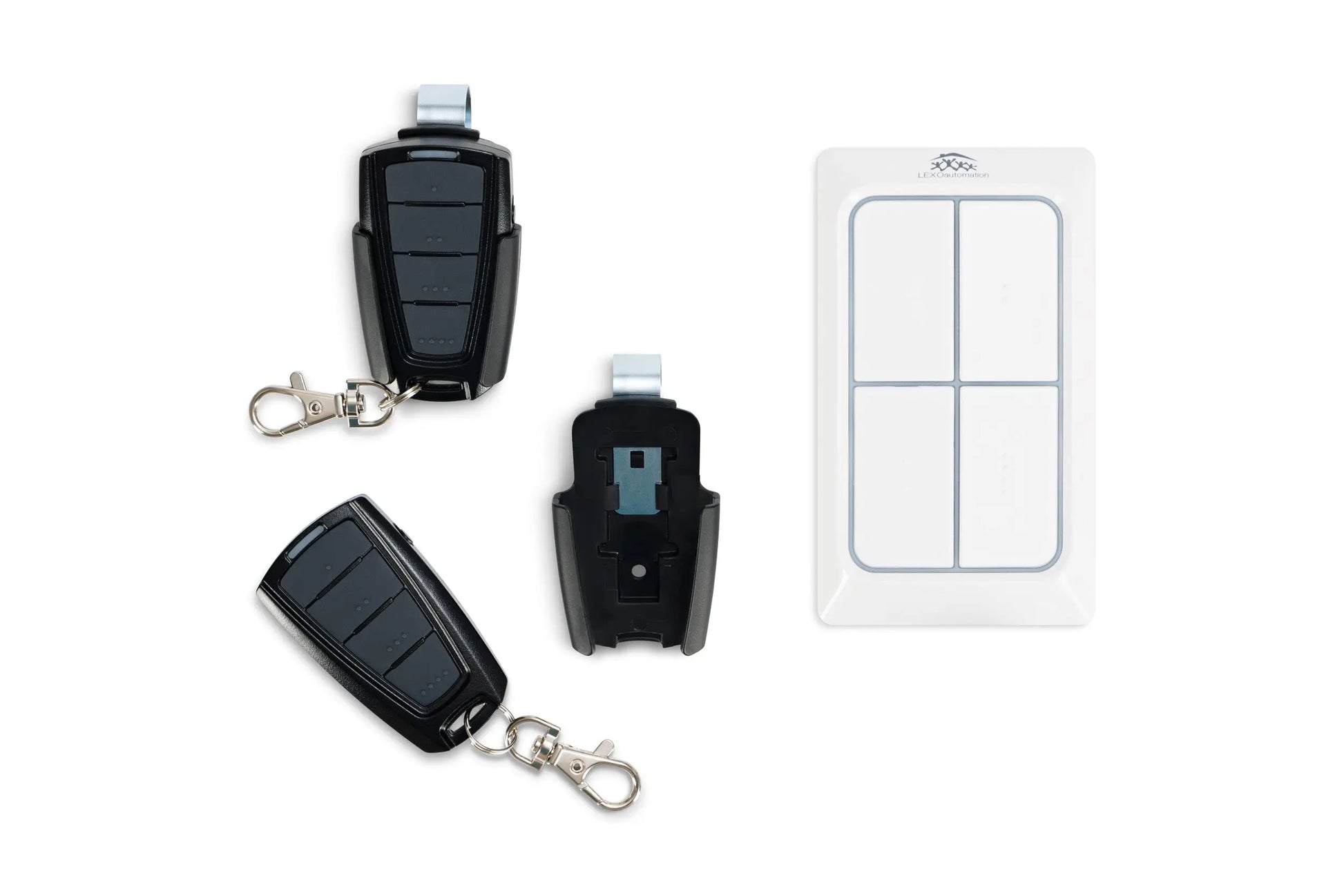

- 2 × 4-Button Remotes
- 1 × Wall Button Remote
- 1 × Emergency Clutch Pull Rope
- Installation Accessory Pack
- Installation Instructions
Key Features:
- Soft Start & Stop Function: Provides smooth operation and minimises wear on the motor and door.
- Quiet Motor: Engineered for whisper-quiet operation, ideal for attached garages and residential use.
- Unique Code Transmitters: Secure rolling code technology for safe and reliable operation.
- Automatic Safety & Obstruction Reverse: Detects obstacles and reverses automatically to prevent damage or injury.
- Manual Release & Emergency Clutch: Ensures continued operation during power failure.
- LED Courtesy Light: Illuminates the garage area during operation for improved visibility.
- Easy Installation: Designed for straightforward setup with included accessories and clear instructions.
- Reliable & Simple Operation: Built for long-term daily use with minimal maintenance.
Ideal Applications:
- Residential Roller Doors: Perfect for single or double residential garages.
- Workshops & Sheds: Smooth and reliable performance for smaller workshop roller doors.
- Garage Upgrades: A quiet and dependable upgrade from older or noisier motors.
- Everyday Use: Designed for regular, frequent operation in Australian conditions.
Technical Specifications:
| Rated Voltage Range | 220 - 240VAC |
| Rated Power Input | 50 - 60 Hz |
| Force | 1000N |
| Motor Type | 24V DC permanent magnet |
| Door Opening | 22m2 (max 3m high and 120kg) |
| Drum Rotation | 5.5 rotations |
| Minimum Side Clearance | 45mm edge of curtain to edge of bracket |
| Running Speed | 200mm/sec |
| General Working Time | under 60s |
| Temperature Range | -20 ~ 50C |
| Transmitter Frequency | 433.92Mhz |
| Battery Type | CR2032 (Pre-Installed) |
| AS62368.1 Compliant | Yes |
| Manufacturers Warranty | 5 Years, 15,000 Cycles (whichever comes first) |
Button/coin batteries can cause severe injuries or even death when swallowed. Keep batteries out of reach of children. If you suspect a child has swallowed or inserted a button/coin battery, seek medical attention immediately.
Note: This motor is suited for a single or double residential garage door opener with a maximum height of 3m and 120kg in weight.
Downloads:
This product contains a button or coin cell battery. To prevent possible SERIOUS INJURY or DEATH:
- Keep new and used batteries out of reach of children at all times.
- Do not use this product if the battery compartment is damaged or does not close securely.
- Dispose of used batteries immediately and safely — even flat batteries can cause serious harm.
- Do not ingest the battery. Chemical burn hazard.
- If you suspect a battery has been swallowed or inserted, act immediately — severe or fatal injuries can occur within 2 hours.
