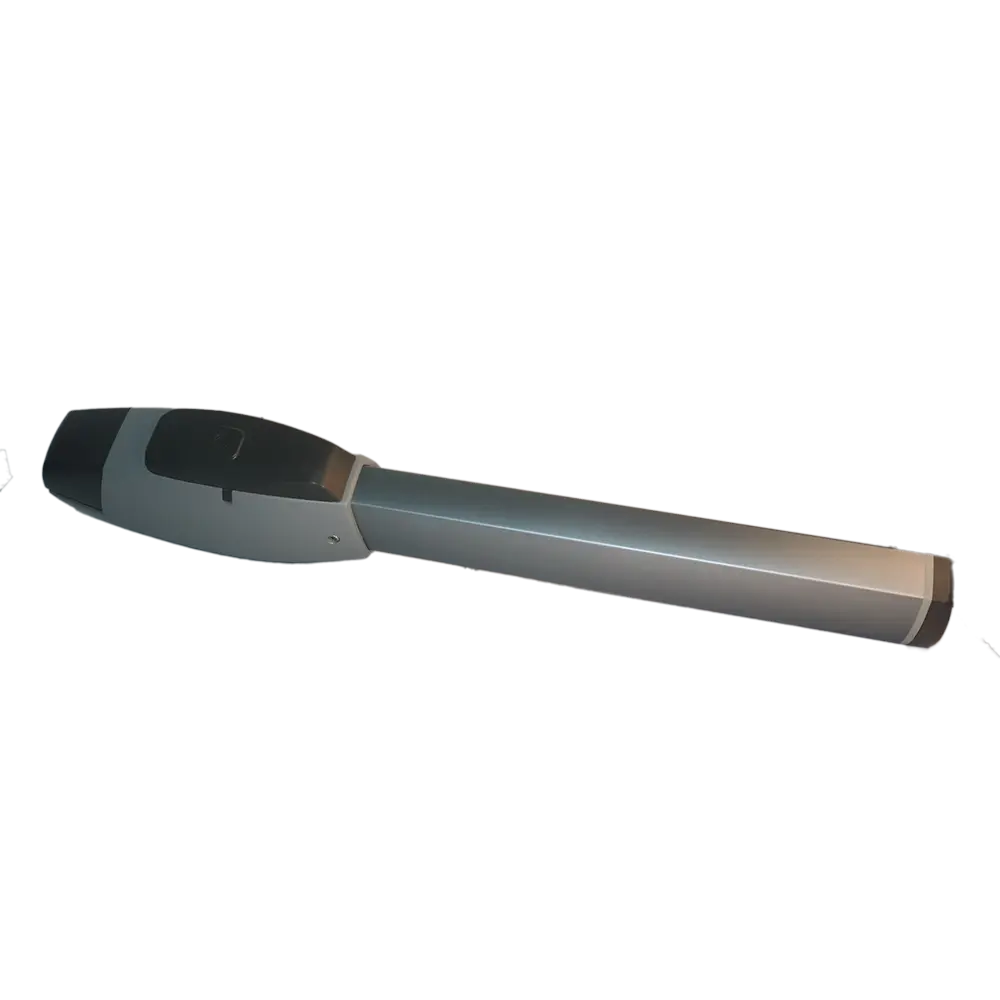

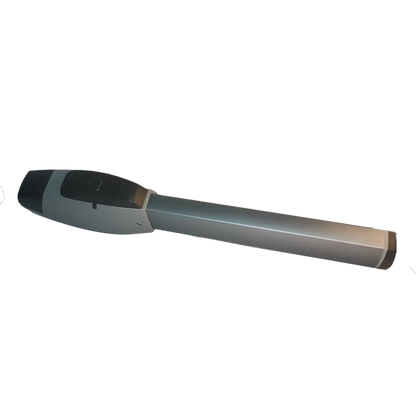

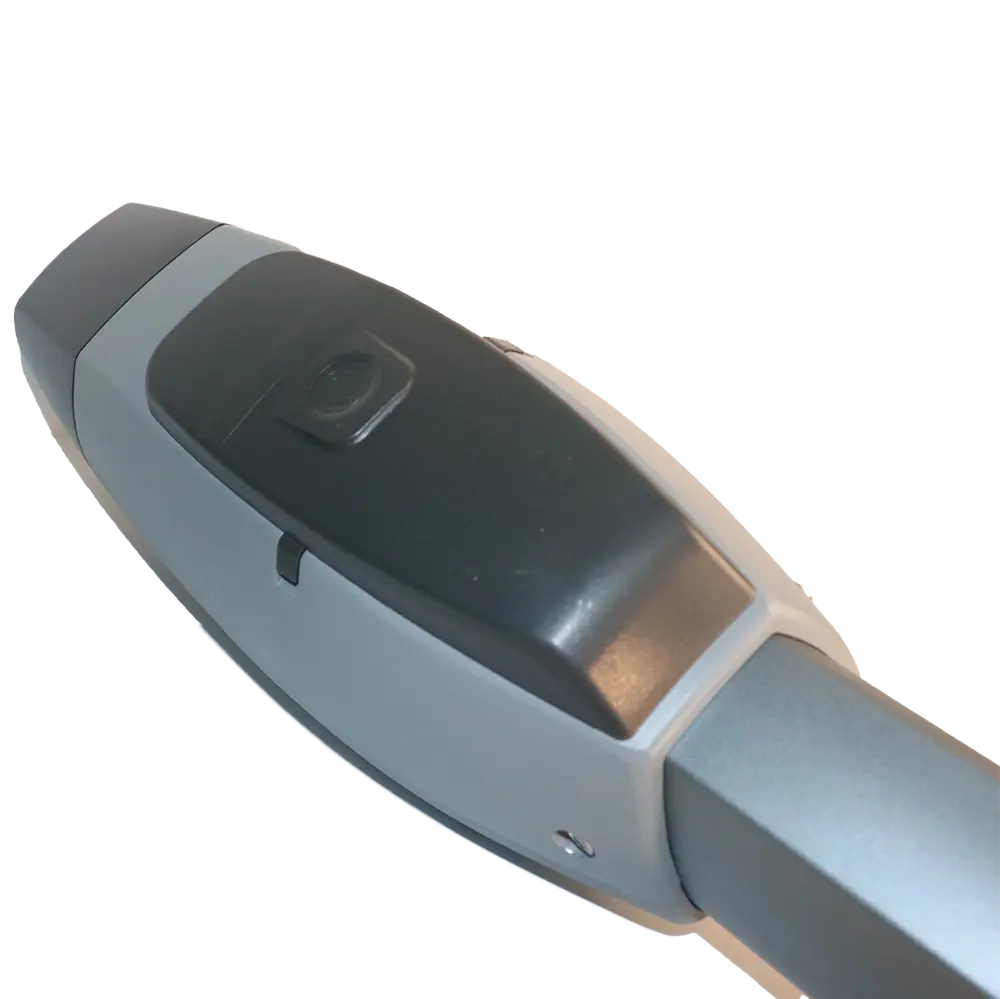

Mastiff 300 Swing Gate Opener
The LEXO Automation Powertech Mastiff 300 is a compact 24V DC swing gate opener designed for smaller residential gates up to 3m per leaf or 300kg. With smooth worm-gear drive, die-cast aluminium housing and a built-in physical stopper, it provides reliable and quiet daily operation for standard home driveways and courtyard-style gates. Available as a Single Kit, Double Kit or Arm-Only, it offers dependable automation in a cost-effective format built for Australian conditions.
What’s Included:
Choose between a Single Kit, Double Kit or Arm Only.
Kits will include:
- Lexo Automation Powertech Mastiff 300 Arm (single or double)
- Mounting Hardware and Brackets
- Manual Release Keys
- Control Board in Enclosure
- 2 x Remotes
- Installation User Manual
Arm only will not include Control Board in Enclosure or Remotes.
Key Features:
- Powerful 24 V DC Motor: Designed for consistent, reliable performance with a peak thrust of approximately 3,000 N.
- Compact & Strong Design: Suitable for gates up to 3 m long or 300 kg per leaf — ideal for standard residential setups.
- Die-Cast Aluminium Housing: Provides corrosion resistance and long-term durability outdoors.

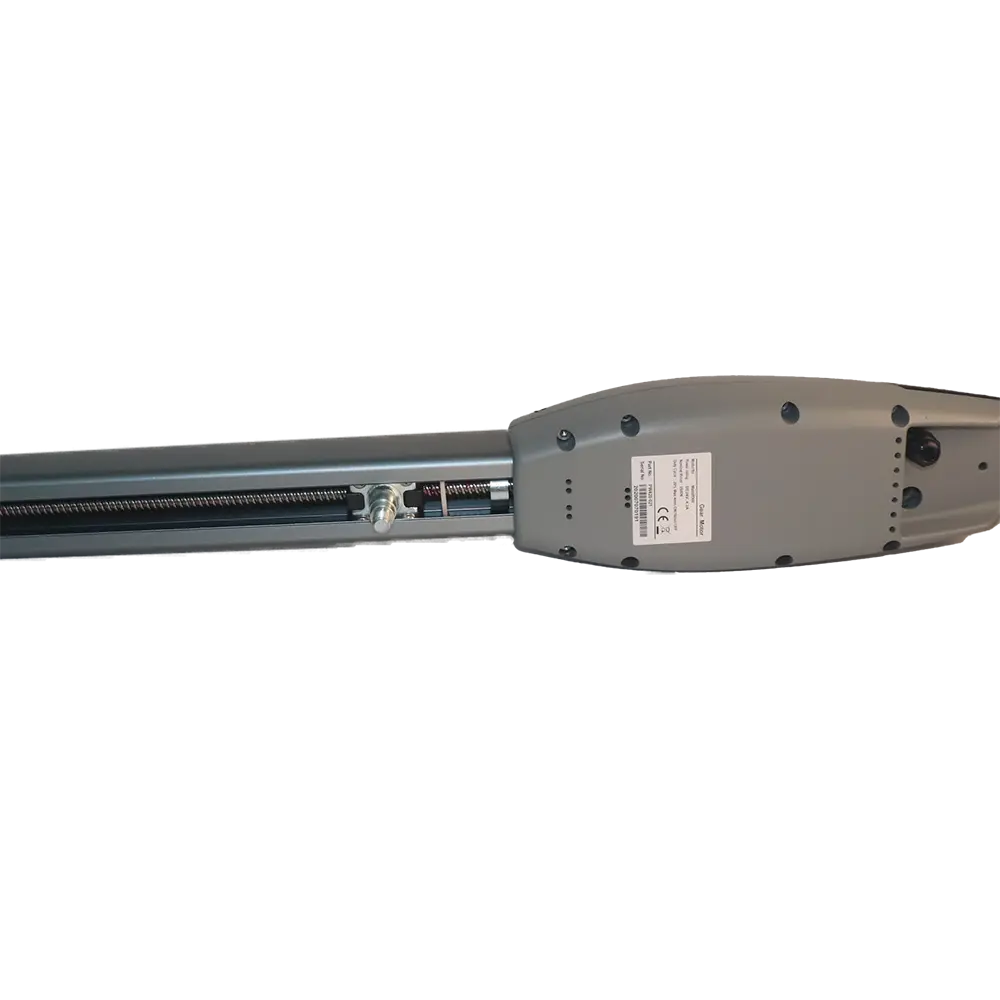

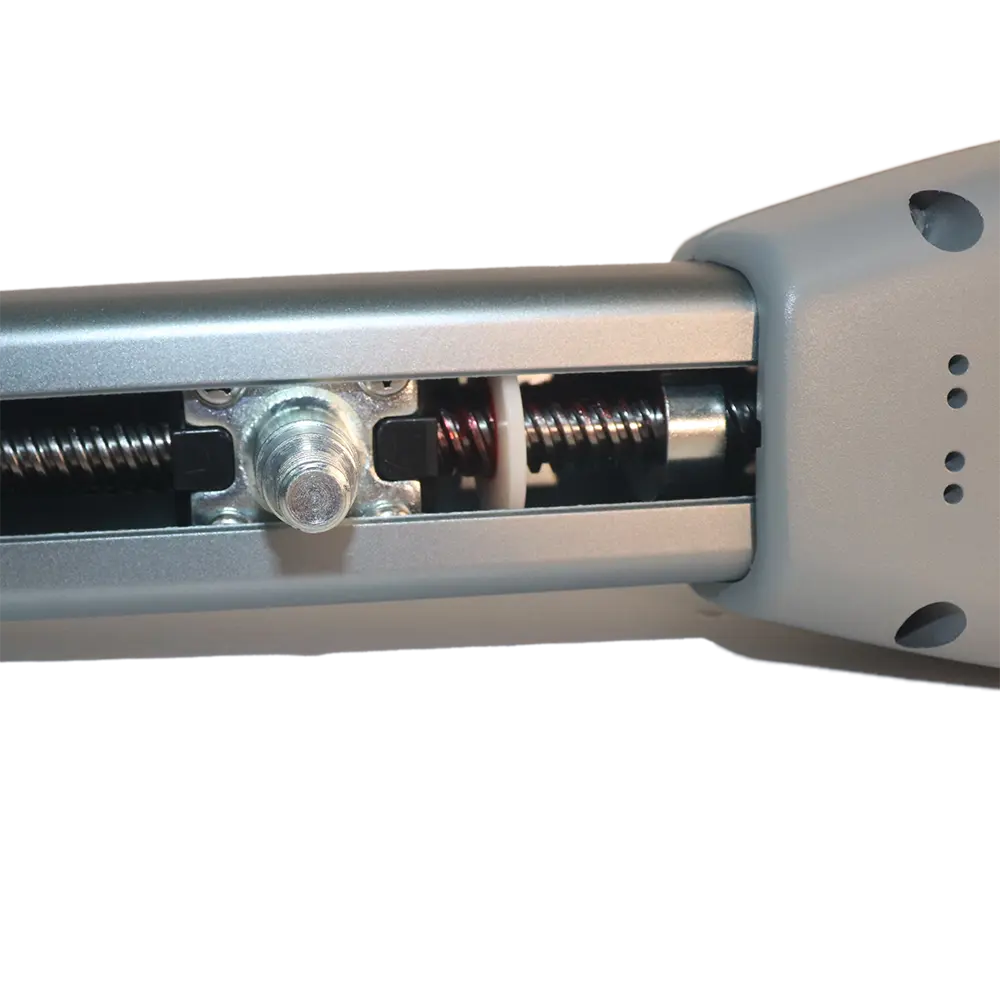

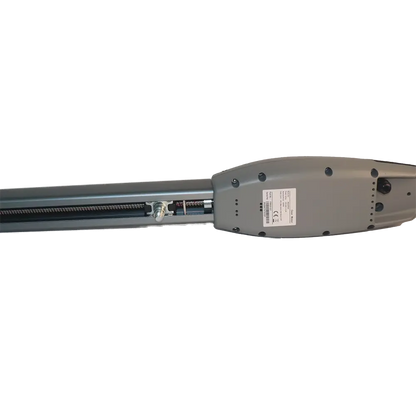

- Smooth & Quiet Operation: Worm-gear drive ensures stable motion with minimal vibration and noise.
- Built-In Physical Stopper: Simplifies installation and prevents over-travel, protecting gate and mechanism.

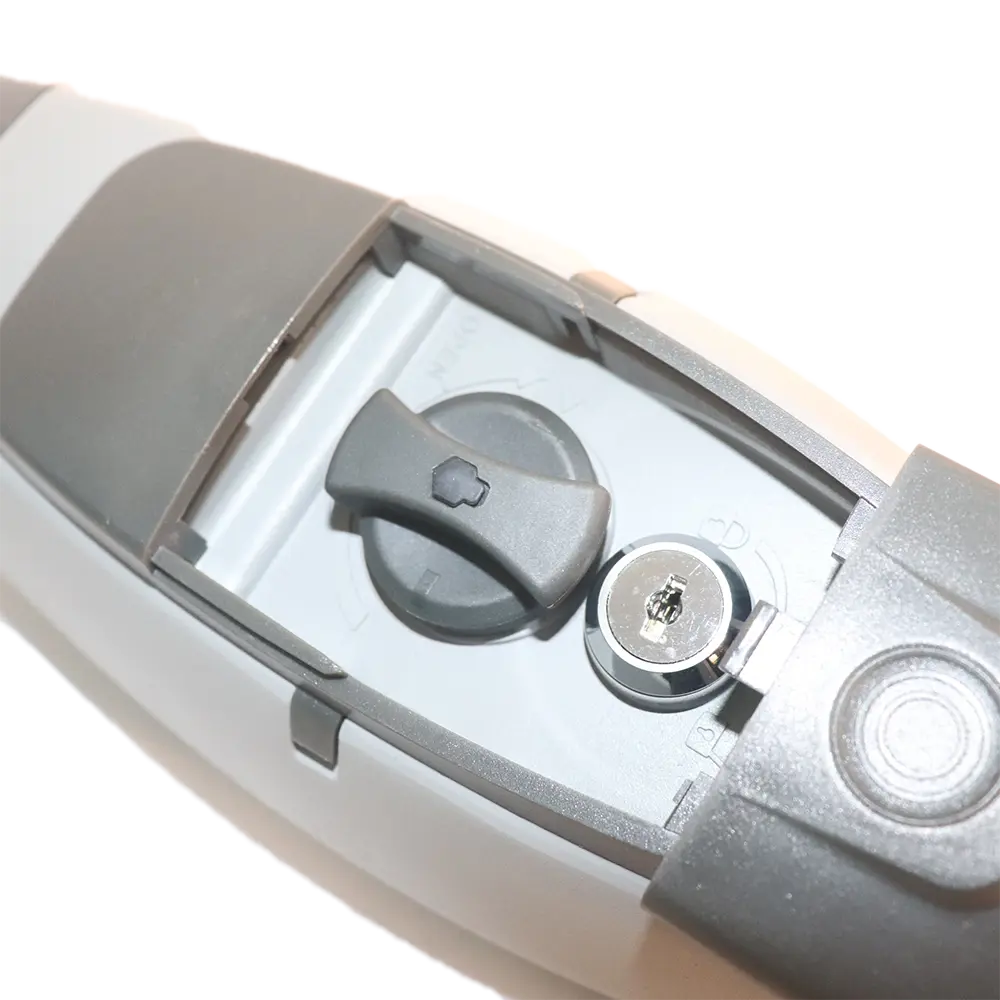

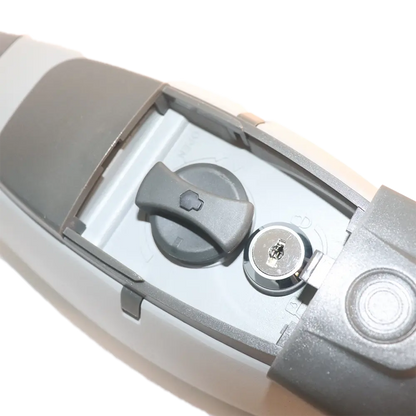

- Manual Key Release: Enables manual operation in case of power failure or emergency.
- Pedestrian Mode: Allows partial gate opening for convenient foot or bike access.
- Low-Voltage Safety: 24 V system for efficient, safe, low-energy operation.
- Reliable Performance: Operates smoothly in temperatures from –20 °C to +50 °C.
- Easy Installation & Setup: Adjustable brackets and clear travel settings for quick configuration.
Ideal Applications:
- Residential Driveways: Perfect for small to mid-sized gates at home entrances.
- Urban & Suburban Properties: Compact motor fits narrow posts or confined installations.
- Lightweight Gates: Ideal for aluminium, steel-frame, or picket-style swing gates.
- Single or Double Gate Automation: Suitable for driveways or courtyard access.
- Upgrade Projects: Great replacement for older or less efficient small-gate openers.
Technical Specifications:
| Max. Leaf Length | 3m |
| Max. Leaf Weight | 300kg |
| Operation Stroke | 350mm |
| Gear Type | Worm Gear |
| Motor Type | 24V DC |
| Input Power | 220 - 240 VAC (50 Hz) |
| Max. Force | 3000N |
| Absorption | 4.2A |
| Power | 144W |
| Duty Cycle | 50% |
| IP Rating | IPX4 |
| Operating Temperature | -20C to 50C |
| Built in Physical Stopper | Yes |
| Opening Time | Less then 14s |
| Manual Release | Key |
| Dimensions | 812 x 123 x 124mm |
| Warranty | 2 Years Manufacturers Warranty |
