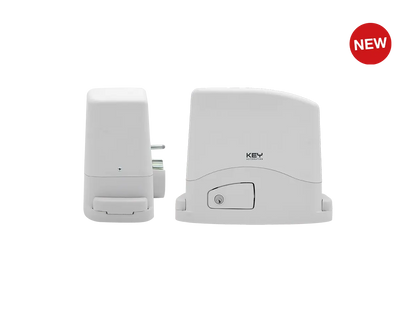

TURBO 400 - 400Kg Sliding Gate Kit

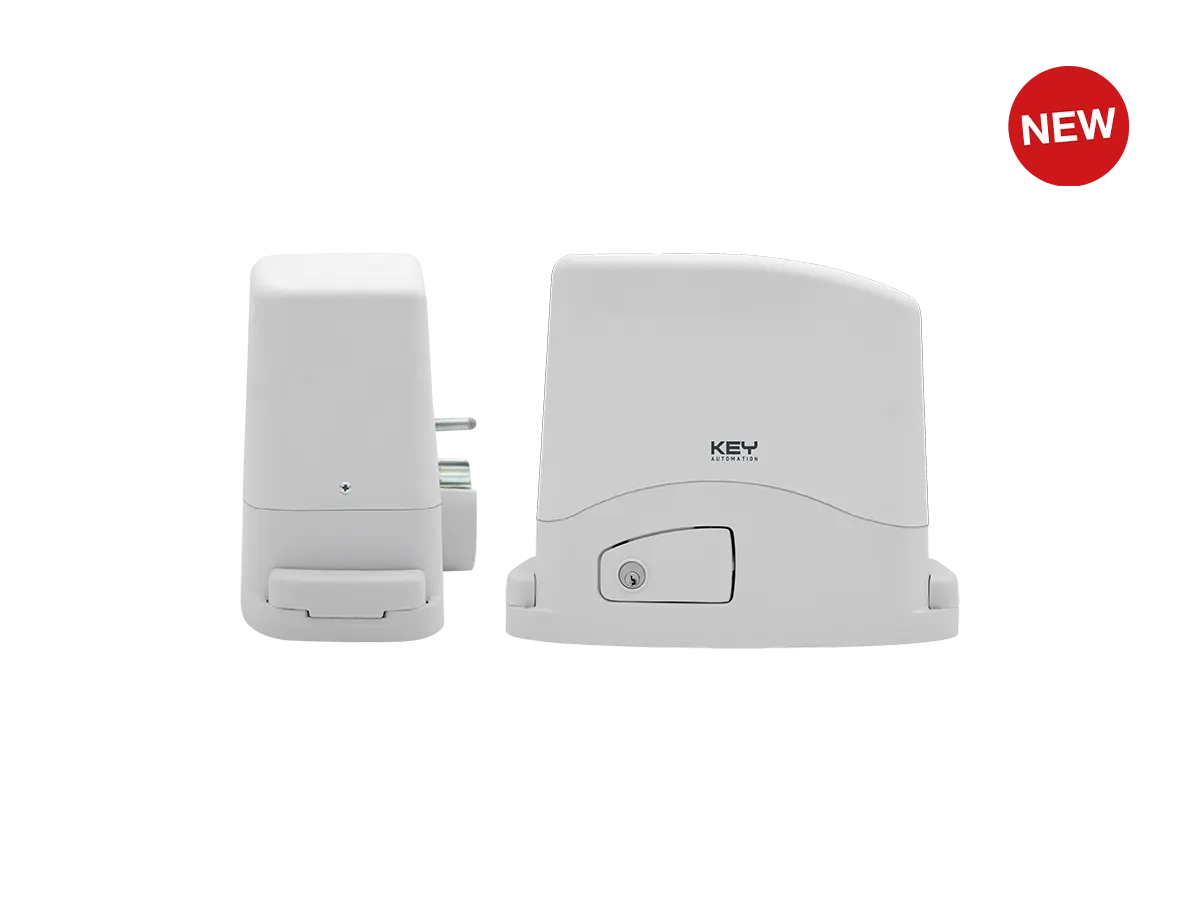

The Key Automation TURBO 400 is a premium Italian-engineered sliding gate motor designed for residential gates up to 400 kg.
Compact yet powerful, this 24 VDC motor delivers smooth, quiet, and efficient operation while maintaining the robust reliability that defines the TURBO range.

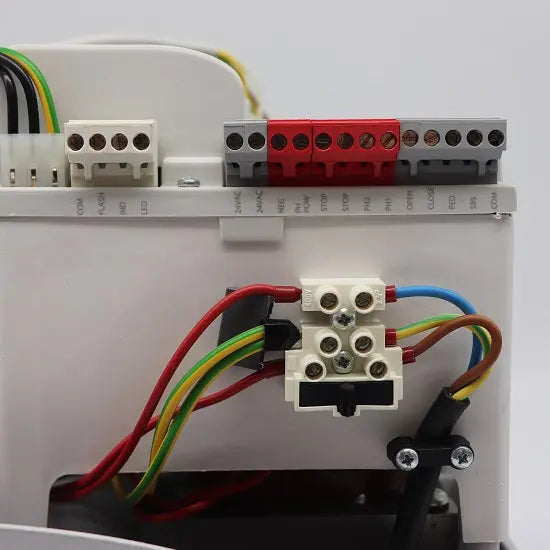

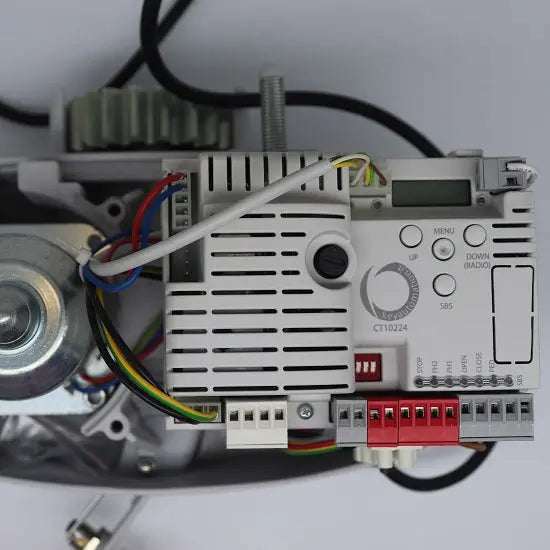

Equipped with a built-in CT10324 control unit with LCD display (updated from the CT10224), the TURBO 400 offers precise control, user-friendly setup, and enhanced programming functionality.

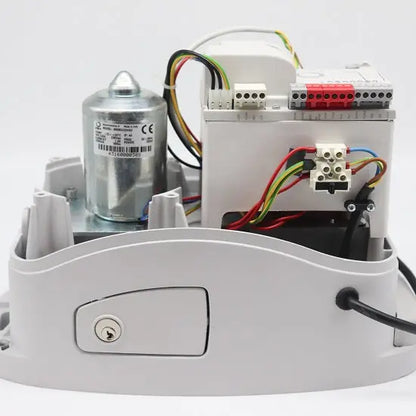

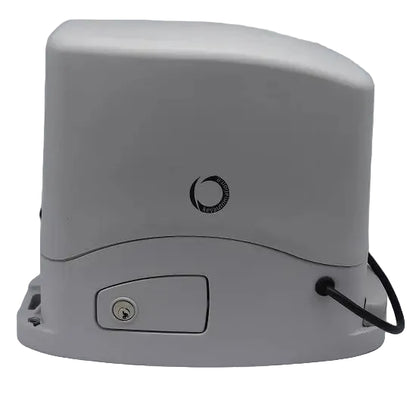

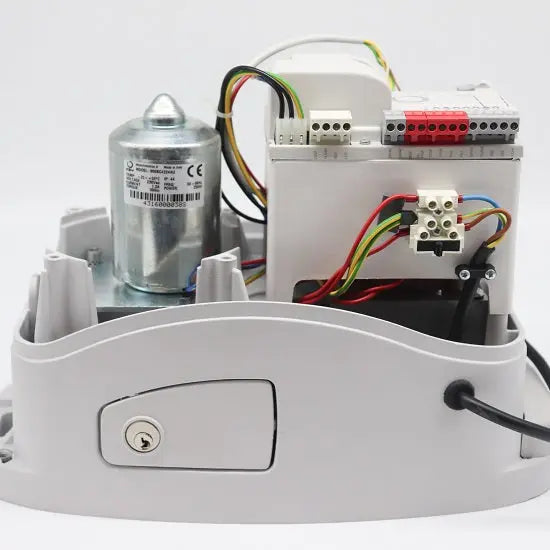

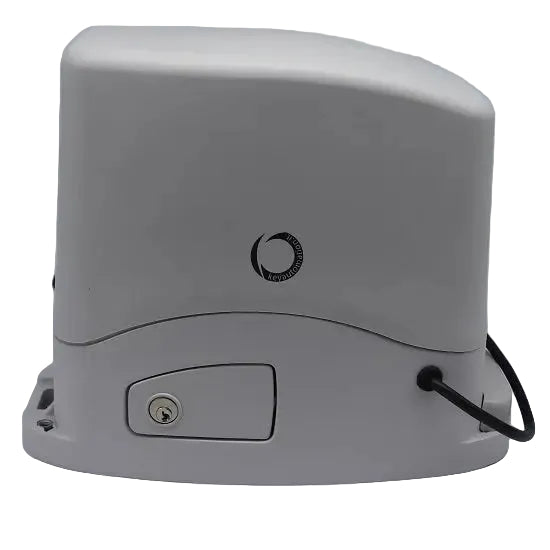

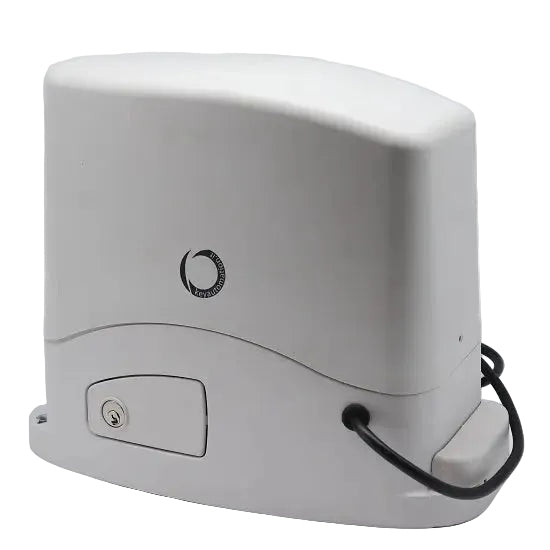

Encased in a die-cast, powder-coated aluminium body, it combines mechanical strength with modern aesthetics — ideal for homeowners seeking long-term performance and refined design in one unit.
What’s Included:
- 1 × 24 VDC Motor
- 1 × Built-In CT10324 Control Unit with LCD Display
- 2 × Key Automation Remotes
- 1 × Mounting Plate
- 4 × 1 m Heavy-Duty Gear Rack
- Installation Instructions
Key Features:
- 24 VDC Motor: Smooth and efficient operation for gates weighing up to 400 kg.
- Built-In Control Unit with LCD Display: Simple configuration and real-time feedback for easy setup.
- Quiet & Reliable Mechanics: Engineered with precision components for whisper-quiet movement.
- Durable Construction: Robust die-cast aluminium body with UV-resistant covers ensures weather protection and long life.

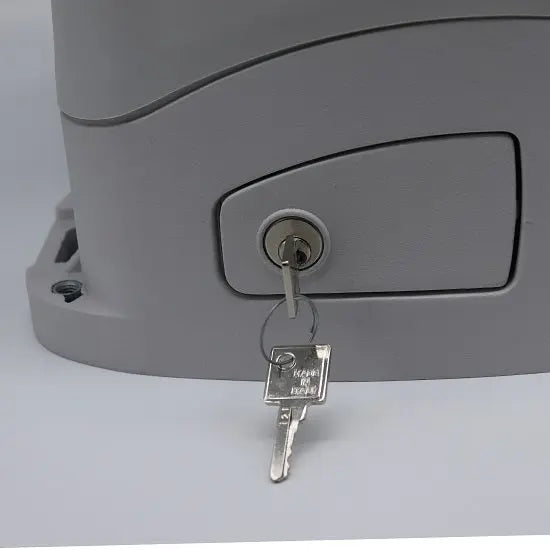

- Ergonomic Emergency Release System: Provides quick manual operation in case of power loss.
- Magnetic Limit Stops: Ensures accurate and consistent travel limits.
- Weather-Resistant Materials: High-quality components designed for Australian outdoor conditions.
- Designed & Made in Italy: Genuine Italian engineering delivering performance and style.
Ideal Applications:
- Residential Driveways: Perfect for smooth, everyday automation of small to mid-sized gates.
- Townhouses & Villas: Compact design suited for limited spaces or decorative gates.
- Upgrades & Retrofits: Excellent replacement for older, noisier, or underpowered motors.
- Modern Home Installations: Sleek, Italian styling with high-end performance.
Technical Specifications:
| Speed | 24cm/s |
| Torque | 12Nm |
| Cycle/Hour | 40 |
| Control Board | CT10324 |
| Automation Power Supply | 230 VAC |
| Frequency | 50/60Hz |
| Motor Power Supply | 24VDC |
| Consumption | 1.1A |
| Absorbed Power | 250W |
| Protection Degree | IP44 |
| Dimensions | 320 x 184 x 260mm |
| Weight | 10.5kg |
| Working Temperature | -20 ~ 55C |
| Gate Maximum Weight | 400kg |
| Warranty | 2 Years Manufacturers Warranty |
Downloads:
 Motor |
Control Board |
|
