Key Automation 6M Boom Gate Kit – ALT6K

Key Automation 6M Boom Gate Kit – ALT6K

$3,948.00
$3,948.00
Sale Sold out
Shipping calculated at checkout.

Stock may need to be sourced from Australian suppliers to fulfil your order. Please allow additional time for dispatch. Contact us for ETA

ALT6K - For Boom Gates between 4m and 8m

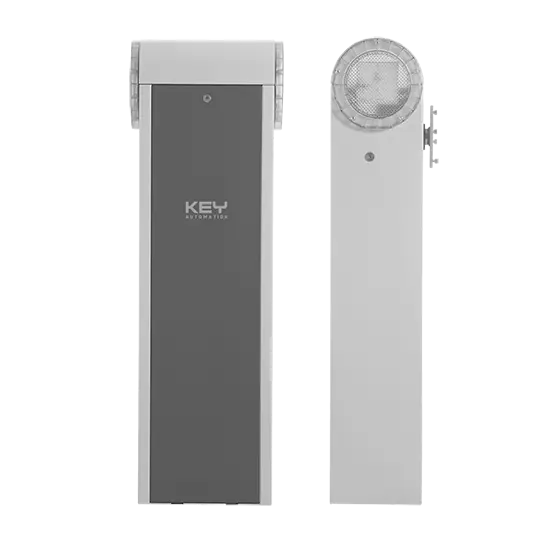

The Key Automation ALT6K Boom Gate is a heavy-duty 24V automatic barrier system engineered for boom lengths between 4–8 metres. Designed for busy commercial sites, it offers smooth controlled movement, dual LED lighting for enhanced visibility, and smart operation via the CT10324 control unit. Built to withstand harsh outdoor environments, the ALT6K is ideal for high-traffic access points requiring reliability, durability, and premium European engineering.

Includes:

  • Barrier Body
  • 24VDC Motor with control unit (CT10324) in weather-resistant enclosure
  • Installation Instructions

Note:  Boom Arm not included

Features:

  • Rapid Opening Time: Boasts an impressive 90° opening time of 6-12 seconds.
  • Built-in LED Lights: Equipped with dual integrated LED flashing lights, enhancing visibility and safety for users.
  • Advanced Control Unit: Includes the CT10324 control unit, delivering precise operation and user-friendly programming options.
  • Durable Construction: Designed with a robust anti-UV polyester powder coating barrier body
  • 24 VDC Operation: Low-voltage operation for energy efficiency and reliable performance under continuous use.
  • Weather-Resistant: Rated IP54, offering excellent protection against dust and water ingress, making it suitable for outdoor installations.

Applications:

Ideal for

  • parking lots
  • private properties,
  • industrial zones, and other controlled access points

Additional Accessories for ALT6K

  • Flexible rubber profile 8m and plug set – PROFT6 (6m) or PROFT8 (8m)
  • LED lights – KLIGHT6 (6m) and KLIGHT8 (8m)
  • Anchorage Plate with rag bolts – CP-BR6
  • APM Mobile Support RAL9010
  • APM Fixed Support RAL7047
  • Single Channel Magnetic Loop Detector – VEK-MNH1-R24-C
  • Touch Keypad – EGKTR1
  • Key Automation SUB44 Remote

Dimensions:

Key Automation ALT6K Dimensions

Technical Specifications:

90 Degree Opening Time 6-12 Seconds
Torque 305Nm
Duty Cycle Percentage 80%
Control Unit CT10324
Voltage 230VAC
AC Voltage Frequency 50/60Hz
Nominal Current 1.3A
Peak Power 300W
Appliance Isolation Class I
Degree of Protection IP54
Dimensions 400 x 280 x 1188mm
Weight 75.8
Operating Temp -20 - 55 °C
Max Leaf Length 8M
Warranty 12 Months Manufacturers Warranty
