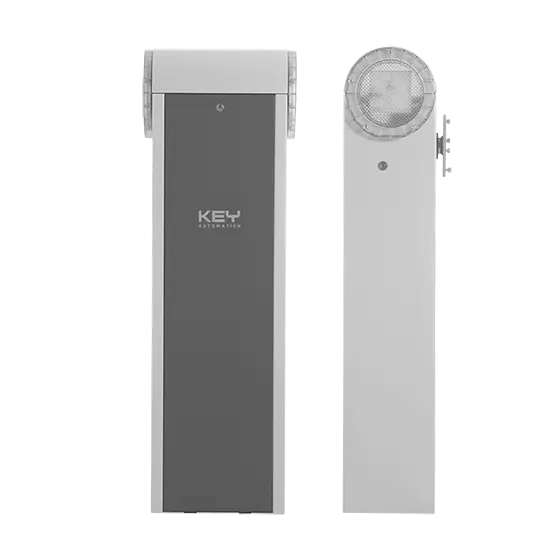

Key Automation 4M Boom Gate Kit - ALT424K

Key Automation 4M Boom Gate Kit - ALT424K

$3,472.00
$3,472.00
Sale Sold out
Shipping calculated at checkout.

Stock may need to be sourced from Australian suppliers to fulfil your order. Please allow additional time for dispatch. Contact us for ETA

ALT424K - For Boom Gates between 3m - 4m

The Key Automation ALT424K Boom Gate is a premium 24V barrier system engineered for boom arms between 3m–4m. Built for high-traffic vehicle control, it offers smooth operation, dual LED lights, IP54 weather protection and the CT10224 advanced control unit for precise setup and reliable performance in commercial and industrial environments.

Includes:

  • Barrier Body
  • 24VDC Motor with control unit (CT10324) in weather-resistant enclosure
  • Installation Instructions

Note:  Does not include the Boom Arm

Features:

  • Rapid Opening Time: Boasts an impressive 90° opening time of 3-5 seconds, ensuring seamless vehicle flow even during peak hours.
  • Built-in LED Lights: Equipped with dual integrated LED flashing lights, enhancing visibility and safety for users.
  • Advanced Control Unit: Includes the CT10324 control unit, delivering precise operation and user-friendly programming options.
  • Durable Construction: Designed with a robust anti-UV polyester powder coating barrier body
  • 24 VDC Operation: Low-voltage operation for energy efficiency and reliable performance under continuous use.
  • Weather-Resistant: Rated IP54, offering excellent protection against dust and water ingress, making it suitable for outdoor installations.

Applications:

Ideal for

  • parking lots
  • private properties,
  • industrial zones, and other controlled access points

Additional Accessories for ALT424K

  • 4m Aluminum Boom Arm (2+2m) - ASTL4J
  • 6m Aluminum Boom Arm (3+3m) - ASTL6J
  • Flexible rubber profile 8m and plug set - PROFT (4m) or PROFT6 (6m)
  • LED lights - KLIGHT4 (4m) and KLIGHT6 (6m)
  • Anchorage Plate with rag bolts – CP-BR4
  • Bar with arcitulated joint kit - AS-SNo3
  • Single Channel Magnetic Loop Detector – VEK-MNH1-R24-C
  • Touch Keypad – EGKTR1
  • Key Automation SUB44 Remote

Dimensions:

ALT424K Dimensions

Technical Specifications:

90 Degree Opening Time 3-5 Seconds
Torque 200Nm
Duty Cycle Percentage 80%
Control Unit CT10324
Voltage 230VAC
AC Voltage Frequency 50/60Hz
Nominal Current 1.3A
Peak Power 300W
Appliance Isolation Class I
Degree of Protection IP54
Dimensions 320 x 220 x 1110mm
Weight 42.2
Operating Temp -20 - 55 °C
Max Leaf Length 4M
Warranty 12 Months Manufacturers Warranty
