Key Automation 3M Fast Boom Gate Kit - ALT4324KF

Key Automation 3M Fast Boom Gate Kit - ALT4324KF

$3,682.00
$3,682.00
Sale Sold out
Shipping calculated at checkout.

Stock may need to be sourced from Australian suppliers to fulfil your order. Please allow additional time for dispatch. Contact us for ETA

ALT4324KF - For Boom Gates up to 3m in length

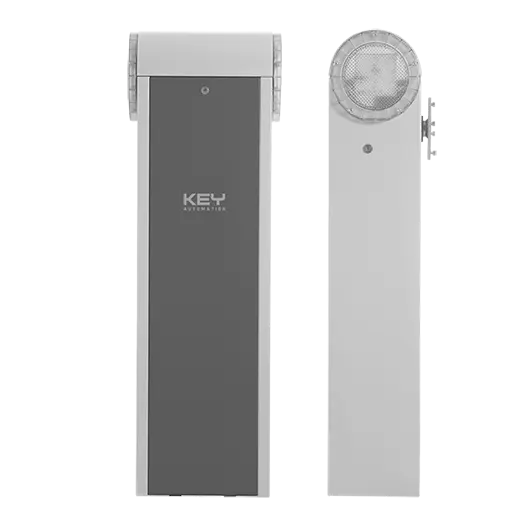

The Key Automation ALT4324KF Boom Gate is a high-speed 24V barrier system designed for boom arms up to 3 metres. With a rapid 1-second opening time, integrated LED lighting, a CT10324F control unit, and IP54 weather protection, it delivers fast, reliable access control for commercial and high-traffic sites.

Includes:

  • Barrier Body
  • 24VDC Motor with control unit (CT10324F) in weather-resistant enclosure
  • Installation Instructions

Note:  Boom Arm is not included.

Features:

  • Rapid Opening Time: Boasts an impressive 90° opening time of just 1 second, ensuring seamless vehicle flow even during peak hours.
  • Built-in LED Lights: Equipped with dual integrated LED flashing lights, enhancing visibility and safety for users.
  • Advanced Control Unit: Includes the CT10324F control unit, delivering precise operation and user-friendly programming options.
  • Durable Construction: Designed with a robust anti-UV polyester powder coating barrier body, metallic gear + shock resistant motor
  • 24 VDC Operation: Low-voltage operation for energy efficiency and reliable performance under continuous use.
  • Weather-Resistant: Rated IP54, offering excellent protection against dust and water ingress, making it suitable for outdoor installations.

Applications:

Ideal for

  • parking lots
  • private properties,
  • industrial zones, and other controlled access points

Optional Accessories for ALT324KF

  • Anchorage Plate with rag bolts - CP-BR6
  • Single Channel Magnetic Loop Detector - VEK-MNH1-R24-C
  • Touch Keypad - EGKTR1
  • Key Automation SUB44 Remote

 Dimensions:

Key Automation ALT4324KF Dimensions

Technical Specifications:

90 Degree Opening Time 1 Second
Torque 40Nm
Duty Cycle Percentage 50%
Control Unit CT10324
Voltage 230VAC
AC Voltage Frequency 50/60Hz
Nominal Current 1.6A
Peak Power 330W
Appliance Isolation Class I
Degree of Protection IP54
Dimensions 400 x 280 x 1188mm
Weight 67.1kg
Operating Temp -20 -55 °C
Max Leaf Length 3M
Warranty 12 Months Manufacturers Warranty
