Grifco - GPS15 Reflective Safety Beams

Grifco GPS15 Monitored Safety Beam Kit – Reflective

The Grifco GPS15 Monitored Safety Beam Kit is designed to provide additional entrapment protection for compatible Grifco commercial door operators.

Unlike a standard safety beam, the GPS15 is a monitored safety device. The Grifco control system continually checks the status of the safety beam, helping ensure a fault, damaged sensor or interruption to the beam is detected rather than allowing the door to continue operating unsafely.

The GPS15 uses a reflective beam system, meaning only one powered safety beam is required. An infrared beam is projected across the doorway to a reflector mounted on the opposite side. If a person, vehicle or other obstruction breaks the beam while the door is closing, the Grifco operator can stop the closing movement to help reduce the risk of contact, injury or property damage.

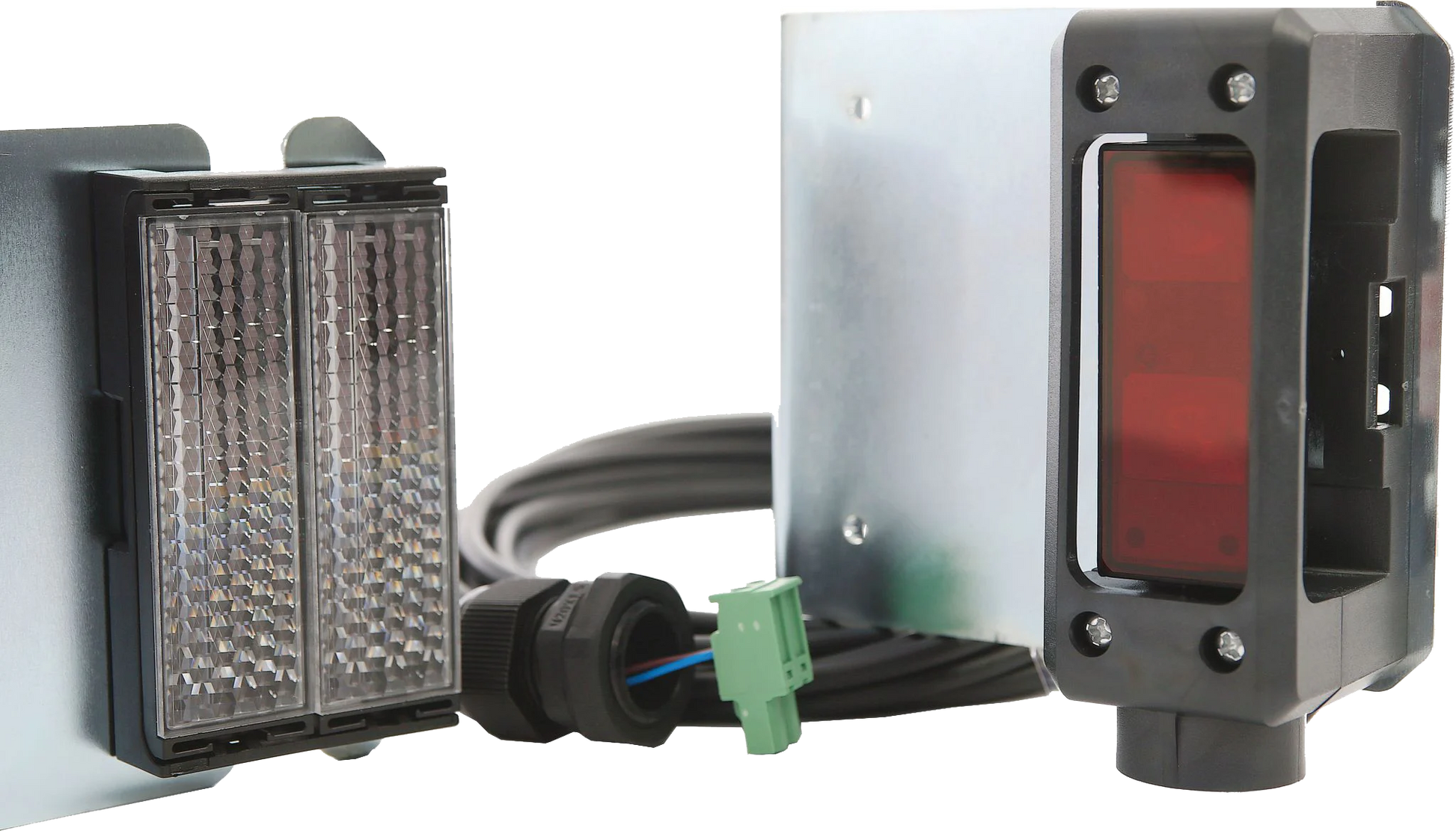

What's Included:

• 1 x Grifco GPS15 Monitored Safety Beam
• 1 x Reflector
• Installation/mounting brackets
• 10 metre cable

Key Features:

• Genuine Grifco monitored safety beam system
• Reflective beam design
• Non-contact obstruction detection
• Monitors the safety device for faults
• Helps reduce the risk of door contact with people, vehicles and property
• Suitable for commercial and industrial automated doors
• Enables compatible automated and remote closing applications
• Supplied with reflector, mounting brackets and 10 m cable
• myQ compatible when used with a compatible Grifco system
• Designed for use as part of a compliant entrapment protection system

Compatible With:

The Grifco GPS15 is compatible with all Grifco and Merlin motors including:

• Grifco E-Drive

• Grifco LR-Drive
• Grifco LS-Drive
• Grifco S-Drive
• Merlin MR855MYQ
• Merlin MR655MYQ
• Merlin MR865MYQ
• Merlin MR850EVO
• Merlin MRC950EVO
• Merlin MR655EVO
• Merlin MR855EVO
• Merlin MR550EVO
• Merlin MR650EVO
• Merlin MR60
• Merlin MR600
• Merlin MR800
• Merlin MR1000

• Merlin MJ3800
• Merlin MJ3800R

• Merlin MJ3800MYQ
• Merlin MS135MYQ
• Merlin MS137MYQ
• Merlin MS127MYQ
• Merlin MS125MYQ
• Merlin MS105MYQ
• Merlin MS65MYQ
• Merlin MT110MYQ
• Merlin MT3850EVO
• Merlin MT100EVO
• Merlin MT120EVO
• Merlin MT60EVO
• Merlin MT600
• Merlin MT1000
• Merlin MT3850
• Merlin MT5580P
• Merlin MT60P
• Merlin MT60
• Merlin MT230

Ideal Applications:

• Commercial roller doors
• Industrial roller shutters
• Warehouses and factories
• Loading and dispatch areas
• Car parks and vehicle access points
• Workshops and commercial premises
• Doors using remote or automated closing functions
