Firmamatic Advanced Upgrade Kit – Remote Replacement Solution
The Firmamatic Upgrade Kit is the ideal solution for restoring remote access to older B&D EasyLifter overhead garage door openers where original remotes are no longer reliable.
This upgrade kit replaces outdated receiver technology with a modern, secure system, allowing you to pair new remotes and regain full control of your garage door—without replacing the entire opener.
This upgrade kit uses the Elsema PCR43301RE receiver with PentaFOB® remotes to deliver a highly reliable and secure solution. Unlike basic universal receivers, this system features frequency switching technology (FHSS) to actively avoid interference, reduce dropouts, and maximise operating range.
With the added benefit of unlimited remote storage, it’s a future-proof upgrade—perfect for homes, businesses, or shared access without the limitations of standard receivers.

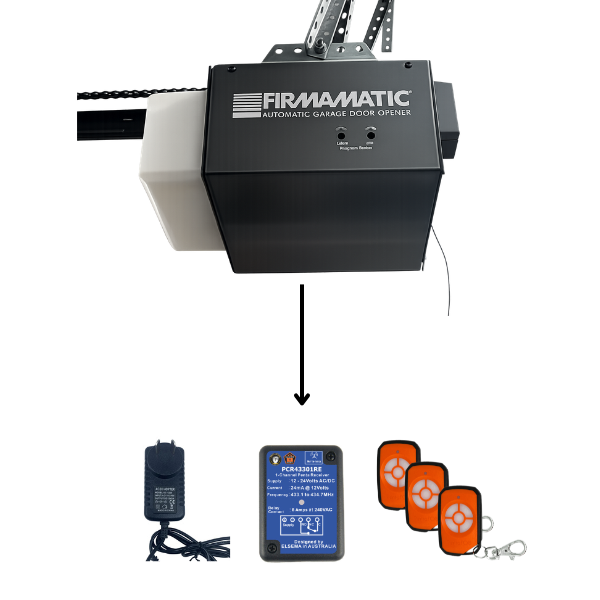

What’s Included

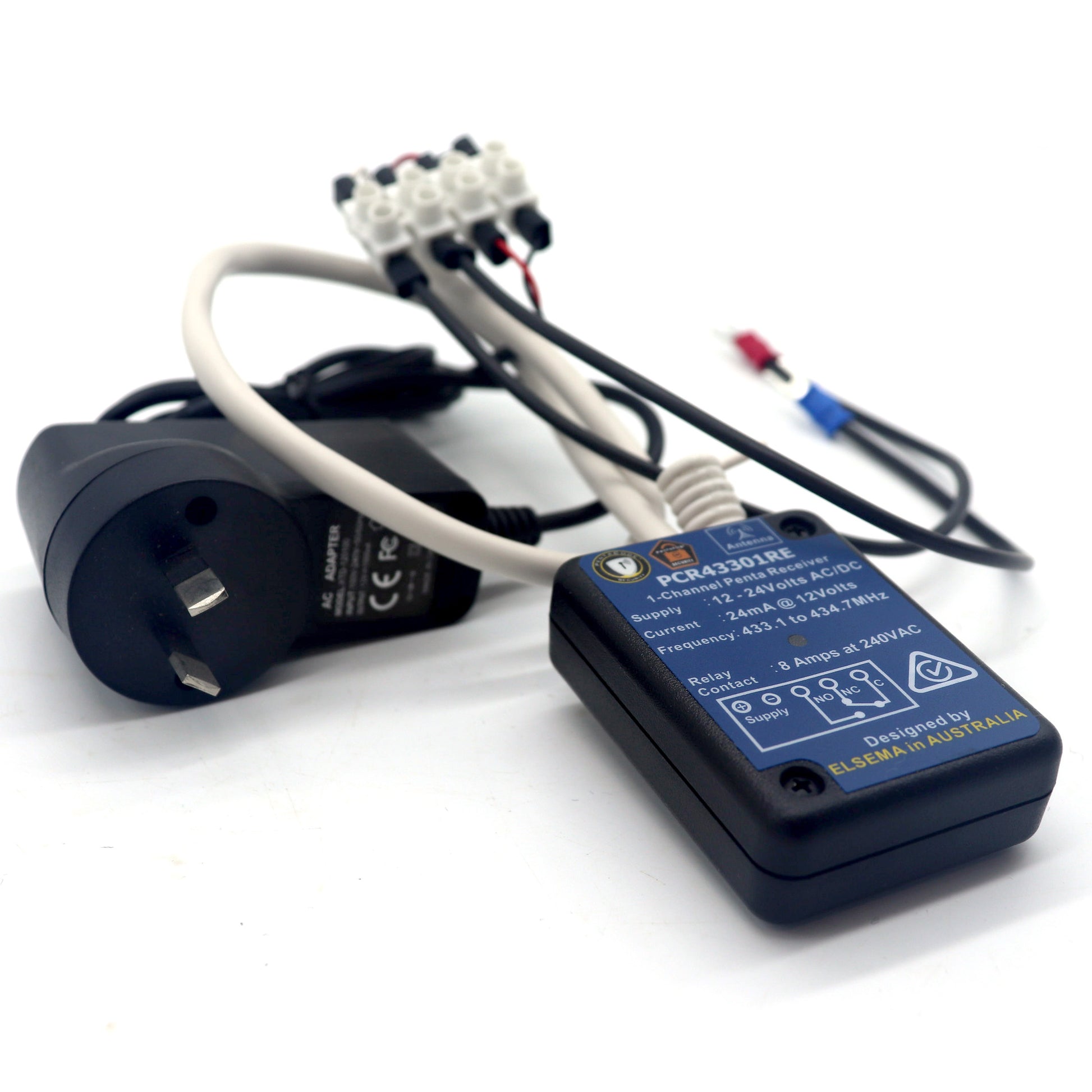

- 1 x Pre-Wired Stand-Alone Receiver (PCR43301RE)
- 3 x Pre-Programmed PentaFOB Remote (Choose between 1, 2, 4 or 5 button variation).
- 1 x Power Pack
- Wiring Leads for Direct Connection
- Wiring Instructions
Note: You will need a spare powerpoint available in close proximity of the garage door opener.
Key Features
- Upgrade Obsolete Systems: Brings older Firmamatic openers back to life when built in receiver has failed.
- Pre-Wired for Easy Installation: Minimal wiring required - simply connect to the existing terminal points on your motor.
- Secure Modern Technology: Replaces outdated coding systems with reliable, interference-resistant operation.
- Unlimited Remote Capacity: Pair an unlimited amount of remotes to the receiver - ideal for larger households or complexes.
Compatible with
- This Upgrade Kit has been specifically created for the use on the Firmamatic Overhead Garage Door Openers.
Technical Specifications for PCR43301RE
| Frequency | 433.100 to 434.700Mhz |
| Code Type | 12-way dipswitch (1-8 sets site code and 10-12 sets remote button position) |
| Body Type | Receiver |
| Number of Channels | 1 |
| Enclosure | Included |
| Size | 70 x 55x 25mm |
| Power Supply | 12 – 24 Volts AC or DC |
| Outputs | 1 Change over relay output, rated at 8 Amps 240VAC |
| Standby Current | 21mA standby at 24VDC |
| Connection | 50cm flying leads to supply and relay output |
| Range | up to 100m for Elsema PentaFOB |
| Warranty | 12 Months Manufacturers Warranty |
Button/coin batteries can cause severe injuries or even death when swallowed. Keep batteries out of reach of children. If you suspect a child has swallowed or inserted a button/coin battery, seek medical attention immediately.
Wiring Instructions
This kit comes with pre-programmed remotes available in 1,2,4 or 5 button variation. The remotes will come programmed to button 1 unless requested otherwise. Full instructions will be supplied with your order for wiring into your opener.
This kit is supplied for DIY installation. You will need to connect the wires to the corresponding terminal points on your motor. Please note, access to these terminals may require working at height (e.g. using a ladder), so ensure appropriate safety precautions are taken.
This product contains a button or coin cell battery. To prevent possible SERIOUS INJURY or DEATH:
- Keep new and used batteries out of reach of children at all times.
- Do not use this product if the battery compartment is damaged or does not close securely.
- Dispose of used batteries immediately and safely — even flat batteries can cause serious harm.
- Do not ingest the battery. Chemical burn hazard.
- If you suspect a battery has been swallowed or inserted, act immediately — severe or fatal injuries can occur within 2 hours.
