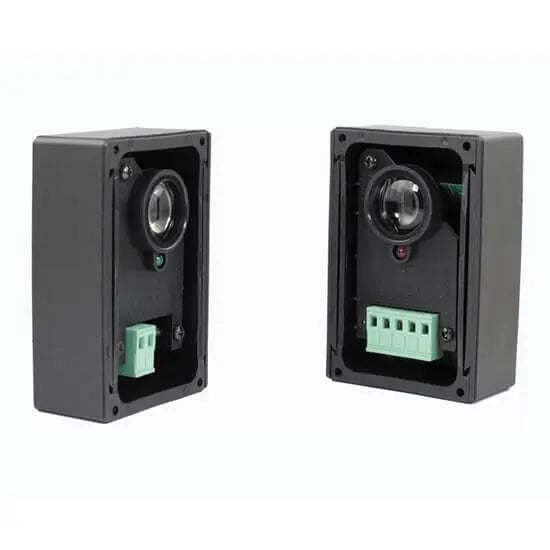

Elsema Photoelectric Through Beam Sensor – PE24

Elsema Photoelectric Through Beam Sensor – PE24

$99.95
$99.95
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

This is a popular item that is regularly replenished from our Australian supplier. It is always available to purchase, even if our on-hand warehouse stock is low. If you need this item urgently, please contact us for current stock levels.

PE24 - Elsema Safety Beam

The Elsema PE24 Safety Beam is a reliable infrared through-beam sensor designed for gate, door and automation safety. With a 30m indoor / 10m outdoor range, IP66 weatherproof housing and low power consumption, it provides stable obstruction detection even in demanding environments. Ideal for swing and sliding gates, garage doors, boom gates and security systems.

Includes:

  • Genuine Through Beam Photoelectric Beam Sensor
    • Transceiver
    • Receiver
  • Installation Instructions

Key Features:

  • Genuine Elsema product – seamless compatibility with Elsema controllers
  • Infrared through-beam technology for reliable obstruction detection
  • 30m indoor / 10m outdoor range for versatile applications
  • 12–24V AC/DC dual-voltage input
  • Weatherproof IP66-rated housing with anti-UV protection
  • Versatile relay output: N.C., N.O. & Common terminals
  • Low standby power consumption – ideal for solar automation
  • Terminal block wiring for secure installation
  • False-alarm immunity for dependable performance
  • Compact design: 87 × 59 × 38mm

Ideal Applications:

  • Sliding & Swing Gates
  • Garage & Overhead Doors
  • Boom Gates & Warehouse Monitoring
  • Conveyor Systems & Industrial Automation
  • Alarm & Security Systems

Dimensions:

PE24 Dimensions

Technical Specifications:

Power Source 12 to 24 Volts AC or DC
Current Consumption Receiver: 15mA when beam is broken, 30mA when beam is aligned properly

Transmitter: 37mA
Response Time 100 millisecond
Operation Indicator Red LED (RX): On (when beam is broken), Green LED (Tx): ON
Illumination Lamplight
<10,000lux; Sunlight ><30,000lux >Noise Resistance 1500Vp-p/1us
Surge Resistance 2KV/1us
Vibration Resistance 10-55Hz/1.5mm, 2 Hour in X.Y.Z. Phase
Connection Terminal Block
Operating Temperature -20˚C to 60˚C
Relay Output Common, Normally open or normally close.1A/120VAC
Useable Operating Range 30 metres indoor and 10 metres outdoor range. Range will be reduced in bad weather, fog, dust etc.
Dimensions 87 x 59 x 38mm.
Warranty 12 Months Manufacturers Warranty
