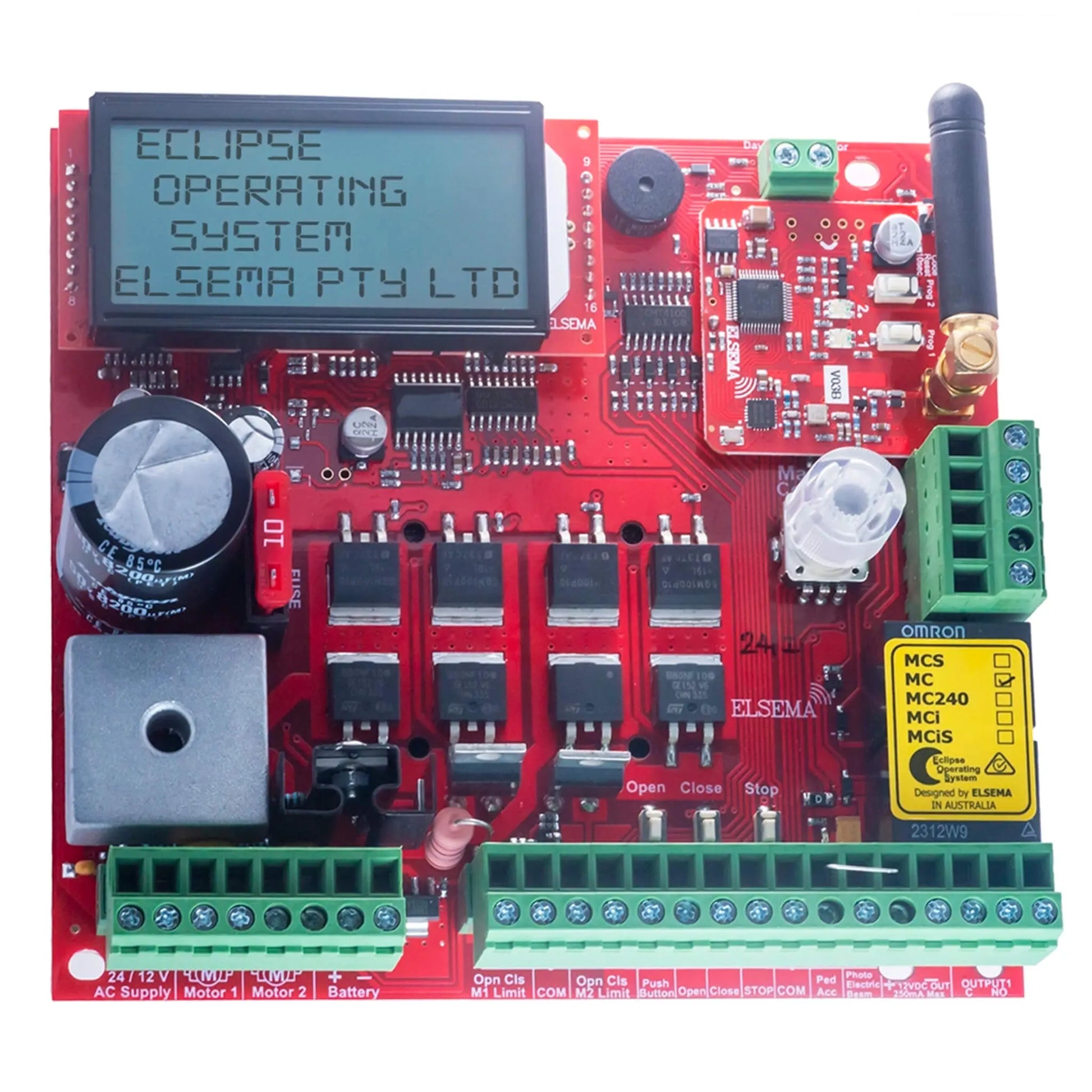

MC - Elsema 12/24V Control Board (Card Only)
The Elsema MC 12/24V Control Board is a versatile Eclipse® controller card designed for single or double swing and sliding gates. Compatible with both 12V and 24V motors, it features soft start/stop control, one-touch LCD programming, adjustable automation settings, and ultra-low standby power ideal for solar systems. Supplied as card only, this board is perfect for replacements, upgrades, and custom automation applications.
Includes:
- 1 x Elsema Eclipse Double MC Board (MC) card only.
- Installation Instructions
Key Features:
- Genuine Elsema Original Equipment
- Suitable for double swing or sliding gates
- Works with 12V or 24V DC motors (interchangeable)
- Eclipse Operating System (EOS) with intelligent menu-driven setup
- Soft start & stop for smooth gate operation
- Adjustable speed, force, and auto-close settings
- Day/Night Sensor (DNS) for time-based operation
- Auto profiling using latest intelligent technology
- Multiple inputs: push button, open-only, close-only, stop, pedestrian, photoelectric beam
- Supports limit switch inputs or mechanical stops
- Adjustable lock & courtesy light outputs
- Variable photoelectric safety beam functions
- Industry-standard 6-pin receiver input
- Energy-saving mode to reduce running costs
- 12V & 24V DC outputs to power accessories
- Built-in battery charger for 12V or 24V backup batteries
- Ultra-low 12mA standby current – perfect for solar gates
Ideal Applications:
The Elsema Eclipse MC is perfect for a wide range of automatic access control systems, including:
- Sliding Gates – Residential, commercial, or industrial gates requiring smooth and reliable single motor control.
- Swing Gates – Provides soft start/stop, pedestrian access, and safety beam integration for secure operation.
- Industrial Barriers & Boom Gates – Robust controller suitable for high-traffic security and access points.
- Custom Automation Systems – Conveyor belts, warehouse doors, or other applications requiring intelligent single motor operation.
Dimensions:
Technical Specifications:
| Input Voltage | 12 or 24 Volts AC/DC |
| Motor Voltage | 12 or 24 Volts DC |
| Gate Type | Single or Double |
| Display & Control | Large LCD with One touch control |
| Gate Limit Options | Limit Switch or Current Sensing |
| Compatible Remotes | PentaFOB or PentaCODE |
| Control Card Dimensions | 140 x 130 x 45mm |
| Operating System | Eclipse Operating System |
| Warranty | 12 Months Manufacturers Warranty |
