Elsema PE1500 Safety Beams

Elsema PE1500 Safety Beams

$164.95
$164.95
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

This is a popular item that is regularly replenished from our Australian supplier. It is always available to purchase, even if our on-hand warehouse stock is low. If you need this item urgently, please contact us for current stock levels.

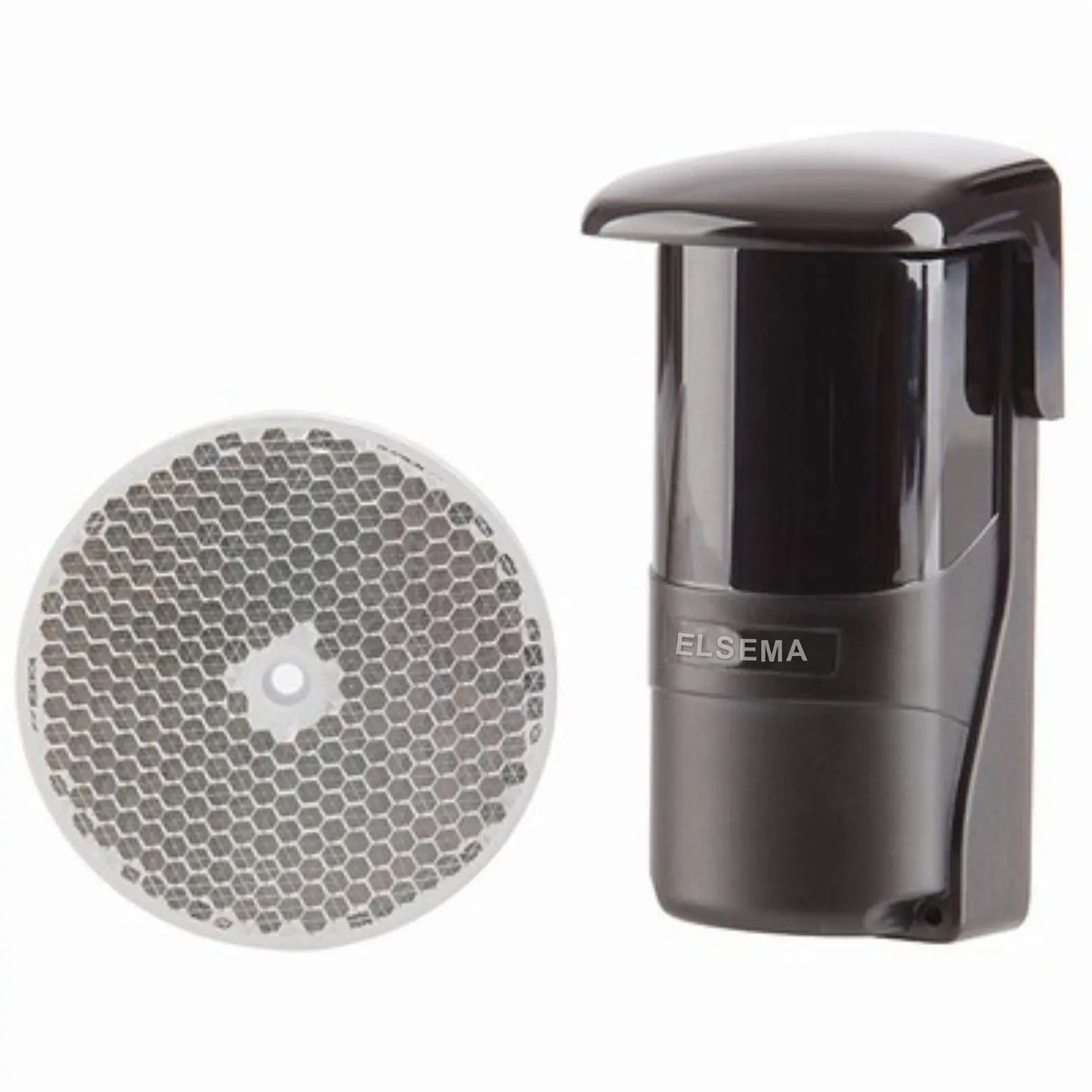

Elsema PE1500, Long Range Reflective Safety Beam

The Elsema PE1500 is a retro-reflective photoelectric safety beam offering a 10m detection range, built into a durable IP66 weatherproof housing.

What’s Included?

  • 1 x Elsema PE1500 Retro-Reflective Photoelectric Beam Sensor
  • 1 x Reflective plate
  • Mounting Bracket for Easy Installation

Key Features:

  • Genuine Elsema product – designed for universal gate & door automation
  • 10m sensing range (indoor/outdoor, reduced in fog/dust)
  • 12–250V AC/DC input voltage for flexible installation
  • Polarised retro-reflective technology for enhanced sensitivity
  • IP66-rated weatherproof housing for outdoor durability
  • LED alignment indicator for quick setup and diagnostics
  • Tamper switch output for added security
  • Compact polycarbonate casing – lightweight yet tough
  • Optional reflector hood (HD-15) recommended for outdoor use
  • Relay output: Common, N.O., N.C. (0.5A / 120VAC)
  • Response time: 10ms for fast detection

Ideal Applications:

  • Sliding & Swing Gates
  • Garage & Overhead Doors
  • Boom Gates & Security Barriers
  • Conveyor Systems & Warehouses
  • Alarm & Access Control Systems

Dimensions:

PE1500 DImensions

Technical Specifications:

Power Source 12 to 250 Volts AC/DC
Standby 19mA at 24Volts DC
Response Time 10 Millisecond
Connection Plug in type terminal block
Additional Feature Normally Closed (NC) Tamper Output
Operating Temperature -20˚C to 60˚C
Relay Output Common, Normally Open or Normally Close: 0.5 Amps / 120VAC
Sensing Range 10 metres. Range will be reduced in bad weather, fog, dust etc.
Warranty 12 Months Manufacturers Warranty


Downloads:
