Elsema KEY-301 Remote

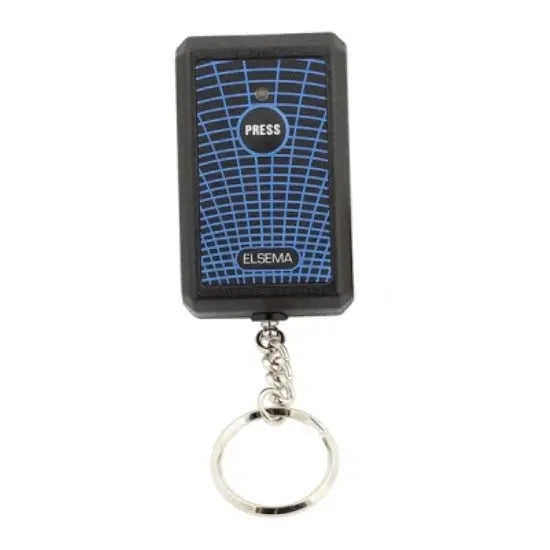

The Elsema KEY-301 was a compact, single-button keyring remote used with older Australian gate, garage-door and access-control systems. It operates on the 27.145MHz frequency and uses 12 internal coding switches.

The KEY-301 was commonly used as a smaller alternative to compatible large-format FMT transmitters.  The genuine Elsema KEY-301 has now been discontinued. This listing is provided for remote identification and compatibility information only.

Is there a direct replacement for the Elsema KEY-301?

Elsema PentaCODE remote is not a direct replacement for the KEY-301. Although PentaCODE remotes also contain coding switches, they operate on a different frequency and cannot communicate directly with the original 27MHz receiver.

Copying the switch pattern from a KEY-301 into a PentaCODE remote will not make it work with the original KEY-301 receiver.

What should I do next?

• Confirm that the model printed on your remote is KEY-301.

• For shared gates,
  • Tenants - Contact the building or access-system manager. They will be able to tell you whether they have already implemented or a site-wide plan has been investigated to resolve your issue.
  • Building Managers - Make contact with your registered garage door/gate installer to discuss a solution.

• For a privately controlled system, either contact a garage/gate installer in your area or contact us to discuss possible solutions.

Read our Elsema FMT-301 and KEY-301 information guide before purchasing a new remote or receiver.

Key Features:

• Compact Keyring Remote
• Fixed Code (12 Dipswitch)
• 27MHz Frequency
• Commonly used in strata complexes.

Compatible with:

• Elsema FMT-301
• ATA TXA1 - Uses a reversed 12-switch orientation

• Magic Door Industries TXA1 - Uses a reversed 12-switch orientation
• FMR-212 Receiver
