Elsema iS900Solar24 Solar Sliding Gate Opener – 900kg
The Elsema iS900Solar24 Sliding Gate Opener Kit is a complete solar powered gate automation system designed for residential sliding gates weighing up to 900kg on level ground.
Ideal for rural properties, driveways and gate locations where connecting to mains power is difficult or impractical, the iS900Solar combines a powerful 120W 24V DC Gate motor with a 40W Solar Panel, high capacity lithium battery and smart MPPT solar charger.
Unlike the standard iS900, the iS900Solar operates from its 24V DC solar and battery system rather than a 240V mains supply, providing a purpose built off grid solution for automatic sliding gates. Elsema's smart solar system also provides battery monitoring through and app, allowing battery condition, solar input and system load to be monitored.
Powered by Elsema's Eclipse operating system (EOS), the motor also provides soft start and soft stop adjustable anti-crush intelligent gate positioning, pedestrian access and compatibility with additional gate access and safety equipment.

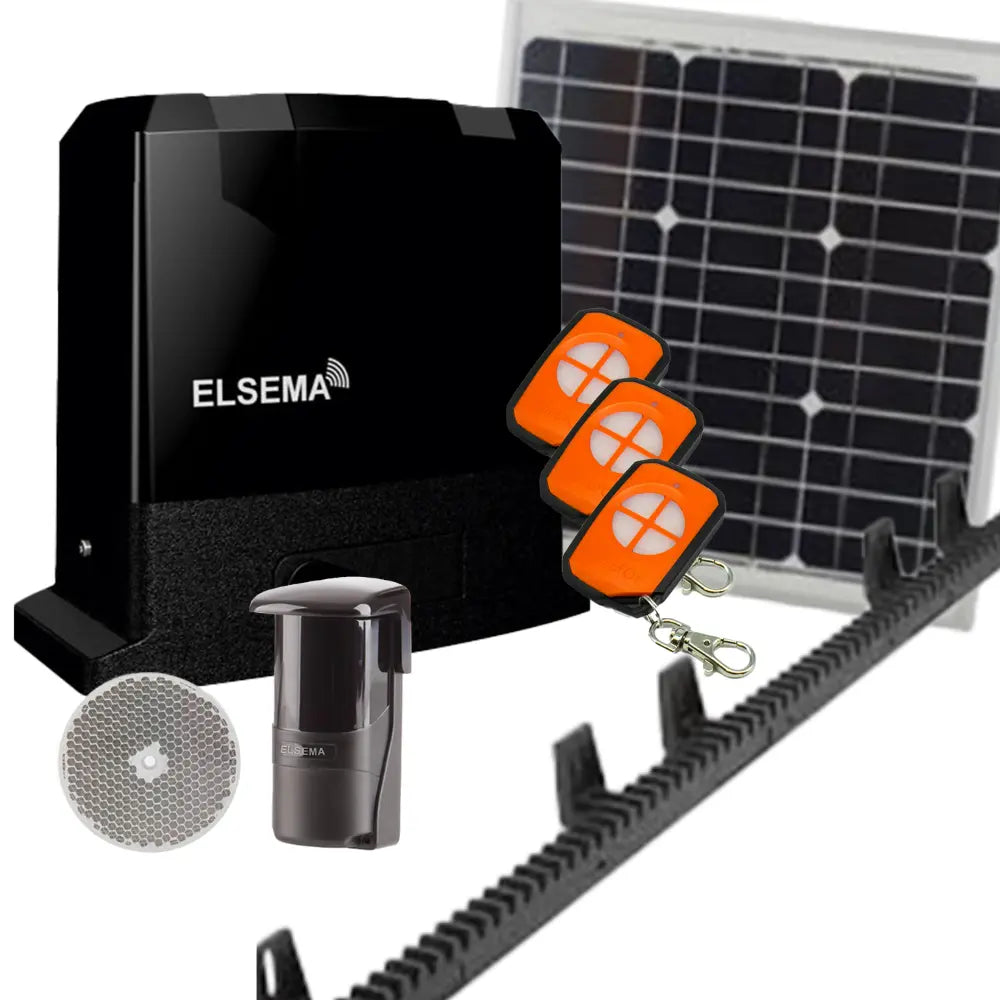

Kit Contents:
- 1 x iS900Solar24 Sliding Gate Motor with Eclipse® Controller
- 3 x PentaFOB® Keyring Remotes for easy gate access
- 4 x Reinforced Gear Racks with Mounting Screws
- 1 x Long-Range Reflector Type Safety Beam for enhanced security
- 1 x 40W, 24V Solar Panel for energy-efficient power
- Lithium Battery Backup for continuous operation
- Smart Solar Battery Regulator with MPPT for optimised solar charging
- Installation Accessories
- Installation Instructions
Key Features:
- Reliable Solar Power – The 40W, 24V solar panel with MPPT (Maximum Power Point Tracking) ensures peak energy conversion, maximising solar efficiency for day and night operation.
- Intelligent Battery Management – The integrated smart battery monitoring app provides real-time updates on battery health, solar input, and load performance, ensuring uninterrupted operation.
- Smooth & Quiet Operation – Featuring soft start and soft stop technology, the IS900Solar motor minimises wear and tear, extending the lifespan of your gate system.
- All-Metal Gearbox for Longevity – Built with a reinforced, all-metal gearbox, this motor delivers exceptional durability and maintenance-free operation.
- Contactless Limit Switch – Designed for precision and reliability, the magnetic limit switch eliminates mechanical wear, ensuring long-lasting performance.
- Enhanced Safety with Adjustable Anti-Crush Feature – Protect your family, pets, and property with auto-adjusting gate pressure, preventing damage or injury in case of obstructions.
- Powered by the Eclipse® Operating System – Enjoy smart automation and effortless control, making your gate system more intelligent and user-friendly.
Ideal Applications:
- Residential sliding gates
- Off-grid properties
- Energy-efficient automation
- Eco-friendly security solutions
Technical Specifications:
| Motor Voltage | 24 Volts DC Motor |
| Max Absorbed Power | 120W |
| Nominal Thrust | 330N |
| Power Supply | 24 Volts DC |
| Nominal Input Current | 3 Amps |
| Motor Speed | 250mm/sec |
| Maximum Gate Weight | 900kg |
| Duty Cycle | 60% over 12 mins |
| Operating Temperature | -20°c - +50°c |
| Gate Weight | Up to 900kg on level ground |
| Warranty | 12 months Manufacturers Warranty |
Button/coin batteries can cause severe injuries or even death when swallowed. Keep batteries out of reach of children. If you suspect a child has swallowed or inserted a button/coin battery, seek medical attention immediately.
Downloads:
 |
 Gate Motor
|
Control Board
|
Frequently Asked Questions:
What gate size can it handle?
The solar kit is rated for residential sliding gates up to 900 kilograms with a 120 watt motor.
What is the motor speed?
Travel speed is about 15 metres per minute, roughly 250mm per second
What power and voltage does it use?
The drive runs on 24 Volts DC with solar input at 24V and uses a lithium battery for storage and backup.
How does MPPT improve performance?
The MPPT regulator maximises solar energy harvest and charging efficiency which supports reliable day and night operation.
Can battery status be monitored?
Yes, a battery monitoring app provides real time updates on battery health, solar input and load status.
What safety features are included?
Soft State and Soft Stop, Adjustable Anti-crush, a contactless limit switch and all metal gearbox for durability.
Is the remote capacity limited?
Remote storage on the Eclipse control platform is effectively unlimited for flexible household access.
