• Elsema iS1400 1000kg light industrial sliding gate motor kit
1 1

Elsema iS1400 Sliding Gate Kit

Elsema iS1400 Sliding Gate Kit

$1,622.95
$1,622.95
Sale Read More
Duties and taxes included. Shipping calculated at checkout.

Stock may need to be sourced from Australian suppliers to fulfil your order. Please allow additional time for dispatch. Contact us for ETA

Elsema iS1400 Sliding Gate Motor Kit – Light Industrial 1000kg

The Elsema iS1400 Sliding Gate Motor Kit is a powerful, compact automation solution designed for light industrial, commercial and larger sliding gate applications up to 1,000kg.

Powered by a 250W 24V DC motor, the iS1400 combines high torque with a slimline designed and an impressive travel speed of up to 22 metres per minute (367mm/sec).  It is ideal for applications where reliable access, smooth operation and faster gate movement are important.

The iS1400 operates using Elsema's advanced Eclipse operating system and incorporates soft start and soft stop, adjustable anti-crush protection and contactless limit switches for accurate and reliable gate positioning.

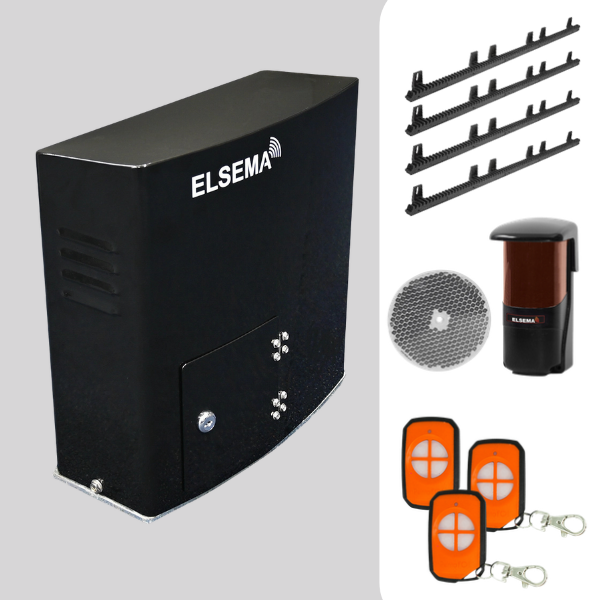

What's Included:

  • iS1400 Sliding Gate Motor
  • 3 x PentaFOB remotes
  • 4 x 1m Nylon Rack
  • 1 x Long Range Safety Beam
  • Mounting Base
  • Manual Release Key
  • Installation Accessory Pack

Key Features:

  • Suitable for sliding gates up to 1,000kg
  • Powerful 250W motor, 24V DC motor with 240V AC input
  • Fast travel speed of approximately 22m/min (367mm/sec)
  • High torque in a compact motor design
  • Soft start and soft stop operation
  • Contactless limit switch
  • Adjustable anti-crush protection
  • Obstruction detection
  • Unlimited remote storage capability
  • Elsema Eclipse® Operating System (EOS)

Ideal Applications:

The Elsema iS1400 is particularly suited to:

  • Light industrial sliding gates
  • Commercial premises
  • Warehouses and workshops
  • Factories and industrial facilities
  • Business entrances
  • Larger residential sliding gates requiring a higher-capacity motor
  • Sites requiring multiple remote controls or users

Technical Specifications:

Motor Voltage  24 Volts DC motor
Max Absorbed Power 250 Watts
Power Supply 240 Volts AC
Nominal Input Current 2 Amps
Motor Speed 367mm/sec
Maximum Gate Weight 1200kg on level ground
Duty Cycle 60% over 12 mins
Operating Temperature -20°c - +50°c


Downloads:

Gate Motor
Control Board
