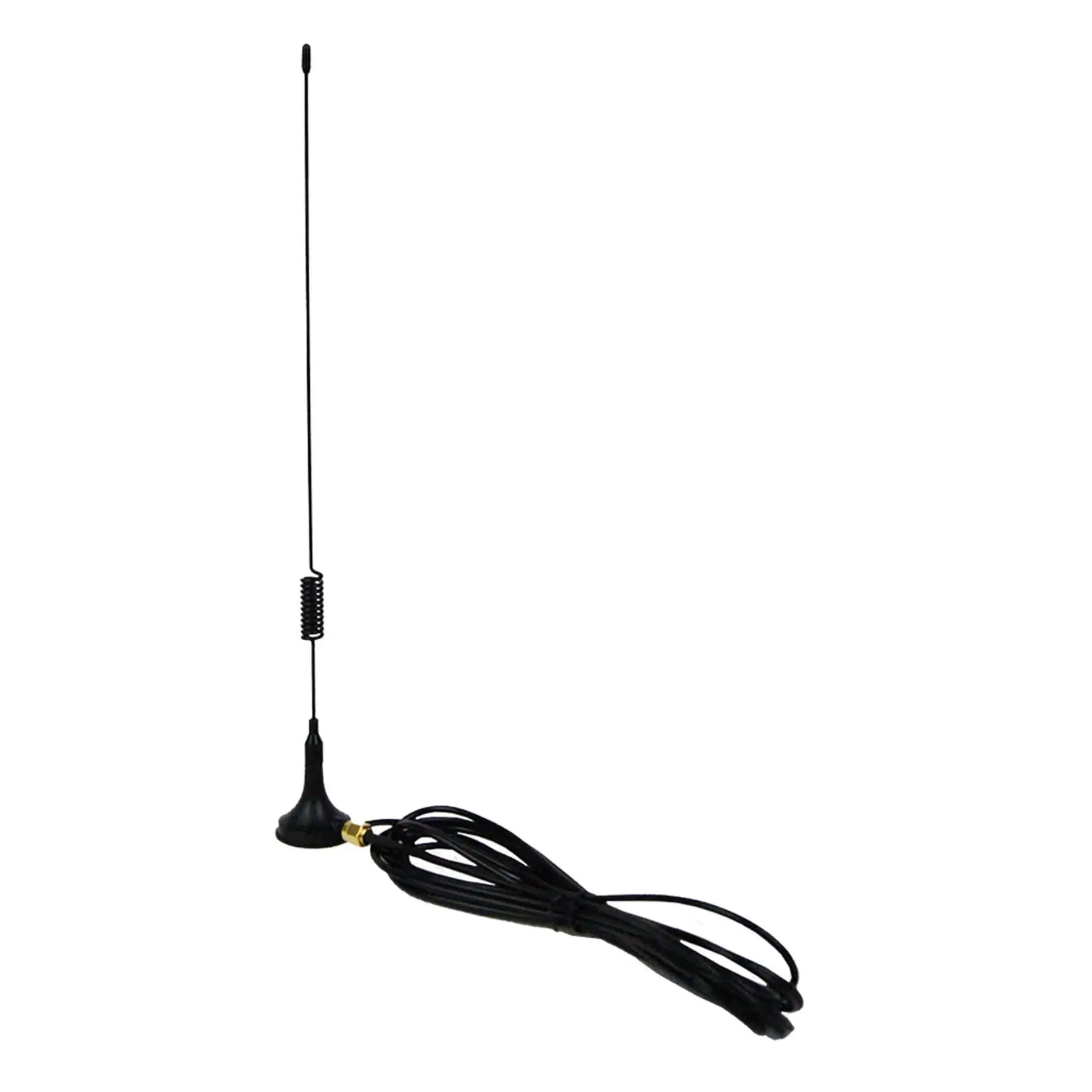

Elsema ANT915MAG Antenna with magnetic base kit

Elsema ANT915MAG Antenna with magnetic base kit

$66.95
$66.95
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

This is a popular item that is regularly replenished from our Australian supplier. It is always available to purchase, even if our on-hand warehouse stock is low. If you need this item urgently, please contact us for current stock levels.

Elsema ANT915MAG Antenna – 915MHz Magnetic Base Antenna (5dBi Gain)

The Elsema ANT915MAG Antenna is a high-efficiency 915 MHz magnetic-mount antenna designed for long-range wireless control and automation systems. With 5 dBi gain, an omni-directional radiation pattern, and a 3m low-loss coaxial cable, it delivers excellent signal performance for IoT, access control, telemetry and industrial automation.

Whats Included:

  • 1 x ANT915MAG Magnetic Base Antenna
  • 1 x 3m Coaxial Cable with SMA Connector

Key Features:

  • Wide Frequency Range: Tuned for 860–960MHz operation.
  • High Gain Performance: 5dBi gain for extended communication range and strong signal transmission.
  • Omni-Directional Radiation: 360° coverage ideal for mobile and fixed wireless systems.
  • Magnetic Base: Quick, secure mounting to metal surfaces with effortless removal.
  • Low-Loss Coaxial Cable: Supplied with 3 metres of high-quality coaxial cable for flexible placement.
  • SMA Termination: Reliable, low-interference connection to transmitters or receivers.
  • Rugged Construction: Made from anodised steel for superior durability and corrosion resistance.
  • Lightweight Design: Just 30cm long and 60g—perfect for mobile and field applications.
  • VSWR < 1.5:1: Ensures efficient power transfer and minimal signal reflection.

Ideal Applications:

  • Remote Control & Automation – extend range for gates, doors, and access systems
  • Industrial Automation – reliable communication for monitoring and control systems
  • IoT & Wireless Networking – long-range connectivity for smart devices and sensors
  • Telemetry & Monitoring – secure and stable signal for data transmission systems

Technical Specifications:

Frequency 860 to 960MHz
Tuned Bandwidth 100MHz
Gain 5 dBi
VSWR (Return Loss) < 1.5 : 1 over 100MHz
Impedance 50 Ohms
Maximum Power 10 Watt
Radiated Pattern Omni Directional
Construction Anodised Steel
Length 30cm
Weight 60 grams
Coaxial Length 3.6 metres, standard
Termination SMA, Standard
Warranty 12 Months Manufacturers Warranty
