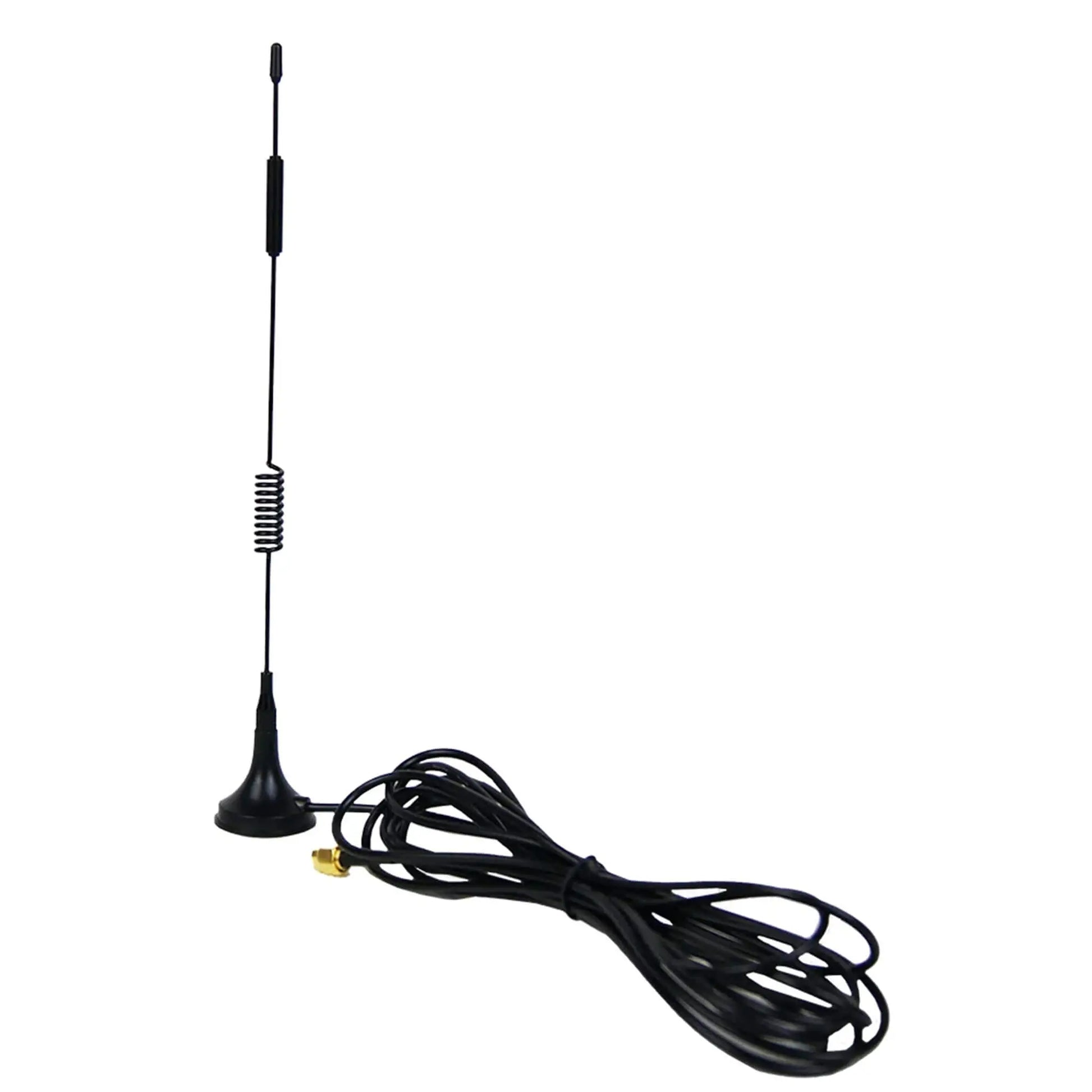

Elsema ANT4GMAG Antenna – 4G Magnetic Base Antenna (700–2700 MHz, 5 dBi)
The ANT4GMAG Antenna is a high-performance 4G magnetic-mount antenna designed for long-range communication, automation systems and wireless connectivity. Supporting frequencies from 700–2700 MHz, it covers all major 4G/LTE bands, ensuring reliable performance for SMS controllers, IoT devices, data telemetry modules and remote access systems of 4G Gate Openers and SMS Controllers (GSM)
Includes:
- 4G antenna with magnetic base
- Coaxial cable and SMA connector
Key Features:
- Wide Frequency Coverage: 700 MHz to 2700 MHz (spanning multiple cellular, 4G/LTE, and wideband bands)
- 5 dBi Gain: Provides improved signal strength and link reliability
- Low VSWR (< 1.5:1): Efficient energy transfer across the full band
- Omni-Directional Pattern: Full 360° coverage in horizontal plane
- Magnetic Mount: Quick and tool-free placement on ferrous metal surfaces
- 3 m Low-Loss Cable: High-quality coaxial cable for extended reach
- SMA Connector: Standard termination for compatibility with wireless modules
- Anodised Steel Construction: Durable and corrosion-resistant
- Compact & Lightweight: 22 cm length, ~60 g weight
Ideal Applications:
- 4G Gate Openers and
- 4G SMS Controllers
Technical Specifications:
| Frequency | 700 to 2700MHz |
| Tuned Bandwidth | 1880MHz |
| Gain | 5 dBi |
| VSWR (Return Loss) | < 1.5 : 1 over 1880MHz |
| Impedance | 50 Ohms |
| Maximum Power | 10 Watt |
| Radiated Pattern | Omni Directional |
| Construction | Anodised Steel |
| Length | 22cm |
| Weight | 60 grams |
| Coaxial Length | 3 metres, standard |
| Termination | SMA, Standard |
| Warranty | 12 Months Manufacturers Warranty |
