• Elsema ANT915LP Low Profile Antenna
1 1

Elsema 915 Antenna 40mm – ANT915LP

Elsema 915 Antenna 40mm – ANT915LP

$77.95
$77.95
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

This is a popular item that is regularly replenished from our Australian supplier. It is always available to purchase, even if our on-hand warehouse stock is low. If you need this item urgently, please contact us for current stock levels.

ANT915LP - Compact, Durable & Reliable Antenna for 860–960MHz Communication

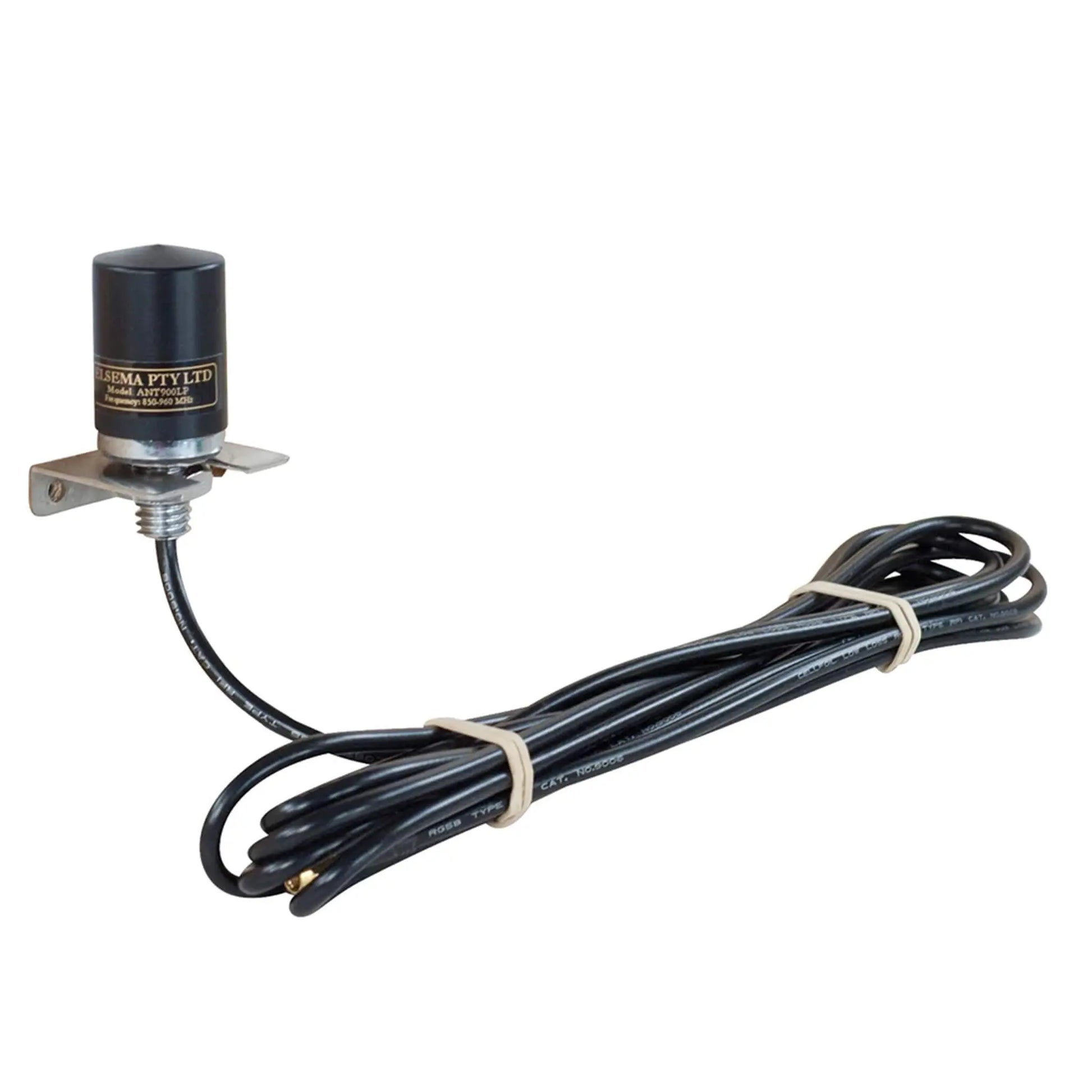

The Elsema ANT915LP Low-Profile Antenna is a compact, ultra-durable 915MHz antenna designed for reliable wireless communication in automation, Multicode receivers, and IoT applications. Measuring only 40mm long with a rugged UV-stabilised Delrin body, it delivers strong 2dBi performance with a wide 860–960MHz range. Complete with a 3.6m low-loss coaxial SMA cable and mounting bracket, it’s perfect for discreet or vandal-resistant installations indoors or outdoors.

Includes:

  • Low Profile Antenna – 4cm Long
  • 3.6 metres of low loss coaxial cable terminated with an SMA connector
  • Mounting Bracket

Key Features:

  • Optimised for 860–960MHz – Perfect for 915MHz wireless devices and Multicode receivers.
  • Low-Profile (40mm) & Tamper-Proof – Compact, discreet, and resistant to damage or interference.
  • Durable High-Impact Delrin Construction – Built tough for long-term outdoor use.
  • Weatherproof & UV-Resistant – Reliable in harsh environments.
  • Premium 3.6m Low-Loss Coaxial Cable – Ensures strong and clean signal transmission.
  • Secure SMA Connector – Stable and professional-grade connection.
  • Universal Mounting Bracket – Flexible installation on walls, posts, or roofs.

Ideal Application:

  • Wireless Remote Control Systems – Boosts range and stability for gate and door automation.
  • Industrial Automation & Monitoring – Enhances connectivity for smart controllers and equipment.
  • IoT & Smart Devices – Supports long-range communication for sensors, meters, and smart home systems.

Technical Specifications:

Frequency 860 to 960MHz
Tuned Bandwidth 100MHz
Gain 2dBi
VSWR (Return Loss) < 1.5 : 1 over 100MHz
Impedance 50 Ohms
Maximum Power 25 Watt
Radiated Pattern Omni Directional
Construction High Impact Delrin plastic UV stabilised
Length 40 mm
Weight 260 grams
Coaxial Length 3.6 metres
Termination SMA
Warranty 12 Months Manufacturers Warranty
