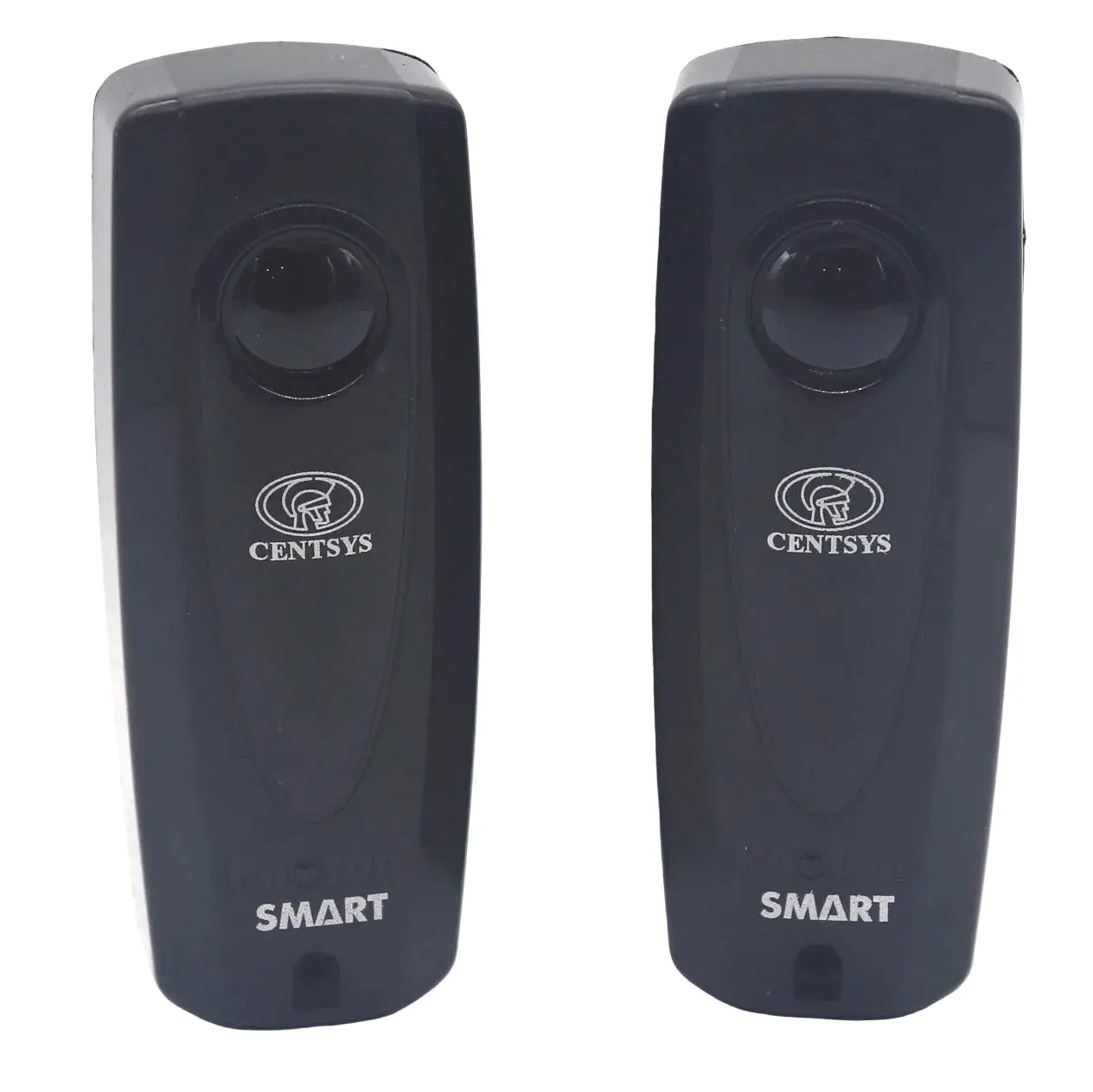

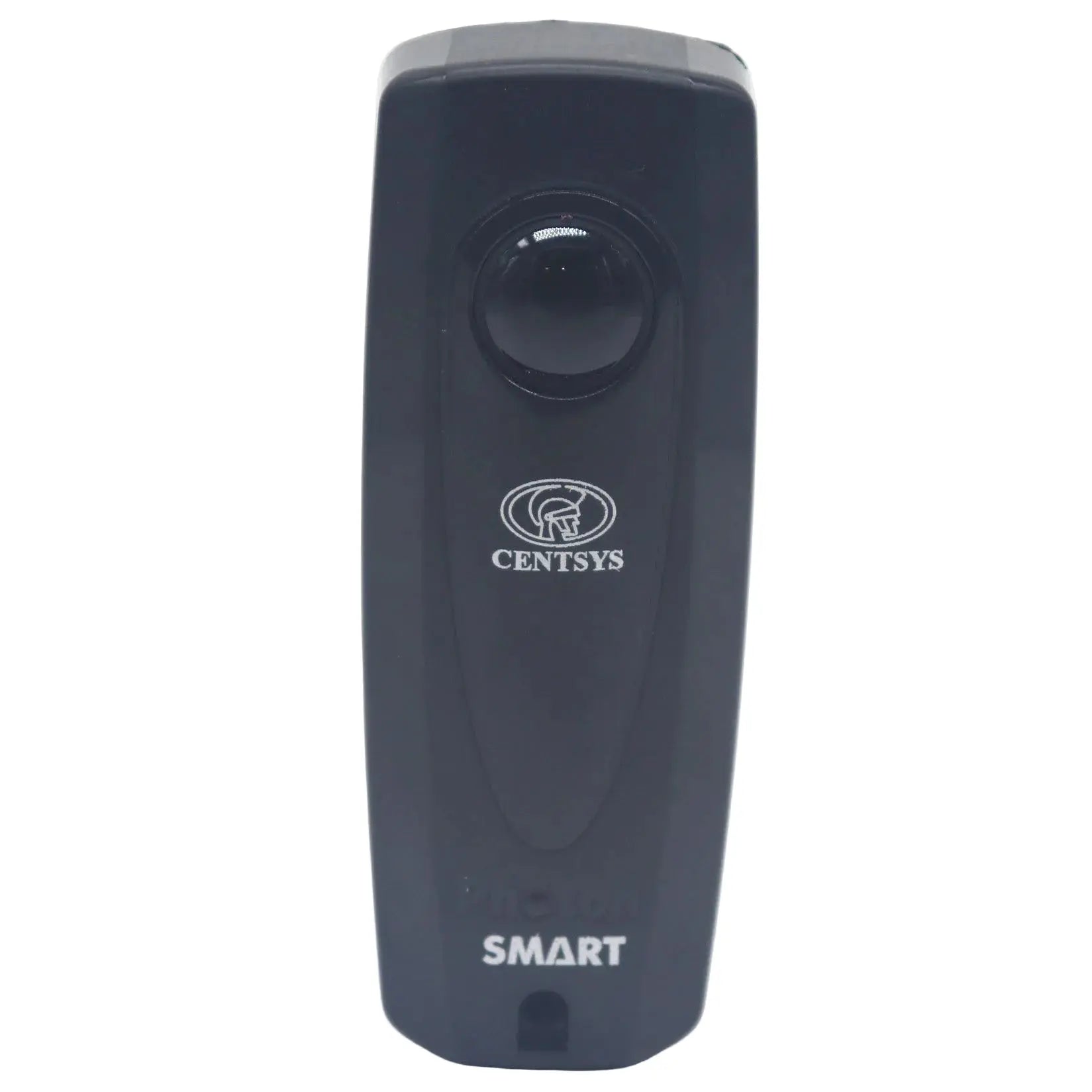

Photon Smart - Wireless Safety Beams for Centsys Smart Motors
The Centsys Photon SMART Wireless PE Safety Beams deliver a modern, wireless solution for gate automation safety. Designed for seamless integration with Centsys SMART systems, Photon SMART replaces traditional wired photo-electric beams with a clean, low-maintenance, battery-powered setup. Whether for residential gates or commercial access points, Photon SMART ensures smooth, reliable obstruction detection - helping protect vehicles, people, pets and property.

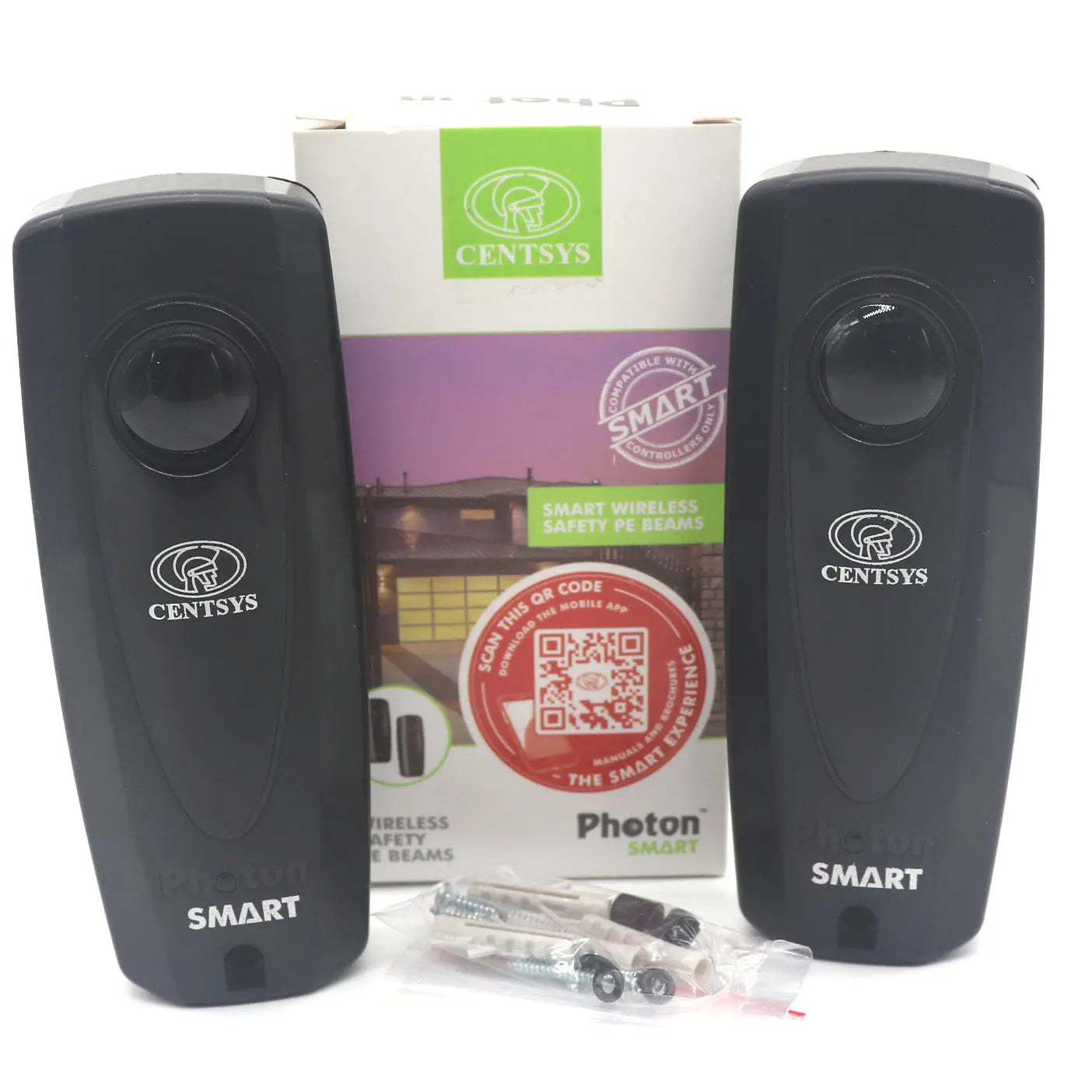

What's Included?:

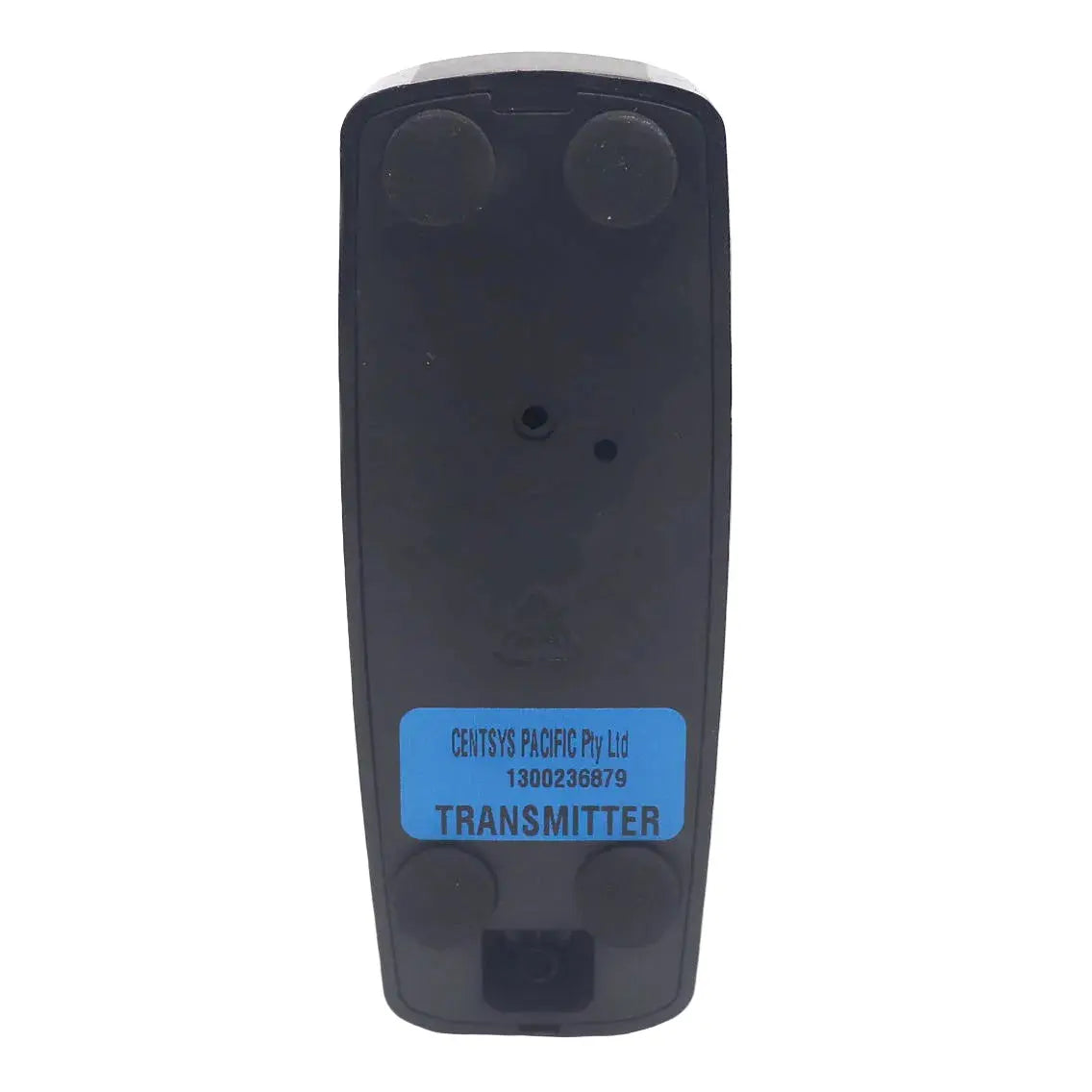

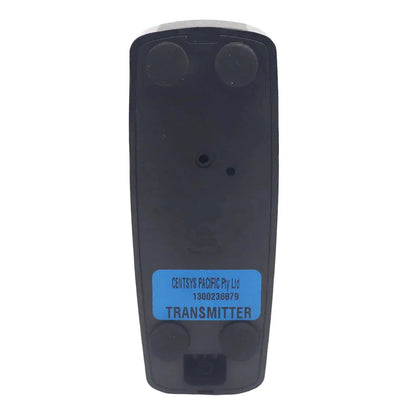

- 1 × Photon SMART Transmitter

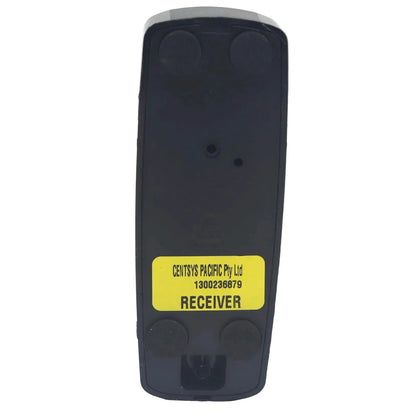

- 1 × Photon SMART Receiver

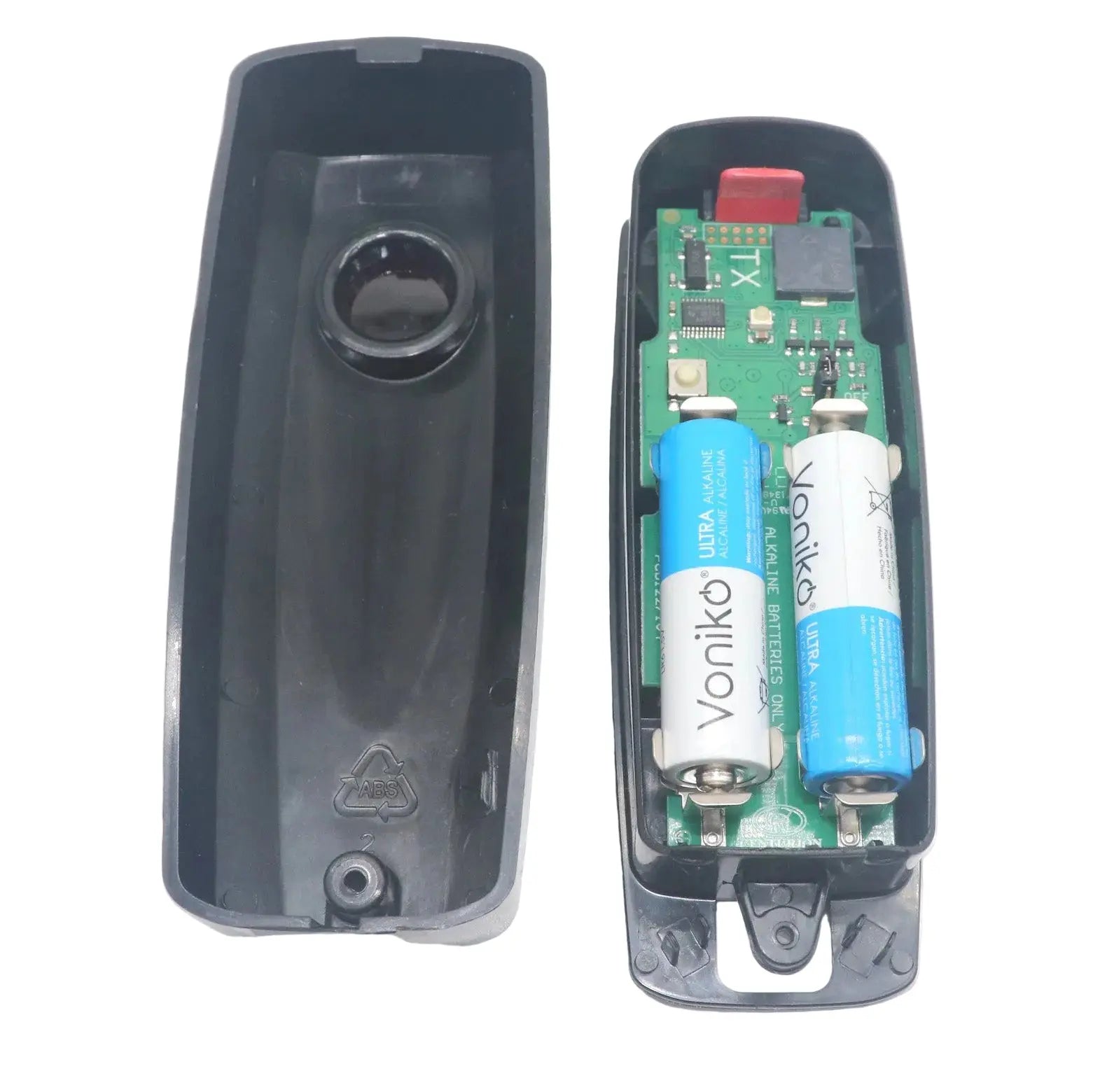

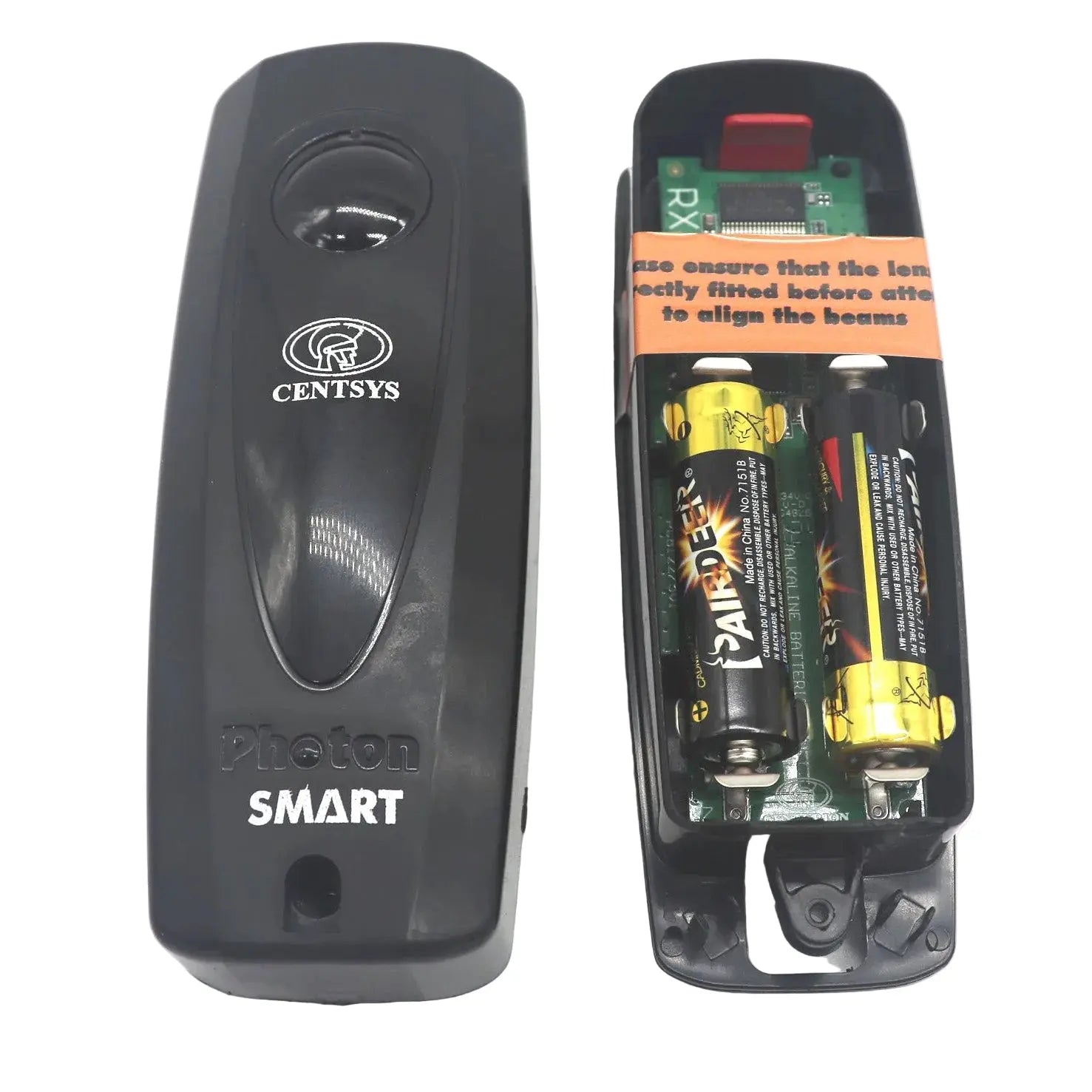

- 4 × AA Alkaline Batteries (2 per unit — transmitter and receiver)
- Installation Hardware
- Installation Instructions
Key Features:
- Wireless Design
- Up to 2 years battery life
- Battery Low Alert via MyCentsys Pro App
- Long Detection Range (up to 30m)
- Quick Pairing and Easy Alignment
- Fully Sealed, weather resistant housing (IP54)

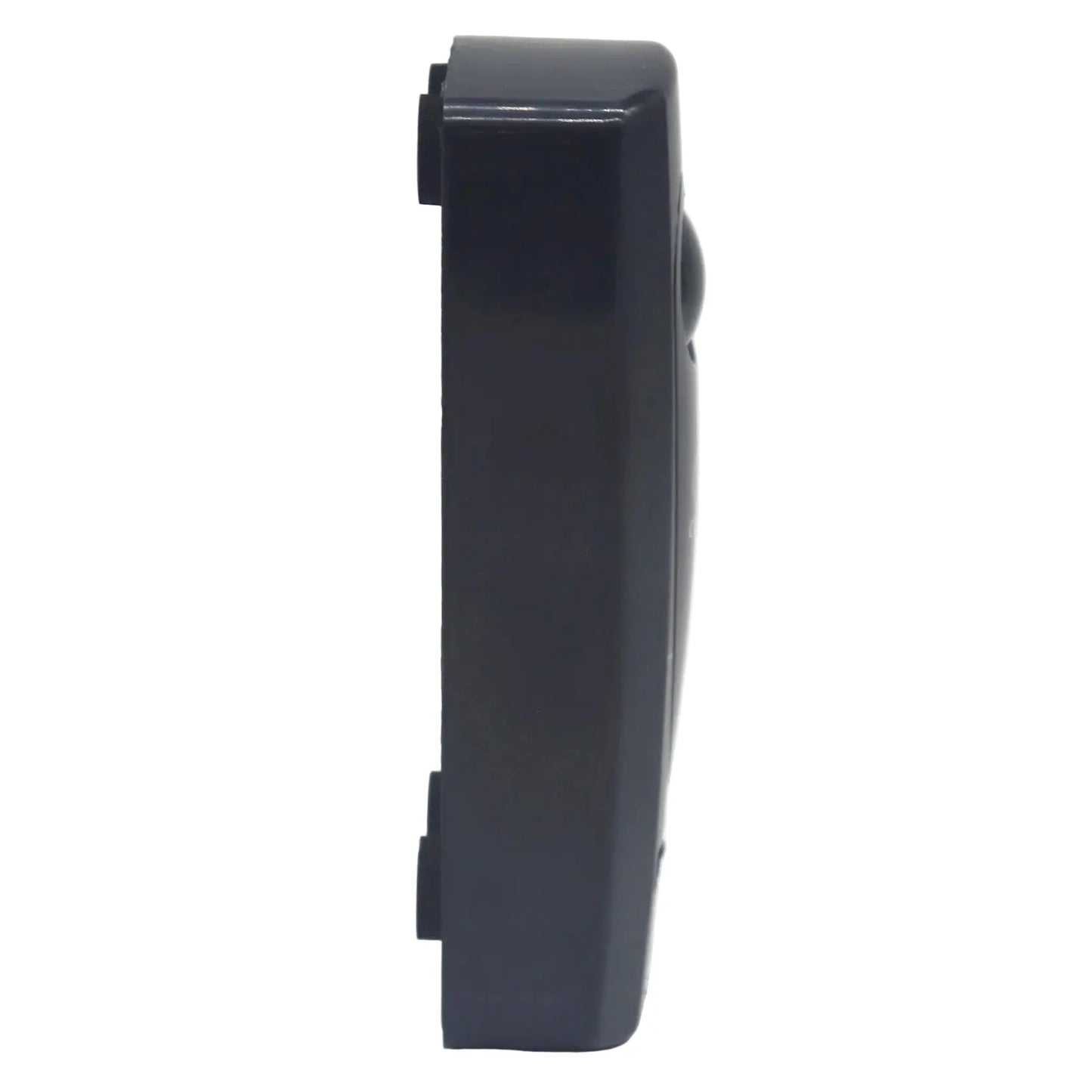

- Sleek, Slimline Profile
Compatible With:
- Centsys SMART range
Dimensions:
Technical Specifications
| Power Supply | 2 x AA Alkaline Batteries (included) |
| Battery Life | up to 2 years |
| Maximum Operating Distance (Beam to Beam) | 30 metres |
| Maximum Distance - Receiver to SMART controller | 10 metres |
| Beam Alignment Tolerance | Automatic; ~1m circular area at 10m distance (assuming parallel mounting surfaces) |
| Operating Temperature | –15 °C to +65 °C |
| Operating Humidity | 0–90% (non-condensing) |
| Housing Material | ABS; Lens Material: PC |
| Ingress Protection Rating | IP54 |
| Weight | 200g |
Note: Rechargeable batteries are not recommended for this device.
