B&D WTB8v1 Wall Button Remote

B&D WTB8v1 Wall Button Remote

$69.95
$69.95
Sale Sold out
Shipping calculated at checkout.

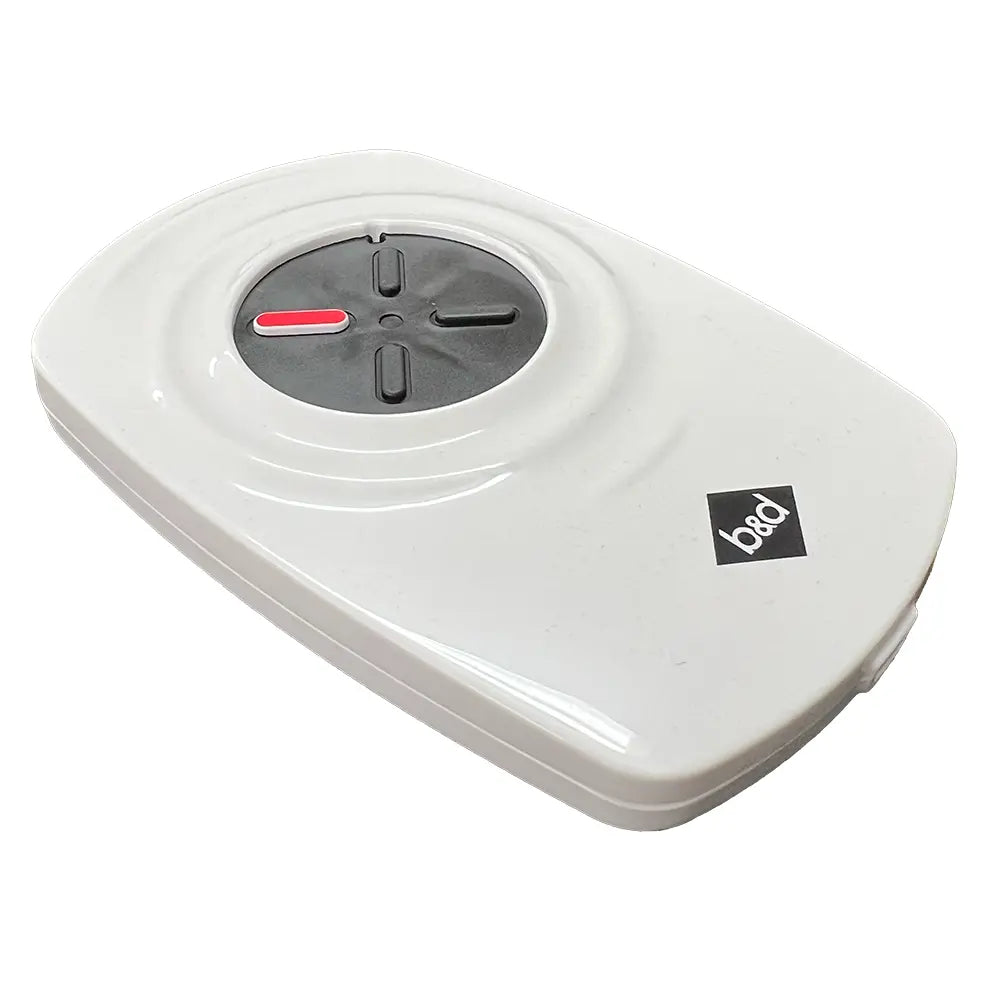

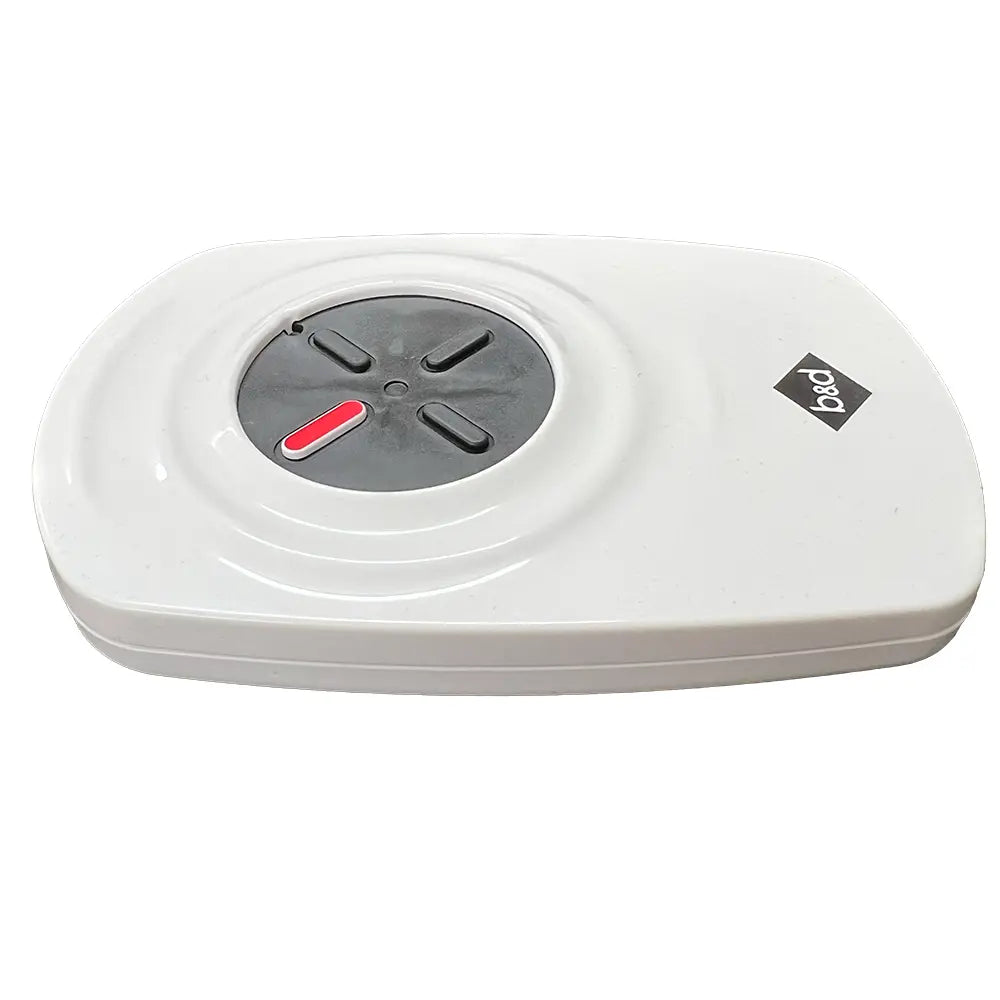

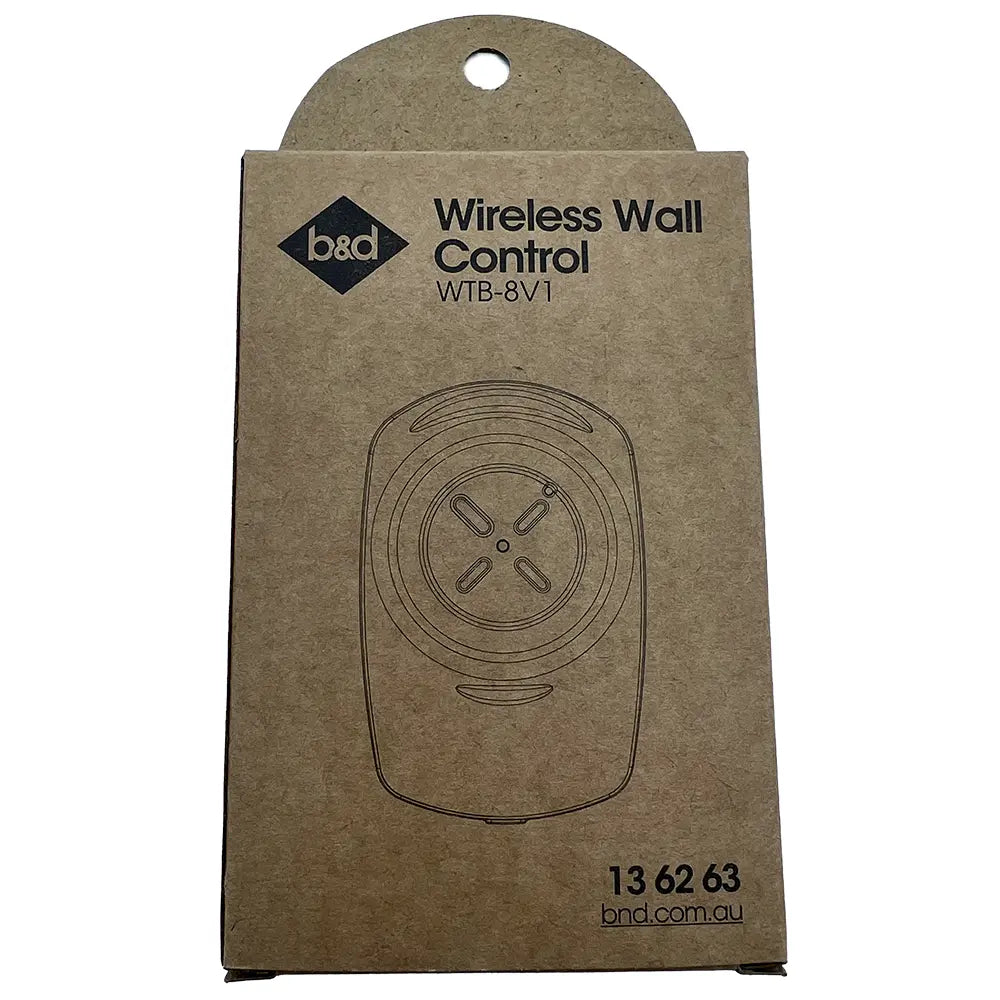

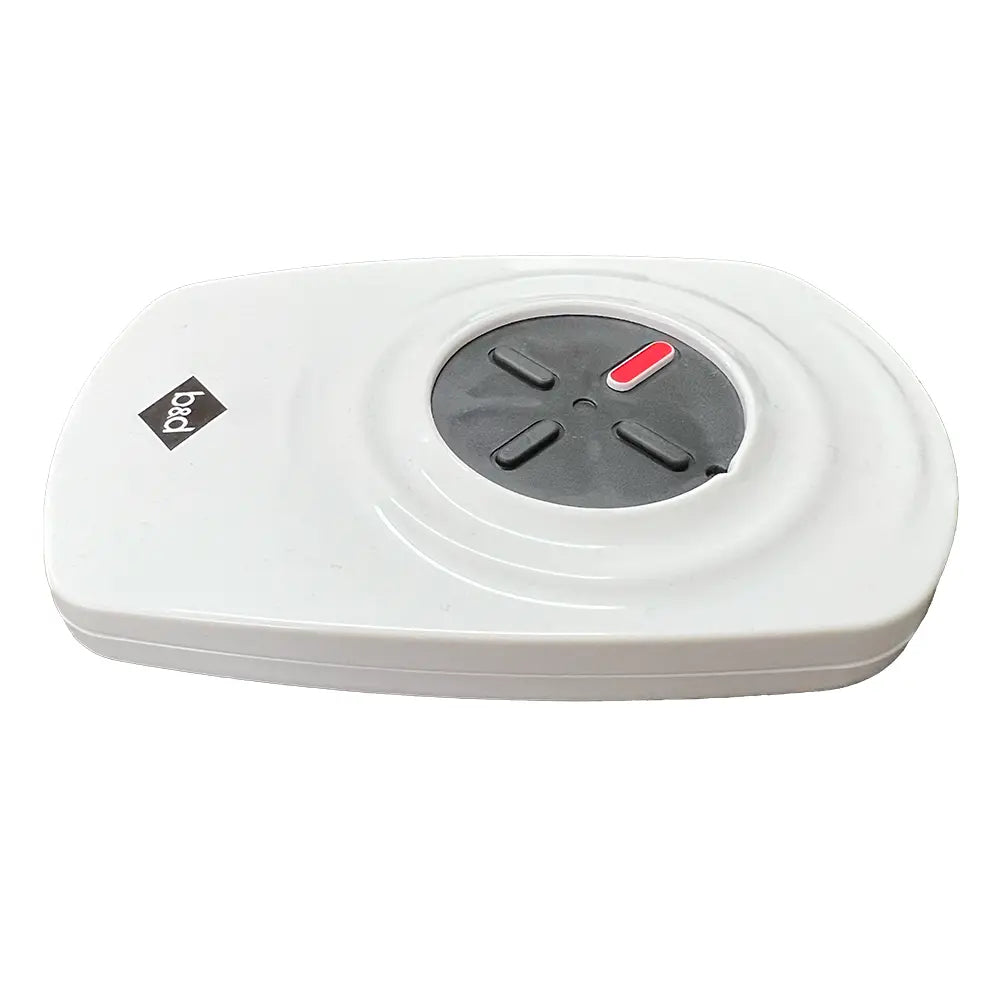

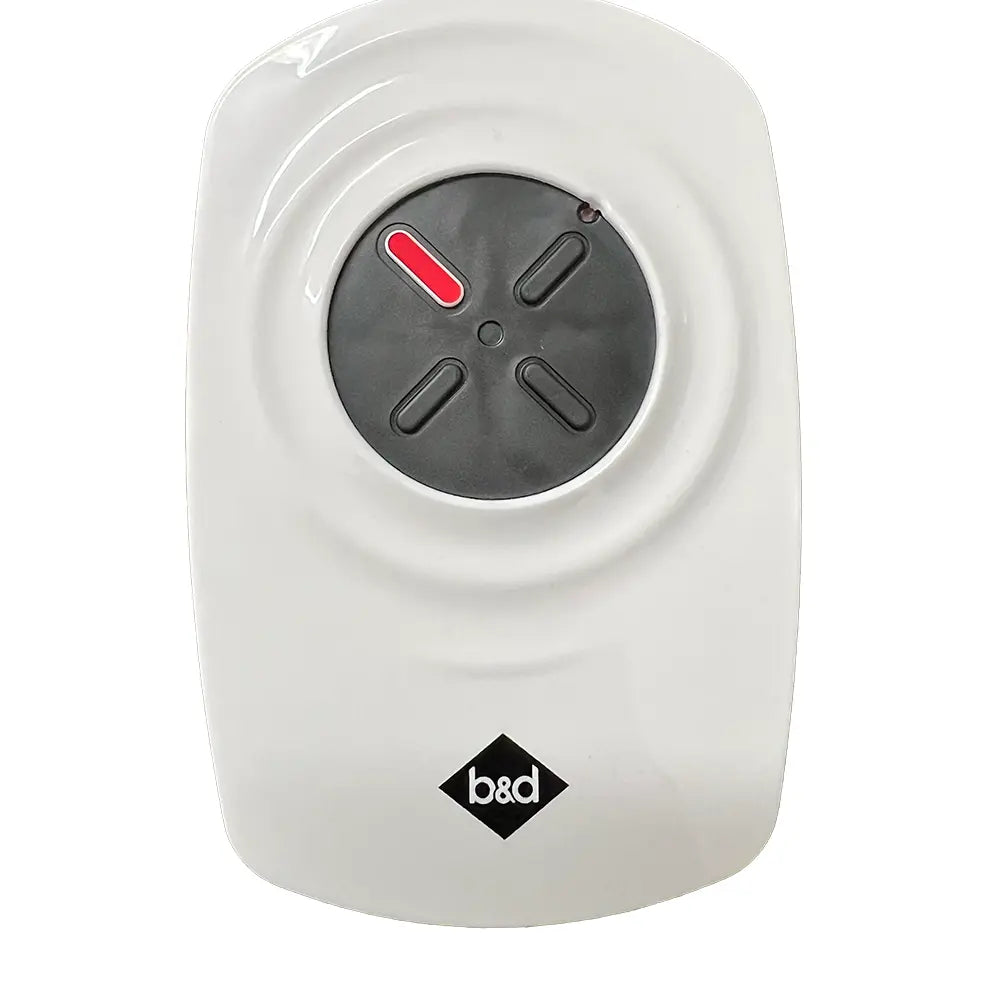

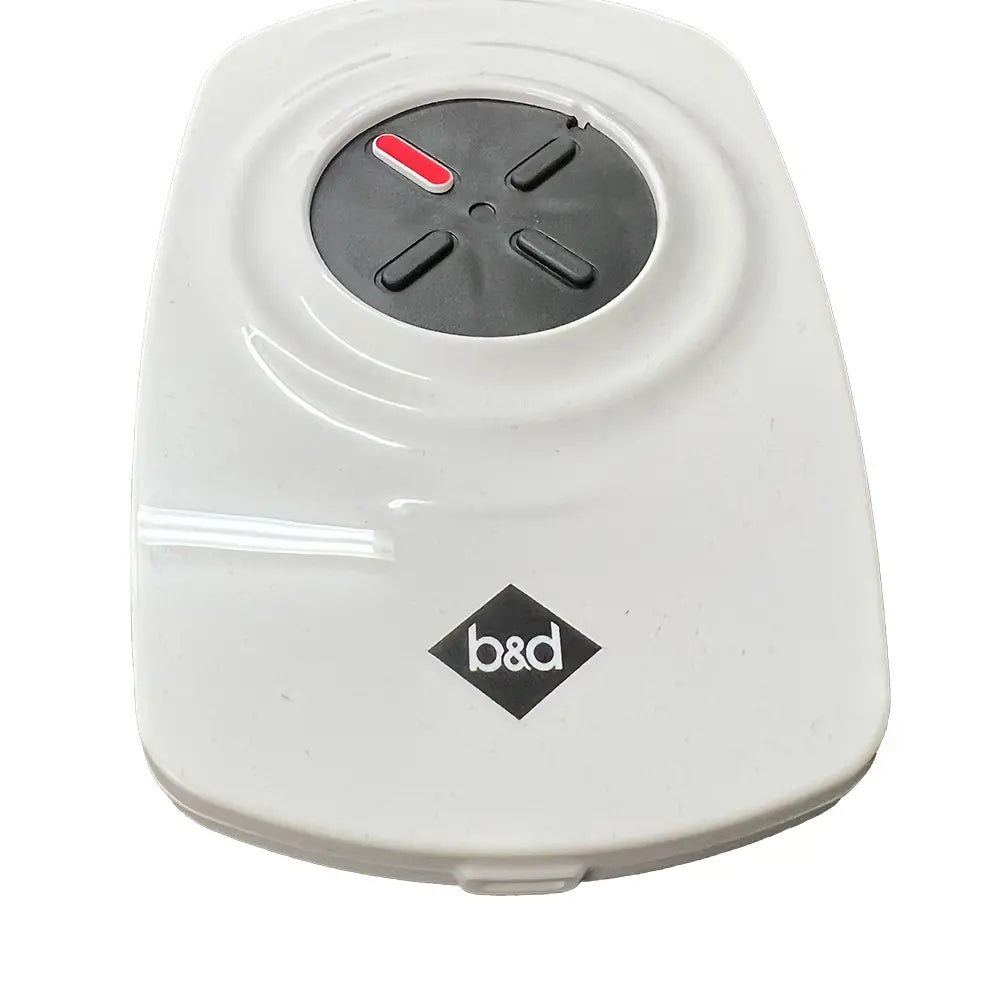

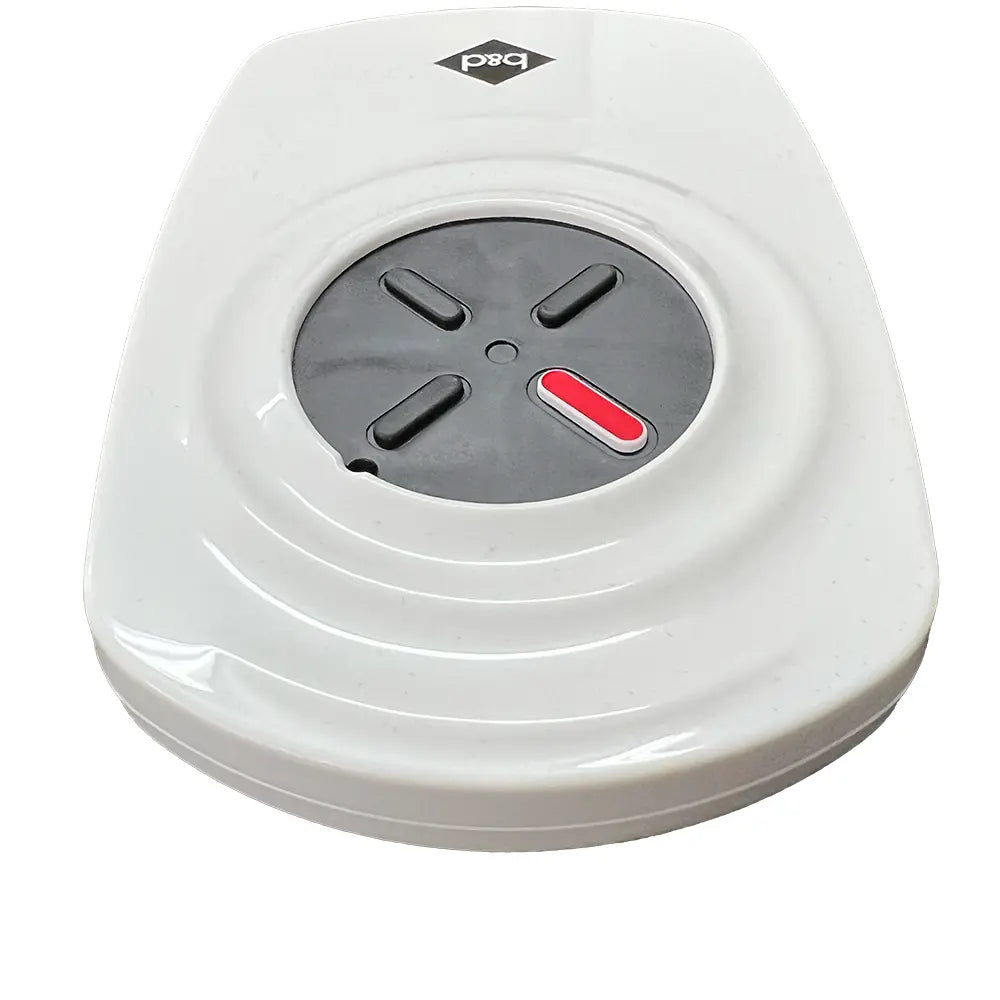

WTB8v1 - B&D Wall Mounted Remote Control

The B&D WTB8v1 Wall Mounted Remote provides secure, fixed-location control for up to four garage doors or gates. Tri-Tran encrypted, battery powered, compact, and easy to install — perfect for internal garage access points.

Includes:

  • Brand New Wireless Wall Button Transmitter
  • 1 x Battery
  • Wall Mounting Screws
  • Programming Instructions

Key Features:

  • 4 programmable buttons — Control up to four devices (doors, gates, or lighting) from one unit.
  • Tri-Tran rolling-code encryption — Provides enhanced security by constantly changing the transmission code.
  • Wall-mount form factor — Comes with mounting bracket and hardware for permanent installation.
  • Battery powered — Uses a lithium battery (CR2032 or equivalent) for reliable long-term operation.
  • Compact, durable design — Weather-resistant casing suited for indoor or sheltered outdoor mounting.
  • Backward-compatible — Works with older B&D receivers supporting Tri-Tran protocol.
  • Australian Compliant: Fully compliant with AS/NZS standards for electrical safety and battery warnings

Compatible with:

  • Control-A-Door Smart - SDO-7
  • Control-A-Door Secure - SDO-6
  • Roll-A-Pro - RDO-1V3 RAP
  • PowerDrive-  RDO-1V4 PD
  • Panel Pro - SDO-4V1
  • Advance - SDO-2V2 ADV (Dominator)
  • P-Diamond - SDO-2V2 PD
  • Prodigy - SDO-2V3 PGY
  • Control-A-Door S - SDO-3V1, SDO-3v2, SDO-3v2 WE CAD S

Technical Specifications:

Frequency 433.47, 433.92 & 434.37 MHz
Code Type 128-bit Rolling Code
Body Type Wall Mounted Remote
Case Colour White
Number of Buttons 4
Button Colour Black with Red line on Button 1
Remote Dimensions 215 x 70 x 15mm
Range Up to 40m
Battery Type Lithium CR2032 (Pre-Installed)
Access Type Tool Required
AS62368.1 Compliant Yes
Warranty 12 months Manufacturers Warranty


Downloads:

View full details
Warning icon

This product contains a button or coin cell battery. To prevent possible SERIOUS INJURY or DEATH:

  • Keep new and used batteries out of reach of children at all times.
  • Do not use this product if the battery compartment is damaged or does not close securely.
  • Dispose of used batteries immediately and safely — even flat batteries can cause serious harm.
  • Do not ingest the battery. Chemical burn hazard.
  • If you suspect a battery has been swallowed or inserted, act immediately — severe or fatal injuries can occur within 2 hours.

Frequently Asked Questions

Is the remote pre-programmed or does it require setup before use?

Most remotes require programming to your opener before use. This process allows the remote to communicate securely with your specific garage or gate system.

If the product is listed as “compatible” rather than “genuine”, it will still need to be coded in the same way as your original remote.

Programming instructions are included with your order, and additional guides can be found on our Programming Instructions page or by contacting our support team for assistance.

How much does shipping cost?

Retail customers enjoy free standard shipping Australia-wide on orders over $10. Orders are sent as tracked parcels via a range of trusted couriers, including Australia Post, CouriersPlease, and Aramex.

For faster delivery, an Express Shipping option is available for $9.95.

International shipping rates vary depending on the destination — standard shipping starts from $20, and all options include tracking for your peace of mind.

Wholesale customers are charged a flat rate of $14.95 for all orders, with tracking provided once despatched.

How long will it take for the order to arrive?

For the East Coast of Australia, standard delivery typically takes 3–5 business days.

For the West Coast and Northern Territory, please allow 7–14 business days for standard delivery.

For more detailed information, please refer to our Shipping Policy.

What happens if I bought the wrong item?

If you think you have purchased the wrong item, please contact us and we will help start up the returns process and suggest correct replacement.

What happens if something is wrong with the remote?

Having Trouble Programming Your Remote?

Setting up your remote to your opener can sometimes be a little frustrating. If you’re having difficulty programming your remote, get in touch with us — our team is happy to help troubleshoot the issue.

All products are covered by a manufacturer’s warranty, which protects against any faults that may occur during the production process.

For more information about our warranty process, please refer to our Warranty Policy.
