Automatic Technology Elite SGO-1v4 Articulated Arm Kit

Automatic Technology Elite SGO-1v4 Articulated Arm Kit

$816.95
$816.95
Sale Sold out
Shipping calculated at checkout.

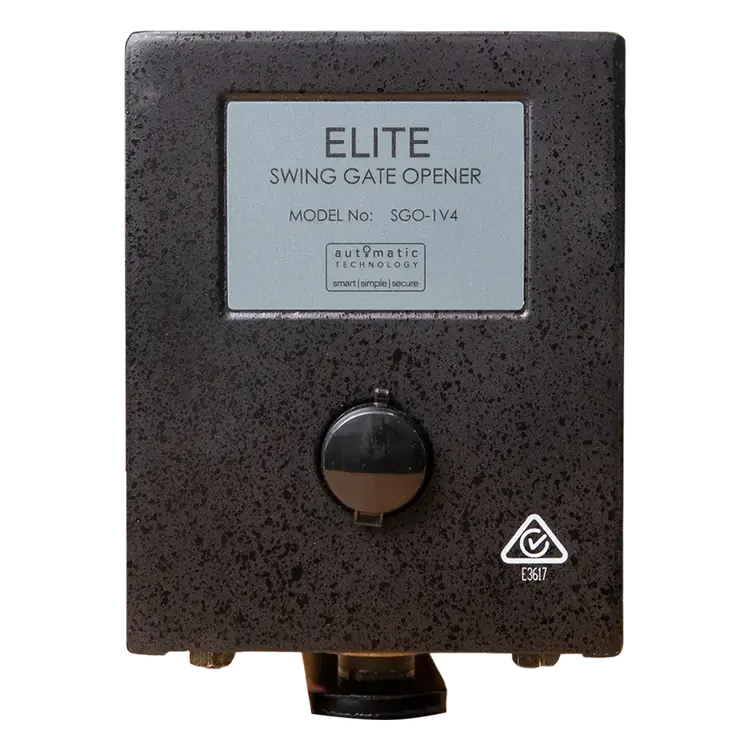

SGO-1v4 - Articulated Swing Gate Motor

A proven design trusted for more than 15 years, the ATA Elite SGO-1 Swing Gate Motor delivers exceptional strength, reliability, and smooth performance. Known across the industry for its robust DC motor, high-torque gearing, and articulated arm operation, the Elite SGO-1 continues to set the standard for residential and commercial swing-gate automation.

What’s Included:

Choose between a Single Kit, Double Kit or Drive Arm only.

Kits will include:

  • Elite Articulated Arm (single or double)
  • Mounting Hardware and Brackets
  • Manual Release Keys
  • Control Board in Enclosure
  • 2 x Remotes
  • Installation User Manual

Arm only will not include Control Board in Enclosure or Remotes.

Key Features:

  • Proven Performance – 15+ years of reliability in Australian conditions, backed by ATA’s trusted engineering.
  • DC Motor & Robust Gearbox – High-torque design ensures powerful, quiet, and consistent movement.
  • Articulated Arms – Allows smooth operation, even on gates mounted on wide pillars.
  • Smart Control System (DCB-05) – LCD display simplifies installation, configuration, and diagnostics.
  • TrioCode™ 128 Security – Secure code-hopping transmitter technology prevents code grabbing.
  • Multi-Frequency Transmission – Operates over three frequencies to overcome signal interference.
  • High Transmitter Capacity – Stores up to 511 unique remotes, each assignable with a custom name.
  • Gate Sync Delay – Allows precise control of dual-leaf gates with overlap.
  • ISS (Intelligent Safety System) – Auto-reverses upon obstruction to protect people and vehicles.
  • Lock & Light Outputs – Control electric locks, warning lights, or courtesy lights directly from the controller.
  • Pedestrian Mode – Allows single-leaf opening for walk-through access.
  • Manual Release – Easily disengage drive units in the event of a power outage.

Ideal Applications:

  • Residential driveways and acreage entrances
  • Light commercial swing-gate systems
  • Dual or single-leaf swing gates up to 800 kg
  • Locations requiring solar or battery-backup capability

Technical Specifications:

Power Input Voltage 24VDC
Motor Type 24VDC Permanent Magnet
Motor Power 100W
Peak Driving Force 200N
Typical Travel Speed 8° per second
Rated Maximum Gate Width 4000m
Rated Gate Weight 300kg
Weather Resistance Rating IP44
Warranty 2 years, 5000 Cycles (Which ever comes first)
