Automatic Technology NeoSlider 800Kg Sliding Gate Kit
Automatic Technology NeoSlider 800Kg Sliding Gate Kit
SKU:15670
Couldn't load pickup availability

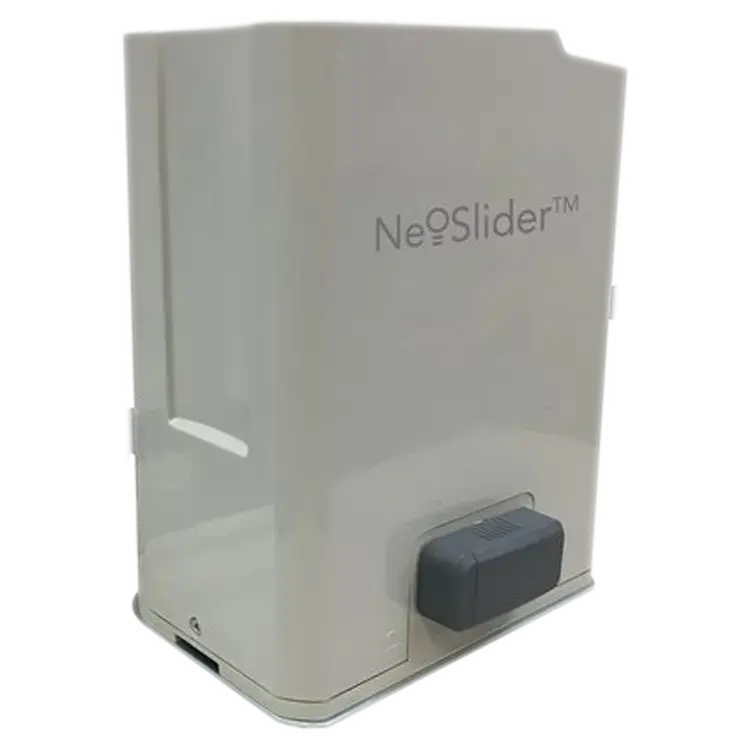

NeoSlider 800Kg Sliding Gate Motor
The Automatic Techology NeoSlider 800kg is a high-performance sliding gate automation system designed to handle residential and light commercial gates up to 800 kg. Built for reliability, durability, and intelligent operation, it combines strong mechanical drive components with smart electronics for smooth, quiet, and secure gate control.
Available in multiple configurations — Single Electric Kit, Dual Electric Kit, Single Solar Kit, or Slave Drive Only — the NeoSlider range offers flexibility to suit a variety of property layouts and power options.
What's Included:
This will vary depending on what variation is chosen.
Electric Kits:
- Either Single or Double NeoSlider 800kg Motor Unit
- 4 x 1m Nylon Rack
- Control Board with built-in diagnostics
- Remotes and Accessory Pack
- Installation Manual
The Solar Kit will have the additional Solar Pack - Panel, Solar Charge Card, Battery
Note: Slave Drive will come as Motor Unit only
Key Features:
- Powerful DC Motor: Engineered to move sliding gates up to 800 kg with consistent strength and efficiency.
- Soft Start & Stop Technology: Reduces strain on the gate and motor for quieter operation and extended lifespan.
- Weather-Resistant Design: Built to perform in harsh Australian outdoor conditions, resisting dust, wind, and rain.
- Smart Safety Features: Includes auto-close functionality, safety beam compatibility, and obstacle detection for added protection.
- Convenience Modes: Vacation lock-out and service alerts help manage access and ensure ongoing reliability.
- Accessory Compatibility: Integrates with safety beams, intercoms, smartphone control, and battery or solar backup systems.
- Flexible Power Options: Choose between electric or solar-powered operation depending on site needs.
Ideal Applications:
- Residential Driveways: Smooth and efficient automation for medium to large sliding gates.
- Semi-Rural or Acreage Properties: Ideal for heavier gates and longer travel distances.
- Remote Installations: Perfect for off-grid or solar-powered applications.
- Dual-Gate Systems: Compatible with both master and slave drive configurations.
- Upgrade Projects: Reliable replacement for older or outdated sliding gate motors.
Technical Specifications:
| Type | Residential |
| Maximum Gate Weight | up to 800kg |
| Maximum Gate Width | 8m |
| Driving Force | 700N |
| Power Supply Voltage | 230 - 240 VAC 50Hz |
| Standby power | 2.8W |
| Travel Speed | 0.15m/second |
| Operating Ambient Temperature | -20 ~ 50C |
| Dimensions | 275 x 250 x 170mm |
| Weather Resistance Rating | IP44 |
| Motor Type | 24 DC Permanent Magnet |
| Limit Switch Type | Mechanical |
| Type of Pinion | M4-T14 |
| No. of Safety Beam Inputs | 2 |
| Transmitter Storage Capacity | 30 x 4 button transmitters |
| Smart Phone Control Enabled | Yes |
| Warranty | 2 Years, 5000 Cycles |
