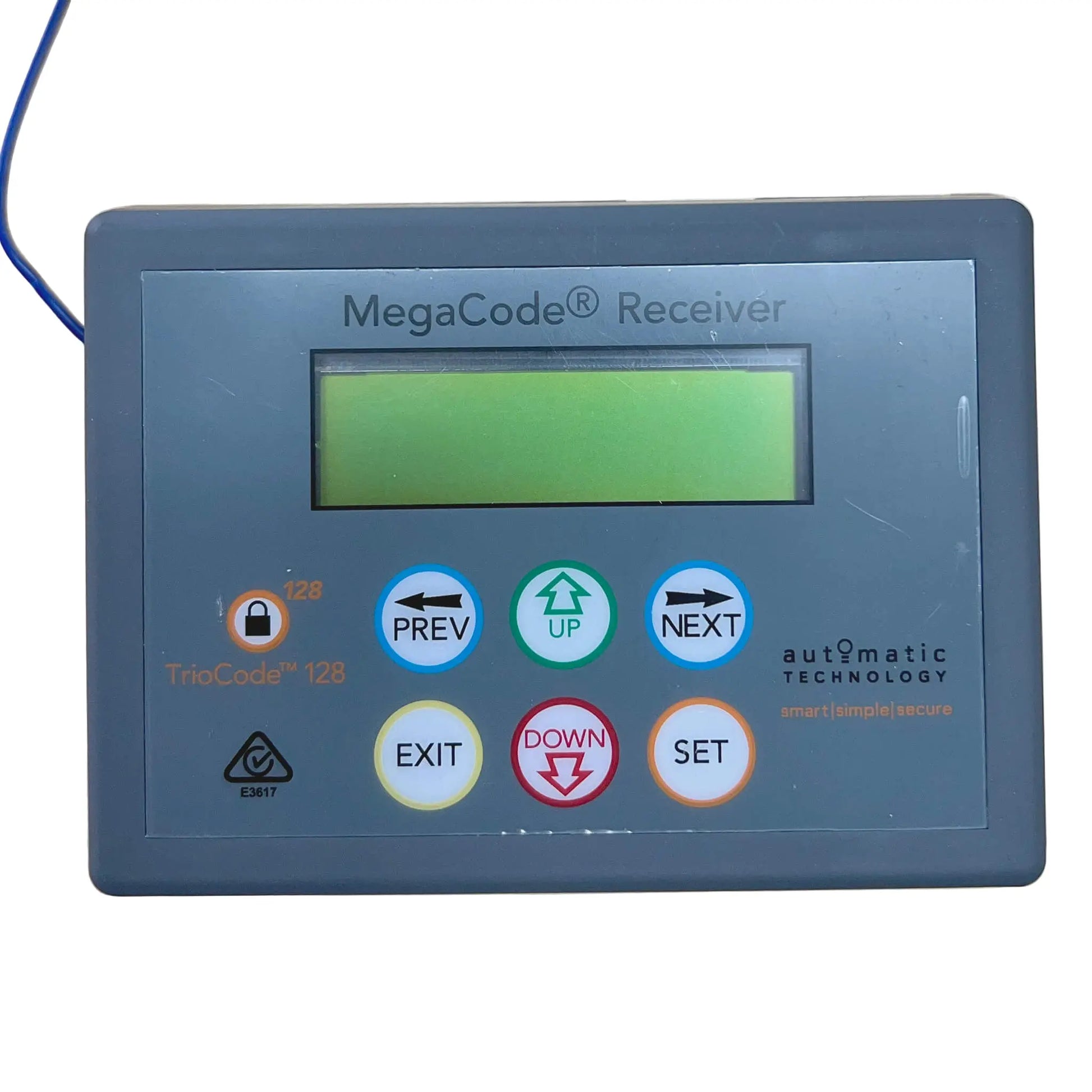

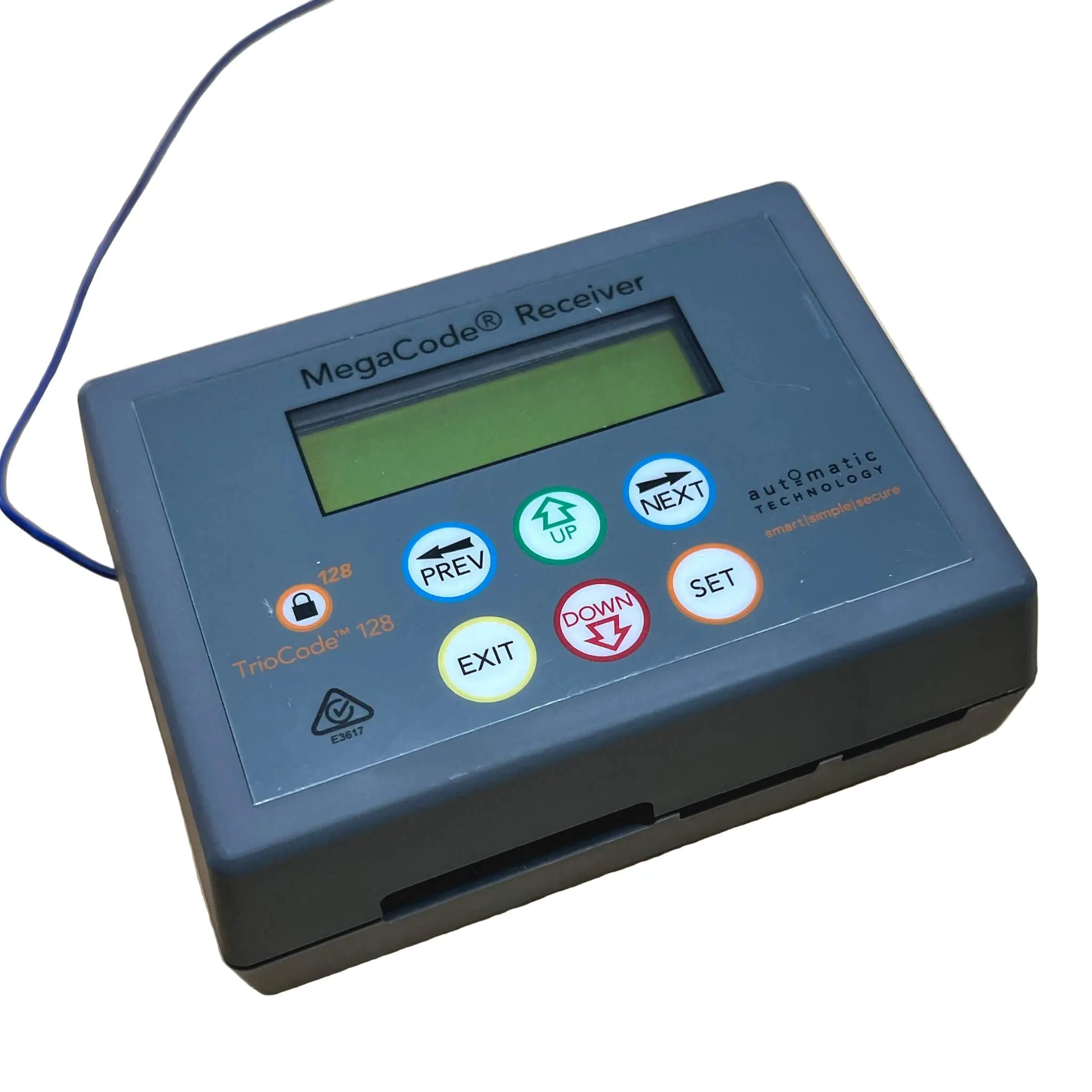

Automatic Technology Megacode 4 Channel Receiver

Automatic Technology Megacode 4 Channel Receiver

$474.95
$474.95
Sale Sold out
Shipping calculated at checkout.

Megacode Receiver - Genuine ATA Receiver for TrioCode and TriTran Remotes

The Megacode Receiver (62560) is a powerful four-channel genuine ATA receiver designed for TrioCode and TriTran remote systems, supporting both 64-bit and 128-bit remotes. With a massive 511 remote capacity, LCD display, programmable scheduling, and secure rolling-code technology, it's the ideal upgrade for complex sites, multi-access control, and commercial automation environments.

What’s Included:

  • 1 × Brand New Genuine Megacode Receiver (62560)
  • Step-by-step Wiring Programming Instructions

Key Features:

  • Four independent channels for controlling multiple devices
  • Works with both 64-bit and 128-bit TrioCode/TriTran remotes
  • Backwards compatible with PTX5v1 and TB5v1
  • Stores up to 511 remotes, each with an individual label
  • LCD Display with simple menu navigation for easy setup and diagnostics
  • Programmable weekly timer clock for scheduled automation
  • Secure code-hopping technology for reliable, protected operation
  • Flexible activation via remote, wired trigger inputs or schedule

Compatible with:

Current Genuine Remotes:

  • ATA PTX6v1
  • B&D TB7

Discontinued Genuine Remotes:

  • ATA PTX2v1 & PTX2v2
  • ATA PTX5v1 & PTX5v2
  • B&D TriTran & Mini
  • B&D TriTran TB5 & TB6

Note:  This receiver is not compatible with the ATA Securacode Series – ATA PTX4 or earlier series.

Technical Specifications:

Frequency 433.47, 433.92 & 434.37Mhz
Code Type 65 Bit & 128 Bit Rolling Code
Body Type Receiver
Number of Channels 4
Case Colour Grey
Size
Power Supply 12-24 AC/DC
Continuous Load Current per output 100mA @ 40 VAC/DC
Memory Capacity 511 Remotes
Antenna Connection Optional Coaxial Antenna Available
Range Up to 40 metres


Downloads:

View full details

Frequently Asked Questions

Is the remote pre-programmed or does it require setup before use?

Most remotes require programming to your opener before use. This process allows the remote to communicate securely with your specific garage or gate system.

If the product is listed as “compatible” rather than “genuine”, it will still need to be coded in the same way as your original remote.

Programming instructions are included with your order, and additional guides can be found on our Programming Instructions page or by contacting our support team for assistance.

How much does shipping cost?

Retail customers enjoy free standard shipping Australia-wide on orders over $10. Orders are sent as tracked parcels via a range of trusted couriers, including Australia Post, CouriersPlease, and Aramex.

For faster delivery, an Express Shipping option is available for $9.95.

International shipping rates vary depending on the destination — standard shipping starts from $20, and all options include tracking for your peace of mind.

Wholesale customers are charged a flat rate of $14.95 for all orders, with tracking provided once despatched.

How long will it take for the order to arrive?

For the East Coast of Australia, standard delivery typically takes 3–5 business days.

For the West Coast and Northern Territory, please allow 7–14 business days for standard delivery.

For more detailed information, please refer to our Shipping Policy.

What happens if I bought the wrong item?

If you think you have purchased the wrong item, please contact us and we will help start up the returns process and suggest correct replacement.

What happens if something is wrong with the remote?

Having Trouble Programming Your Remote?

Setting up your remote to your opener can sometimes be a little frustrating. If you’re having difficulty programming your remote, get in touch with us — our team is happy to help troubleshoot the issue.

All products are covered by a manufacturer’s warranty, which protects against any faults that may occur during the production process.

For more information about our warranty process, please refer to our Warranty Policy.
