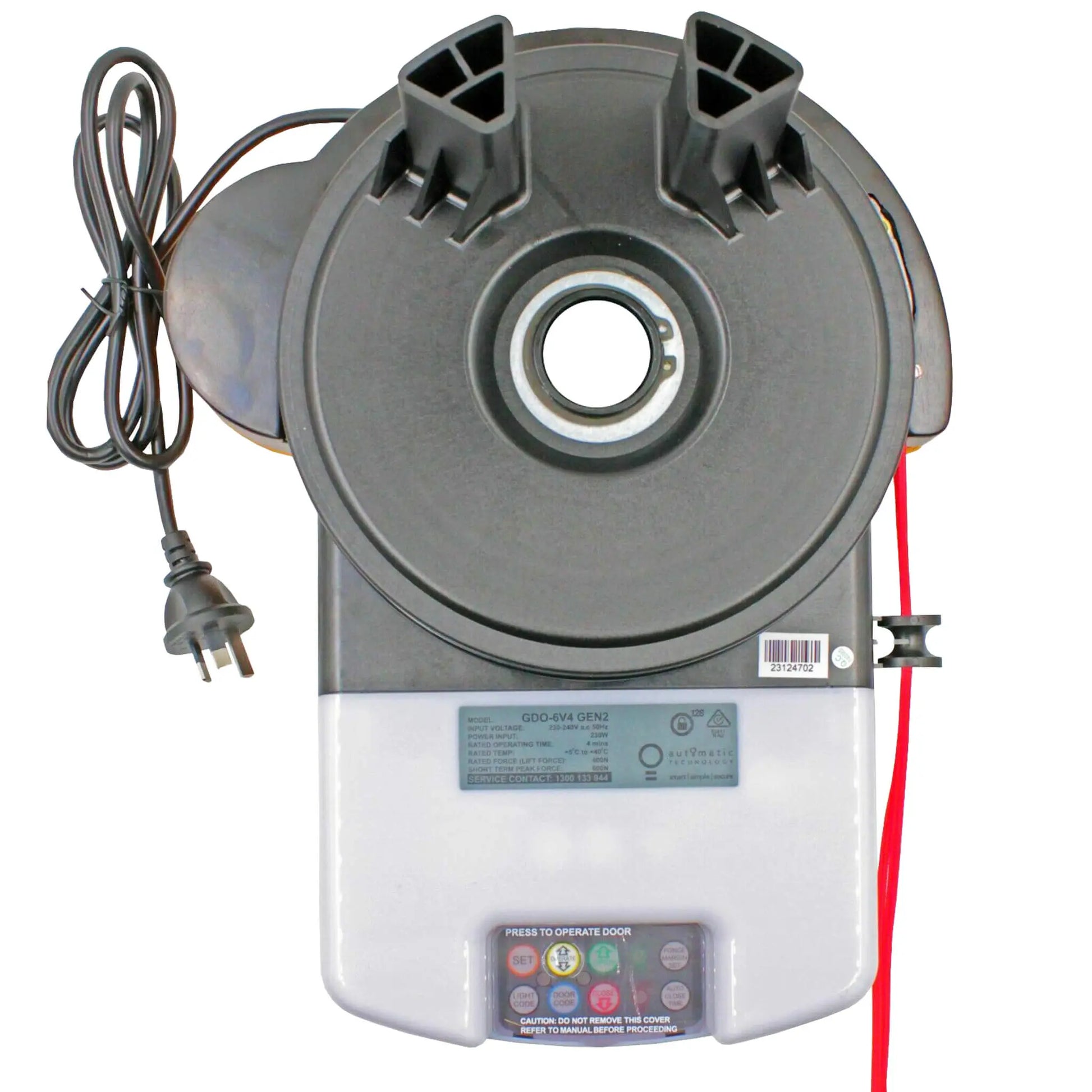

Automatic Technology GDO 6v4 Roller Door Opener

Automatic Technology GDO 6v4 Roller Door Opener

$605.95
$605.95
Sale Sold out
Shipping calculated at checkout.

GDO 6v4 - Residential Roller Garage Door Opener

The Automatic Technology GDO 6v4  EasyRoller® is a slimline, powerful and secure garage door opener designed specifically for residential roller doors. Built on decades of innovation, this fourth-generation model delivers smooth, quiet operation with advanced safety features, smart technology compatibility, and the peace of mind of a 7-year / 20,000 cycle warranty.

Whether you’re upgrading from an older opener or installing new, the GDO6v4 offers a compact design, user-friendly controls, and powerful 600N motor capable of operating single and double roller doors up to 16.5m² or 110kg.

What’s Included:

  • 1 x Genuine ATA GDO6v4 Drive Unit with LED courtesy light
  • 2 x ATA Premium PTX6 Remotes
  • 1 x ATA Wall Button Remote
  • 2 x Locking Bar Covers
  • 1 x Weight Bar
  • 1 x Emergency Access Pull Cord
  • Installation Accessory Pack
  • 1 Step-by-step Installation Instructions’

Note: Older models used to include the transmitter on the Emergency Access Pull Cord.  This has now been replaced with a Wall Button Remote.

Key Features:

  • ALPS (Automatic Limits Positioning System): Simplifies setup by automatically learning and adjusting door travel limits for accurate and reliable operation.
  • ISS (Intelligent Safety System): Detects obstructions and automatically reverses or stops to protect your family, pets and property.
  • Soft Start/ Soft Stop Technology: ensures smooth, quiet operation and reduces stress on your door and motor for longer lift.
  • Multiple Operation Modes:
    • Vacation Mode: locks out remote access for added security while away.
    • PET/ Pedestrian mode: Opens door partially for convenient access without full raising it.
    • Auto-Close Mode: Automatically closes the door after a preset delay (safety beams required – sold separately)
    • Auxiliary Output: integrates with alarms or additional devices
    • Service Indicator: reminds you when maintenance is due.
  • LED courtesy light: Energy-efficient LEDs automatically light up your garage when operating the door.
  • Smart Phone Compatible: With the optional ATA Smart Phone Control Kit, monitor, control and schedule your garage door anywhere via the ATA App (Smart Kit sold Separately)

Ideal Applications:

  • Single & Double Garage Roller Doors: suited for most standard residential doors up to 16.5m² or 110kg
  • Homes with Limited Side-Room Space: Its slimline design allows it to fit neatly where space is tight

Technical Specifications:

Input Voltage  230V - 240Va.c. 50Hz
Maximum Door Height 3.25 turns of the drum wheel (approx. 3000mm)*
Maximum Door Weight 110kg*
Door Area 16.5m2*
Minimum Sideroom 40mm
Lift Force 600N
Nominal Force 150N (15kg)
Courtesy Light LED (Light Emiting Diodes)
Network Connectivity Network Compatible (requires optional Smart Phone Control Kit – sold separately)
Manufacturers Warranty 7 Years, 20,000 cycles (whichever occurs first)

*Door must be well balanced and able to be operated by hand, as per warranty conditions and standard AS/NZS 4505:2012
