Automatic Technology FHCRX2 Receiver

Automatic Technology FHCRX2 Receiver

$117.95
$117.95
Sale Sold out
Shipping calculated at checkout.

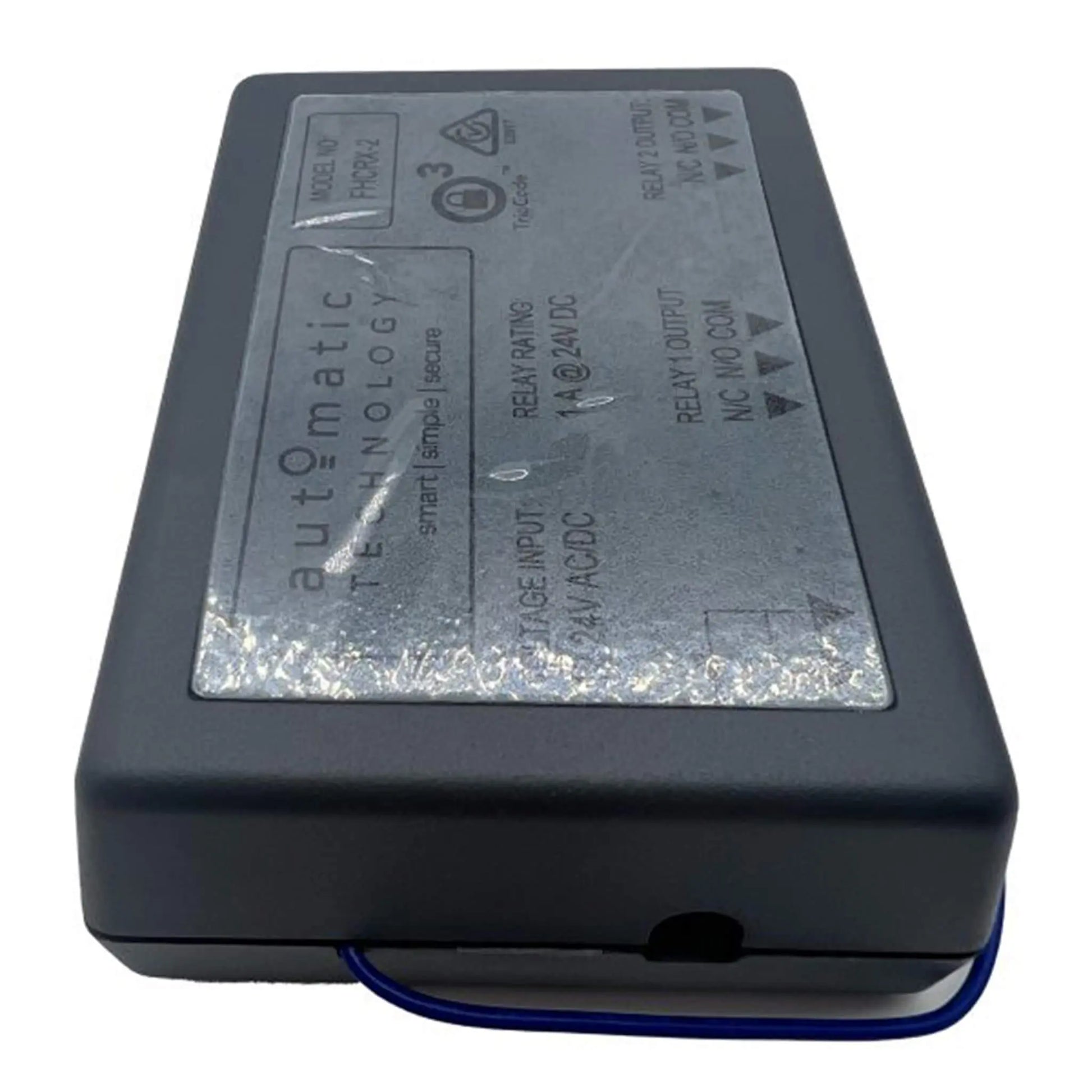

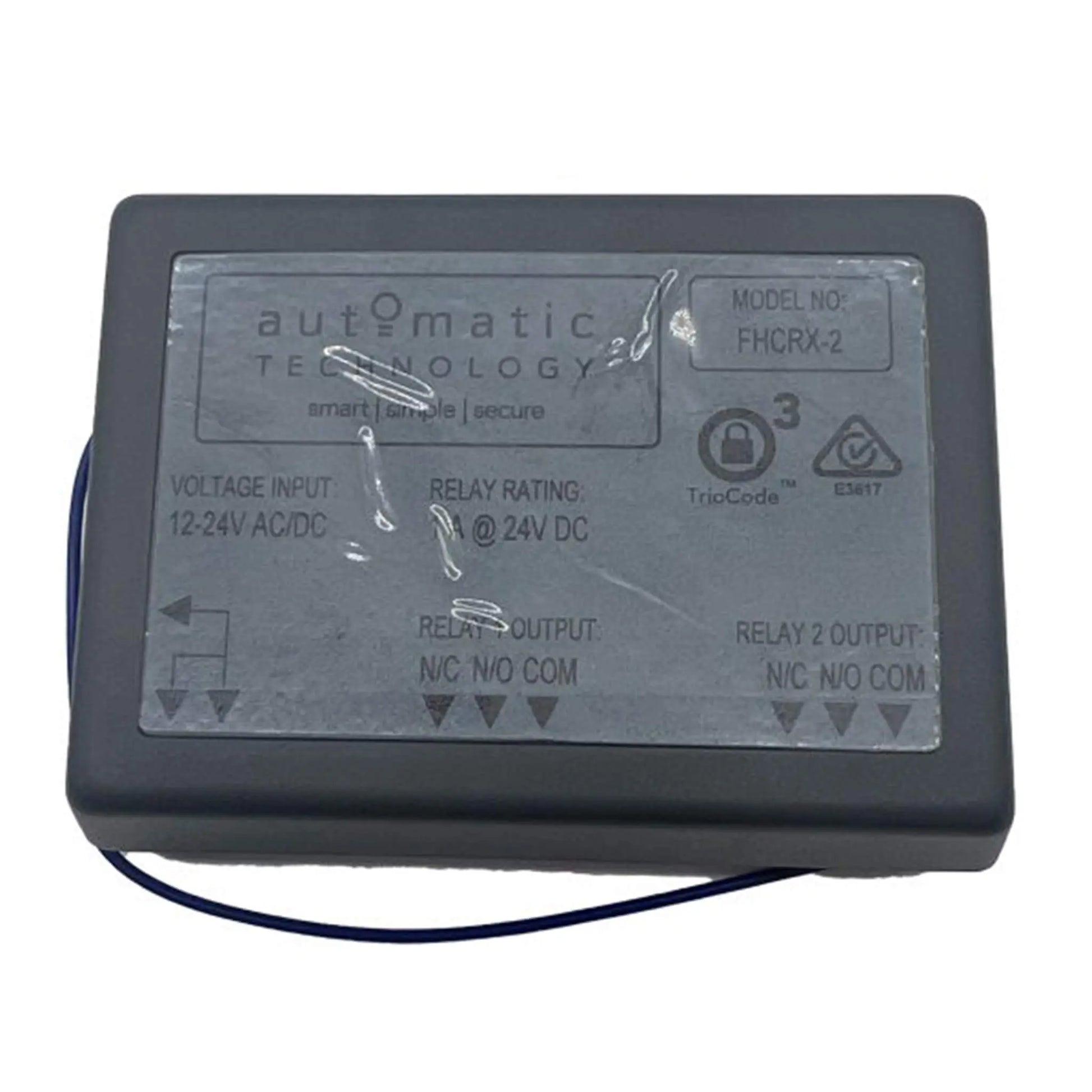

FHCRX2 - Genuine ATA Receiver backwards compatible with ALL TrioCode or TriTran remotes

The FHCRX2 Genuine ATA Receiver is a dual-channel, backwards-compatible receiver designed to work with all ATA TrioCode and B&D TriTran remotes, including legacy PTX5 series and newer models like PTX6 and TB7. With support for up to 250 programmed remotes, multiple output modes, and easy wiring installation, it's an ideal upgrade for connecting garage doors, gates, and automation devices—even non-ATA systems.

What’s Included:

  • 1 × Brand New Genuine FHCRX2 Receiver
  • Step-by-step Wiring Programming Instructions

Compatible with ATA TrioCode or B&D TriTran remotes. The first remote programmed to the receiver determines which system (TrioCode or TriTran) it will operate with.

Key Features:

  • Two Channel Output: Control up to two separate devices from one receiver
  • Backwards Compatible: Works with original TrioCode PTX5v1 and TriTran Original remotes as well as newer models PTX6 and TB7.
  • Versatile Integration: Connects to compatible non-ATA devices for seamless remote operation
  • 2 Relays: provide normally open or normally closed control to control virtually any device.
  • Large Remote Memory:  Up to 250 remotes availability
  • Simple Setup – Easy installation and programming for fast operation
  • Reliable Performance – Built to ATA”s high standards for consistent, long-lasting use.
  • Three Relay settings: Pulse Mode; Hold Mode or Timer Mode

Note:  Timer mode requires an ATA Programmer

Compatible with:

Current Genuine Remotes:

  • ATA PTX6v1
  • B&D TB7

Discontinued Genuine Remotes:

  • ATA PTX2v1 & PTX2v2
  • ATA PTX5v1 & PTX5v2
  • B&D TriTran & Mini
  • B&D TriTran TB5 & TB6

Note:  This receiver is not compatible with the ATA Securacode Series – ATA PTX4 or earlier series.

Technical Specifications:

Frequency 433.47, 433.92 & 434.37Mhz
Code Type 64 and 128 Bit Rolling Code
Body Type Receiver
Number of Channels 2 Outputs with Open Collector
Case Colour Grey
Size 69 x 36 x 14mm
Power Supply 9 – 24 DC Only
Output  40 DC Volts 100ma Max
Memory Capacity 250 Remotes
Antenna Connection Optional Coaxial Antenna Available
Range Up to 40 metres
Warranty 12 Months Manufacturers Warranty
