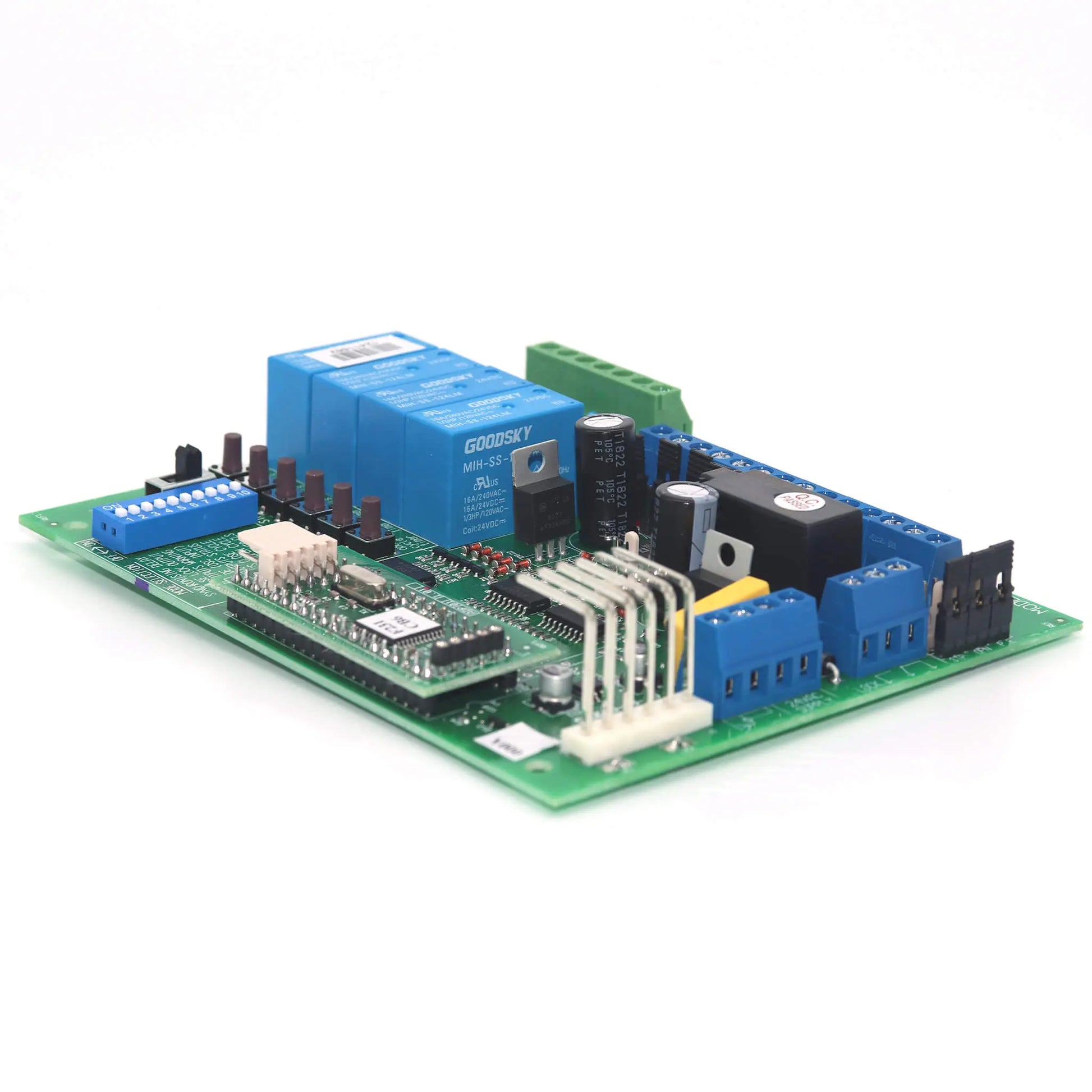

Automatic Technology CB6 Control Board
Automatic Technology CB6 Control Board
This is a popular item that is regularly replenished from our Australian supplier. It is always available to purchase, even if our on-hand warehouse stock is low. If you need this item urgently, please contact us for current stock levels.
Couldn't load pickup availability

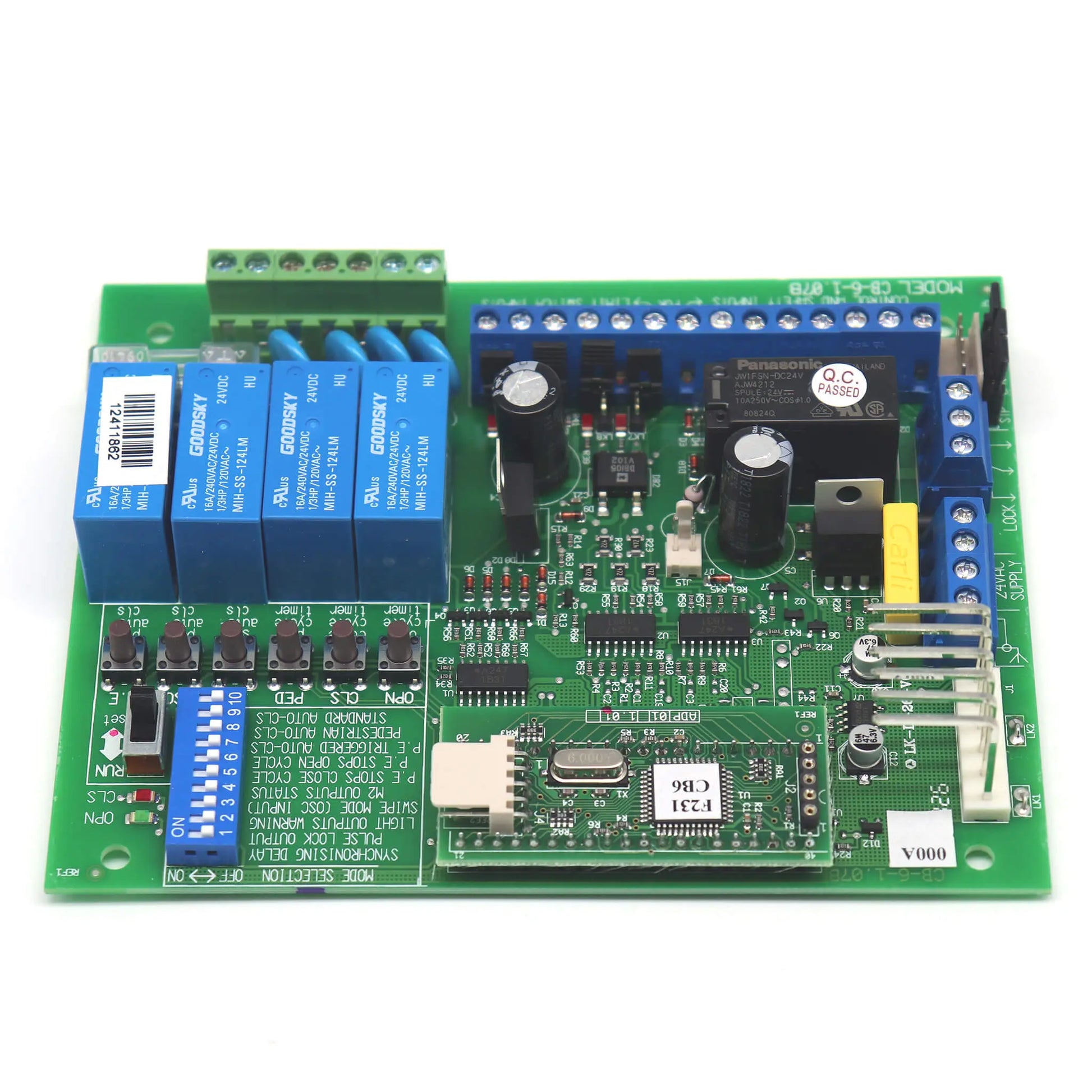

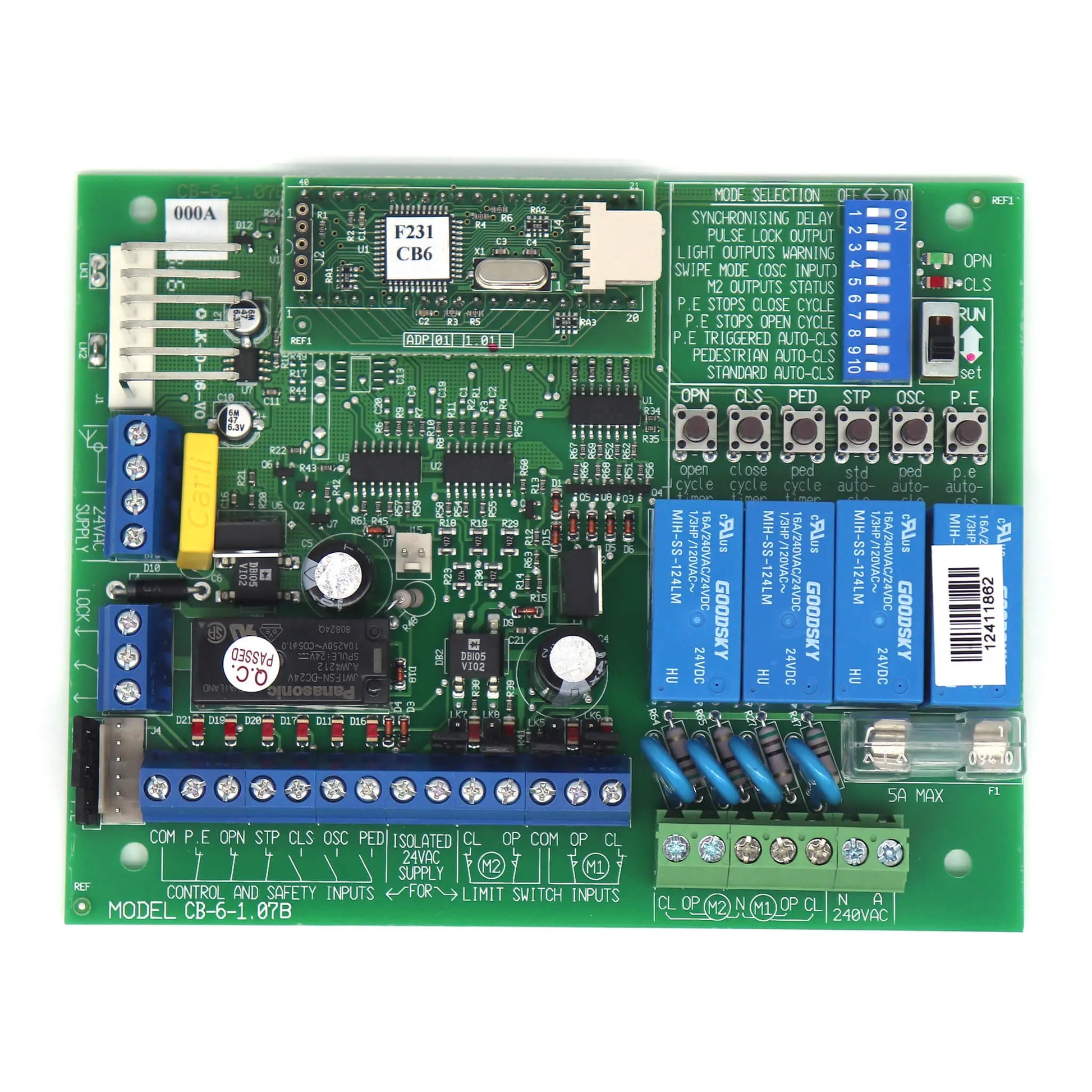

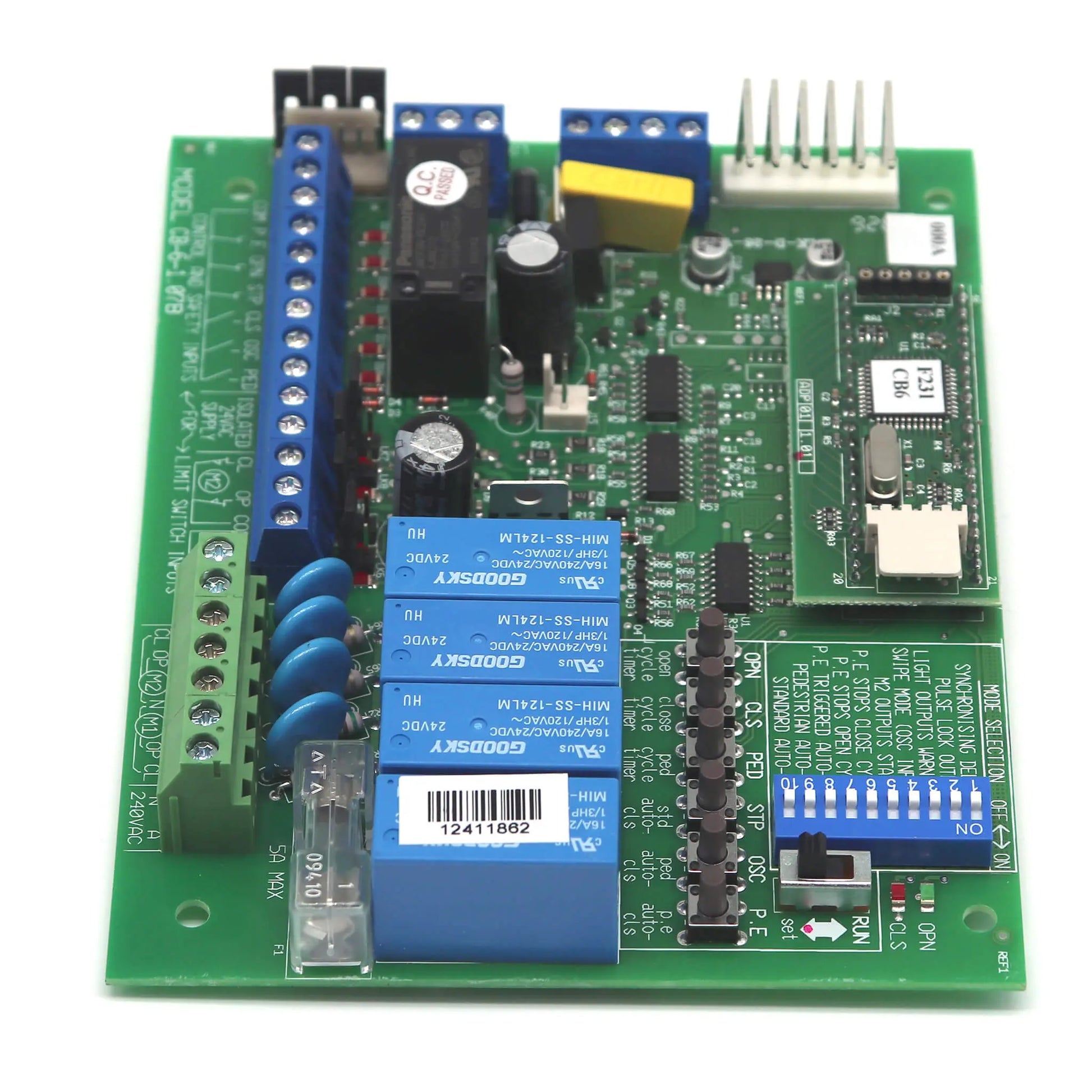

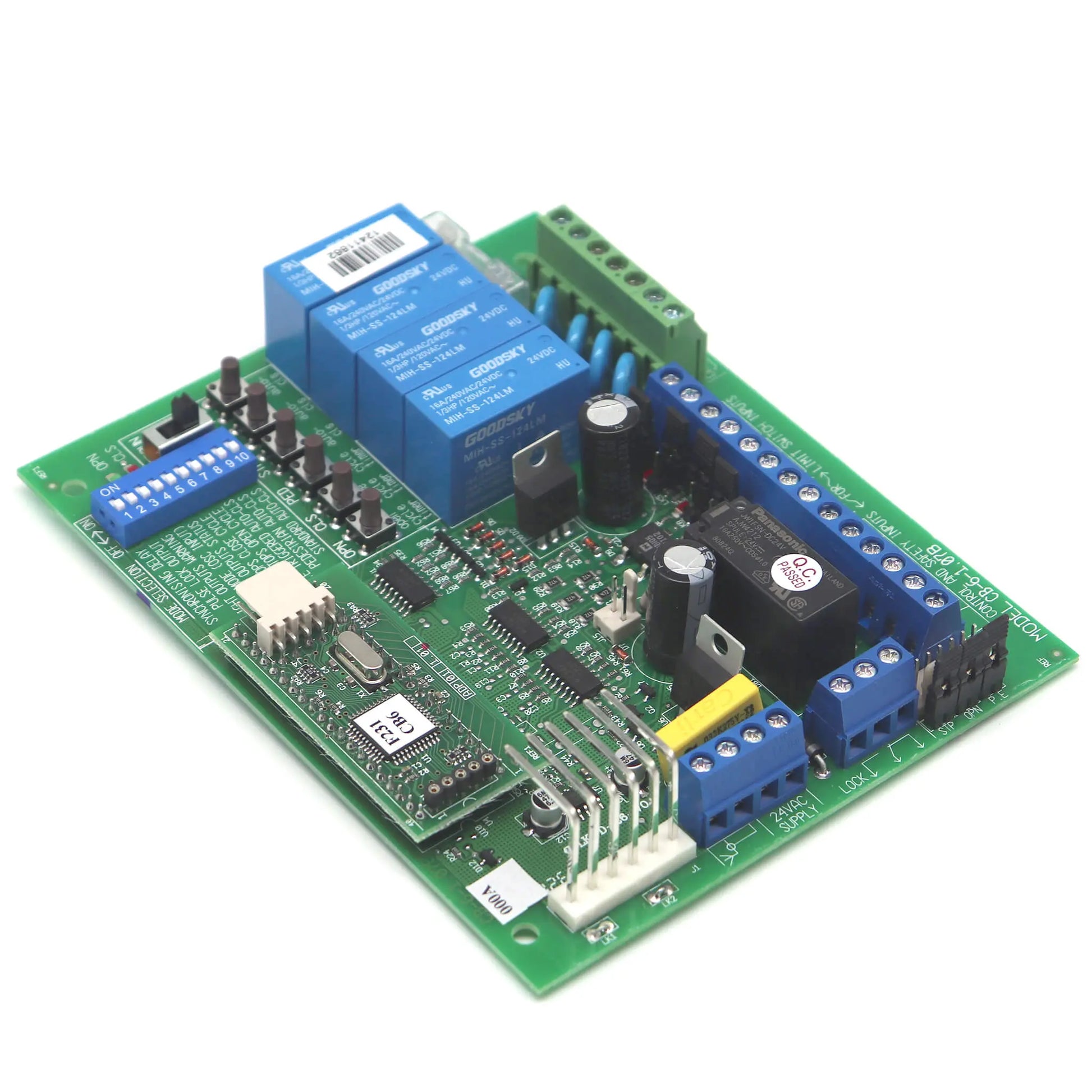

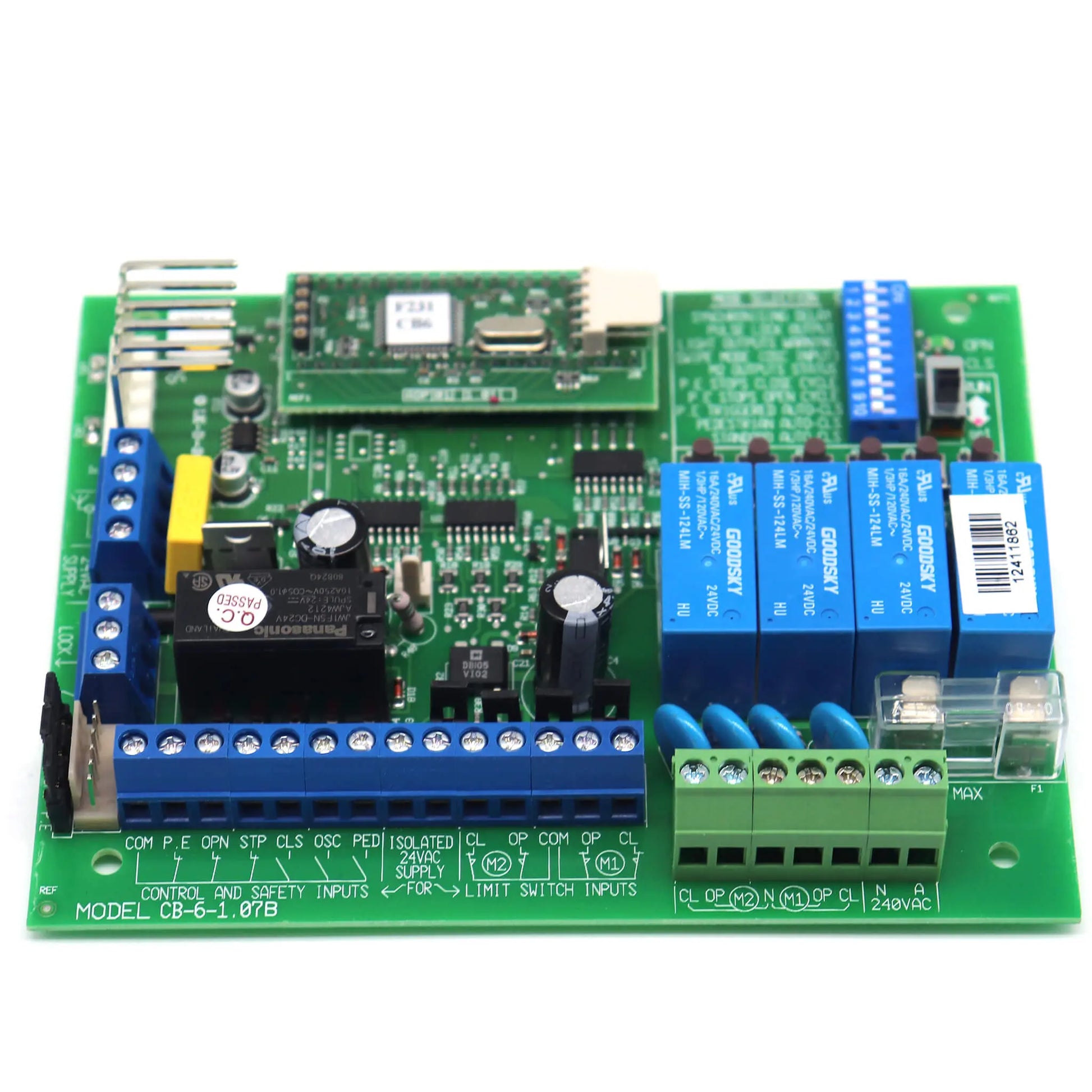

CB6 - Automatic Technology Logic Control Board
The ATA CB6 Logic Control Board is a genuine, heavy-duty controller designed for industrial sliding gates, shutters, and high-demand automation environments. Built for versatility and reliability, it supports dual-motor control, multiple safety and access inputs, and microprocessor-based logic for flexible programming and integration. Available in a board-only version or with weatherproof enclosure for external mounting.
Includes:
This is a variation product. Each variation will come standard with:
- Genuine ATA CB6 Control Board
- Installation Instructions
The enclosed option includes a weatherproof enclosure.
Key Features:
- Genuine ATA CB6 logic board
- Designed for industrial gate and shutter applications — It is compatible with ATA industrial gate & shutter installations.
- Controls up to two AC motors (single- or three-phase via contactors) — Meaning you can manage two motors from one board.

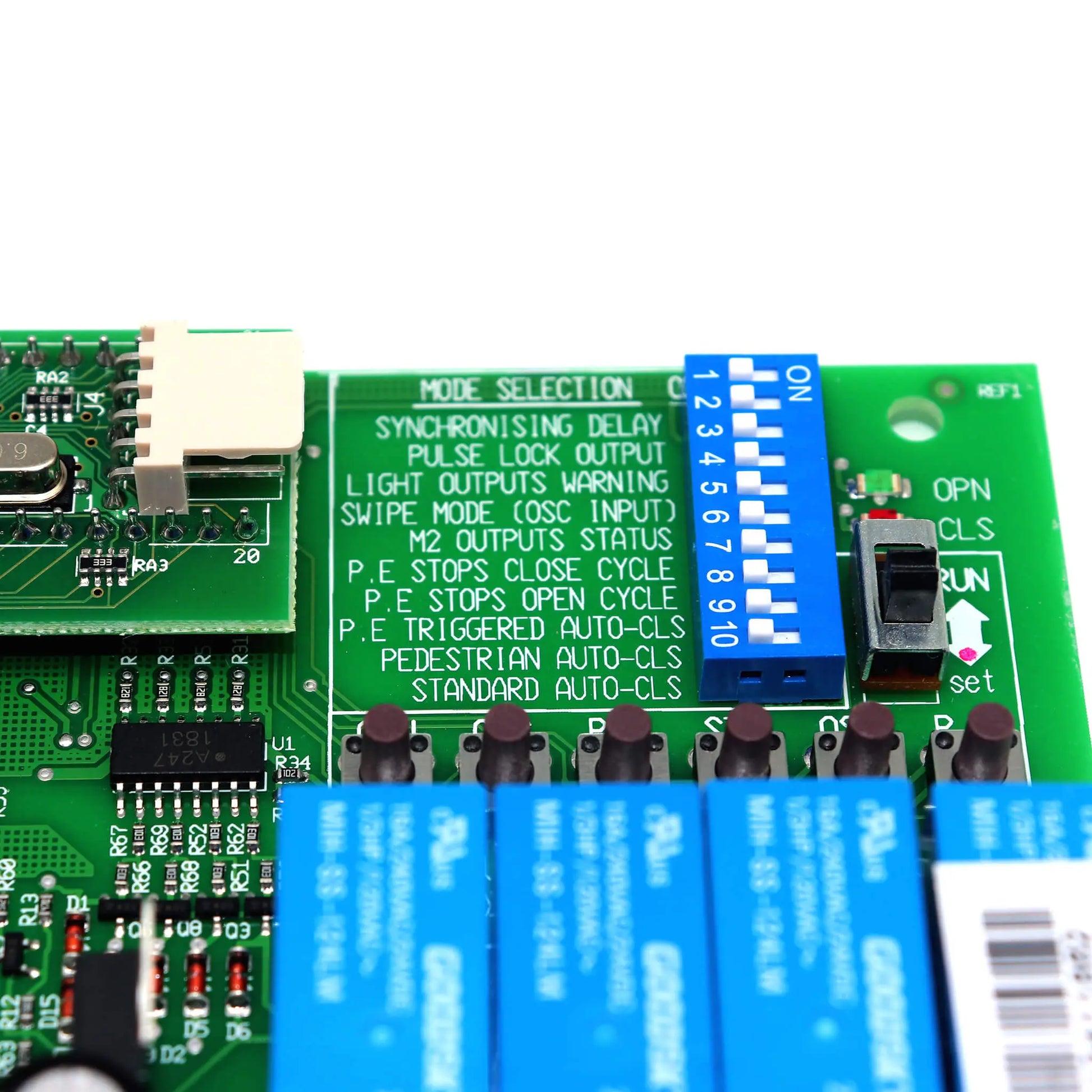

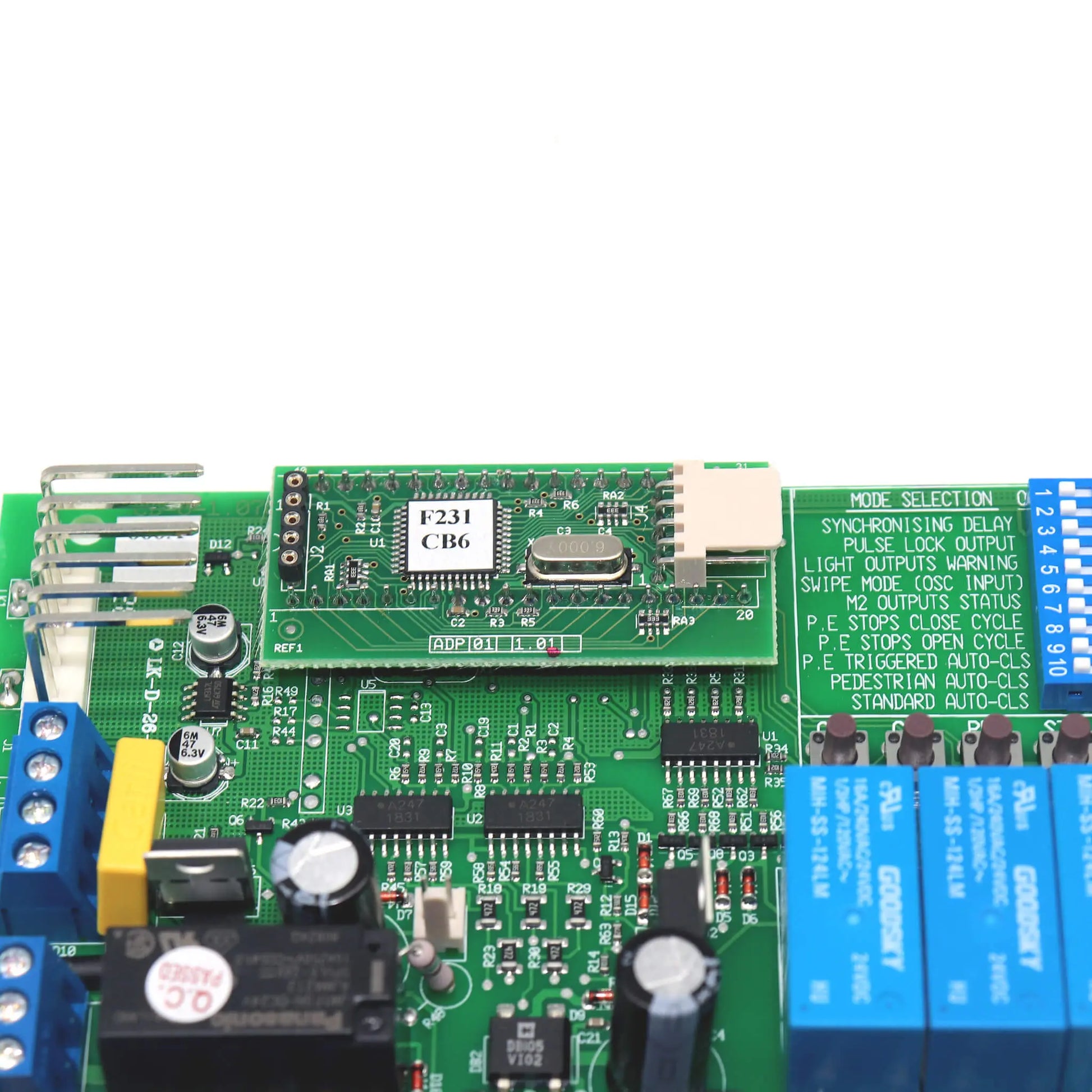

- Microprocessor logic for flexibility — Provides modern control logic rather than just simple relay logic.

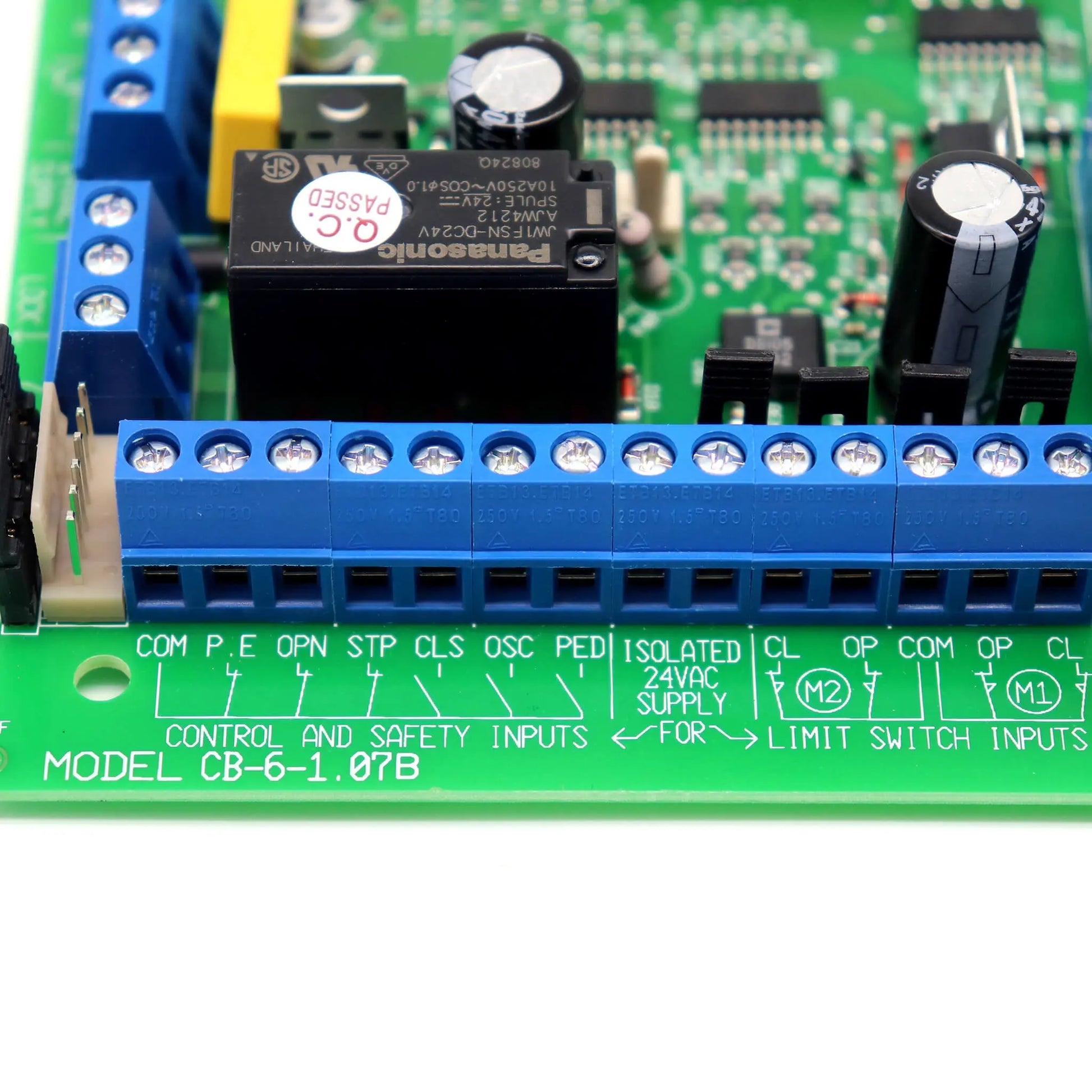

- Flexible input triggers — Accepts a variety of input types such as safety beams, swipe cards, loop detectors, etc.
Technical Specifications:
| Minimum | Maximum | ||
| Supply Voltages | 240 VAC Supply | 450V Peak | |
| 24 VAC Supply | 29 VAC | ||
| Input Voltages | Control and Safety | -50 Volts | 100 Volts |
| Limit Switch Inputs | 50 Volts | 100 Volts | |
| Outputs | Lock output (Switching Voltage) | 30 VAC/ DC | |
| Lock output (Switch Current - Inductive) | 3 AMPS | ||
| Light Output Module (Switching Voltage) | 240VAC/ 30 VDC | ||
| Light Output Module (Switch Current) | 10A AC/DC | ||
| Total Motor Output Current | 5 Amp (fuse protected) |
Exceeding these values may cause serious damage to the control board. These are fault rating not normal operating conditions.
