Automatic Technology 3-Wire Safety Beam Complete Kit (62627)

Automatic Technology 3-Wire Safety Beam Complete Kit (62627)

15627

$215.95
$215.95
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

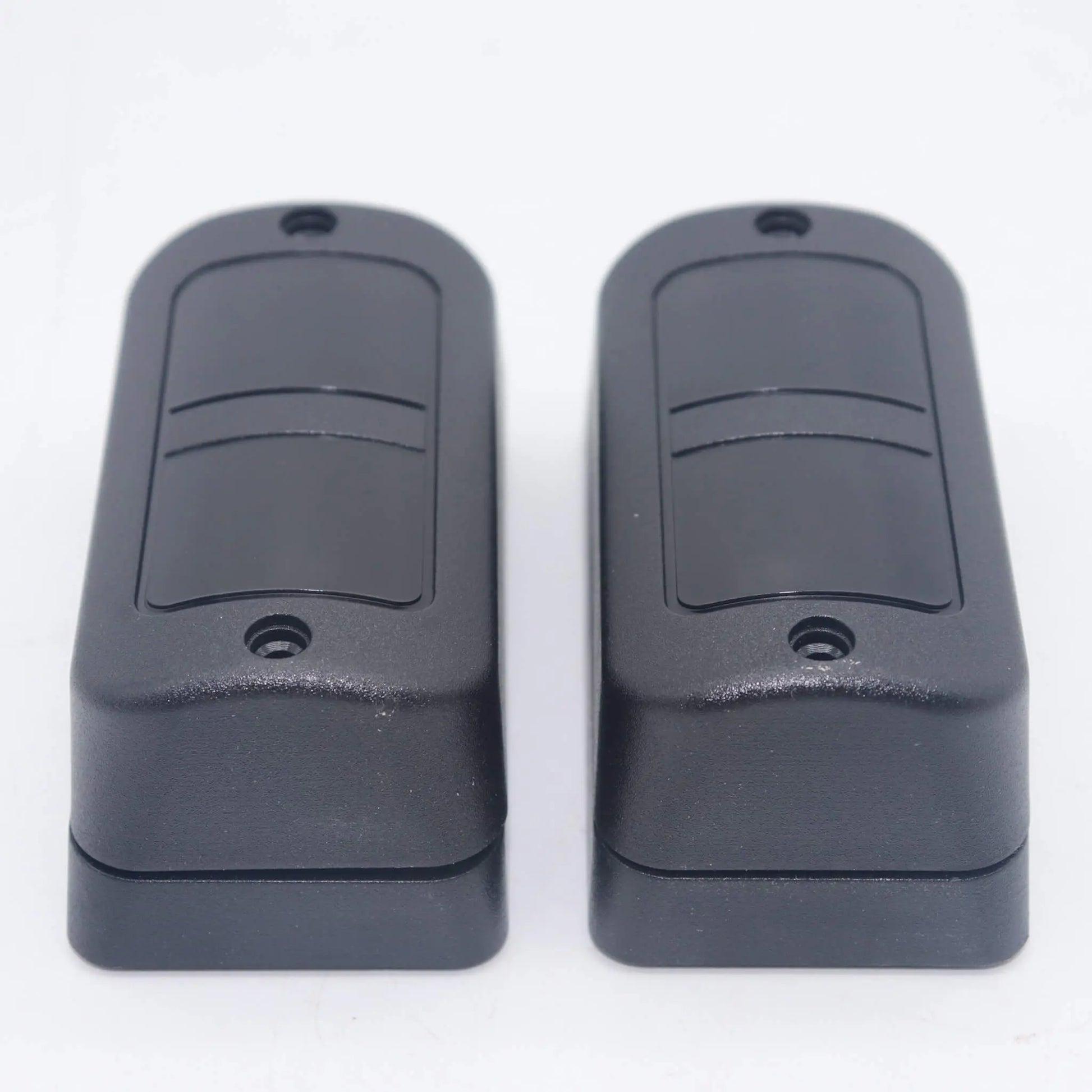

Safety Beam Complete Set for 3-Wire ATA motors

The Safety Beam Complete Set for 3-Wire ATA Motors is a genuine wired infrared safety beam kit designed for older ATA openers without Gen2/L2 logic. With a stable 3-wire connection, included resistors, and long cable lengths, it provides reliable obstacle detection, enables auto-close, and improves safety for gates and garage doors.

What’s Included:

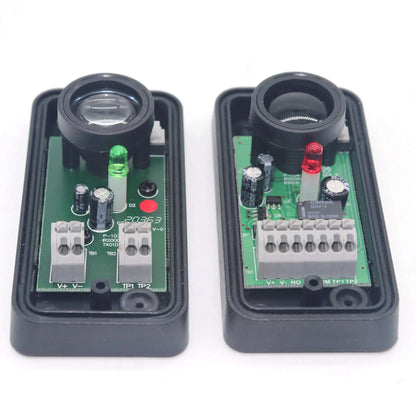

  • 1 x Infrared Transmitter IR2000 (TX) Unit
  • 1 x Infrared Receiver IR2000 (RX) Unit
  • 1 x Mounting Bracket Set & Screws
  • 1 x Resistor 2K2
  • 1 x Resistor 5K6
  • 1 x 10m Harness for TX
  • 1x 17m Harness Wire for RX-TX
  • 1 Step-by-step Installation Instructions

Key Features:

  • Trusted ATA Accessory: Genuine ATA product designed to integrate seamlessly with compatible ATA garage and gate openers.
  • 3-Wire Connection: Provides stable, hard-wired performance for dependable, long-term use without the need for batteries.
  • Safety First: The infrared beam detects obstructions and instantly halts or reverses operation, helping to prevent accidents and damage.
  • Auto-Close Functionality: Enables your opener to automatically close after a preset delay once the path is clear, improving security.
  • Durable & Weather-Resistant: IP44 rated for outdoor installations, ensuring reliable operation even in harsh conditions.
  • Low-Maintenance Design: Hard-Wired connection means no ongoing battery replacements are required.

Compatible with:

This safety beam is compatible with the following ATA motors without the Gen2 or L2 Logic Console technology including;

  • GDO2v6 Securalift
  • GDO6v3 EasyRoller
  • GDO7v2 and 7v3 Securalift
  • GDO8v3 Shedmaster
  • GDO 9v2 and GDO 9v3 (excluding the GEN 2 Version)
  • GDO 10v1 and GDO10v2 Toro (L1 Console only)
  • GDO11v2
  • NEOSlider NES-24 v1, v2 and v3
  • Neoslider 500 & 800
  • AXESS Pro 1100, 1101, 3000 (L1 Console Only)
  • CB-9
  • CB-19
  • DCB05, DCB-05v2
  • CB-6

Technical Specifications:

Infrared Beam Range 20m
RF Link Range n/a
RF Link Frequency n/a
Batteries for Wireless RX and TX n/a
Battery Life n/a
Manufacturers Warranty


1 Year

Must be installed and serviced by a trained technician.
