Elsema Multicode 915MHz 12 Button Remote MCT91512
$147.95
45 in stock

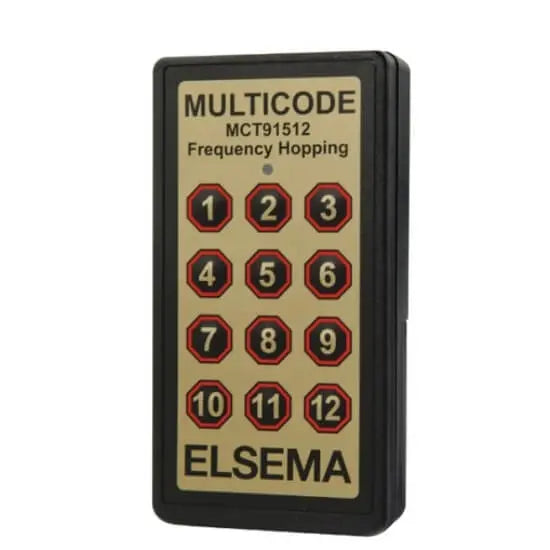

Elsema MCT91512 – 12 Button Multicode Handheld Transmitter
The Elsema MCT91512 is a high-capacity 915MHz handheld transmitter built for demanding industrial and commercial environments. With 12 independent channels, this remote delivers secure, interference-free control over multiple devices, making it ideal for complex operations where flexibility and reliability are essential.
The original black rubber cover supplied on MCT91512 has been replaced with a clear silicone cover.
What’s Included:
- Genuine Elsema MCT91512 12 Button Multicode Remote
- Protective Rubber Boot
- 1 x 9V Alkaline Battery
- Programming Instructions
The Elsema Multicode 915MHz 12 Button Remote MCT91512 is a premium quality Industrial Remotes from the trusted brand Elsema, designed for excellent performance and reliability. This item is currently and ready for immediate dispatch from our Australian warehouse. When you order from Retro Remotes, you’re choosing an Australian-owned business that offers competitive pricing and free, fast shipping to anywhere in Australia. For easy reference when matching parts, the product SKU is 58906. Secure your Elsema Multicode 915MHz 12 Button Remote MCT91512 today with confidence!
Key Features:
- 12 Button Transmitter – Independently control up to 12 different devices or functions.
- Dual Digital Coding – Choose between 12-way dipswitch coding (4096 codes) or encrypted coding with over 16 million possible combinations for advanced security.
- Fast Frequency Hopping (FFH) – Provides strong resistance to interference and allows multiple transmitters to operate nearby without signal issues.
- Simultaneous Channel Operation – Multiple buttons can be pressed at once, enabling simultaneous control of equipment.
- Extended Range – Connect to Elsema’s ANT915 Mini Antenna via the SMA connector to extend range beyond 350 metres.
- Military-Grade Security – FFH technology is typically found in high-end military and medical systems, now available in an industrial remote.
- LED Status Indicators – Red LED signals low battery; Orange LED flashes confirm successful encrypted programming.
- Power Efficient – Operates on a standard 9V alkaline battery with low standby current for long service life.
Compatible with:
- MCR91501R
- MCR91502R
- MCR91502P
- MCR91502PT
- MCR91504R
- MCR91508R
- MCR91508SS
- MCR991508POS
- MCR91512R
- MCR91516R
- MCR91516SS
Ideal Applications:
- Automatic gates and garage doors
- Wireless security activation and alarms
- Lighting and shutter control
- Pumps, irrigation, and small agricultural devices
- Custom-designed automation systems
Technical Specifications:
| Supply Voltage | 9-Volt Alkaline Battery |
| Current Consumption | 52.00mA |
| Standby Current | 8 uA |
| Frequency Band | 915 to 928 MHz |
| Operating Temperature Range | -5° to +50° Celsius |
| Decoding Systems | 12-way dip switch (4096 Codes) or Encrypted coding (Over 16 million codes) |
| LED | Flashing Red LED: Replace battery
Orange LED flashes: encrypted code successfully programmed |
| Dimensions | 130 x 67 x 27mm |
| Weight | 50g without battery |
| Operating Range | Up to 400m |
| Warranty | 12 Months Manufacturers Warranty |
