Elsema Eclipse Single MC Board 12V or 24V (MCS)
$239.95
1 in stock

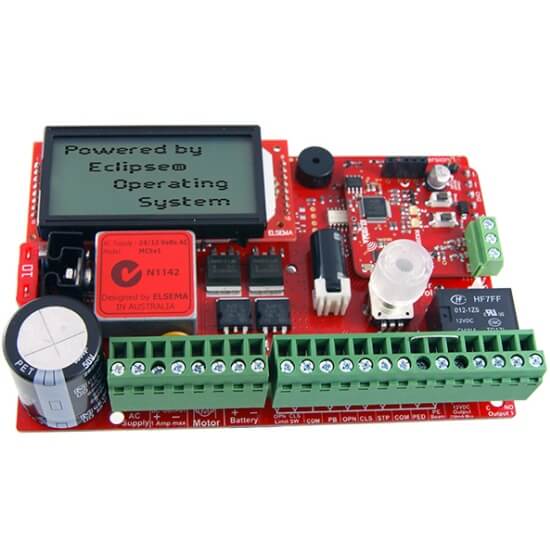

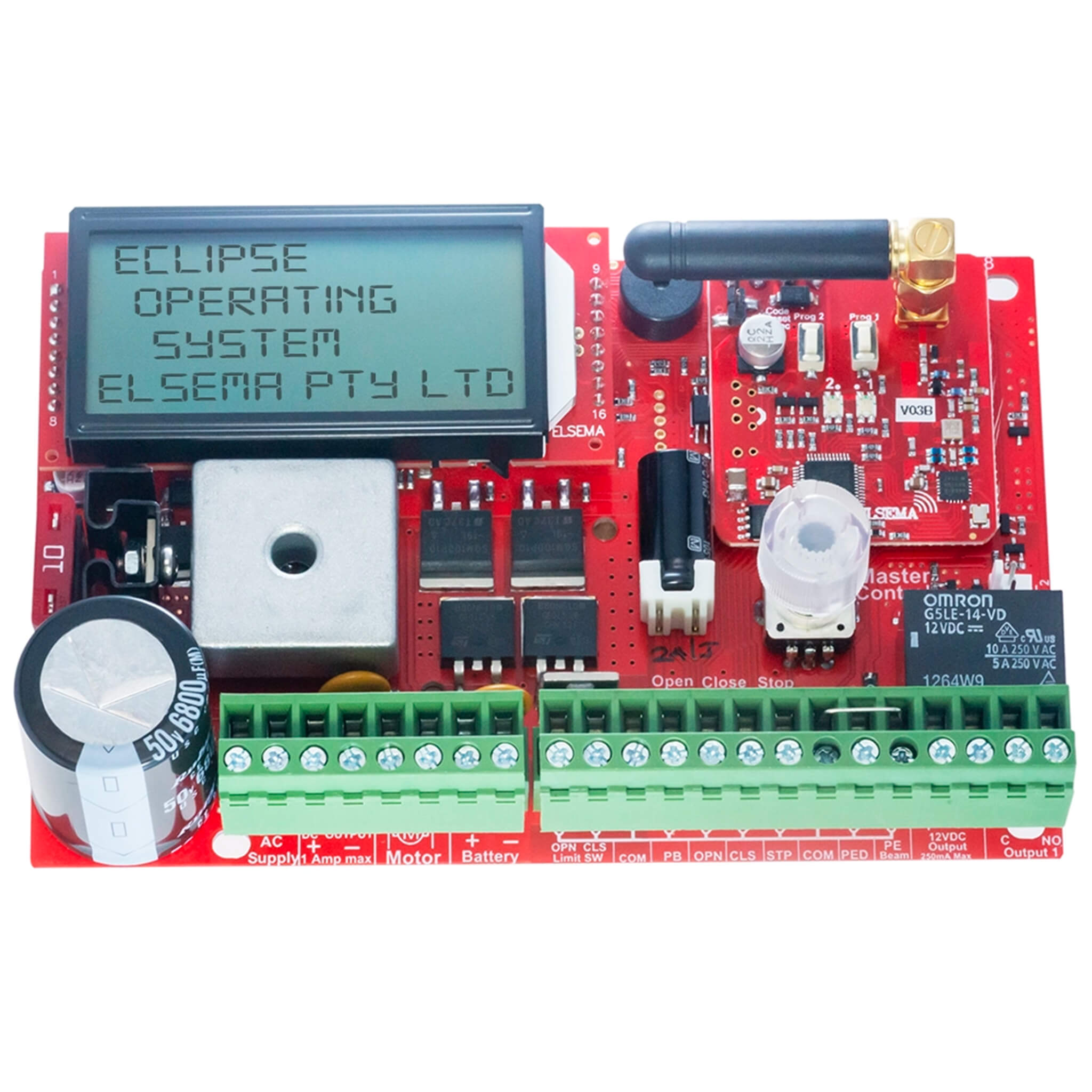

Elsema Eclipse MCS Motor Controller (Card Only)
The Elsema Eclipse Motor Controller Single (MCS) is a next-generation solution for automating gates, doors, and barriers. Designed as a true industry game changer, the MCS combines advanced technology with ease of use, giving installers and end-users a powerful yet user-friendly control system.
Includes:
- 1 x Elsema Eclipse MC Board (MCS) card only.
- Installation Instructions
Key Features
- Genuine Elsema Original Equipment
- Single motor operation – ideal for gates, doors, and barriers
- Eclipse Operating System (EOS) with menu-driven interface
- Soft start & stop for smooth operation
- Adjustable speed & force settings
- Large 4-line LCD display for live system status & setup
- 1-touch setup control for quick installation
- Multiple inputs: push button, open only, close only, stop, pedestrian & photoelectric beam
- Supports limit switch inputs or mechanical stops
- Programmable auto-close & pedestrian access modes
- Adjustable lock & courtesy light outputs
- Variable photoelectric safety beam functions
- 12V DC output for powering accessories
- Service counters, password protection & holiday mode
Ideal Applications
The Elsema Eclipse MCS is perfect for a wide range of automatic access control systems, including:
- Sliding Gates – Residential, commercial, or industrial gates requiring smooth and reliable single motor control.
- Swing Gates – Provides soft start/stop, pedestrian access, and safety beam integration for secure operation.
- Overhead & Garage Doors – Precise motor control with adjustable force and auto-close functions.
- Industrial Barriers & Boom Gates – Robust controller suitable for high-traffic security and access points.
- Custom Automation Systems – Conveyor belts, warehouse doors, or other applications requiring intelligent single motor operation.
Technical Specifications:
| Input Voltage | 12 or 24 Volts AC/DC |
| Motor Voltage | 12 or 24 Volts DC |
| Gate Type | Single |
| Display and Control | Large LCD with one touch control |
| Gate Limit Options | Limit Switch or Current Sensing |
| Control Card Dimensions | 140 x 90 x 45mm |
| Operating System | Eclipse Operating System |
| Remote Compatibility | Penta FOB and Penta CODE |
| Warranty | 12 Months Manufacturers Warranty |
Downloads:
Additional information
| Weight | .660 kg |
|---|---|
| UPC | |
| MPN | |
| Brand | |
| Features | |
| Frequency | |
| Warranty |
