Elsema 151 Antenna – ANT151S
$80.95
99 in stock

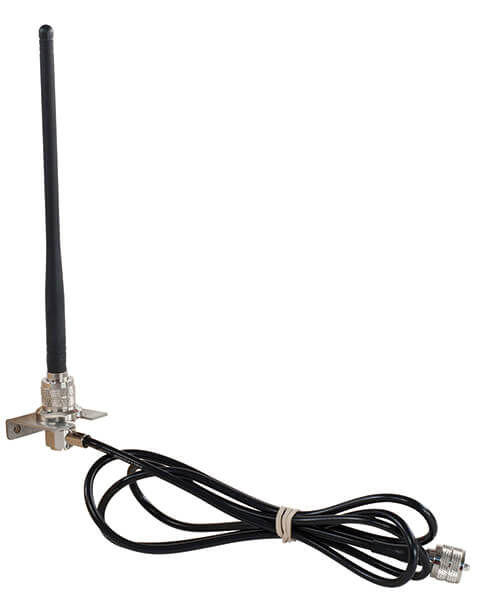

Elsema 151MHz Antenna – ANT151S
The Elsema ANT151S Flexible Antenna is purpose-built for 151MHz frequency band applications, delivering strong, stable, and interference-resistant communication. Specifically tuned for use with Elsema FMT151 transmitters and FMR151 receivers, this antenna ensures clear, reliable connectivity for mining, industrial, commercial, and remote control systems.
Includes:
- Antenna – 21cm Long
- 1.5 metres of coaxial cable terminated with a PL259 plug
- Mounting Bracket
The Elsema 151 Antenna – ANT151S is a premium quality Antennas from the trusted brand Elsema, designed for excellent performance and reliability. This item is currently and ready for immediate dispatch from our Australian warehouse. When you order from Retro Remotes, you’re choosing an Australian-owned business that offers competitive pricing and free, fast shipping to anywhere in Australia. For easy reference when matching parts, the product SKU is 58807. Secure your Elsema 151 Antenna – ANT151S today with confidence!
Key Features:
- Genuine Elsema Product – tuned for the 151MHz frequency band
- Optimised for FMT151 transmitters & FMR151 receivers
- Compact 21cm flexible design – rugged, impact-resistant, and durable
- Weatherproof construction – reliable in outdoor & industrial conditions
- Strong signal performance – minimises interference & signal degradation
- PL259 termination – comes with 1.5m coaxial cable for easy setup
- Suitable for mining, industrial, commercial & remote control applications
Ideal Applications:
- Mining and Heavy Industry Communication Systems
- Remote Control Applications for Machinery & Automation
- Industrial Sites Requiring Long-Range Wireless Reliability
- Commercial and Outdoor Environments with Harsh Conditions

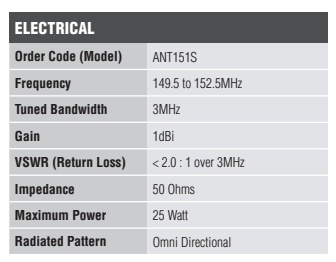

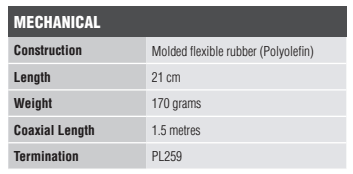

Technical Specifications:
| Frequency | 149.5 to 152.5MHz |
| Tuned Bandwidth | 3MHz |
| Gain | 1dBi |

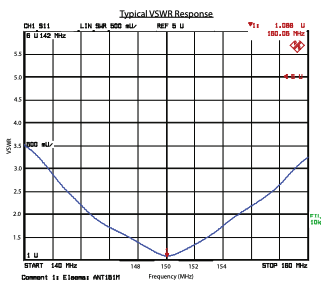

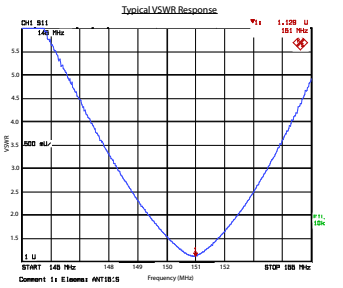

| VSWR (Return Loss) | < 2.0 : 1 over 3MHz |
| Impedance | 50 Ohms |
| Maximum Power | 25 Watt |
| Radiated Pattern | Omni Directional |
| Construction | Molded flexible rubber (Polyolefin) |
| Length | 21 cm |
| Weight | 170 grams |
| Coaxial Length | 1.5 metres |
| Termination | PL259 |
| Warranty | 12 Months Manufacturers Warranty |
