Includes:

• 8 Button Gigalink Transmitter
• 1 x 6F22 9V Battery
• 1 x Silicone Case
• Programming Instructions

Please note: Although this item is marked as in stock, our Elsema stock is consistently replenished to meet demand. Due to frequent bulk orders, stock levels can be challenging to determine in real-time. If you need an estimated time of arrival (ETA), please feel free to contact us, and we’ll be happy to assist!

Features:

• Eight-Button Transmitter: Enables simultaneous control of multiple devices or functions.
• Secure Coding: Features over 4 billion unique code combinations, providing secure transmission.
• Battery Monitor: A flashing red LED indicates when the battery is running low.
• 433 MHz Frequency: Guarantees clear transmission with no interference from electrical noise or other signals.
• Long-Range Operation: Achieves up to 500 meters range with compatible receivers and antennas.
• Unlimited Programming: Easily program an unlimited number of transmitters to a single receiver for flexibility.
• Durable Build: Comes with a protective silicone case for added durability.
• Free Shipping Australia-Wide*
• 2-Year Manufacturer Warranty*

Applications:

• Security system control
• Gate and garage door automation
• Industrial machinery and process control
• Panic buttons
• Remote lighting or equipment activation

Compatible with:

• GLR43301
• GLR43302
• GLR43304
• GLR43308
• ANT433 LP (Antenna)
• ANT433 S (Antenna)
• ANT433 M (Antenna)

Note:  This remote is not compatible with the Elsema Gigalink 27MHZ series

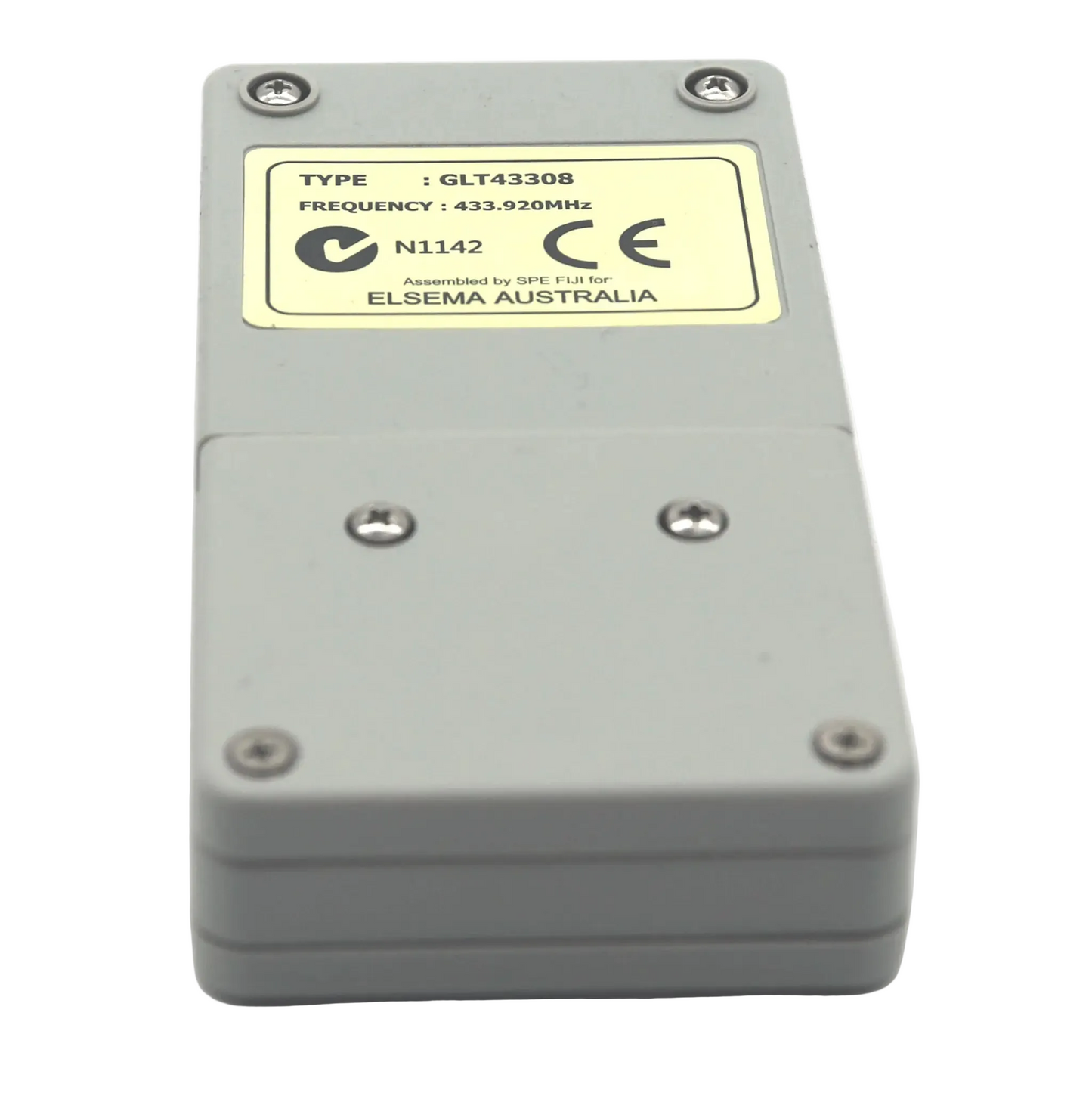

The Elsema GLT43308 is a versatile and powerful 8-button remote designed for precise control over multiple devices or functions simultaneously. Operating on the secure 433 MHz frequency, this remote features over four billion unique code combinations, ensuring interference-free communication and maximum security for your system. With a long-range transmission capacity of up to 500 meters, the GLT43308 is ideal for large-scale applications such as industrial automation, gate control, security systems, and more. Its robust design also includes a built-in battery monitor with a flashing LED to alert you when the battery is low.

Frequently Asked Questions:

Is the Elsema GLT43308 compatible with older Elsema 27 MHz remotes?

No, the Elsema GLT43308 operates on 433 MHz and is not compatible with the older 27 MHz Gigalink series.

What is the maximum operating range of the Elsema GLT43308?

The GLT43308 can achieve a range of up to 500 metres with the ANT433S antenna and appropriate receiver setup in open areas.

How many devices can I control with this remote?

The Elsema GLT43308 features 8 buttons, each capable of controlling individual devices or functions, making it suitable for complex applications.

How do I know when the battery needs replacing?

The built-in battery monitor features a red LED that flashes when the battery is low, ensuring reliable performance.

Can I program multiple transmitters to one receiver?

Yes, the GLT43308 supports the programming of unlimited transmitters to a single receiver, making it ideal for shared or multi-user environments.

Is it easy to program the Elsema GLT43308?

Yes, programming is simple with both multi-channel and single-channel code programming options. Instructions are included in the package for easy setup.

Programming Instructions for Elsema GLT43308 – 8 Button Remote

Multi-Channel Programming

This method is used to program all channels from a multi-channel receiver to a multi-channel transmitter. Follow these steps to complete the programming:

1. Connect power to the GIGALINK™ receiver. Ensure all switches on the mode dipswitch are turned off.
2. Momentarily short the two CC pins on the receiver board. This action sets all the channels to a random code. Please note that any previously programmed transmitters will need to be re-programmed after this step. Skip this step if you wish to keep previously programmed transmitters.
3. Connect the multi-channel transmitter to the multi-channel receiver by inserting the GIGALINK™ cable into the transmitter’s and receiver’s 2.5-mm coding socket. The transmitter’s red LED light will turn on to indicate that the programming mode is activated.
4. Activate any two channels simultaneously on the transmitter for one second. The LED should blink twice to confirm code programming and then switch off.
5. Disconnect the GIGALINK™ cable.

Repeat steps 3 to 5 if you wish to program additional multi-channel transmitters. Do not short the CC pins again, as doing so will delete all previously programmed transmitters.

Single-Channel Programming

This method allows you to program one channel at a time to the transmitter. Follow these steps to complete the programming:

1. Connect power to the GIGALINK™ receiver. Ensure all switches on the mode dipswitch are turned off.
2. Momentarily short the two CC pins on the receiver board. This will set all channels to a random code. If there are previously programmed transmitters, they will need to be re-programmed. Skip this step if you wish to retain them.
3. Select the receiver channel to be programmed by adjusting the 2-way dipswitch (see GLR43304 Manual for options)
4. Connect the transmitter to the receiver by inserting the GIGALINK™ cable into the transmitter’s and receiver’s 2.5-mm coding socket. The red LED light on the transmitter will turn on, indicating programming mode.
5. Activate one selected channel on the transmitter for approximately one second. The LED will blink twice to confirm code programming and then switch off.
6. Disconnect the GIGALINK™ cable.

Repeat steps 3 to 6 if you wish to program another transmitter channel. Do not short the CC pins again, as doing so will delete all previously programmed transmitters.

Forward Programming

This additional feature allows the transmitter to activate multiple receivers simultaneously. Follow these steps for forward programming:

1. Connect power to both the receiver and the transmitter.
2. Place a jumper across the CC pins on the receiver.
3. Connect the transmitter and receiver using the GIGALINK™ coding cable.
4. Press and hold the transmitter button for 2 seconds.
5. Remove the coding cable.
6. Remove the jumper from the CC pins.

The receiver is now programmed with the transmitter’s code. Repeat the steps to program additional receivers.
