Features:

• Genuine Remote for Ditec in Australia
• Easy Programming
• Enhanced Security with Rolling Code Technology
• Durable and Sleek Design
• Free Shipping Australia-Wide*
• 2 Years Manufacturers Warranty*

Includes:

• Genuine Ditec Remote by Prastel
• Keyring Attachment
• Coding Instructions

Compatibility:

Ditec/Entrematic Remotes:

• ZEN2
• ZEN4
• GOL4
• LP2
• LP4

Ditec Remote Programming Instructions

Remote to Remote Programming

You can program a new Ditec Zen or GOL remote using an existing working remote. This process is not cloning but activating the motor’s learning mode via the remote. Ensure you are within close proximity to the opener during this procedure.

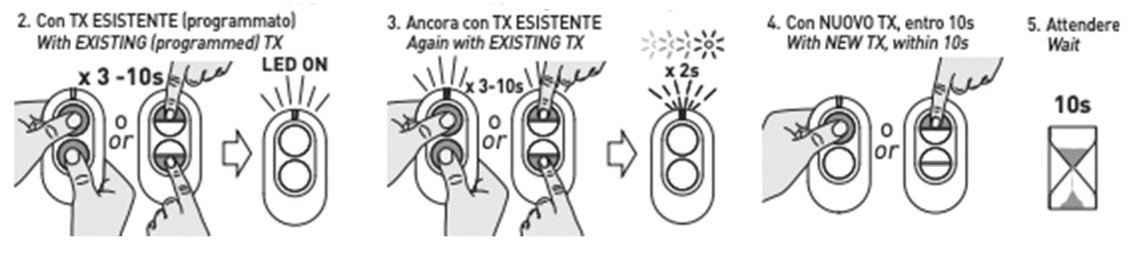

If your working remote is a DITEC ENTREMATIC ZEN2 or ZEN4

1. On the working remote, press and hold the top and bottom buttons simultaneously for 3 to 10 seconds until the LED lights up.
2. Press and hold the top and bottom buttons again until the LED flashes twice.
3. Within 10 seconds, press a button on the new remote to pair it with the system.

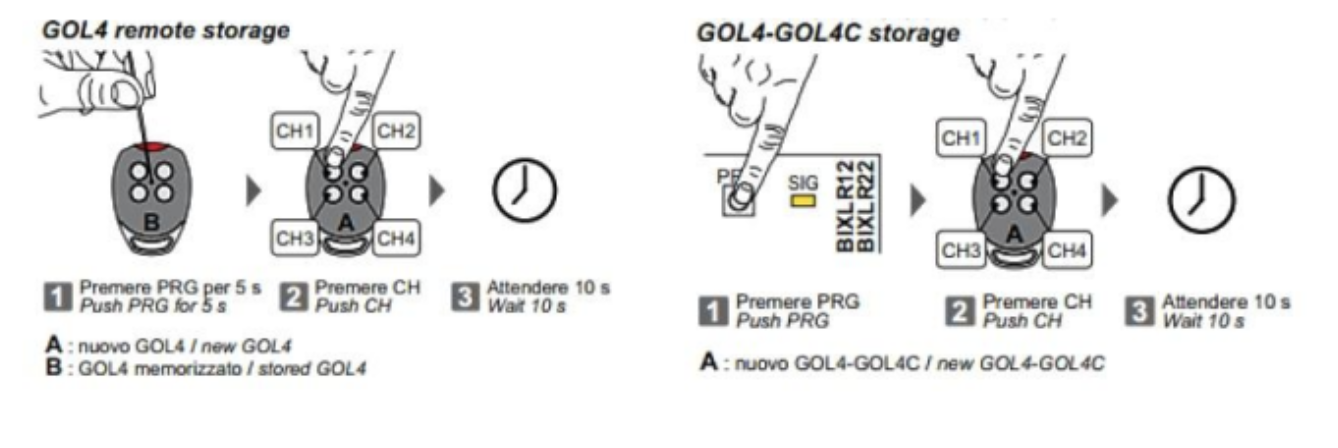

If your working remote is a GOL4 Remote

1. Using a sharp object like a paperclip or pin, press the hidden button on the working remote for 5 seconds until the red LED illuminates.
2. Press any button on the new remote.
3. Wait 10 seconds for the system to reset before testing the remote.

If your working remote is a Ditec SLIM2-E or SLIM4-E

1. Press buttons 1 and 2 on the working remote at the same time and release them when the LED turns on for 2 seconds.
2. When the LED turns off, press buttons 1 and 2 on the working remote simultaneously and hold until the LED starts flashing.
3. When the flashing ends, press any button on the new remote.
4. Wait 10 seconds for the system to reset before testing.

Remote to Receiver Programming

For Motors Without an LCD Screen on the Control Board:

1. On the receiver, press the Programming button (PRG).
2. When the receiver’s LED illuminates, release the button.
3. Press any button on your new remote.
4. The receiver will blink and then stay lit for 10 seconds, confirming successful pairing.

For Motors With an LCD Screen on the Control Board:

1. On your receiver, there are four buttons: UP, DOWN, OK, and ESK. Above these buttons is a display screen.
2. Press OK to access the menu.
3. Scroll up or down to select RO in the menu.
4. Press OK to enter pairing mode.
5. Press any button on the new remote to pair.
6. Press OK on the receiver to confirm.

By following these steps, you will successfully program your new Ditec remote to the system.
